Built for high-pressure hose management in lubrication bays, fleet service areas, and hydraulic maintenance workstations, the Coxreels EZ-P-HPL-325 EZ-Coil spring rewind hose reel provides organized storage for a compatible 3/8" I.D. hose up to 25 ft. As part of the EZ-P Series, this reel uses Coxreels’ EZ-Coil controlled retraction system, which slows rewind speed to help reduce hose whip, protect nearby equipment, and make daily hose handling more controlled than a conventional spring rewind reel. This less hose model is rated for 4,000 PSI service when paired with the correct hose assembly, making it a fit for grease and hydraulic oil applications where pressure rating, hose O.D., and mounting footprint all matter. The single pedestal steel base, adjustable guide arm, cartridge-style spring motor, and multi-position lock ratchet support installation on floors, walls, vehicles, benches, or overhead structures depending on the workspace layout.

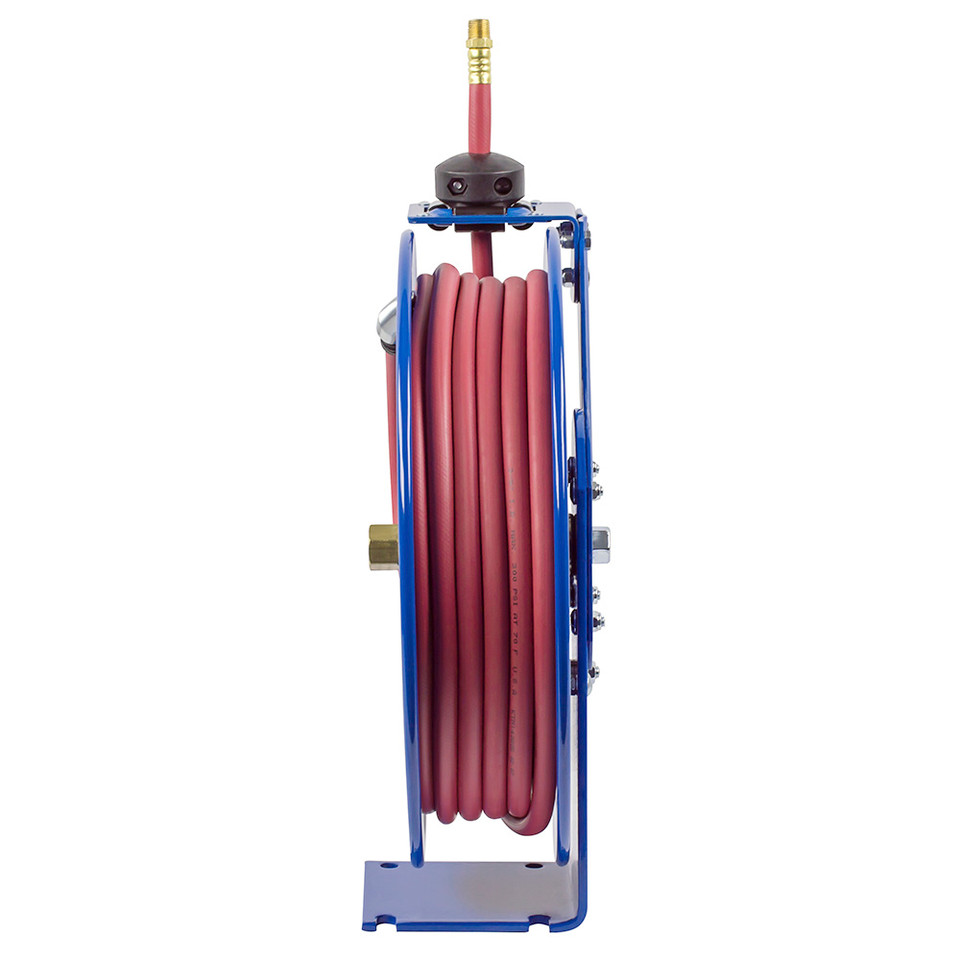

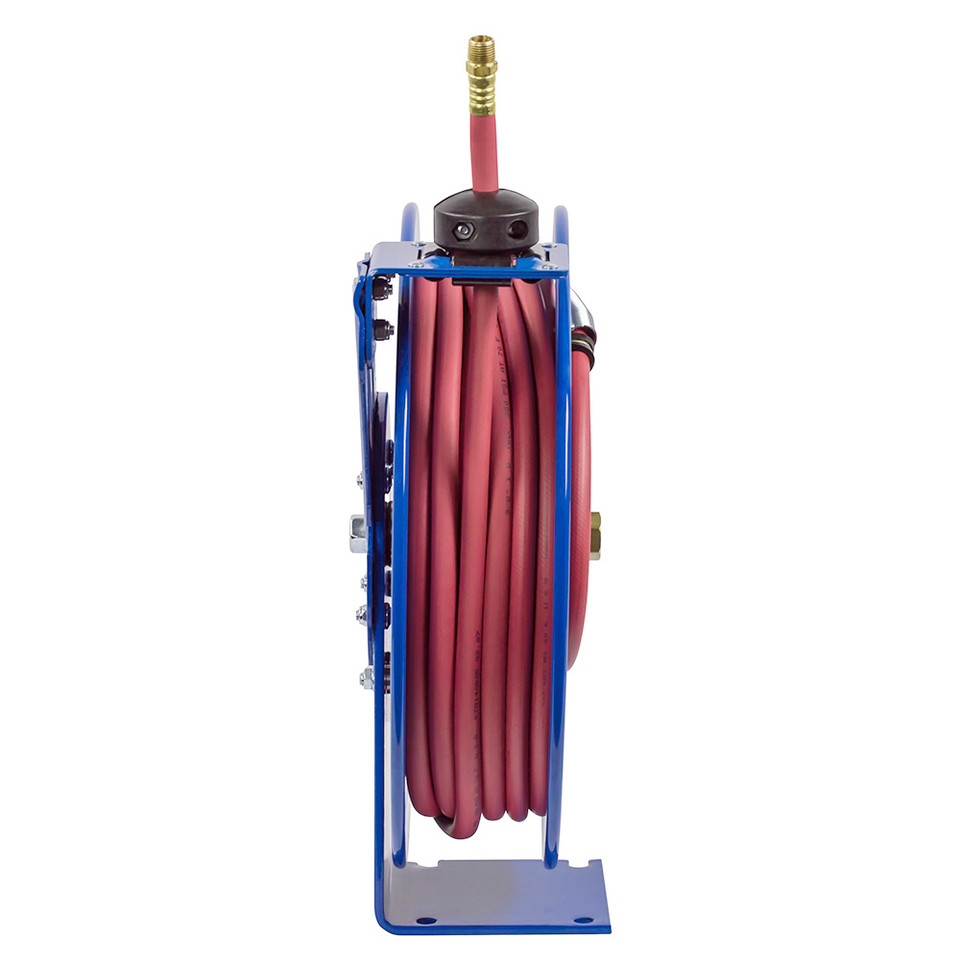

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Configuration: Less Hose | Model: EZ-P-HPL-325 | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Capacity: 25 ft | Max Pressure: 4,000 PSI | Hose Included: No | Approx. Ship Weight: 42 lbs | Service: Grease and hydraulic oil with compatible hose
Features:
- EZ-Coil controlled retraction system rewinds up to 80% slower than conventional spring driven reels to help reduce sudden hose snap-back.
- Zinc plated steel swivel on high pressure models supports the reel’s fluid path for demanding grease and hydraulic oil service.
- Swivel seals use nitrile material, a common elastomer for oil and grease handling applications.
- Sturdy single pedestal reel design saves floor or wall space while keeping hose off the ground and ready for use.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to match the way the hose is pulled in your work area.
- Solid one-piece 1/4" steel base and support post provide a stable mounting foundation without a welded base joint.
- 1" solid steel axle and lubricated precision bearings help the reel rotate smoothly during hose payout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
Made in USA:
Applications:
- Fleet maintenance shops — routing grease or hydraulic oil hose for service bays, lift areas, and vehicle repair stations.
- Industrial MRO departments — keeping high-pressure hose stored, protected, and accessible near hydraulic power units, presses, and service equipment.
- Heavy equipment service — supporting hose handling for lubrication and hydraulic maintenance on loaders, excavators, forklifts, and plant machinery.
- Mobile service vehicles — mounting to trucks or trailers where controlled rewind helps manage hose safely in compact spaces.
- Repair shops and garages — organizing compatible high-pressure hose for repeated service tasks without leaving loose hose across the floor.
FAQs:
- Q: What does “less hose” mean on the EZ-P-HPL-325?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 3/8" I.D. hose rated for the pressure, fluid, fittings, and temperature requirements of the application. - Q: Is this the same as the EZ-P-HP-325?
A: No. The EZ-P-HP-325 includes hose, while the EZ-P-HPL-325 is the less hose version. Both share the same 3/8" hose size and 4,000 PSI pressure class, but this model allows the user to install a selected compatible hose separately. - Q: What is EZ-Coil and why does it matter?
A: EZ-Coil is Coxreels’ controlled retraction system. It slows the rewind action compared with conventional spring rewind reels, which helps reduce hose whip and makes rewind more manageable in busy work areas. - Q: Can this reel be mounted overhead or on a service truck?
A: Yes. The guide arm is adjustable for wall, floor, vehicle, and overhead mounting positions. The mounting surface must be strong enough for the reel, hose, fluid load, and pull forces created during use. - Q: Can this reel be used for air or water?
A: This is a high pressure model intended for grease and hydraulic oil applications when fitted with a compatible hose. For air or water service, verify pressure, hose construction, seals, and fluid compatibility before installation.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
