Built for organized low-pressure hose storage in service shops, maintenance areas, and mobile workstations, the Coxreels EZ-P-LPL-335 EZ Coil Spring Rewind Hose Reel provides a controlled-rewind reel platform for buyers who want to install their own hose. This EZ-P Series less-hose model is sized for 3/8" hose I.D., supports up to 35 ft of hose, and is rated for 300 PSI maximum pressure, making it a practical choice for air, water, or oil service when the selected hose and fittings match the application. The EZ-Coil safety rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce sudden hose return and giving the user more control during rewind. Its single pedestal frame, one-piece 1/4" steel base, 1" solid steel axle, and lubricated precision bearings support smooth operation, while the adjustable guide arm allows wall, floor, vehicle, or overhead mounting to fit the layout of the work area.

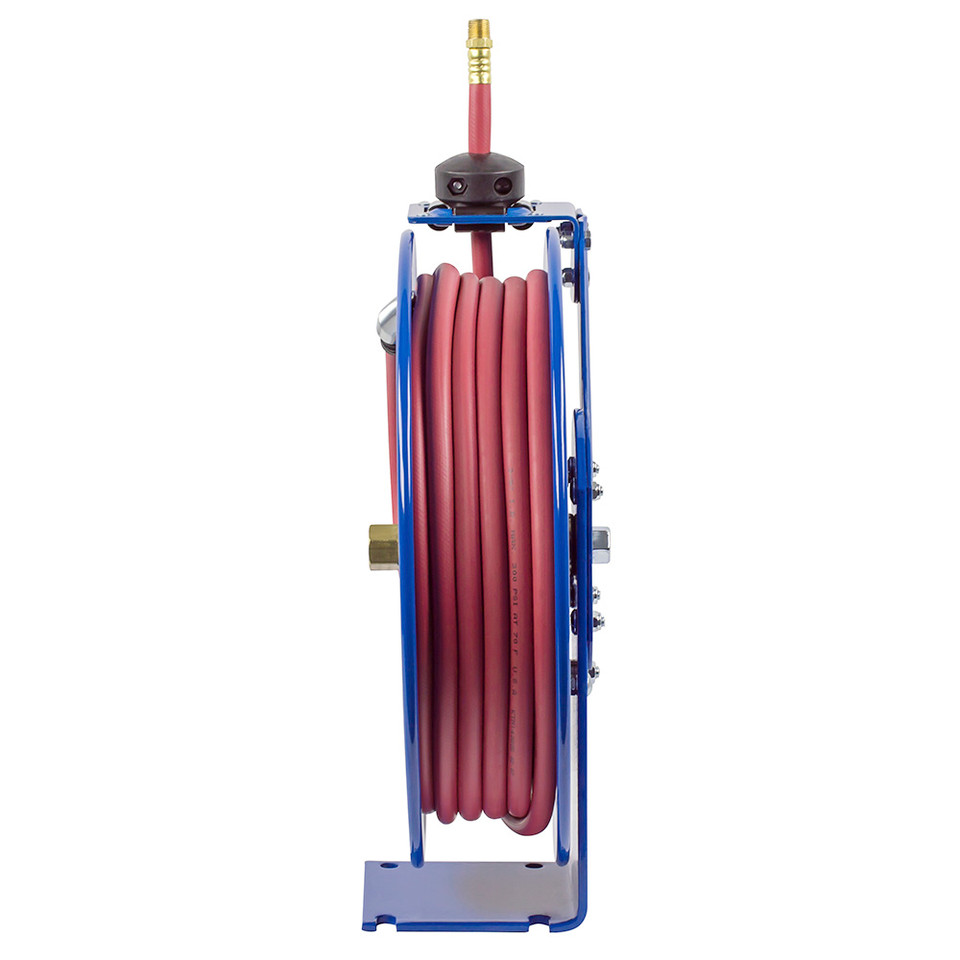

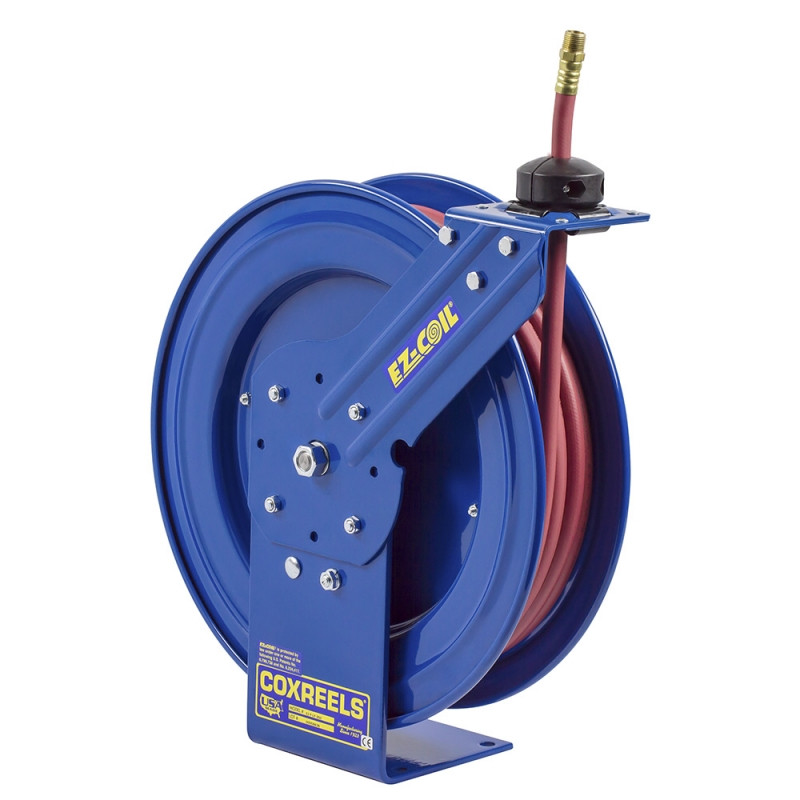

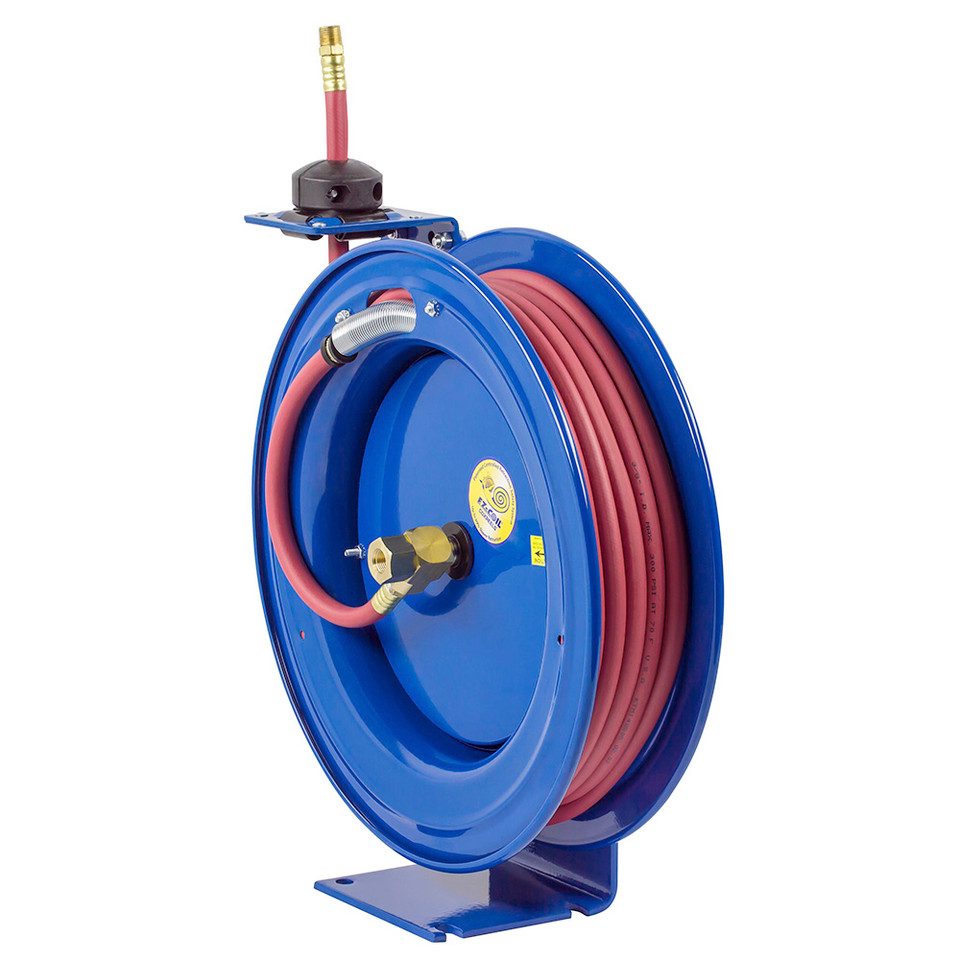

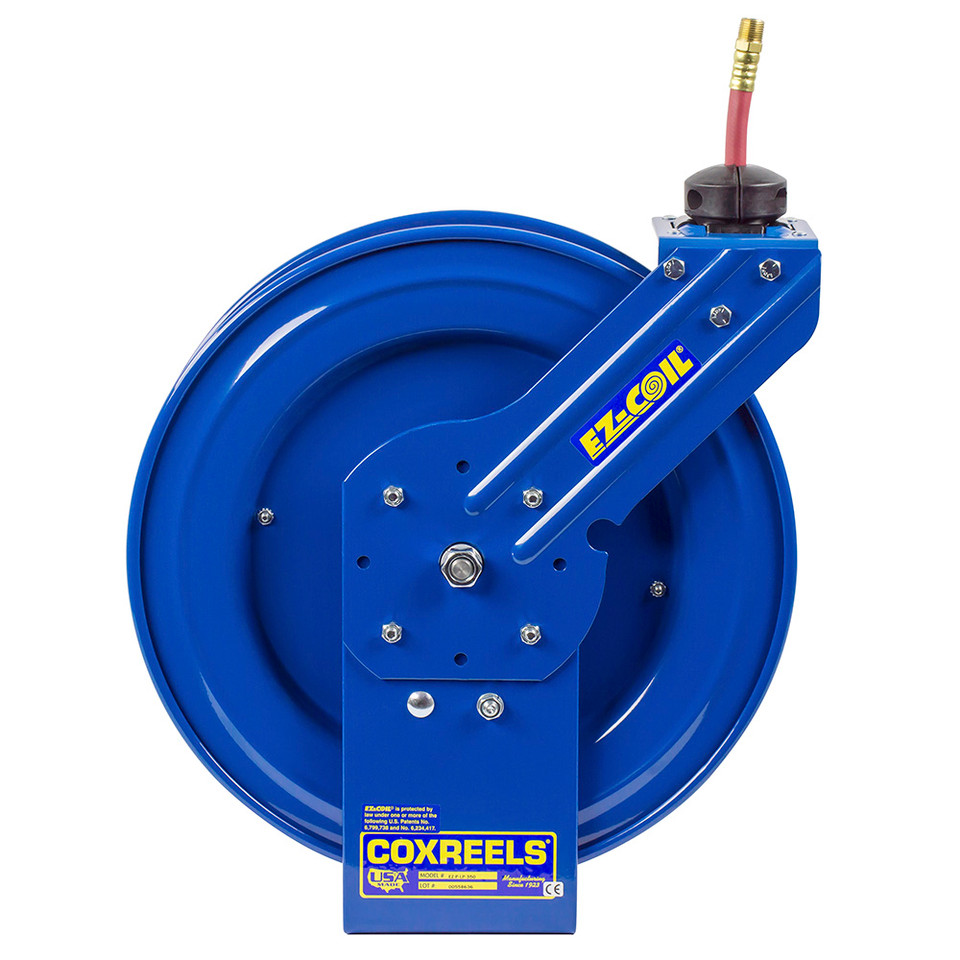

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | Model: EZ-P-LPL-335 | Configuration: Less Hose | Hose I.D.: 3/8" | Max Hose O.D.: 5/8" | Hose Capacity: 35 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Approx. Weight: 34 lbs. | Size Index: 3
Features:
- EZ-Coil controlled rewind retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet for efficient flow through the reel.
- Nitrile swivel seals support the reel’s listed low-pressure air, water, and oil service.
- Sturdy single pedestal design saves space and helps keep work areas clear of loose hose.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
- Solid one-piece 1/4" steel base and support post provide a stable mounting structure.
- 1" solid steel axle and lubricated precision bearings promote smooth reel rotation during pullout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Automotive service bays — managing shop air hose for tire work, repair stations, and general maintenance tasks.
- Industrial MRO departments — placing low-pressure hose at benches, equipment service points, and production support areas.
- Fleet and truck maintenance — keeping hose available for routine service while reducing floor clutter around vehicles.
- Mobile service trucks and trailers — adding compact hose storage where wall or vehicle mounting is preferred.
- Garage and workshop setups — pairing the reel with user-supplied 3/8" hose for common air, water, or oil handling needs within the reel rating.
FAQs:
- Q: Does the EZ-P-LPL-335 include hose?
A: No. This is a less-hose model, which means the reel is supplied without hose installed. The buyer must select compatible hose separately. - Q: What hose size should be used with this reel?
A: This model is listed for 3/8" hose I.D. with a maximum hose O.D. of 5/8". Do not exceed the listed hose O.D. if you need the full 35 ft hose capacity. - Q: What is EZ-Coil rewind?
A: EZ-Coil is Coxreels’ patented safety rewind system. It slows retraction compared with conventional spring driven reels, helping the hose return in a more controlled manner. - Q: Can this reel be mounted overhead?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead positions, allowing the reel to be installed in the orientation that best suits the work area. - Q: Can the EZ-P-LPL-335 be used for oil?
A: Yes, the manufacturer states that low-pressure less-hose models can be used for air, water, or oil. The separate hose and fittings must also be compatible with the fluid and system pressure.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | ||||||||
| EZ-P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LPL-125 | 24 | 1 |
| EZ-P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LPL-135 | 25 | 1 |
| EZ-P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LPL-150 | 35 | 3 |
| EZ-P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LPL-325 | 25 | 2 |
| EZ-P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LPL-330 | 33 | 3 |
| EZ-P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LPL-335 | 34 | 3 |
| EZ-P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LPL-350 | 36 | 3 |
| EZ-P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LPL-430 | 40 | 4 |
| EZ-P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LPL-450 | 43 | 4 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MPL-425 | 42 | 4 |
| EZ-P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MPL-430 | 43 | 4 |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.) | ||||||||
| EZ-P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HPL-125 | 42 | 4 |
| EZ-P-HP-325 | 3/8" | 11/16" | 25 | 4,000 | 49 | EZ-P-HPL-325 | 42 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
