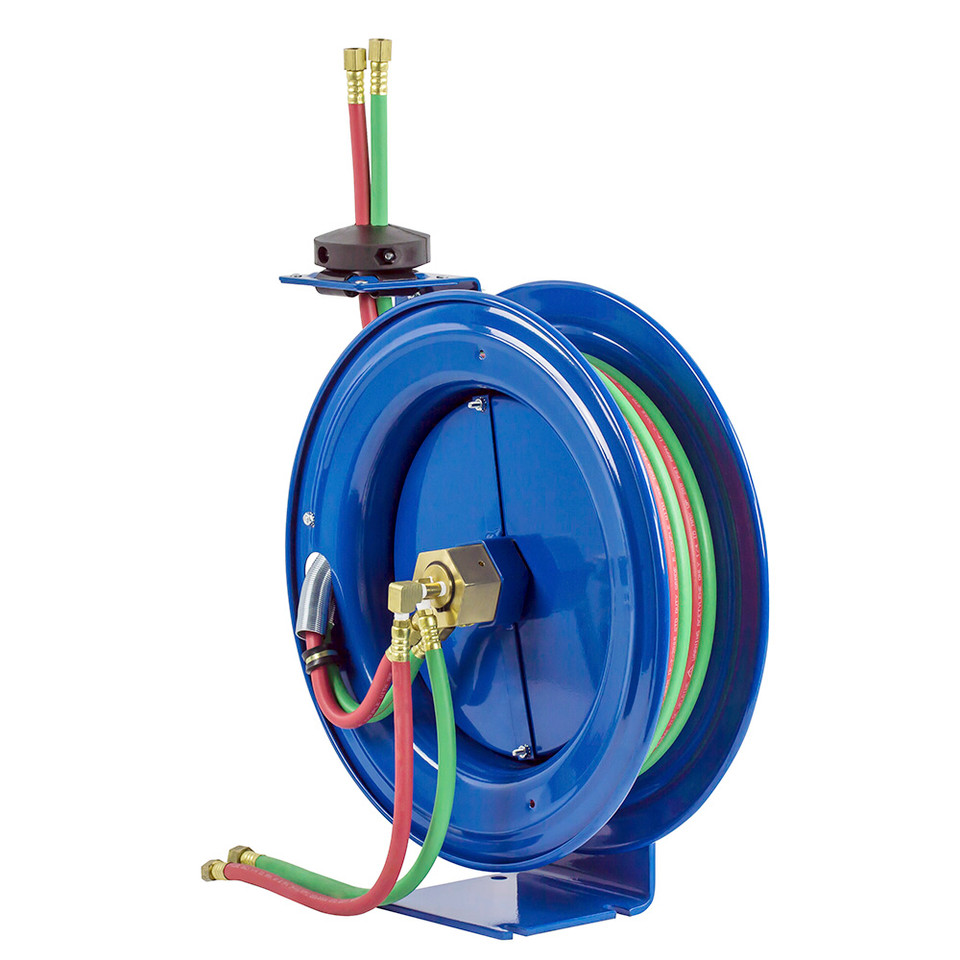

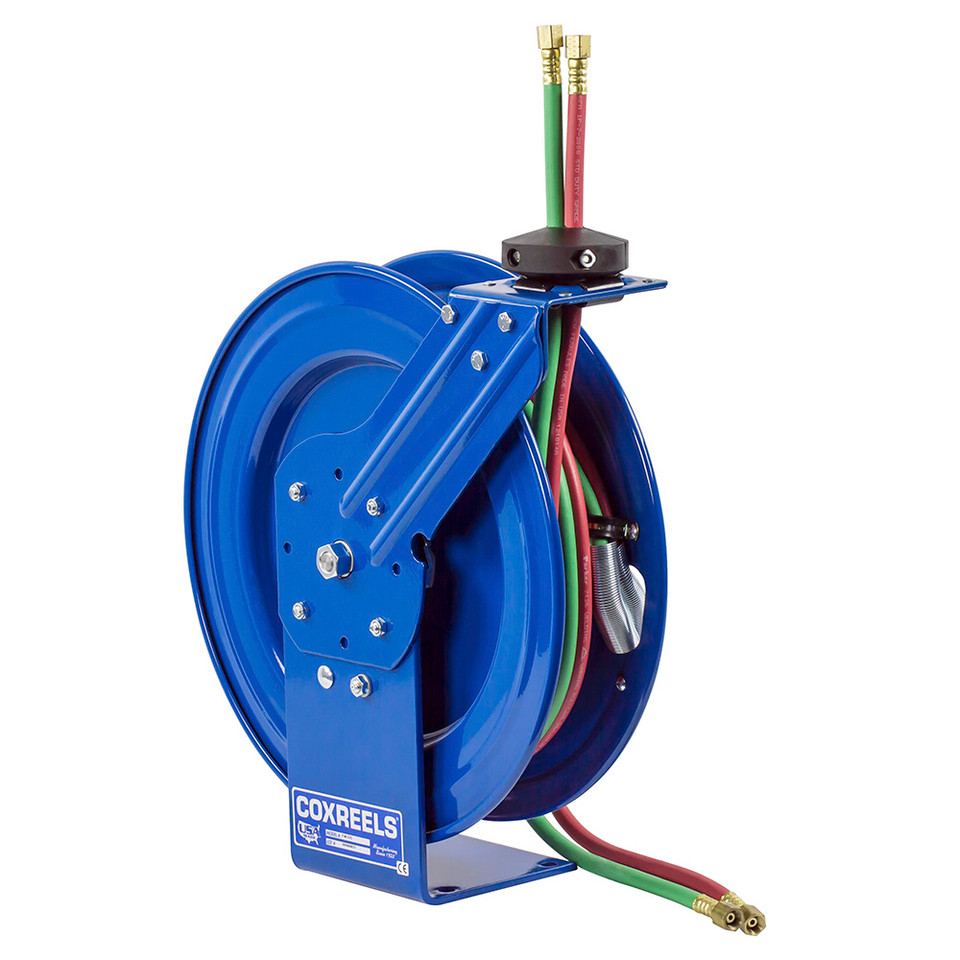

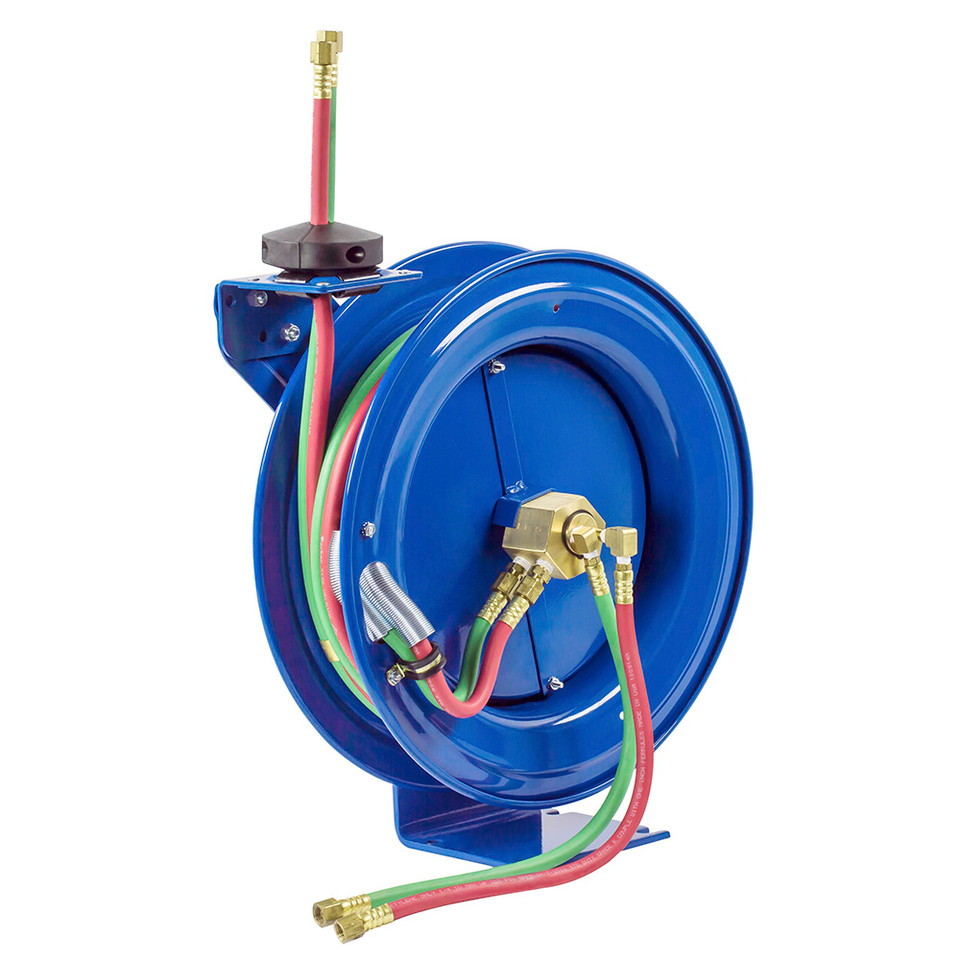

Built for welding and cutting applications that need extended working reach with automatic twin-hose storage, the Coxreels SHWT-N-175 Dual Hose Spring Rewind Hose Reel is supplied with 75 ft of 1/4" I.D. Grade T twin-line welding hose and carries a maximum working pressure of 200 PSI. Part of the SHW Series, this spring-driven reel automatically retrieves the hose after use, helping keep fabrication areas, welding stations, maintenance facilities, and mobile service setups organized. The 75-foot hose length provides additional reach compared with shorter configurations while avoiding the added hose length of a 100-foot reel.
The SHWT-N-175 incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity. Its external fluid path uses a 90-degree full-flow dual-ported brass swivel that positions both connections on the same side of the reel for convenient twin-line routing. The larger SHW Series chassis accommodates longer lengths of bulky welding hose, while the single-pedestal configuration helps conserve mounting space in fixed and mobile installations.
Type: Dual Hose Spring Rewind Welding Hose Reel | Series: SHW Series | Model: SHWT-N-175 | Hose I.D.: 1/4" | Hose Length: 75 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 80 lbs
Features:
- Supplied with 75 feet of 1/4-inch I.D. Grade T twin-line welding hose for extended working reach.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the welding hose after use.
- External fluid path incorporates a 90-degree full-flow dual-ported brass swivel.
- Both fluid connections are positioned on the same side of the reel for convenient twin-line hose routing.
- Larger SHW Series chassis and frame accommodate longer lengths of bulky welding hose.
- Single-pedestal configuration helps conserve mounting space in fixed and mobile installations.
- 200 PSI maximum working pressure matches the manufacturer-specified SHWT-N-175 configuration.
Made in USA:
Applications:
- Welding and fabrication shops using Grade T twin-line hose with compatible fuel-gas systems.
- Manufacturing and maintenance facilities requiring additional hose reach across larger work areas.
- Mobile welding trucks and service units that need organized onboard storage for twin-line welding hose.
- Repair and MRO operations performing compatible welding, cutting, heating, and brazing work.
- Workstations where a 75-foot hose provides extended reach while automatic spring rewind keeps the hose stored between jobs.
FAQs:
- Q: Does the Coxreels SHWT-N-175 include welding hose?
A: Yes. The SHWT-N-175 is supplied with 75 feet of 1/4-inch I.D. Grade T twin-line welding hose. - Q: What is the maximum working pressure of the SHWT-N-175?
A: The reel is rated for a maximum working pressure of 200 PSI. - Q: What distinguishes the SHWT-N-175 from the SHW-N-175?
A: The SHWT-N-175 is supplied with Grade T welding hose, while the SHW-N-175 uses the corresponding standard welding hose configuration. Hose selection should match the gas service and operating requirements of the application. - Q: What is the purpose of the dual-ported swivel?
A: The 90-degree full-flow dual-ported brass swivel provides separate flow paths for the twin-line hose while positioning both connections on the same side of the reel. - Q: Is a less-hose version of this reel available?
A: Yes. The SHWTL-N-175 is the corresponding less-hose configuration, while the SHWT-N-175 is supplied with Grade T welding hose.
| SKU | I.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| OXYGEN-ACETYLENE - Hose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended. | ||||||||
| P-W-125 | 1/4" | 25 | 200 | 46 | EZ-P-W-125 | P-WL-125† | 39 | 1 |
| P-W-135 | 1/4" | 35 | 200 | 48 | - | P-WL-135† | 40 | 1 |
| P-W-140 | 1/4" | 40 | 200 | 51 | - | P-WL-140† | 42 | 1 |
| SHW-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHW-150 | SHWL-N-150† | 52 | 2 |
| SHW-N-160 | 1/4" | 60 | 200 | 76 | - | SHWL-N-160† | 61 | 3 |
| SHW-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHW-175 | SHWL-N-175† | 63 | 3 |
| SHW-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHW-1100 | SHWL-N-1100 | 62 | 3 |
| OTHER FUELS - Hose supplied on reel is twin-siamese type grade “T.” Grade “T” reels and hoses are used for a wide variety of gases, such as MAPP, propane, natural and fuel. | ||||||||
| P-WT-125 | 1/4" | 25 | 200 | 46 | EZ-P-WT-125 | P-WTL-125† | 39 | 1 |
| SHWT-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHWT-150 | SHWTL-N-150† | 52 | 2 |
| SHWT-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHWT-175 | SHWTL-N-175† | 63 | 3 |
| SHWT-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHWT-1100 | SHWTL-N-1100 | 62 | 3 |
