Built for welding operations that require automatic twin-hose management with separately selected hose, the Coxreels SHWL-N-150 Dual Hose Spring Rewind Hose Reel provides capacity for up to 50 ft of 1/4" I.D. twin-line welding hose and carries a maximum working pressure of 200 PSI. Part of the SHW Series, this less-hose model combines spring-powered retrieval with the larger SHW chassis, giving welding shops, fabrication facilities, maintenance departments, and service vehicles a practical way to organize compatible welding hose between jobs.
The SHWL-N-150 incorporates Coxreels' Super Hub dual axle support system, which increases stability during operation, reduces vibration, and strengthens structural integrity. Its external fluid path uses a 90-degree full-flow dual-ported brass swivel that places both connections on the same side of the reel for convenient twin-line routing. The single-pedestal configuration helps conserve mounting space, while the less-hose format allows compatible welding hose to be selected separately for the intended gas service and operating requirements.

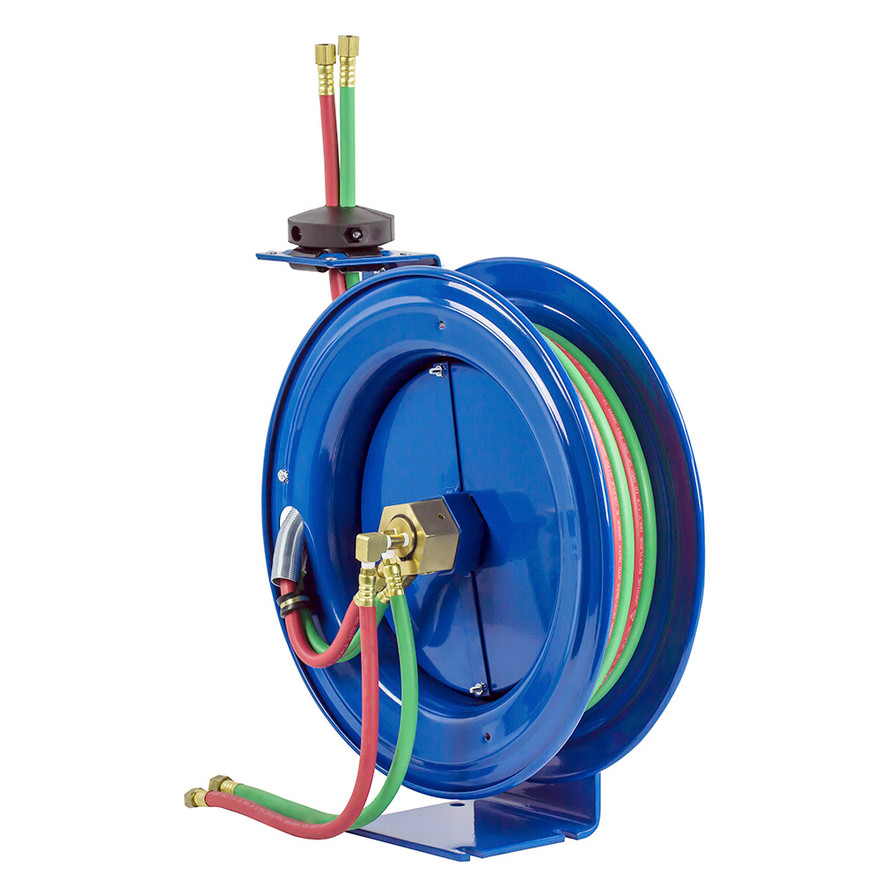

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hose Spring Rewind Welding Hose Reel | Series: SHW Series | Model: SHWL-N-150 | Hose Included: No | Hose I.D.: 1/4" | Hose Length: 50 ft | Max Pressure: 200 PSI | Approx. Weight: 52 lbs
Features:
- Less-hose configuration provides capacity for up to 50 feet of compatible 1/4-inch I.D. twin-line welding hose.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves compatible welding hose for organized storage after use.
- External fluid path incorporates a 90-degree full-flow dual-ported brass swivel.
- Both fluid connections are positioned on the same side of the reel for convenient twin-line hose routing.
- Larger SHW Series chassis and frame accommodate longer lengths of welding hose than the more compact P-W Series.
- Single-pedestal configuration helps conserve mounting space and support workplace organization.
- Less-hose design allows compatible welding hose to be selected separately for the intended service requirements.
Applications:
- Welding and fabrication shops requiring automatic storage for separately selected twin-line welding hose.
- Manufacturing and maintenance facilities where spring rewind helps keep welding hose organized between jobs.
- Mobile welding trucks and service vehicles requiring a space-conscious reel for compatible twin welding hose.
- Repair and MRO operations performing welding, cutting, heating, or brazing with appropriately selected hose and equipment.
- Welding hose applications operating within the reel's manufacturer-specified 200 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels SHWL-N-150 include welding hose?
A: No. The SHWL-N-150 is a less-hose reel and is supplied without hose. It provides capacity for up to 50 feet of compatible 1/4-inch I.D. twin-line welding hose. - Q: What does "less hose" mean for the SHWL-N-150?
A: The reel is supplied without welding hose installed. The buyer must select compatible twin-line hose separately according to the intended gas service, pressure rating, and operating requirements. - Q: What is the maximum working pressure of the SHWL-N-150?
A: The reel is rated for a maximum working pressure of 200 PSI. The separately selected hose and connected system components must also be suitable for the intended application. - Q: What is the purpose of the dual-ported swivel?
A: The 90-degree full-flow dual-ported brass swivel provides separate flow paths for twin-line welding hose while positioning both connections on the same side of the reel. - Q: What is the corresponding hose-equipped model?
A: The SHW-N-150 is the corresponding hose-equipped configuration, while the SHWL-N-150 is supplied without hose.
| SKU | I.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| OXYGEN-ACETYLENE - Hose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended. | ||||||||
| P-W-125 | 1/4" | 25 | 200 | 46 | EZ-P-W-125 | P-WL-125† | 39 | 1 |
| P-W-135 | 1/4" | 35 | 200 | 48 | - | P-WL-135† | 40 | 1 |
| P-W-140 | 1/4" | 40 | 200 | 51 | - | P-WL-140† | 42 | 1 |
| SHW-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHW-150 | SHWL-N-150† | 52 | 2 |
| SHW-N-160 | 1/4" | 60 | 200 | 76 | - | SHWL-N-160† | 61 | 3 |
| SHW-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHW-175 | SHWL-N-175† | 63 | 3 |
| SHW-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHW-1100 | SHWL-N-1100 | 62 | 3 |
| OTHER FUELS - Hose supplied on reel is twin-siamese type grade “T.” Grade “T” reels and hoses are used for a wide variety of gases, such as MAPP, propane, natural and fuel. | ||||||||
| P-WT-125 | 1/4" | 25 | 200 | 46 | EZ-P-WT-125 | P-WTL-125† | 39 | 1 |
| SHWT-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHWT-150 | SHWTL-N-150† | 52 | 2 |
| SHWT-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHWT-175 | SHWTL-N-175† | 63 | 3 |
| SHWT-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHWT-1100 | SHWTL-N-1100 | 62 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
