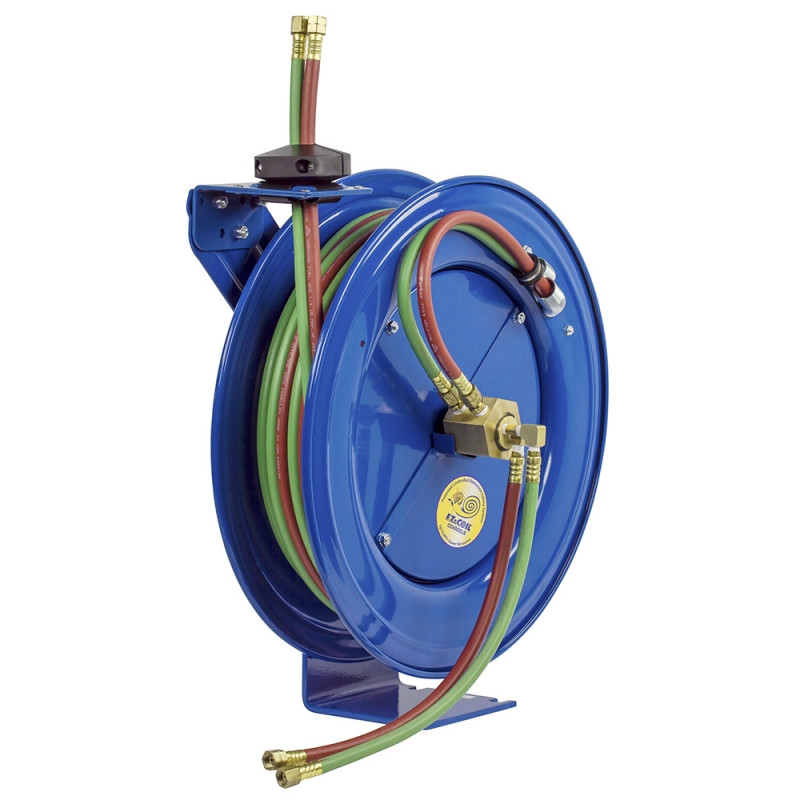

Coxreels EZ-SHW-1100 Dual Hose Spring Rewind Hose Reel | EZ-SHW Series | 1/4" Hose Diameter | 100' Hose Length | 200 Max PSI

Designed for controlled welding hose storage across extended work areas, the Coxreels EZ-SHW-1100 Dual Hose Spring Rewind Hose Reel is an EZ-Coil equipped SHW Series reel built to manage bulky twin-line welding hose. This model includes 1/4" I.D. x 100 ft hose and is rated for 200 PSI maximum pressure, making it useful for welding shops, fabrication bays, maintenance departments, service vehicles, and repair facilities that need long oxygen-acetylene hose reach with slower, more controlled rewind. The EZ-SHW-1100 uses Coxreels’ EZ-Coil safety system, which retracts hose up to 80% slower than conventional spring rewind reels to help reduce whip hazard and improve operator control during rewind. The SHW Series uses a larger chassis and Coxreels’ Super Hub dual axle support system for increased stability during operation, less vibration, and greater structural integrity. Its external dual-ported brass swivel places both welding gas connections on the same side of the reel for easier installation and service access, while the included twin-siamese hose is intended for oxygen-acetylene welding service.

Type: Dual Hose Spring Rewind Hose Reel | Series: EZ-SHW Series | Configuration: Hose Included | Application: Oxygen-Acetylene Welding Gas | Hose I.D.: 1/4" | Hose Length: 100 ft | Max Pressure: 200 PSI | Hose Type: Twin-Siamese Welding Hose | Swivel: Dual-Ported Brass | Seal Material: Viton® | Approx. Weight: 84 lbs | Overall Dimensions: 10-1/4" W x 25-1/2" H x 24" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• EZ-Coil® controlled retraction system rewinds up to 80% slower than conventional spring rewind reels to support safer hose return.
• Dual hose design manages bulky twin-line welding hose from one spring-driven reel body.
• Included 1/4" x 100 ft oxygen-acetylene twin-siamese hose provides extended reach for larger welding bays, fabrication areas, maintenance zones, and mobile service layouts.
• SHW Series frame uses a larger chassis than compact P-W Series reels to accommodate longer lengths of welding hose.
• Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
• External 90° full-flow dual-ported brass swivel places both welding gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, bench, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.

Made in USA:

2 Year Warranty

Applications:

• Oxygen-acetylene welding and cutting stations that need retractable twin-hose storage with controlled rewind.
• Fabrication shops and welding bays where 100 ft hose reach helps cover larger work zones from a fixed reel location.
• Maintenance, repair, and operations departments using gas welding equipment near machinery, benches, equipment service zones, or plant work areas.
• Welding and service trucks where hose organization, controlled retraction, and long working reach are important during field work.
• Automotive, fleet, construction, railroad, mining, pipeline, and garage settings using oxygen-acetylene hose assemblies.

FAQs:

• Q: Does the Coxreels EZ-SHW-1100 include hose?
  A: Yes. This model includes 1/4" I.D. x 100 ft twin-siamese welding hose for oxygen-acetylene service.
• Q: What does EZ-Coil® do?
  A: EZ-Coil® is Coxreels’ controlled retraction safety system. It rewinds the hose up to 80% slower than a conventional spring rewind reel to help improve control during hose return.
• Q: What is the difference between EZ-SHW and EZ-P-W reels?
  A: EZ-SHW reels use the larger SHW Series chassis for longer welding hose lengths and include the Super Hub™ dual axle support system. EZ-P-W models are more compact and are typically used for shorter welding hose configurations.
• Q: What gas service is this reel intended for?
  A: This W Series model is intended for oxygen-acetylene welding gas service. Confirm hose grade, regulator connections, fittings, and gas compatibility before installation.
• Q: Can this reel be used with propane, MAPP, natural gas, or other fuel gases?
  A: For other fuel gases, Coxreels lists Grade “T” hose versions such as corresponding WT models. Use the W model for oxygen-acetylene service unless the gas system requirements specify a different hose grade.
