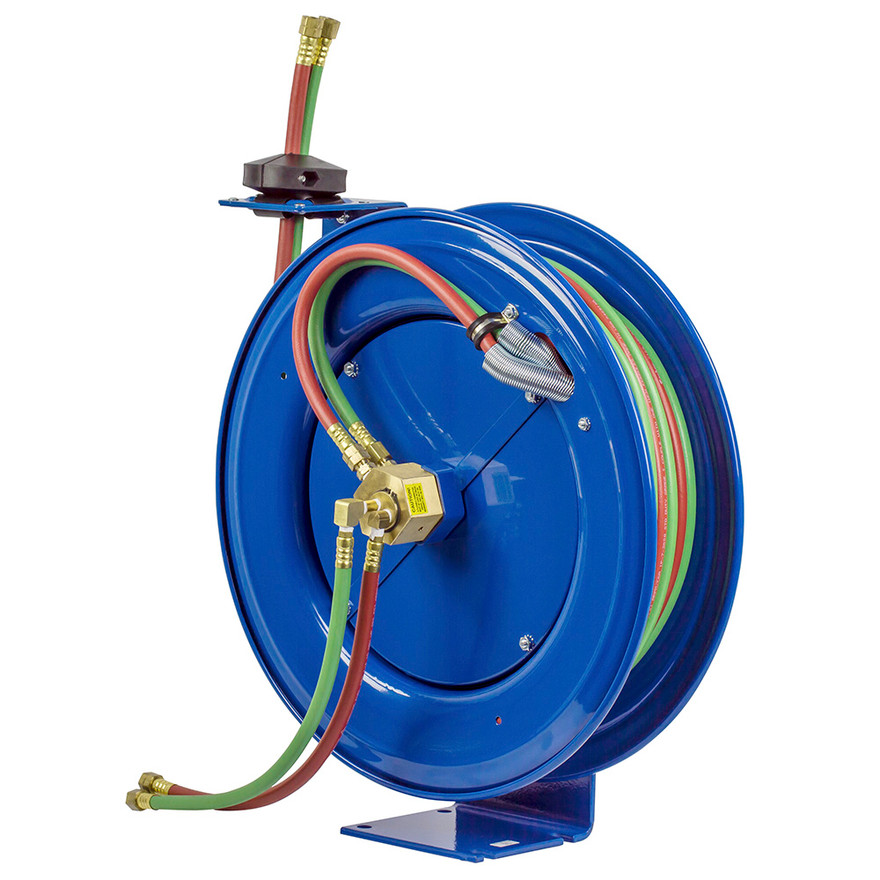

Built for managing bulky twin-line welding hose in fabrication shops, welding stations, maintenance facilities, and mobile service setups, the Coxreels SHW-N-150 Dual Hose Spring Rewind Hose Reel is supplied with 50 ft of 1/4" I.D. welding hose and carries a maximum working pressure of 200 PSI. Part of the SHW Series, this reel uses automatic spring rewind to retrieve the hose after use, helping keep welding areas organized and reducing loose hose around the work zone. The larger SHW Series chassis accommodates longer welding hose lengths while Coxreels' Super Hub dual axle support system increases stability, reduces vibration, and strengthens the reel structure during operation.
The SHW-N-150 uses an external fluid path with a 90-degree full-flow dual-ported brass swivel, placing both connections on the same side of the reel for convenient twin-hose routing. Its single-pedestal configuration helps conserve mounting space, while the spring-driven mechanism provides automatic hose retrieval between jobs. Coxreels specifies the SHW Series for welding hose management and offers configurations for oxy-acetylene and Grade T welding hose applications.
Type: Dual Hose Spring Rewind Welding Hose Reel | Series: SHW Series | Model: SHW-N-150 | Hose I.D.: 1/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 64 lbs
Features:
- Spring-driven rewind automatically retrieves twin-line welding hose for organized storage after use.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Larger SHW Series chassis and frame accommodate longer lengths of welding hose.
- External fluid path incorporates a 90-degree full-flow dual-ported brass swivel.
- Both fluid connections are positioned on the same side of the reel for convenient welding hose routing.
- Single-pedestal configuration helps conserve mounting space in fixed and mobile installations.
- Supplied 50-foot, 1/4-inch I.D. twin-line hose supports compatible welding applications.
- 200 PSI maximum working pressure matches the manufacturer-specified SHW-N-150 configuration.
Made in USA:
Applications:
- Welding and fabrication shops managing twin-line welding hose around individual workstations and production areas.
- Mobile welding trucks and service vehicles requiring automatic hose storage between jobs.
- Maintenance and MRO departments using compatible welding hose for routine repair and fabrication work.
- Manufacturing facilities where controlled hose payout and automatic retrieval help keep welding areas organized.
- Compatible oxy-acetylene or Grade T welding hose applications operating within the reel's specified pressure rating.
FAQs:
- Q: Does the Coxreels SHW-N-150 include welding hose?
A: Yes. Coxreels lists the SHW-N-150 with 50 feet of 1/4-inch I.D. twin-line welding hose. - Q: What is the maximum working pressure of the SHW-N-150?
A: The reel is rated for a maximum working pressure of 200 PSI. - Q: What is the purpose of the dual-ported swivel?
A: The 90-degree full-flow dual-ported brass swivel provides separate paths for the twin welding hose and positions both connections on the same side of the reel. - Q: What does the Super Hub system do?
A: Coxreels' Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens the structural integrity of the reel. - Q: How much space does the SHW-N-150 require?
A: Coxreels lists overall dimensions of approximately 10-1/4 inches wide by 21-1/4 inches high by 19-1/2 inches long.
| SKU | I.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| OXYGEN-ACETYLENE - Hose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended. | ||||||||
| P-W-125 | 1/4" | 25 | 200 | 46 | EZ-P-W-125 | P-WL-125† | 39 | 1 |
| P-W-135 | 1/4" | 35 | 200 | 48 | - | P-WL-135† | 40 | 1 |
| P-W-140 | 1/4" | 40 | 200 | 51 | - | P-WL-140† | 42 | 1 |
| SHW-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHW-150 | SHWL-N-150† | 52 | 2 |
| SHW-N-160 | 1/4" | 60 | 200 | 76 | - | SHWL-N-160† | 61 | 3 |
| SHW-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHW-175 | SHWL-N-175† | 63 | 3 |
| SHW-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHW-1100 | SHWL-N-1100 | 62 | 3 |
| OTHER FUELS - Hose supplied on reel is twin-siamese type grade “T.” Grade “T” reels and hoses are used for a wide variety of gases, such as MAPP, propane, natural and fuel. | ||||||||
| P-WT-125 | 1/4" | 25 | 200 | 46 | EZ-P-WT-125 | P-WTL-125† | 39 | 1 |
| SHWT-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHWT-150 | SHWTL-N-150† | 52 | 2 |
| SHWT-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHWT-175 | SHWTL-N-175† | 63 | 3 |
| SHWT-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHWT-1100 | SHWTL-N-1100 | 62 | 3 |
