Coxreels P-WL-125 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 25' Hose Length | 200 Max PSI | Less Hose

Designed for compact welding hose storage without factory-installed hose, the Coxreels P-WL-125 Dual Hose Spring Rewind Hose Reel is a P-W Series reel-only configuration for twin-line welding hose applications. This model is configured less hose and is sized for 1/4" I.D. hose with up to 25 ft hose capacity and a 200 PSI maximum pressure rating, making it useful for welding benches, fabrication stations, service vehicles, repair bays, and maintenance areas where users prefer to install their own compatible hose assembly. The P-WL-125 provides retractable storage for dual welding hose while leaving hose selection to the buyer. Its external dual-ported brass swivel places both gas connections on the same side of the reel for easier access during installation and service. Because this model is supplied without hose, the selected hose, fittings, gas compatibility, and connection layout should be matched to the welding or cutting system requirements before installation.

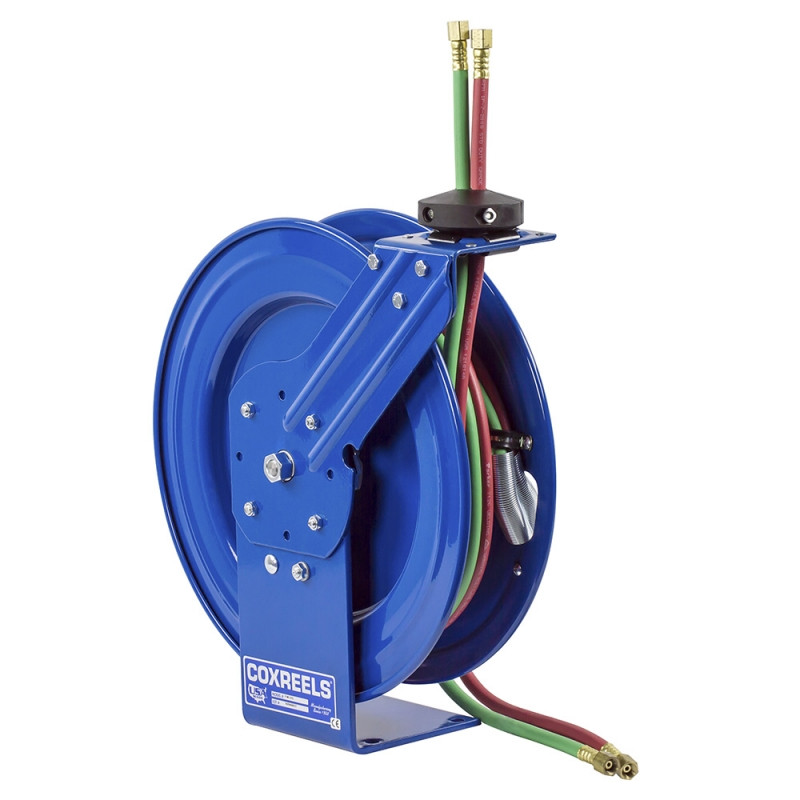

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Spring Rewind Hose Reel | Series: P-W Series | Configuration: Less Hose | Application: Welding Gas Hose Storage | Hose I.D.: 1/4" | Hose Capacity: 25 ft | Max Pressure: 200 PSI | Swivel: Dual-Ported Brass | Seal Material: Viton® | Overall Dimensions: 8-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• Less-hose configuration allows the buyer to install compatible twin-line welding hose separately for the intended gas service and connection layout.
• Dual hose reel design manages paired welding lines from one compact spring rewind reel body.
• 25 ft hose capacity is suited for localized welding benches, repair bays, service trucks, and compact fabrication stations.
• External 90° full-flow dual-ported brass swivel places both gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Solid one-piece steel base and support post provide a stable single-pedestal mounting platform.
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.
• Chip-resistant and rust-inhibiting CPC™ powder coat finish supports long-term use in shop and service environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and cutting stations where customer-supplied twin-line hose is preferred for compatibility or standardization.
• Fabrication shops and repair bays that need compact retractable storage for paired welding gas lines.
• Maintenance departments using welding equipment near benches, machinery, equipment service areas, or utility points.
• Welding trucks and mobile service vehicles where a compact reel-only hose management setup is needed.
• Automotive, fleet, garage, construction, railroad, mining, and pipeline service environments using compatible welding hose assemblies.

FAQs:

• Q: What does “less hose” mean on the Coxreels P-WL-125?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible twin-line welding hose assembly separately, staying within the listed 1/4" hose size, 25 ft capacity, and 200 PSI pressure rating.
• Q: Does this reel include oxygen-acetylene hose?
  A: No. The P-WL-125 is the less-hose version and does not include hose. If a factory hose is required, review the corresponding P-W hose-included model for the desired hose grade and length.
• Q: What is the purpose of the dual-ported swivel?
  A: The dual-ported swivel routes both welding gas lines through the reel and places both connections on the same side, helping simplify installation and service access.
• Q: Can I choose my own welding hose for this reel?
  A: Yes. This reel-only configuration is intended for users who want to install their own compatible hose. The hose grade, fittings, gas type, pressure rating, and temperature suitability should be verified before use.
• Q: Can the P-WL-125 be mounted on a wall or service vehicle?
  A: Yes. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting positions when the reel is installed on a suitable structure.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
