Coxreels P-WTL-125 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 25' Hose Length | 200 Max PSI | Less Hose

Designed for compact Grade “T” twin-line welding hose storage without factory-installed hose, the Coxreels P-WTL-125 Dual Hose Spring Rewind Hose Reel is a P-W Series reel-only configuration for welding and alternate fuel gas hose applications. This model is configured less hose and is sized for 1/4" I.D. hose with up to 25 ft hose capacity and a 200 PSI maximum pressure rating, making it useful for welding benches, fabrication stations, service vehicles, repair bays, and maintenance areas where users want to install their own compatible twin-line hose assembly. The P-WTL-125 provides spring rewind storage for paired welding gas lines while leaving hose grade, fittings, and connection details to the buyer. Its external dual-ported brass swivel places both gas connections on the same side of the reel for easier installation and service access. Because this model is supplied without hose, the selected hose assembly should be matched to the intended oxygen-acetylene or alternate fuel gas service, including hose grade, pressure rating, fitting style, temperature suitability, and applicable safety requirements.

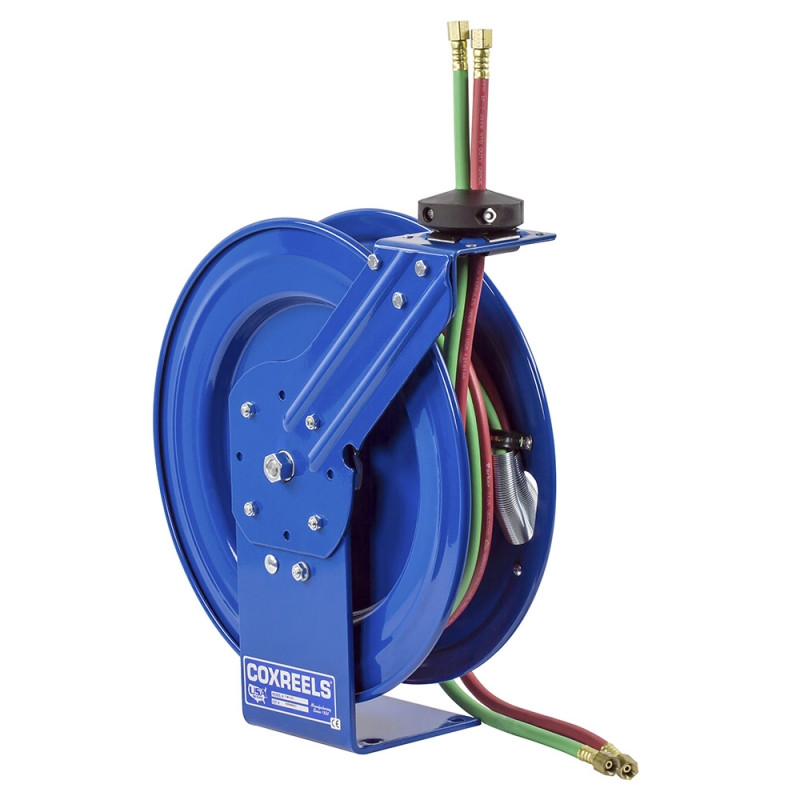

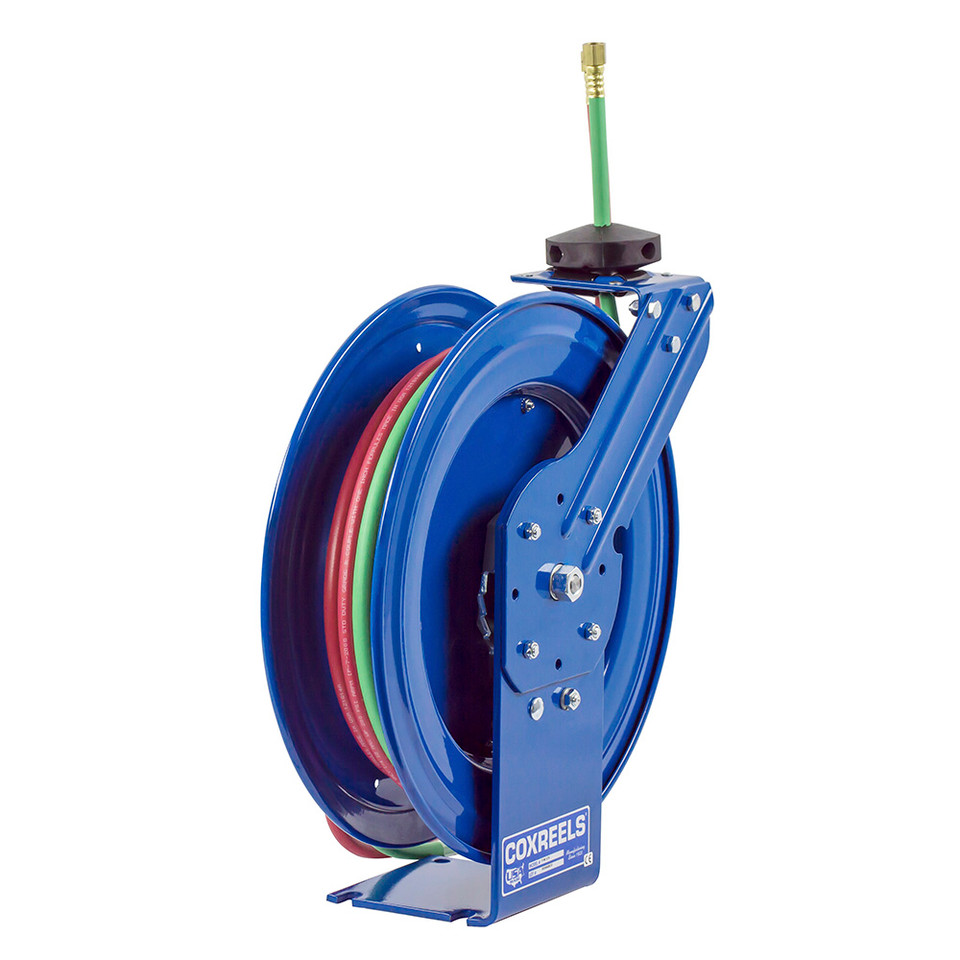

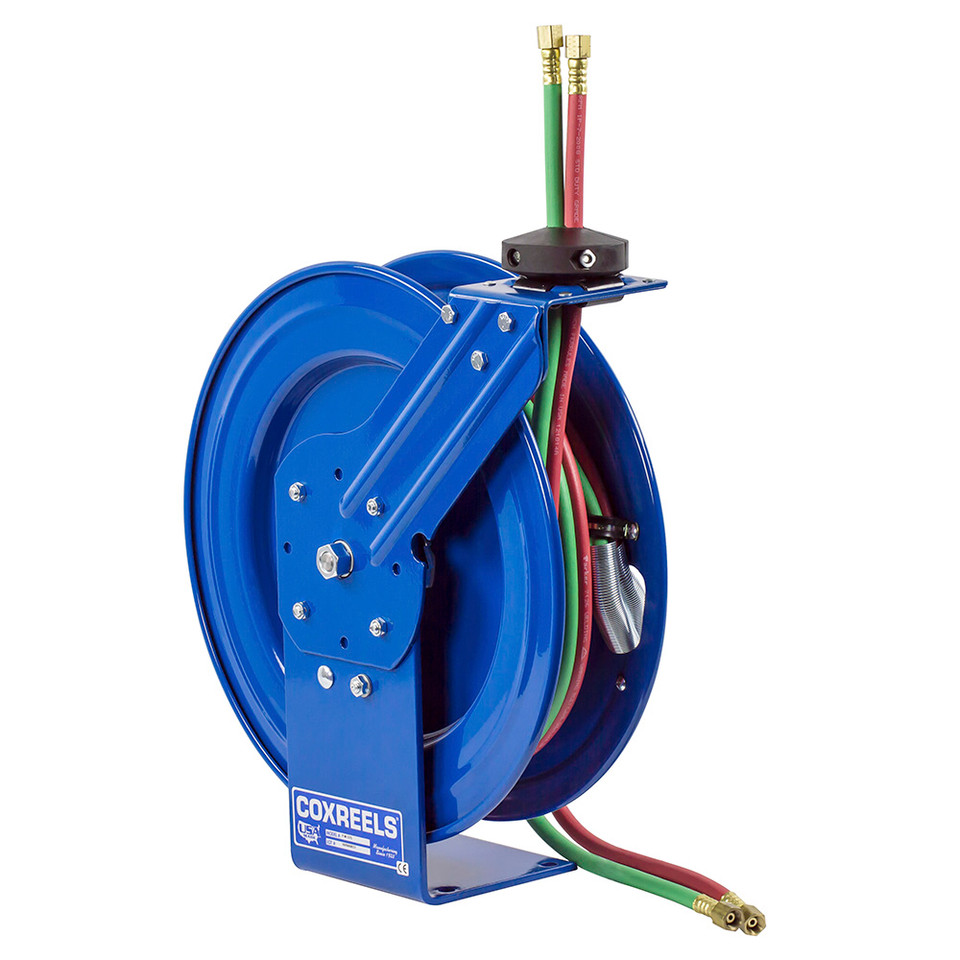

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Spring Rewind Hose Reel | Series: P-W Series | Configuration: Less Hose | Application: Welding Gas / Alternate Fuel Gas Hose Storage | Hose I.D.: 1/4" | Hose Capacity: 25 ft | Max Pressure: 200 PSI | Swivel: Dual-Ported Brass | Seal Material: Viton | Overall Dimensions: 8-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• Less-hose configuration allows the buyer to install compatible twin-line welding hose separately for the intended gas service and connection layout.
• P-WTL configuration is suited for applications where the buyer is selecting hose for Grade “T” welding or alternate fuel gas service requirements.
• Dual hose reel design manages paired welding gas lines from one compact spring rewind reel body.
• 25 ft hose capacity is well suited for localized welding benches, repair bays, service trucks, and compact fabrication stations.

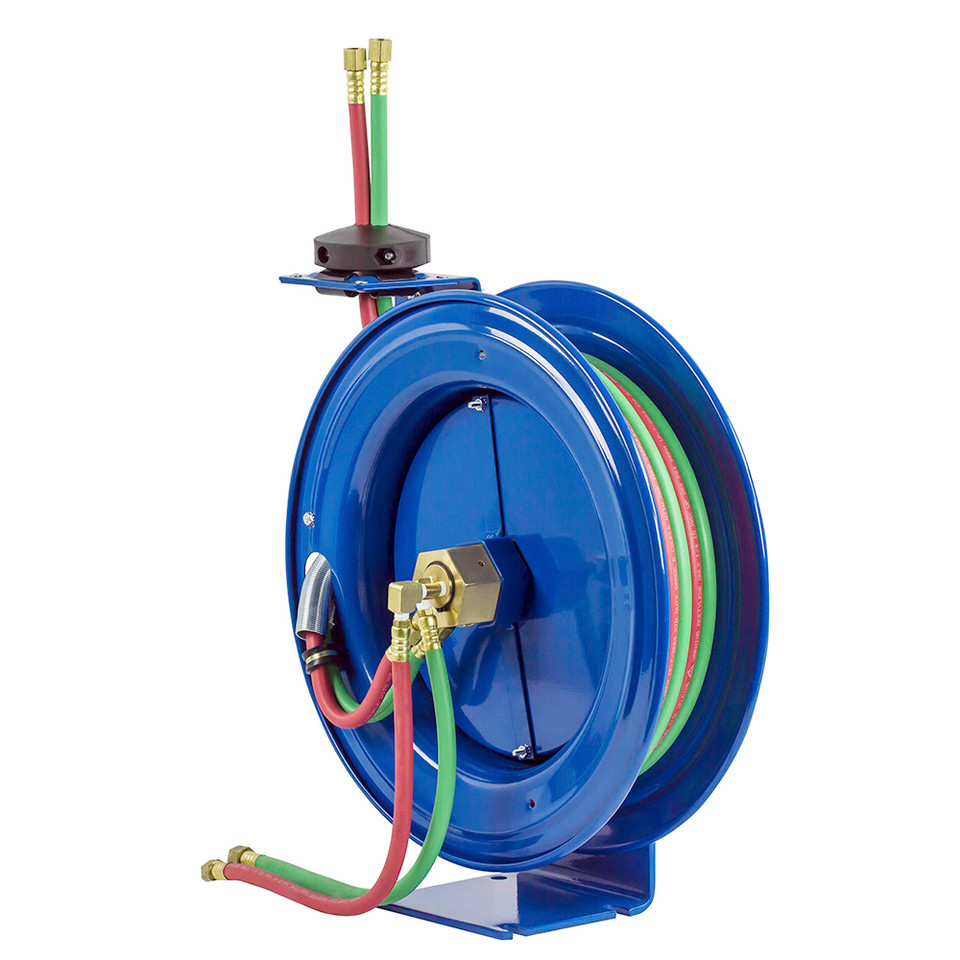

• External 90° full-flow dual-ported brass swivel places both gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas and fuel gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Solid one-piece steel base and support post provide a stable single-pedestal mounting platform.
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.
• Chip-resistant and rust-inhibiting CPC™ powder coat finish supports long-term use in shop and service environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and cutting stations where customer-supplied twin-line hose is preferred for hose grade selection, fitting choice, or shop standardization.
• Fabrication shops and repair bays that need compact retractable storage for paired welding gas or alternate fuel gas lines.
• Maintenance departments using welding equipment near benches, machinery, utility points, or equipment service areas.
• Welding trucks and mobile service vehicles where a compact reel-only hose management setup is needed.
• Automotive, fleet, garage, construction, railroad, mining, and pipeline service environments using compatible Grade “T” hose assemblies.

FAQs:

• Q: What does “less hose” mean on the Coxreels P-WTL-125?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible twin-line welding hose assembly separately, staying within the listed 1/4" hose size, 25 ft capacity, and 200 PSI pressure rating.
• Q: Does this reel include Grade “T” welding hose?
  A: No. The P-WTL-125 is the less-hose version and does not include hose. The buyer must provide a compatible hose assembly separately.
• Q: What is the difference between P-WL and P-WTL models?
  A: P-WL models are less-hose welding reel configurations commonly paired with oxygen-acetylene hose requirements. P-WTL models are less-hose configurations intended for buyers selecting compatible hose for Grade “T” or alternate fuel gas applications.
• Q: What is the purpose of the dual-ported swivel?
  A: The dual-ported swivel routes both welding gas lines through the reel and places both connections on the same side, helping simplify installation and service access.
• Q: Can this reel be used with propane, MAPP gas, or natural gas?
  A: This reel-only configuration allows the buyer to select compatible hose for the intended gas service. For alternate fuel gases, use the proper hose grade, fittings, regulator connections, and safety practices required for that gas system.
• Q: Can the P-WTL-125 be mounted on a wall or service vehicle?
  A: Yes. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting positions when the reel is installed on a suitable structure.
