Coxreels P-WL-140 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 40' Hose Length | 200 Max PSI | Less Hose

Designed for compact welding hose storage with a longer 40 ft capacity, the Coxreels P-WL-140 Dual Hose Spring Rewind Hose Reel is a P-W Series reel-only configuration for twin-line welding hose applications. This model is configured less hose and is sized for 1/4" I.D. hose with up to 40 ft hose capacity and a 200 PSI maximum pressure rating, making it useful for welding benches, fabrication stations, service vehicles, repair bays, and maintenance areas where users prefer to install their own compatible hose assembly. The P-WL-140 provides retractable storage for paired welding gas hose while leaving hose grade, fittings, and connection details to the buyer. Its external dual-ported brass swivel places both gas connections on the same side of the reel for easier installation and service access. Because this model is supplied without hose, the selected hose assembly should be matched to the welding or cutting gas system requirements, including pressure rating, hose grade, gas compatibility, fitting style, and temperature suitability.

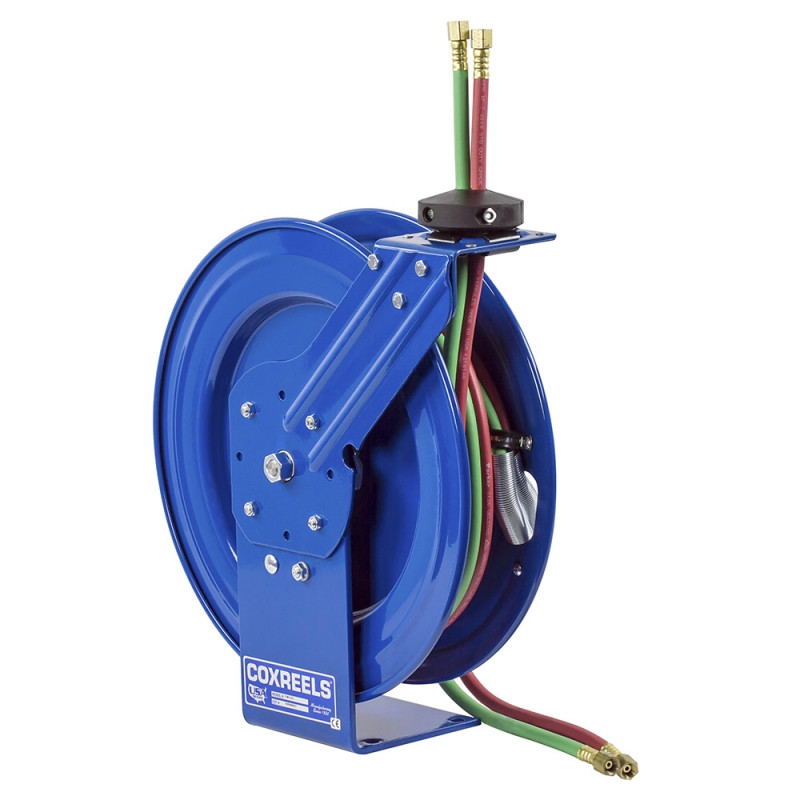

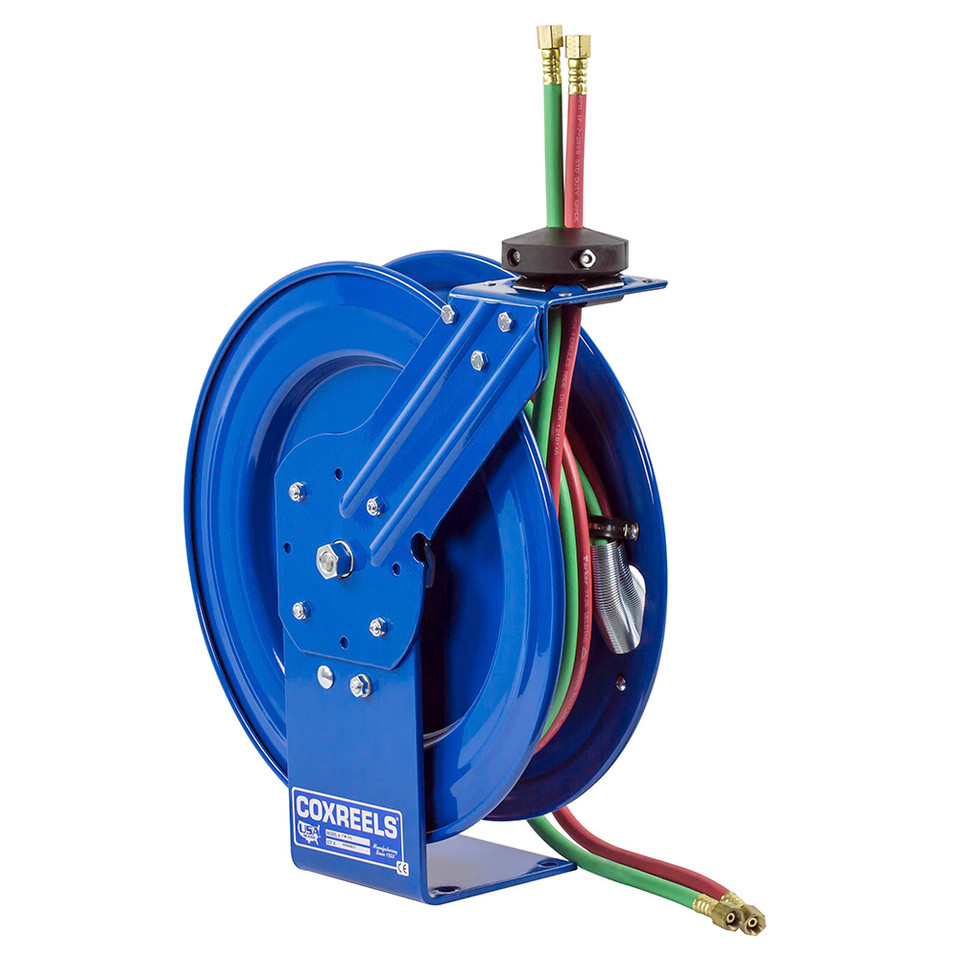

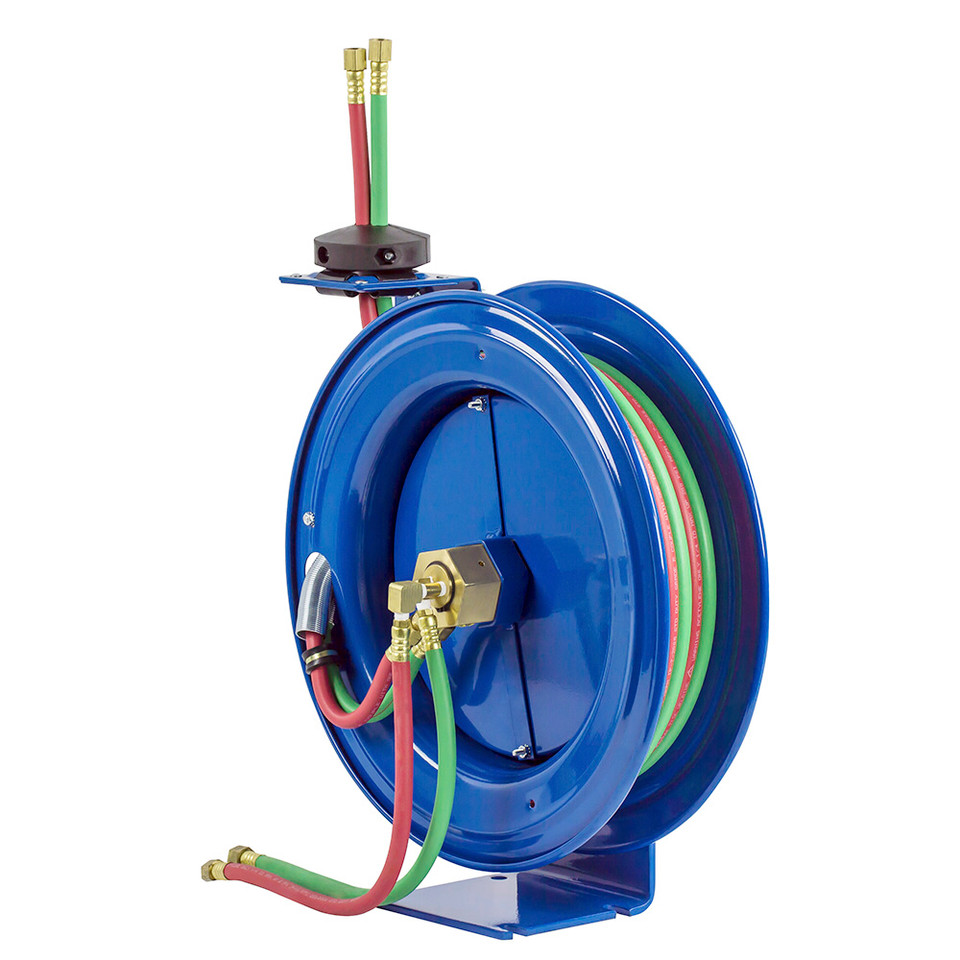

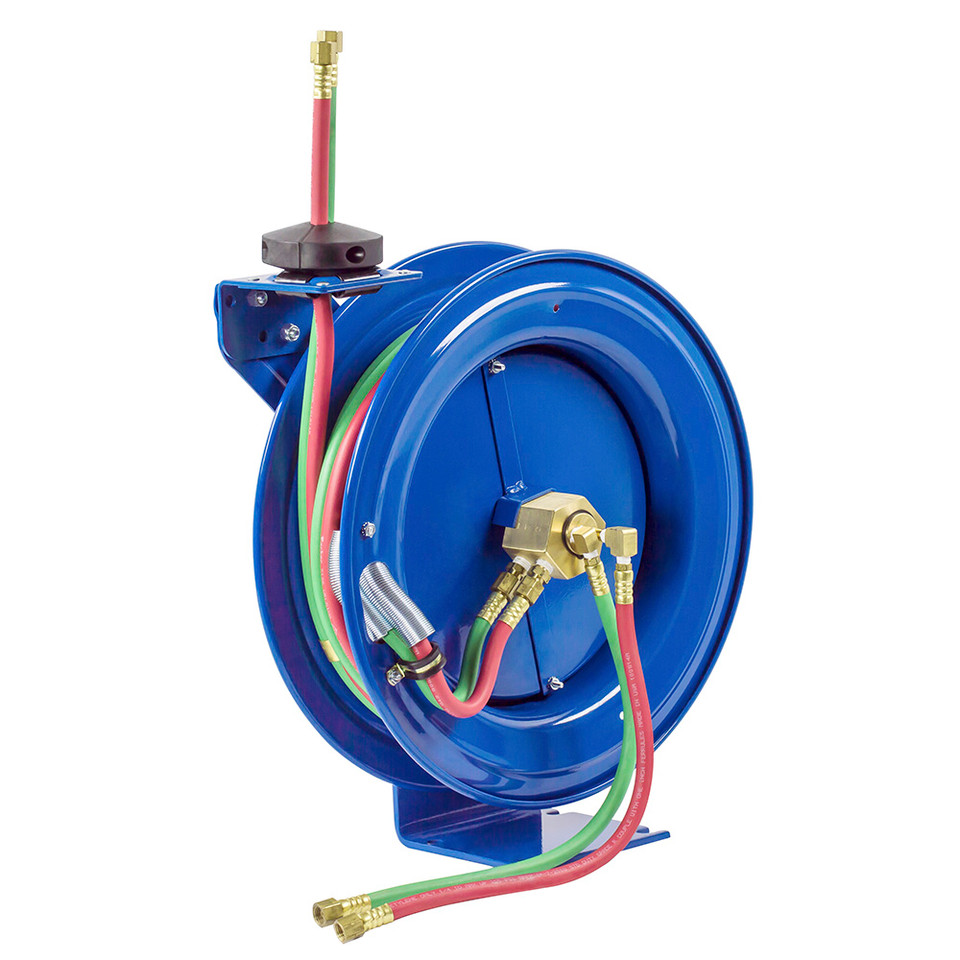

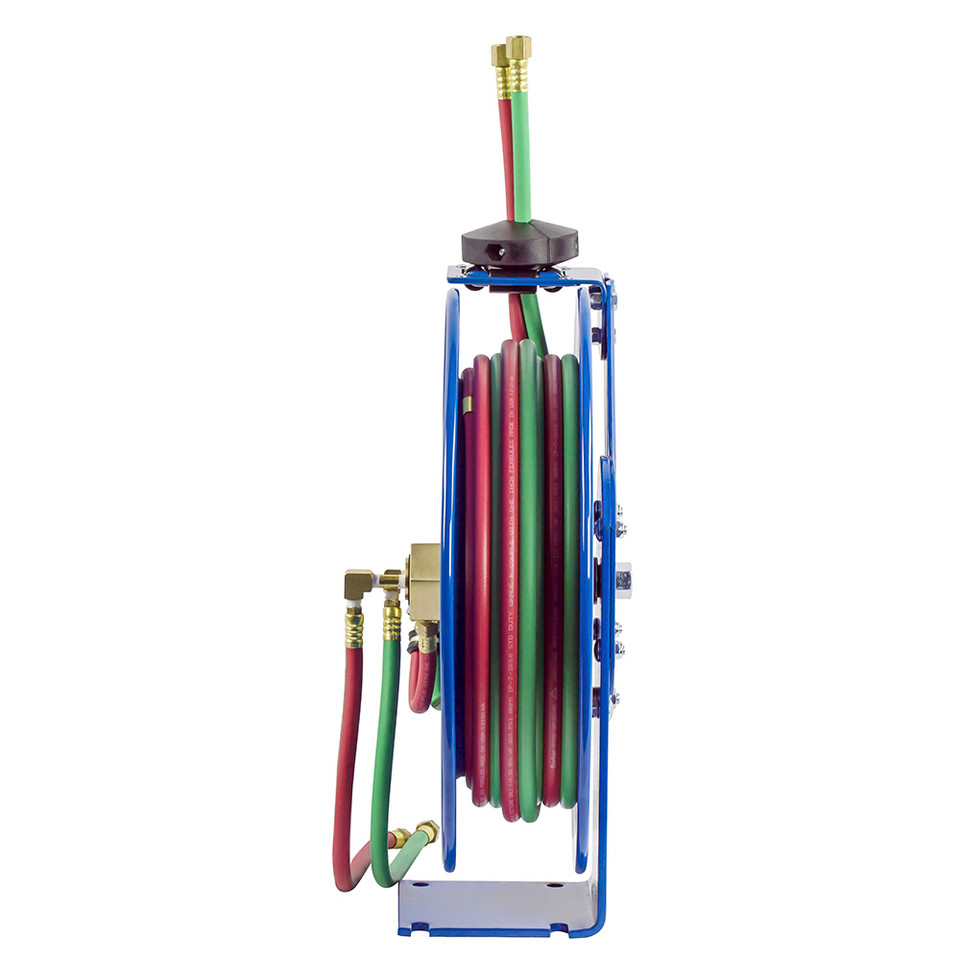

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Spring Rewind Hose Reel | Series: P-W Series | Configuration: Less Hose | Application: Welding Gas Hose Storage | Hose I.D.: 1/4" | Hose Capacity: 40 ft | Max Pressure: 200 PSI | Swivel: Dual-Ported Brass | Seal Material: Viton® | Overall Dimensions: 8-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• Less-hose configuration allows the buyer to install compatible twin-line welding hose separately for the intended gas service and connection layout.
• Dual hose reel design manages paired welding lines from one compact spring rewind reel body.
• 40 ft hose capacity provides added reach for work areas that need more range than 25 ft or 35 ft compact welding reel configurations.
• External 90° full-flow dual-ported brass swivel places both gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Solid one-piece steel base and support post provide a stable single-pedestal mounting platform.
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.
• Chip-resistant and rust-inhibiting CPC™ powder coat finish supports long-term use in shop and service environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and cutting stations where customer-supplied twin-line hose is preferred for compatibility, hose grade selection, or facility standardization.
• Fabrication shops and repair bays that need compact retractable storage for paired welding gas lines with moderate working reach.
• Maintenance departments using welding equipment near benches, machinery, equipment service areas, or utility points.
• Welding trucks and mobile service vehicles where a reel-only hose management setup is needed for buyer-selected hose assemblies.
• Automotive, fleet, garage, construction, railroad, mining, and pipeline service environments using compatible welding hose assemblies.

FAQs:

• Q: What does “less hose” mean on the Coxreels P-WL-140?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible twin-line welding hose assembly separately, staying within the listed 1/4" hose size, 40 ft capacity, and 200 PSI pressure rating.
• Q: Does this reel include welding hose?
  A: No. The P-WL-140 is the less-hose version and does not include hose. If factory-installed hose is required, review the corresponding P-W hose-included model with the desired hose grade and length.
• Q: What is the purpose of the dual-ported swivel?
  A: The dual-ported swivel routes both welding gas lines through the reel and places both connections on the same side, helping simplify installation and service access.
• Q: Can I install Grade R or Grade T hose on this reel?
  A: This reel-only configuration allows the buyer to choose compatible hose separately. Select the hose grade required for the gas service, and verify fittings, pressure rating, temperature suitability, and applicable safety requirements before use.
• Q: Can the P-WL-140 be mounted on a wall, ceiling, floor, or service vehicle?
  A: Yes. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting positions when the reel is installed on a suitable structure.
