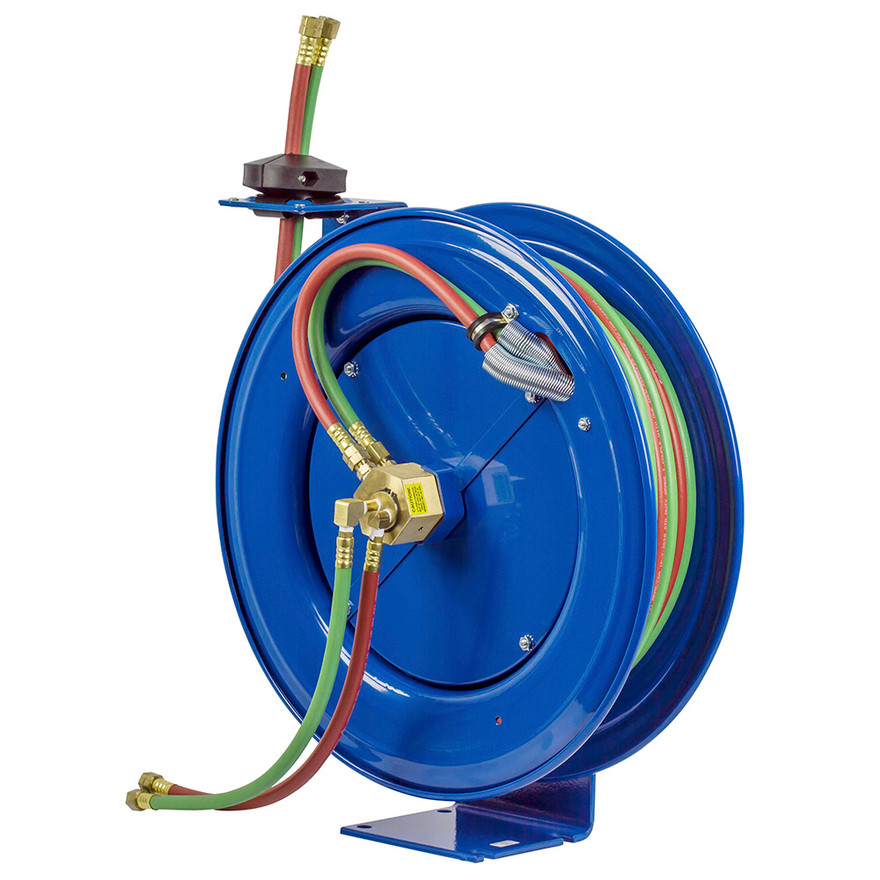

Built for welding operations that require extended hose reach and automatic retrieval, the Coxreels SHW-N-1100 Dual Hose Spring Rewind Hose Reel is supplied with 100 ft of 1/4" I.D. twin-siamese welding hose and carries a maximum working pressure of 200 PSI. Part of the SHW Series, this reel is configured for oxygen-acetylene welding service and uses spring-powered rewind to retrieve the hose after use. The 100-foot hose length provides additional working range across larger fabrication areas, maintenance facilities, welding shops, and mobile service setups.
The SHW-N-1100 incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity. Its external fluid path uses a 90-degree full-flow dual-ported brass swivel that places both connections on the same side of the reel, simplifying twin-hose routing. The single-pedestal configuration helps conserve mounting space, while the larger SHW Series chassis accommodates the longer 100-foot welding hose assembly.
Type: Dual Hose Spring Rewind Welding Hose Reel | Series: SHW Series | Model: SHW-N-1100 | Hose I.D.: 1/4" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 84 lbs
Features:
- Supplied with 100 feet of 1/4-inch I.D. twin-siamese welding hose for extended working reach.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the welding hose after use.
- External fluid path incorporates a 90-degree full-flow dual-ported brass swivel.
- Both hose connections are positioned on the same side of the reel for convenient twin-line routing.
- Single-pedestal reel configuration helps conserve mounting space and support workplace organization.
- Larger SHW Series chassis and frame accommodate longer lengths of welding hose.
- 200 PSI maximum working pressure matches the manufacturer-specified welding hose configuration.
Made in USA:
Applications:
- Welding and fabrication shops requiring extended oxygen-acetylene hose reach across larger work areas.
- Manufacturing and maintenance facilities managing twin welding hose between fixed gas supply locations and workstations.
- Mobile welding trucks, trailers, and service units requiring organized storage for long welding hose runs.
- Repair and MRO operations performing compatible welding, cutting, heating, and brazing work.
- Large work areas where automatic spring rewind helps keep 100-foot twin welding hose assemblies stored between jobs.
FAQs:
- Q: Does the Coxreels SHW-N-1100 include welding hose?
A: Yes. The SHW-N-1100 is supplied with 100 feet of 1/4-inch I.D. twin-siamese welding hose. - Q: What type of welding service is the SHW-N-1100 intended for?
A: Coxreels lists the SHW-N-1100 in the oxygen-acetylene section of the SHW Series. The reel is rated for a maximum working pressure of 200 PSI. - Q: What is the purpose of the dual-ported swivel?
A: The 90-degree full-flow dual-ported brass swivel provides separate fluid paths for the twin welding hose while positioning both connections on the same side of the reel. - Q: Why choose the 100-foot SHW-N-1100 configuration?
A: The 100-foot hose provides additional reach across larger welding and fabrication areas where shorter hose assemblies may not reach the work without repositioning the reel or gas supply. - Q: Is a less-hose version of this reel available?
A: Yes. Coxreels lists the SHWL-N-1100 as the corresponding less-hose configuration, while the SHW-N-1100 is supplied with welding hose.
| SKU | I.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| OXYGEN-ACETYLENE - Hose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended. | ||||||||
| P-W-125 | 1/4" | 25 | 200 | 46 | EZ-P-W-125 | P-WL-125† | 39 | 1 |
| P-W-135 | 1/4" | 35 | 200 | 48 | - | P-WL-135† | 40 | 1 |
| P-W-140 | 1/4" | 40 | 200 | 51 | - | P-WL-140† | 42 | 1 |
| SHW-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHW-150 | SHWL-N-150† | 52 | 2 |
| SHW-N-160 | 1/4" | 60 | 200 | 76 | - | SHWL-N-160† | 61 | 3 |
| SHW-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHW-175 | SHWL-N-175† | 63 | 3 |
| SHW-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHW-1100 | SHWL-N-1100 | 62 | 3 |
| OTHER FUELS - Hose supplied on reel is twin-siamese type grade “T.” Grade “T” reels and hoses are used for a wide variety of gases, such as MAPP, propane, natural and fuel. | ||||||||
| P-WT-125 | 1/4" | 25 | 200 | 46 | EZ-P-WT-125 | P-WTL-125† | 39 | 1 |
| SHWT-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHWT-150 | SHWTL-N-150† | 52 | 2 |
| SHWT-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHWT-175 | SHWTL-N-175† | 63 | 3 |
| SHWT-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHWT-1100 | SHWTL-N-1100 | 62 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
