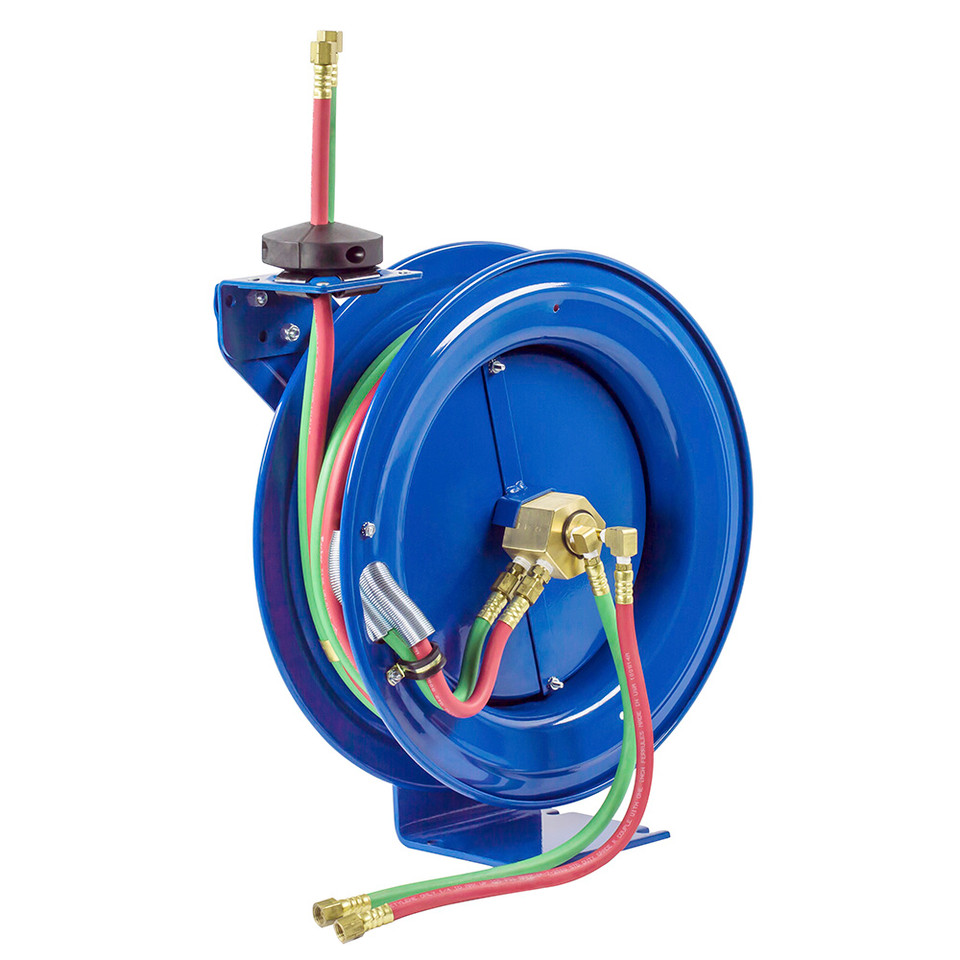

Coxreels P-W-135 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 35' Hose Length | 200 Max PSI

Built for welding operations that need a compact reel with a little more hose reach, the Coxreels P-W-135 Dual Hose Spring Rewind Hose Reel is supplied with 35 ft of 1/4" I.D. twin-siamese oxy-acetylene welding hose and carries a maximum working pressure of 200 PSI. Part of the P-W Series, this spring-driven reel automatically retrieves the hose after use, helping keep welding and fabrication areas organized while reducing loose twin-line hose around the workspace. Its compact single-pedestal design is suited to fixed workstations, service trucks, and other installations where mounting space is limited.

The P-W-135 features an external fluid path with a 90-degree full-flow dual-ported brass swivel, providing both hose connections from the same side of the reel for straightforward routing. VITON swivel seals and a swivel lock bracket support the welding-service configuration, while the guide arm adjusts for wall, floor, and overhead mounting positions. A multi-position non-sparking lock ratchet secures the hose at the desired working length before the enclosed cartridge-style spring motor retrieves it.

Type: Dual Hose Spring Rewind Welding Hose Reel | Series: P-W Series | Model: P-W-135 | Hose I.D.: 1/4" | Hose Length: 35 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 48 lbs

Features:

• External fluid path with a 90-degree full-flow dual-ported brass swivel provides both connections from the same side of the reel.
• Swivel lock bracket helps secure the swivel assembly during operation.
• VITON swivel seals support the reel's welding-service configuration.
• Single-pedestal design saves space and helps improve workplace organization.
• Guide arm adjusts for wall, floor, and overhead mounting positions.
• Solid one-piece, heavy-gauge 1/4-inch steel base and support post provide maximum stability.
• 1-inch solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
• Multi-position non-sparking lock ratchet mechanism secures the hose at the desired working length.
• Rolled edges, ribbed discs, and the proprietary CPC powder coat process add strength, safety, and surface protection.

Made in USA:

2 Year Warranty

Applications:

• Welding shops requiring organized storage and automatic retrieval of twin-line oxy-acetylene hose.
• Fabrication and manufacturing workstations where a compact reel helps keep welding hose controlled between jobs.
• Maintenance, repair, and operations departments performing compatible welding and cutting tasks.
• Welding and service trucks that need a space-saving spring rewind reel with 35 feet of working reach.
• Automotive and fleet maintenance, pipelines, mining, construction, and railroad operations listed by Coxreels as potential application areas.

FAQs:

• Q: Does the Coxreels P-W-135 include welding hose?
  A: Yes. Coxreels lists the P-W-135 with 35 feet of 1/4-inch I.D. twin-siamese oxy-acetylene welding hose.
• Q: What is the maximum working pressure of the P-W-135?
  A: The reel is rated for a maximum working pressure of 200 PSI.
• Q: What is the purpose of the dual-ported swivel?
  A: The 90-degree full-flow dual-ported brass swivel provides separate flow paths for the twin welding hose while keeping both connections on the same side of the reel.
• Q: Can the P-W-135 be mounted in different positions?
  A: Yes. Coxreels specifies that the guide arm adjusts for wall, floor, and overhead mounting positions.
• Q: What is the corresponding less-hose model?
  A: Coxreels lists the P-WL-135 as the corresponding less-hose configuration, while the P-W-135 is supplied with hose.
