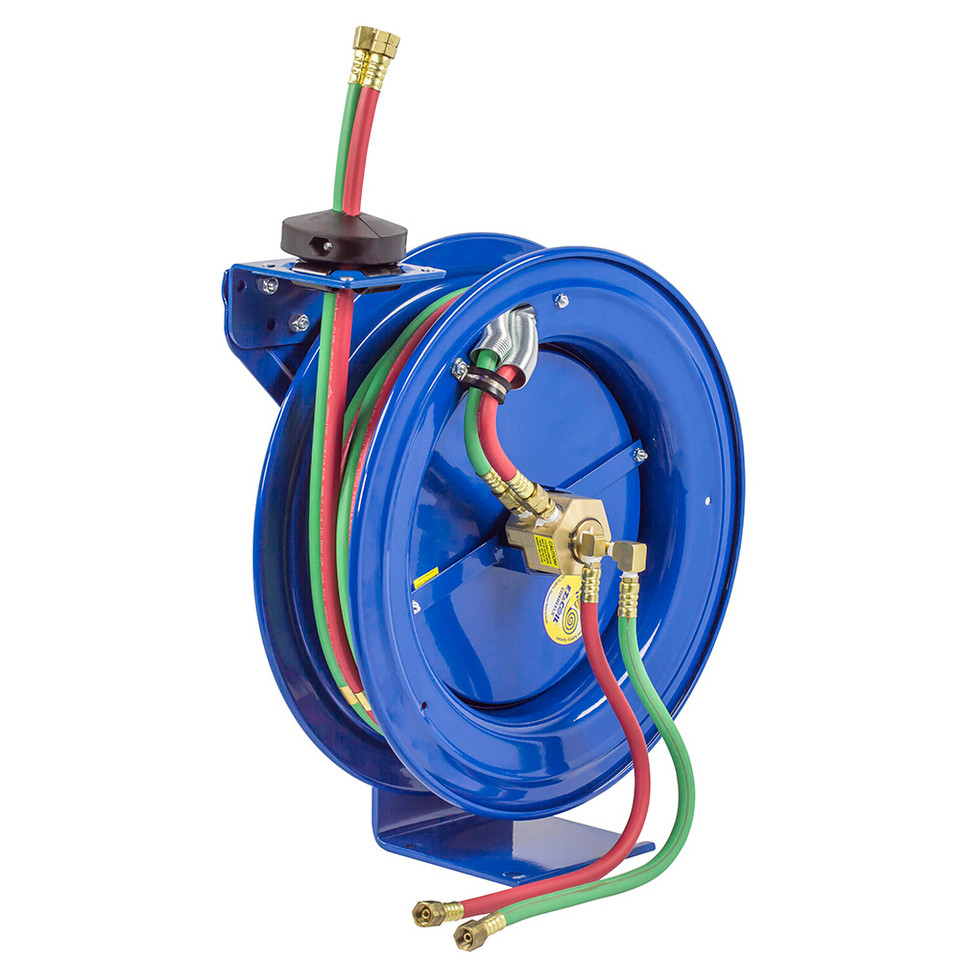

Coxreels EZ-P-WT-125 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 25' Hose Length | 200 Max PSI

Designed for controlled twin-line welding hose storage, the Coxreels EZ-P-WT-125 Dual Hose Spring Rewind Hose Reel is an EZ-Coil equipped P-W Series reel for Grade “T” welding hose applications. This compact model includes 1/4" I.D. x 25 ft hose and is rated for 200 PSI maximum pressure, making it useful for welding shops, fabrication stations, service vehicles, fleet repair areas, and maintenance departments that need retractable dual-hose handling for oxygen-acetylene or alternate fuel gas service. The EZ-Coil safety system retracts the hose up to 80% slower than conventional spring rewind reels, helping improve control during rewind and reducing the risk of fast hose return. The EZ-P-WT-125 uses an external dual-ported brass swivel with Viton seals, placing both gas connections on the same side of the reel for easier installation and service access. The included twin-siamese Grade “T” hose is intended for applications involving oxygen-acetylene, propane, MAPP gas, natural gas, and other fuel gases where Grade “T” hose compatibility is required.

Type: Dual Hose Spring Rewind Hose Reel | Series: P-W Series / EZ-P-WT Series | Configuration: Hose Included | Application: Welding Gas / Alternate Fuel Gas | Hose I.D.: 1/4" | Hose Length: 25 ft | Max Pressure: 200 PSI | Hose Type: Twin-Siamese Welding Hose, Grade “T” | Swivel: Dual-Ported Brass | Seal Material: Viton® | Approx. Weight: 46 lbs | Overall Dimensions: 8-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• EZ-Coil® controlled retraction system rewinds up to 80% slower than conventional spring rewind reels to support safer hose return.
• Dual hose design manages bulky twin-line welding hose from one compact spring-driven reel body.
• Included 1/4" x 25 ft Grade “T” twin-siamese hose supports oxygen-acetylene and alternate fuel gas service where Grade “T” hose is specified.

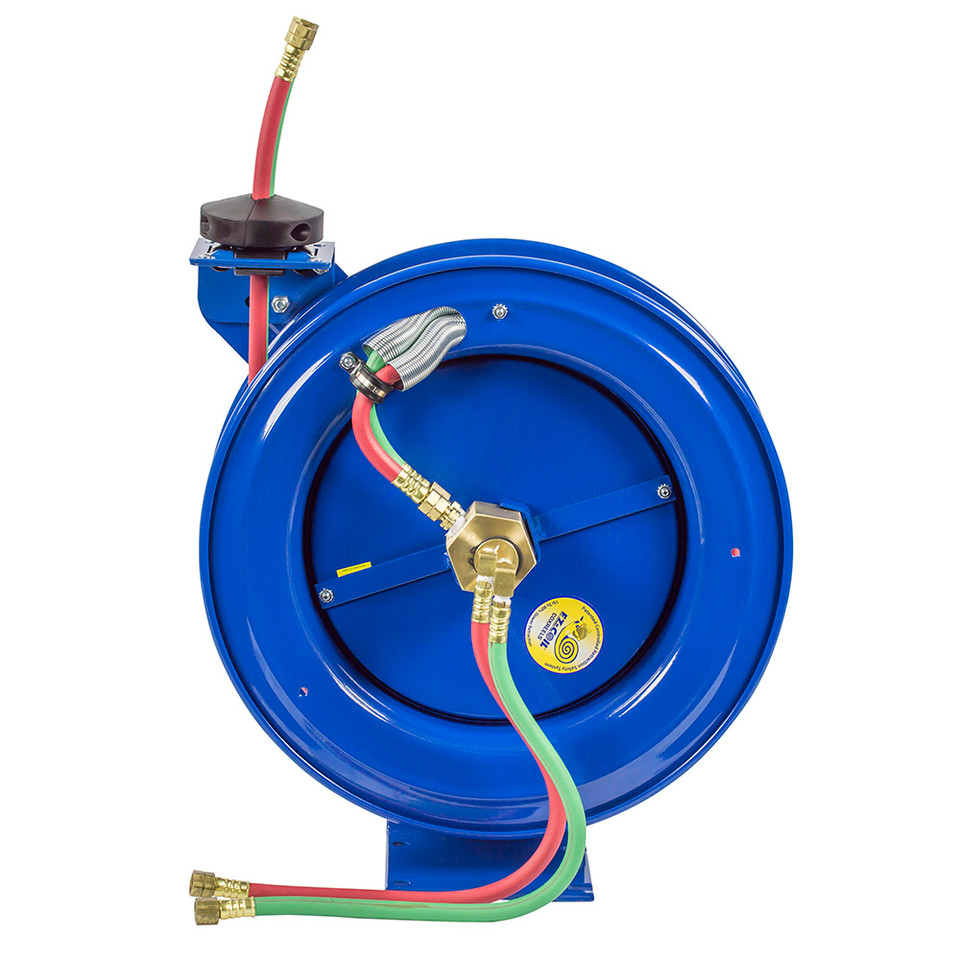

• External 90° full-flow dual-ported brass swivel places both gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas and fuel gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Solid one-piece 1/4" steel base and support post provide a stable single-pedestal mounting platform.

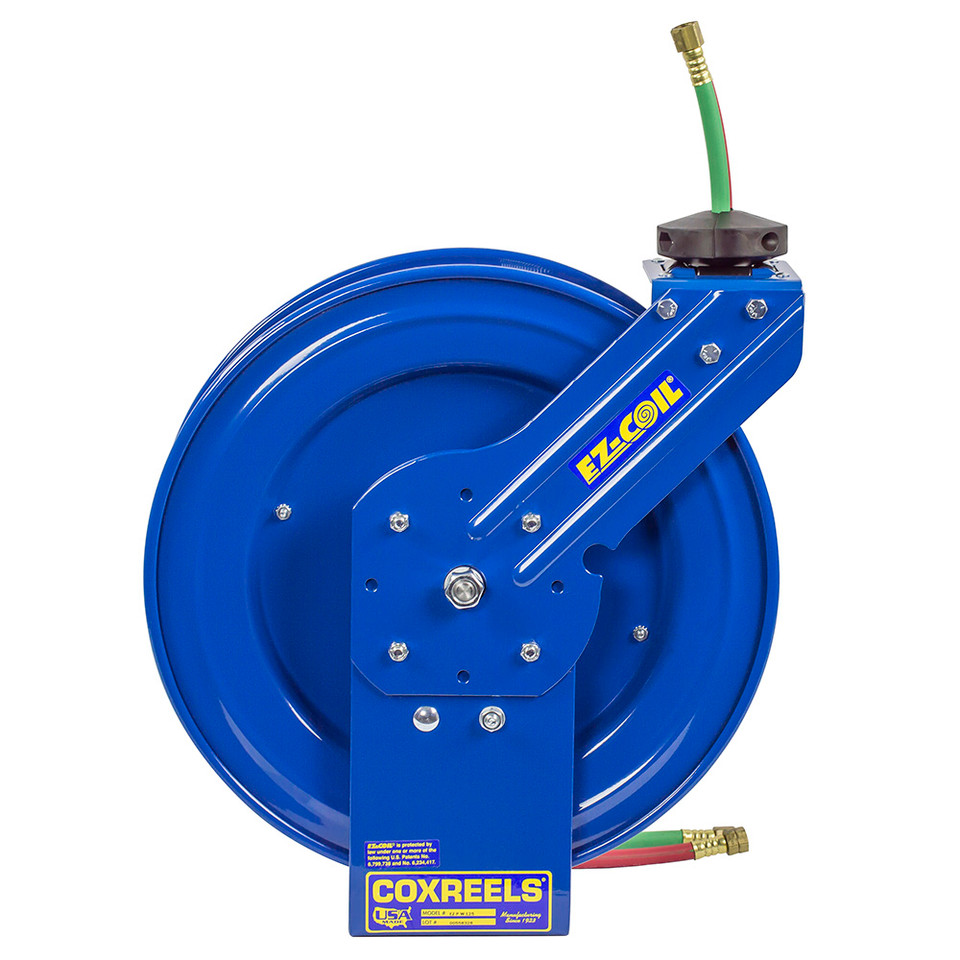

• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.
• Chip-resistant and rust-inhibiting CPC™ powder coat finish supports long-term use in shop and service environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and cutting stations using Grade “T” twin-line hose for oxygen-acetylene or alternate fuel gas service.
• Fabrication shops and repair bays where compact retractable hose storage helps reduce floor clutter.
• Maintenance, repair, and operations departments using welding gas equipment near benches, machines, or service areas.
• Welding trucks and service vehicles where controlled hose rewind and compact mounting are important.
• Automotive, fleet, construction, railroad, mining, pipeline, and garage environments that require organized twin welding hose storage.

FAQs:

• Q: Does the Coxreels EZ-P-WT-125 include hose?
  A: Yes. This model includes 1/4" I.D. x 25 ft twin-siamese Grade “T” welding hose.
• Q: What does EZ-Coil® do?
  A: EZ-Coil® is Coxreels’ controlled retraction safety system. It rewinds the hose up to 80% slower than a conventional spring rewind reel to help improve control during hose return.
• Q: What is the difference between W and WT welding hose reel models?
  A: W models are typically supplied with Grade “R” hose for oxygen-acetylene service. WT models are supplied with Grade “T” hose, which is used when oxygen-acetylene or alternate fuel gases such as propane, MAPP gas, or natural gas may be required.
• Q: Can this reel be used for propane or natural gas service?
  A: The WT configuration includes Grade “T” hose for alternate fuel gas applications. Always confirm the gas type, regulator connections, fittings, hose grade, and applicable safety requirements before installation.
• Q: Can the EZ-P-WT-125 be mounted on a wall or service truck?
  A: Yes. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting positions when the reel is installed on a suitable structure.
