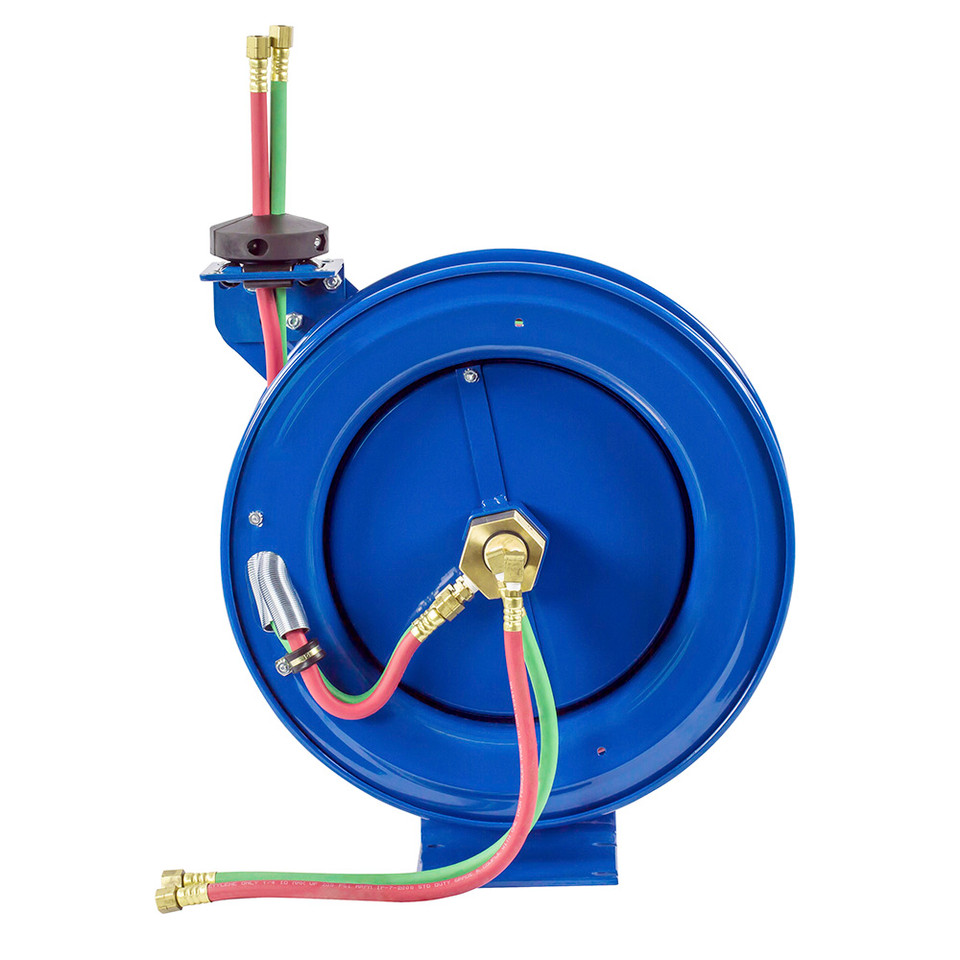

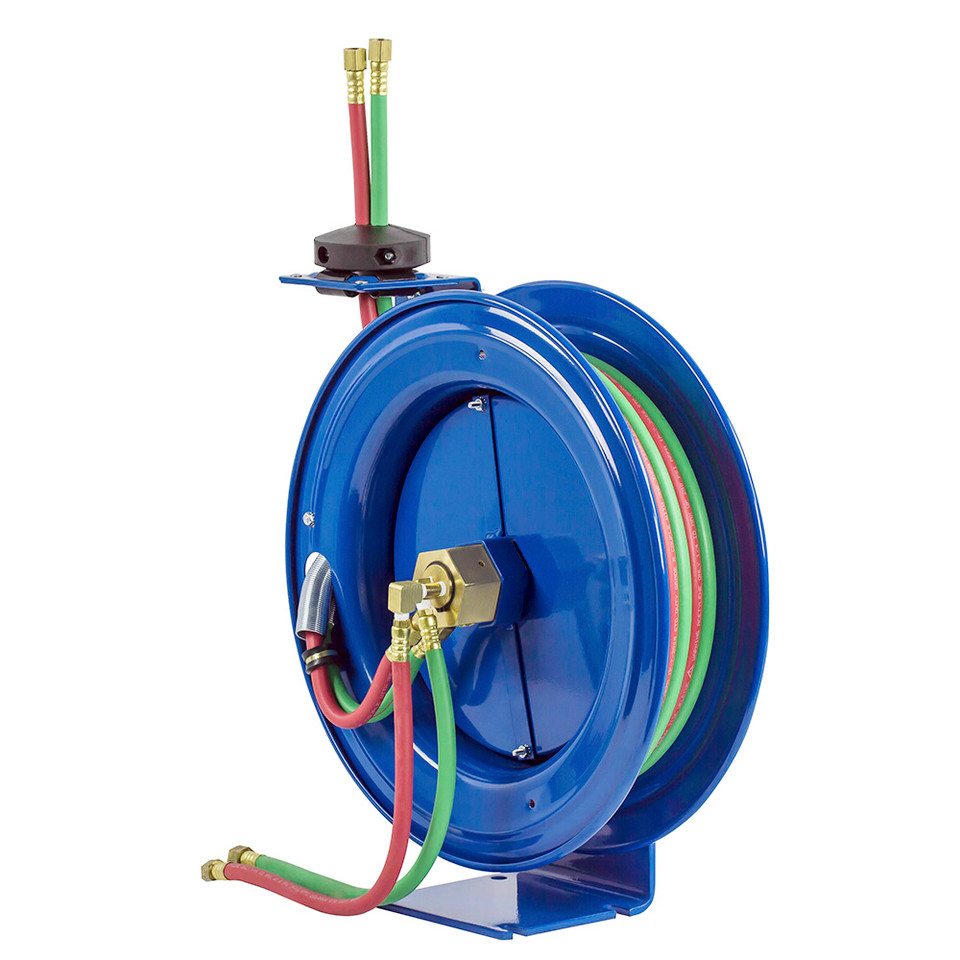

Coxreels P-W-125 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 25' Hose Length | 200 Max PSI

Built for managing bulky twin-line welding hose in fabrication areas, welding shops, service vehicles, and maintenance operations, the Coxreels P-W-125 Dual Hose Spring Rewind Hose Reel is supplied with 25 ft of 1/4" I.D. oxy-acetylene welding hose and carries a maximum working pressure of 200 PSI. Part of the compact P-W Series, this spring-driven reel automatically retrieves the hose after use, helping keep twin welding lines organized and off the work area. Its single-pedestal layout saves mounting space, making it well suited to fixed workstations and vehicle installations where a compact welding hose reel is preferred.

The P-W-125 uses an external fluid path with a 90-degree full-flow dual-ported brass swivel, placing both hose connections on the same side of the reel for straightforward twin-line routing. VITON swivel seals support the welding-service configuration, while a swivel lock bracket adds connection security. The guide arm adjusts for wall, floor, and overhead mounting positions, and the multi-position non-sparking lock ratchet secures the hose at the desired working length before the enclosed spring motor retrieves it.

Type: Dual Hose Spring Rewind Welding Hose Reel | Series: P-W Series | Model: P-W-125 | Hose I.D.: 1/4" | Hose Length: 25 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 46 lbs

Features:

• External fluid path with a 90-degree full-flow dual-ported brass swivel provides both connections from the same side of the reel.
• Swivel lock bracket provides added connection security.
• VITON swivel seals support the welding hose reel configuration.
• Single-pedestal design saves space and helps facilitate workplace organization.
• Guide arm adjusts for wall, floor, and overhead mounting positions.
• Solid one-piece, heavy-gauge 1/4-inch steel base and support post provide maximum stability.
• 1-inch solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
• Multi-position non-sparking lock ratchet mechanism secures the hose at the desired working length.
• Rolled edges, ribbed discs, and the proprietary CPC powder coat process add strength, safety, and surface protection.

Made in USA:

2 Year Warranty

Applications:

• Welding shops requiring organized storage and automatic retrieval of twin-line oxy-acetylene hose.
• Manufacturing plants and fabrication workstations where compact welding hose management helps keep work areas organized.
• Maintenance, repair, and operations departments performing compatible welding and cutting work.
• Welding and service trucks that need a space-saving spring rewind reel for onboard hose storage.
• Automotive and fleet maintenance, pipelines, mining, construction, railroad operations, and other manufacturer-listed welding environments.

FAQs:

• Q: Does the Coxreels P-W-125 include welding hose?
  A: Yes. The P-W-125 is supplied with 25 feet of 1/4-inch I.D. twin-line oxy-acetylene welding hose.
• Q: What is the maximum working pressure of the P-W-125?
  A: The reel is rated for a maximum working pressure of 200 PSI.
• Q: What is the purpose of the dual-ported swivel?
  A: The 90-degree full-flow dual-ported brass swivel provides separate flow paths for the twin welding hose while positioning both connections on the same side of the reel.
• Q: Can the P-W-125 be mounted in different positions?
  A: Yes. Coxreels specifies that the guide arm adjusts for wall, floor, and overhead mounting positions.
• Q: How does the hose remain extended during use?
  A: The multi-position non-sparking lock ratchet secures the hose at the desired working length before the spring rewind mechanism retrieves it.
