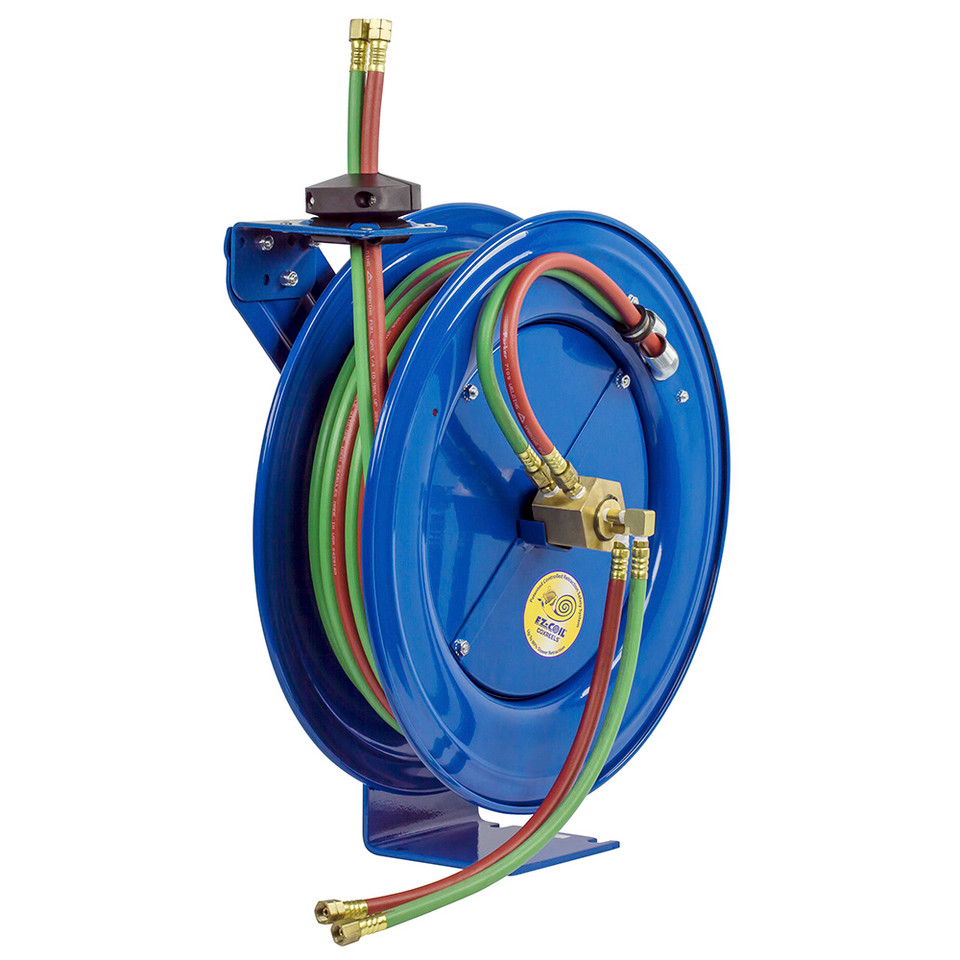

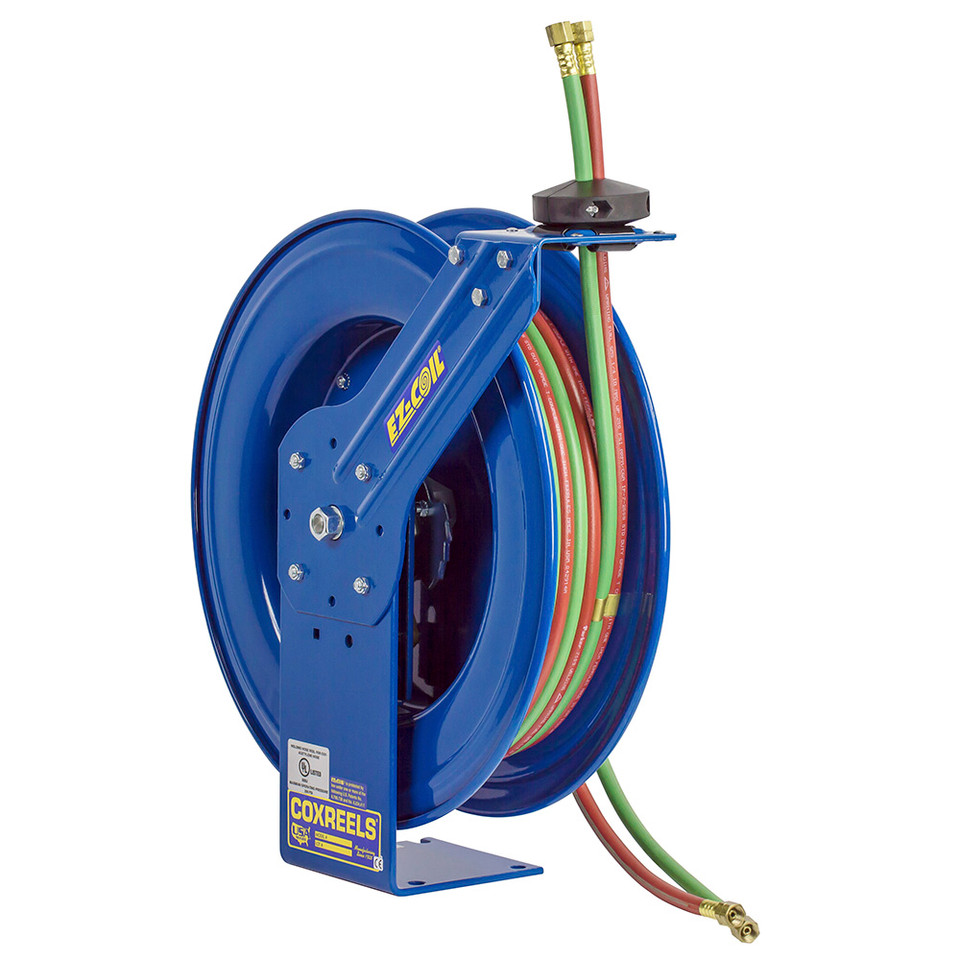

Coxreels EZ-SHWT-175 Dual Hose Spring Rewind Hose Reel | SHW Series | 1/4" Hose Diameter | 75' Hose Length | 200 Max PSI

Designed for controlled twin-line welding hose storage across larger work areas, the Coxreels EZ-SHWT-175 Dual Hose Spring Rewind Hose Reel is an EZ-Coil equipped SHW Series reel for Grade “T” welding hose applications. This model includes 1/4" I.D. x 75 ft hose and is rated for 200 PSI maximum pressure, making it useful for welding shops, fabrication bays, service vehicles, maintenance departments, and repair facilities that need retractable dual-hose handling for oxygen-acetylene or alternate fuel gas service. The EZ-SHWT-175 uses Coxreels’ EZ-Coil safety system, which retracts hose up to 80% slower than conventional spring rewind reels to help improve control during rewind and reduce fast hose return. The SHW Series uses a larger chassis than compact P-W Series reels and includes Coxreels’ Super Hub dual axle support system for increased stability during operation. Its external dual-ported brass swivel places both gas connections on the same side of the reel for easier installation and service access, while the included Grade “T” twin-siamese hose is intended for oxygen-acetylene and alternate fuel gas applications where Grade “T” hose is specified.

Type: Dual Hose Spring Rewind Hose Reel | Series: SHW Series / EZ-SHWT Series | Configuration: Hose Included | Application: Welding Gas / Alternate Fuel Gas | Hose I.D.: 1/4" | Hose Length: 75 ft | Max Pressure: 200 PSI | Hose Type: Twin-Siamese Welding Hose, Grade “T” | Swivel: Dual-Ported Brass | Seal Material: Viton® | Approx. Weight: 80 lbs | Overall Dimensions: 10-1/4" W x 25-1/2" H x 24" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• EZ-Coil® controlled retraction system rewinds up to 80% slower than conventional spring rewind reels to support safer hose return.
• Dual hose design manages bulky twin-line welding hose from one spring-driven reel body.
• Included 1/4" x 75 ft Grade “T” twin-siamese hose provides added reach for oxygen-acetylene and alternate fuel gas service where Grade “T” hose is required.
• SHW Series frame uses a larger chassis than compact P-W Series reels to accommodate longer lengths of welding hose.
• Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
• External 90° full-flow dual-ported brass swivel places both gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas and fuel gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, bench, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.

Made in USA:

2 Year Warranty

Applications:

• Welding and cutting stations using Grade “T” twin-line hose for oxygen-acetylene or alternate fuel gas service.
• Fabrication shops and welding bays where 75 ft hose reach helps cover larger work zones from a fixed reel location.
• Maintenance, repair, and operations departments using welding gas equipment near benches, machinery, equipment service zones, or plant work areas.
• Welding trucks and field service vehicles where controlled hose rewind, organized storage, and longer working reach are important.
• Automotive, fleet, construction, railroad, mining, pipeline, and garage environments that require organized twin welding hose storage.

FAQs:

• Q: Does the Coxreels EZ-SHWT-175 include hose?
  A: Yes. This model includes 1/4" I.D. x 75 ft twin-siamese Grade “T” welding hose.
• Q: What does EZ-Coil® do?
  A: EZ-Coil® is Coxreels’ controlled retraction safety system. It rewinds the hose up to 80% slower than a conventional spring rewind reel to help improve control during hose return.
• Q: What is the difference between W and WT welding hose reel models?
  A: W models are typically supplied with Grade “R” hose for oxygen-acetylene service. WT models are supplied with Grade “T” hose, which is used when oxygen-acetylene or alternate fuel gases such as propane, MAPP gas, or natural gas may be required.
• Q: How is EZ-SHWT different from EZ-P-WT?
  A: EZ-SHWT models use the larger SHW Series chassis for longer welding hose lengths and include the Super Hub™ dual axle support system. EZ-P-WT models are more compact and are typically used for shorter Grade “T” hose configurations.
• Q: Can this reel be used for propane or natural gas service?
  A: The WT configuration includes Grade “T” hose for alternate fuel gas applications. Always confirm the gas type, regulator connections, fittings, hose grade, and applicable safety requirements before installation.
