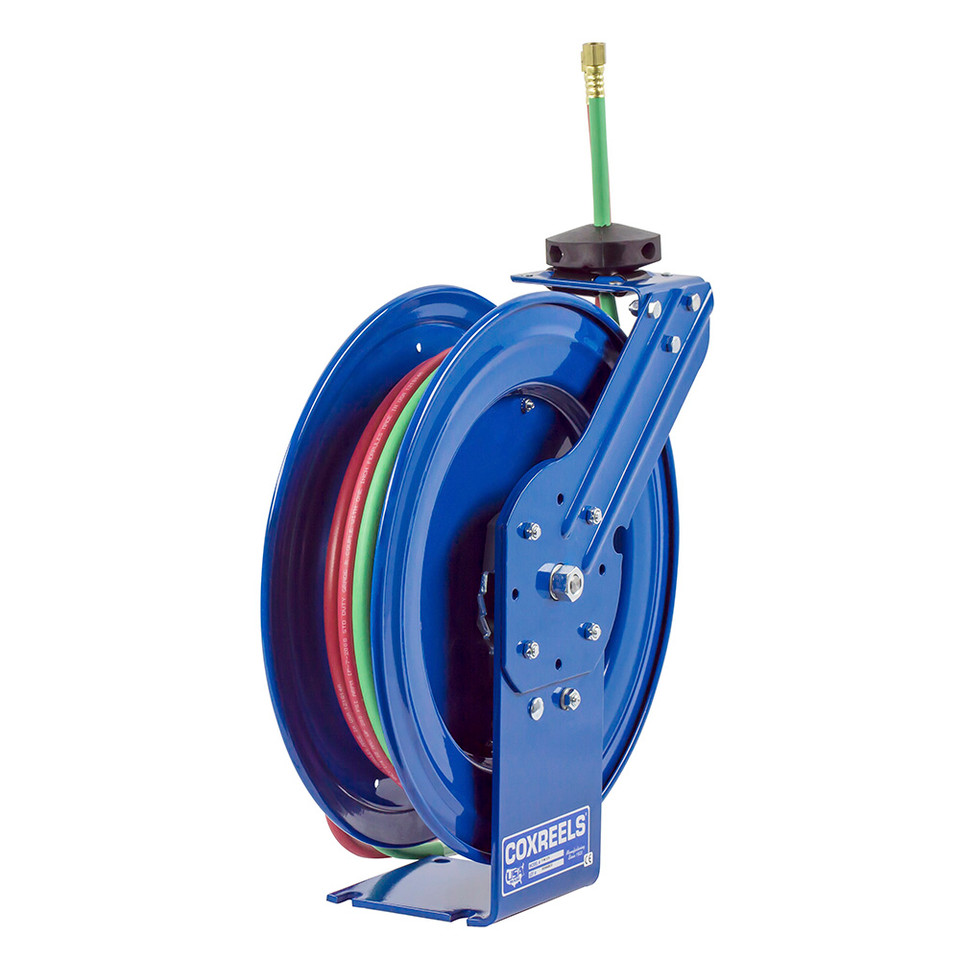

Coxreels P-W-140 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 40' Hose Length | 200 Max PSI

Built for welding operations that need a compact reel with moderate hose reach, the Coxreels P-W-140 Dual Hose Spring Rewind Hose Reel is supplied with 40 ft of 1/4" I.D. twin-line oxy-acetylene welding hose and carries a maximum working pressure of 200 PSI. Part of the P-W Series, this spring-driven reel automatically retrieves the hose after use, helping keep welding bays, fabrication areas, service vehicles, and maintenance workstations organized. The 40-foot hose length provides more working range than shorter P-W configurations while retaining the compact single-pedestal format that helps conserve mounting space.

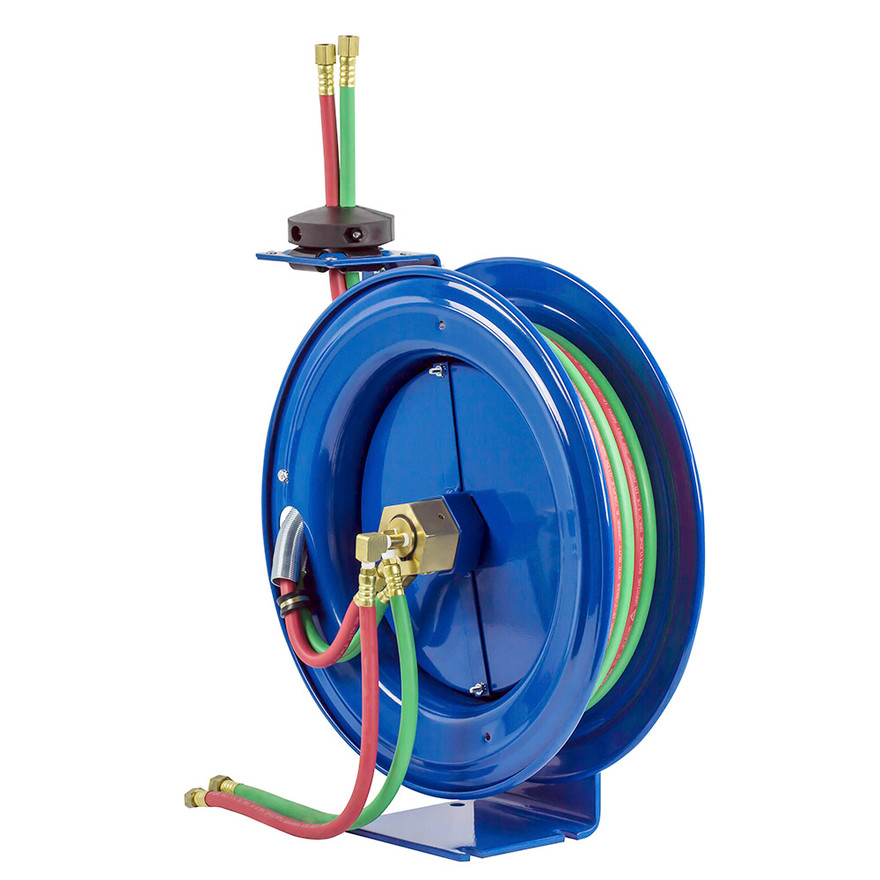

The P-W-140 uses an external fluid path with a 90-degree full-flow dual-ported brass swivel, positioning both hose connections on the same side of the reel for straightforward twin-line routing. VITON swivel seals and a swivel lock bracket support the welding-service configuration, while the guide arm adjusts for wall, floor, and overhead mounting positions. A multi-position non-sparking lock ratchet secures the hose at the desired working length before the enclosed cartridge-style spring motor retrieves it.

Type: Dual Hose Spring Rewind Welding Hose Reel | Series: P-W Series | Model: P-W-140 | Hose I.D.: 1/4" | Hose Length: 40 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 51 lbs

Features:

• Supplied with 40 feet of 1/4-inch I.D. twin-line oxy-acetylene welding hose.
• External fluid path uses a 90-degree full-flow dual-ported brass swivel with both connections on the same side of the reel.
• VITON swivel seals support the reel's welding-service configuration.
• Swivel lock bracket helps secure the swivel assembly during operation.
• Single-pedestal design helps conserve mounting space and supports workplace organization.
• Guide arm adjusts for wall, floor, and overhead mounting positions.
• Enclosed factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
• Multi-position non-sparking lock ratchet mechanism secures the hose at the desired working length.
• Solid steel axle and lubricated precision bearings support smooth reel rotation.
• Rolled edges, ribbed discs, and the CPC powder coat process add strength, safety, and surface protection.

Made in USA:

2 Year Warranty

Applications:

• Welding shops requiring organized storage and automatic retrieval of twin-line oxy-acetylene hose.
• Fabrication and manufacturing workstations where 40 feet of hose provides useful reach without requiring a larger reel.
• Maintenance and MRO departments performing compatible welding, cutting, heating, and brazing tasks.
• Welding and service trucks that need compact spring-rewind hose storage for mobile work.
• Automotive, fleet, pipeline, construction, and other manufacturer-listed welding environments using compatible equipment.

FAQs:

• Q: Does the Coxreels P-W-140 include welding hose?
  A: Yes. The P-W-140 is supplied with 40 feet of 1/4-inch I.D. twin-line oxy-acetylene welding hose.
• Q: What is the maximum working pressure of the P-W-140?
  A: The reel is rated for a maximum working pressure of 200 PSI.
• Q: What is the purpose of the dual-ported swivel?
  A: The 90-degree full-flow dual-ported brass swivel provides separate flow paths for the twin welding hose while positioning both connections on the same side of the reel.
• Q: Can the P-W-140 be mounted in different positions?
  A: Yes. Coxreels specifies that the guide arm adjusts for wall, floor, and overhead mounting positions.
• Q: How does the hose stay extended during use?
  A: The multi-position non-sparking lock ratchet secures the hose at the selected working length before the spring rewind mechanism retrieves it.
