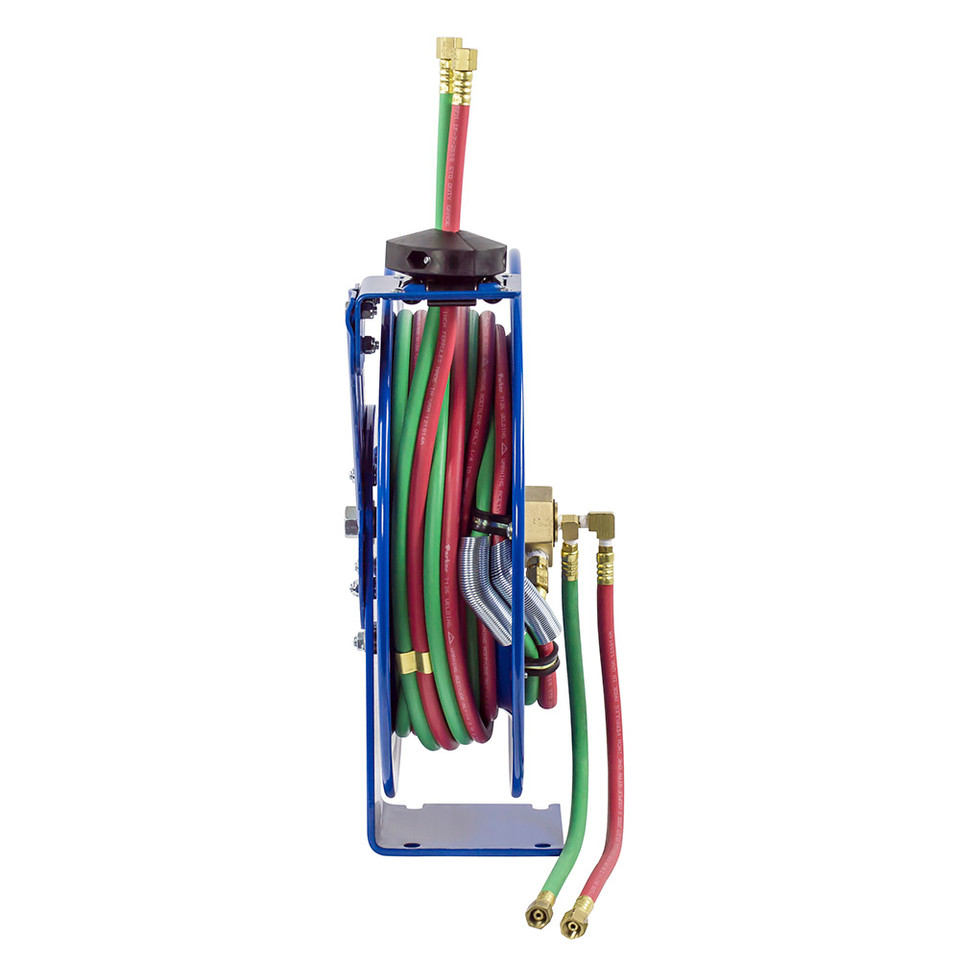

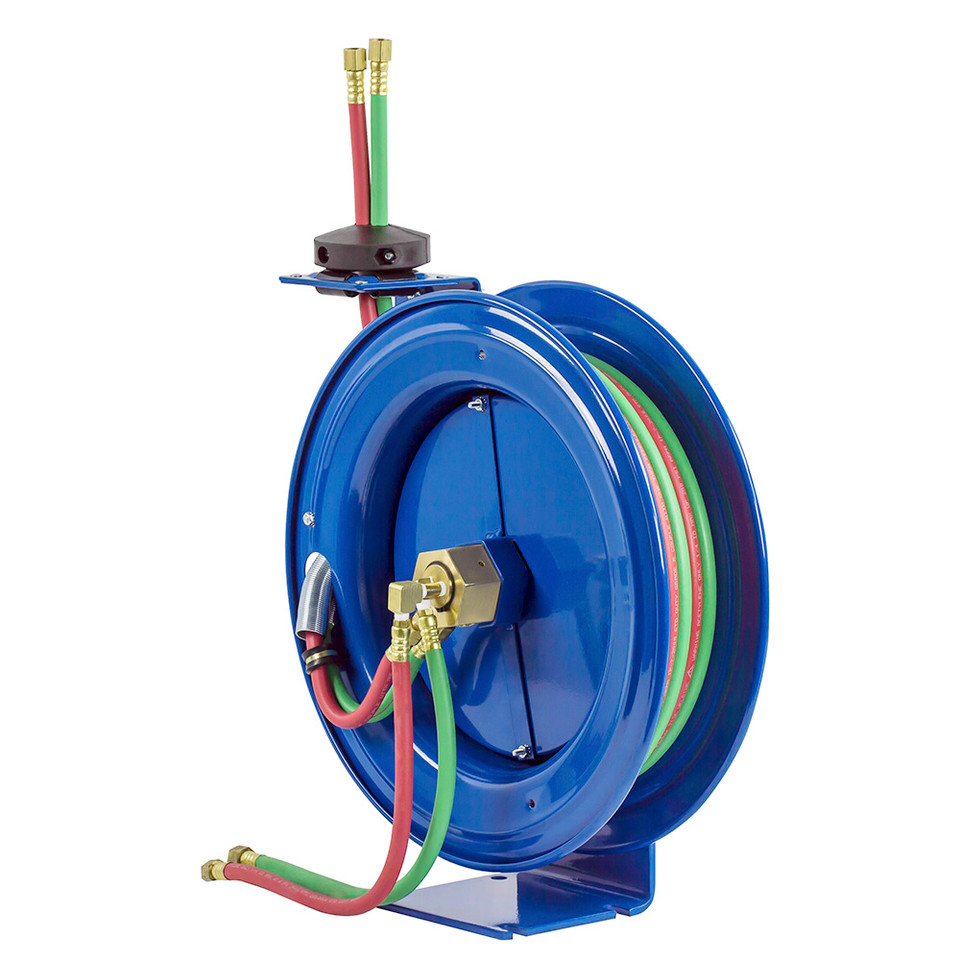

Coxreels P-WT-125 Dual Hose Spring Rewind Hose Reel | P-W Series | 1/4" Hose Diameter | 25' Hose Length | 200 Max PSI

Built for welding applications that require compact twin-line hose storage with automatic retrieval, the Coxreels P-WT-125 Dual Hose Spring Rewind Hose Reel is supplied with 25 ft of 1/4" I.D. Grade T welding hose and carries a maximum working pressure of 200 PSI. Part of the P-W Series, this spring-driven reel helps keep welding and cutting areas organized by automatically retrieving the hose after use. The compact 25-foot configuration works well at fixed welding stations, fabrication benches, service vehicles, and other locations where shorter hose reach is sufficient.

The P-WT-125 uses an external fluid path with a 90-degree full-flow dual-ported brass swivel, placing both hose connections on the same side of the reel for straightforward twin-line routing. VITON swivel seals and a swivel lock bracket support the welding-service configuration, while the guide arm adjusts for wall, floor, and overhead mounting positions. A multi-position non-sparking lock ratchet secures the hose at the selected working length before the enclosed cartridge-style spring motor retrieves it.

Type: Dual Hose Spring Rewind Welding Hose Reel | Series: P-W Series | Model: P-WT-125 | Hose I.D.: 1/4" | Hose Length: 25 ft | Hose Included: Yes | Max Pressure: 200 PSI | Approx. Weight: 46 lbs

Features:

• Supplied with 25 feet of 1/4-inch I.D. Grade T twin-line welding hose.
• External fluid path uses a 90-degree full-flow dual-ported brass swivel with both connections positioned on the same side of the reel.
• VITON swivel seals support the reel's welding-service configuration.
• Swivel lock bracket helps secure the swivel assembly during operation.
• Single-pedestal design helps conserve mounting space and support workplace organization.
• Guide arm adjusts for wall, floor, and overhead mounting positions.
• Enclosed factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
• Multi-position non-sparking lock ratchet mechanism secures the hose at the desired working length.
• Solid steel axle and lubricated precision bearings support smooth reel rotation.
• Rolled edges, ribbed discs, and the CPC powder coat process add strength, safety, and surface protection.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops using compatible Grade T twin-line welding hose.
• Maintenance and repair operations requiring organized storage and automatic retrieval of welding hose.
• Manufacturing workstations where a compact 25-foot reel provides sufficient reach for routine welding tasks.
• Welding trucks and service vehicles requiring space-conscious spring rewind hose storage.
• Compatible fuel-gas welding, cutting, heating, and brazing applications operating within the reel and hose ratings.

FAQs:

• Q: Does the Coxreels P-WT-125 include welding hose?
  A: Yes. The P-WT-125 is supplied with 25 feet of 1/4-inch I.D. Grade T twin-line welding hose.
• Q: What distinguishes the P-WT-125 from the P-W-125?
  A: The P-WT-125 is supplied with Grade T welding hose, while the P-W-125 is the standard oxy-acetylene hose configuration. Hose selection should match the fuel gas and service requirements of the application.
• Q: What is the maximum working pressure of the P-WT-125?
  A: The reel is rated for a maximum working pressure of 200 PSI.
• Q: Can the P-WT-125 be mounted in different positions?
  A: Yes. Coxreels specifies that the guide arm adjusts for wall, floor, and overhead mounting positions.
• Q: How does the hose remain extended during use?
  A: The multi-position non-sparking lock ratchet secures the hose at the selected working length before the spring rewind mechanism retrieves it.
