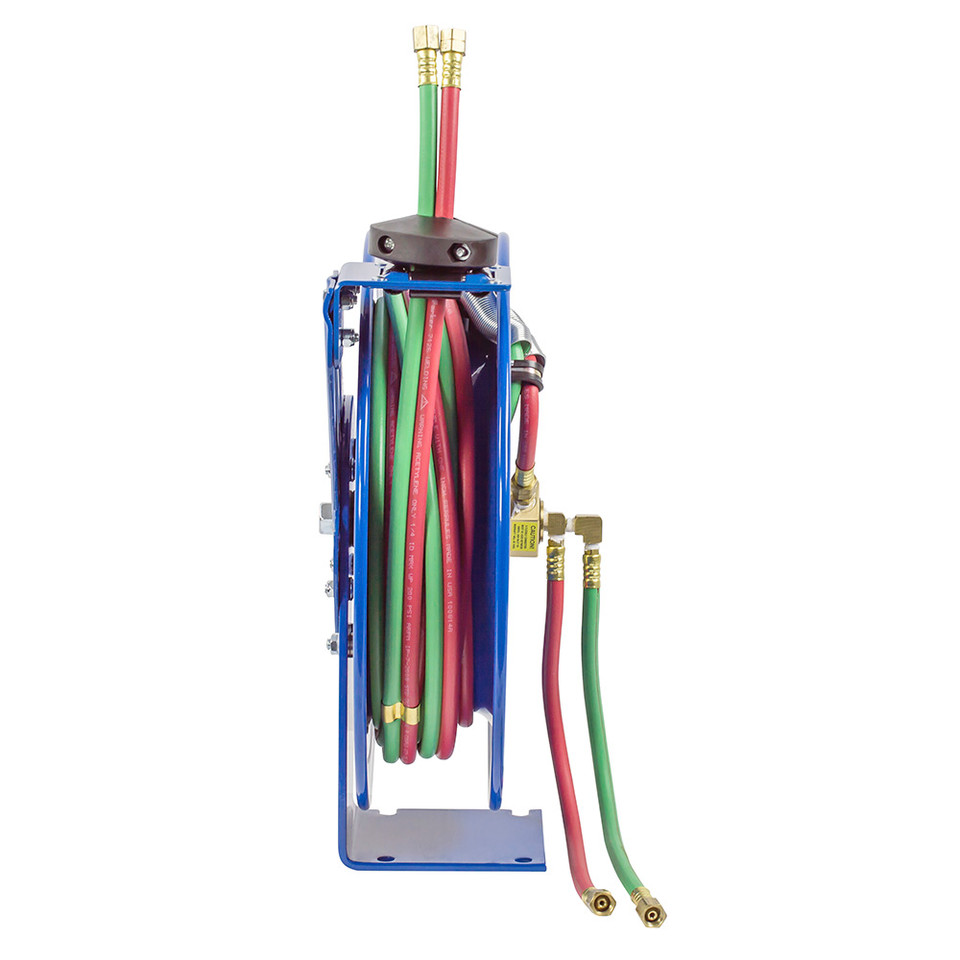

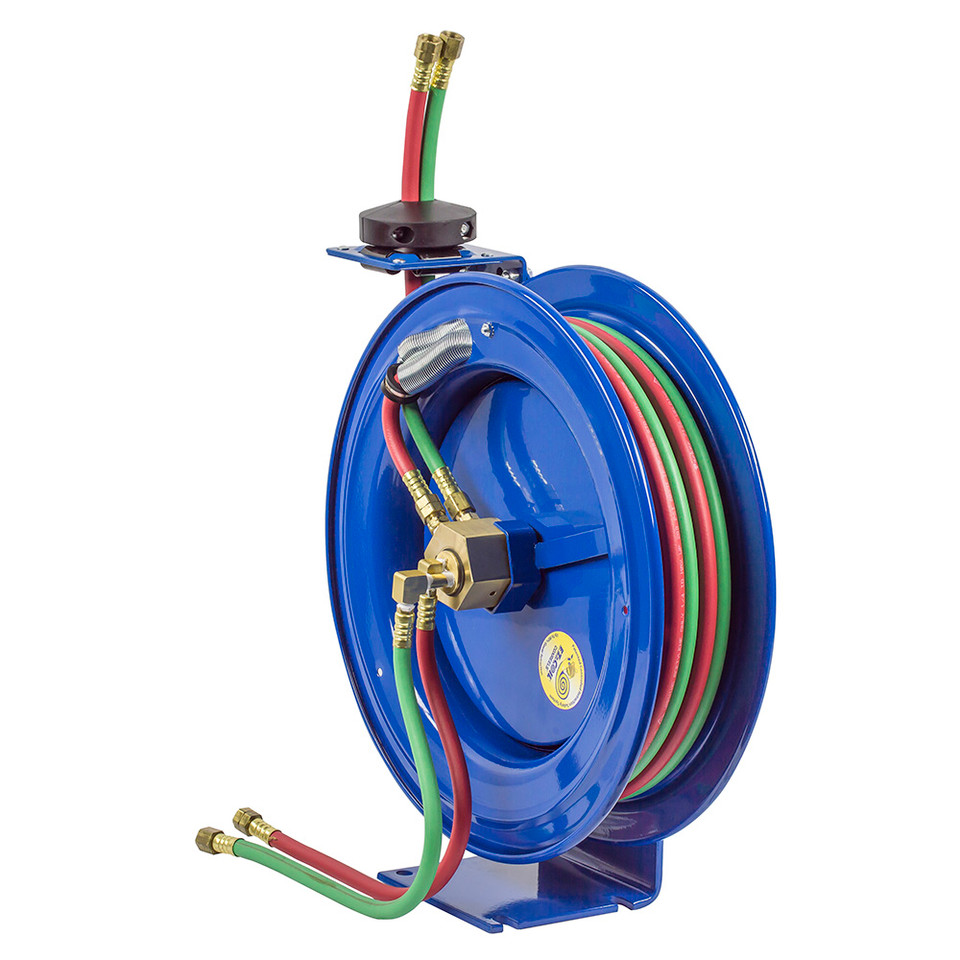

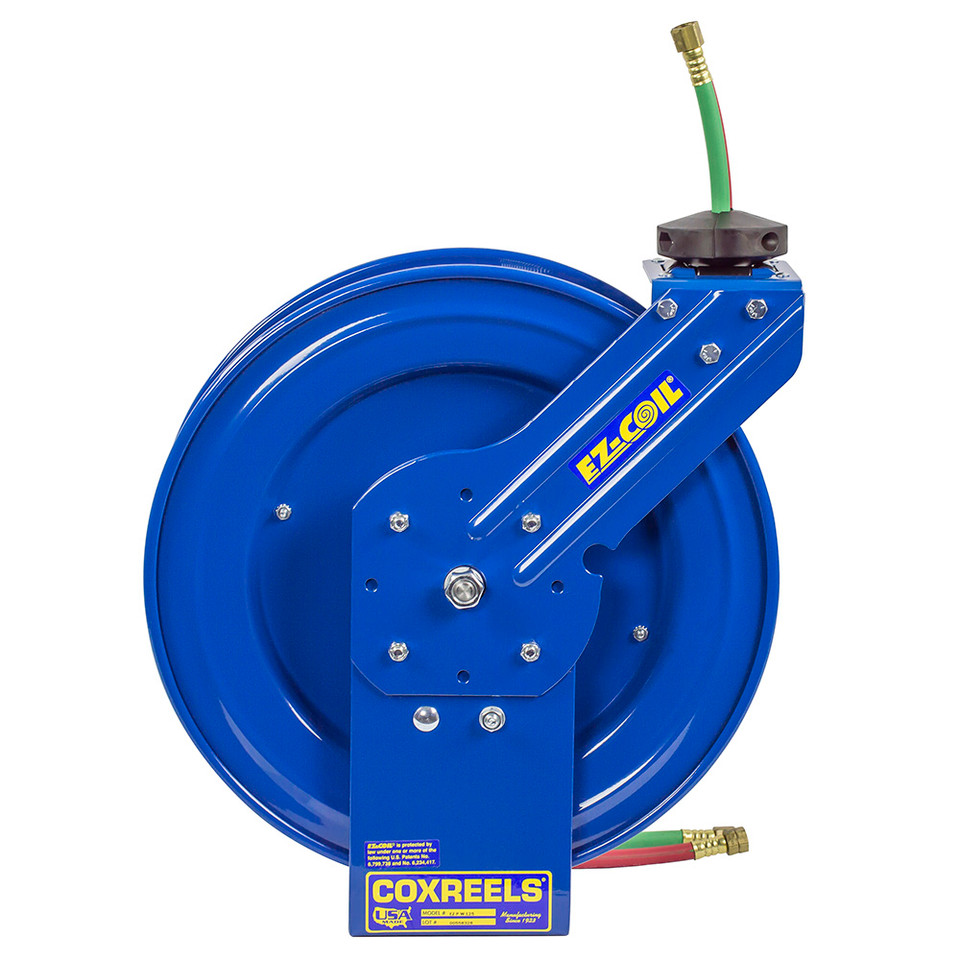

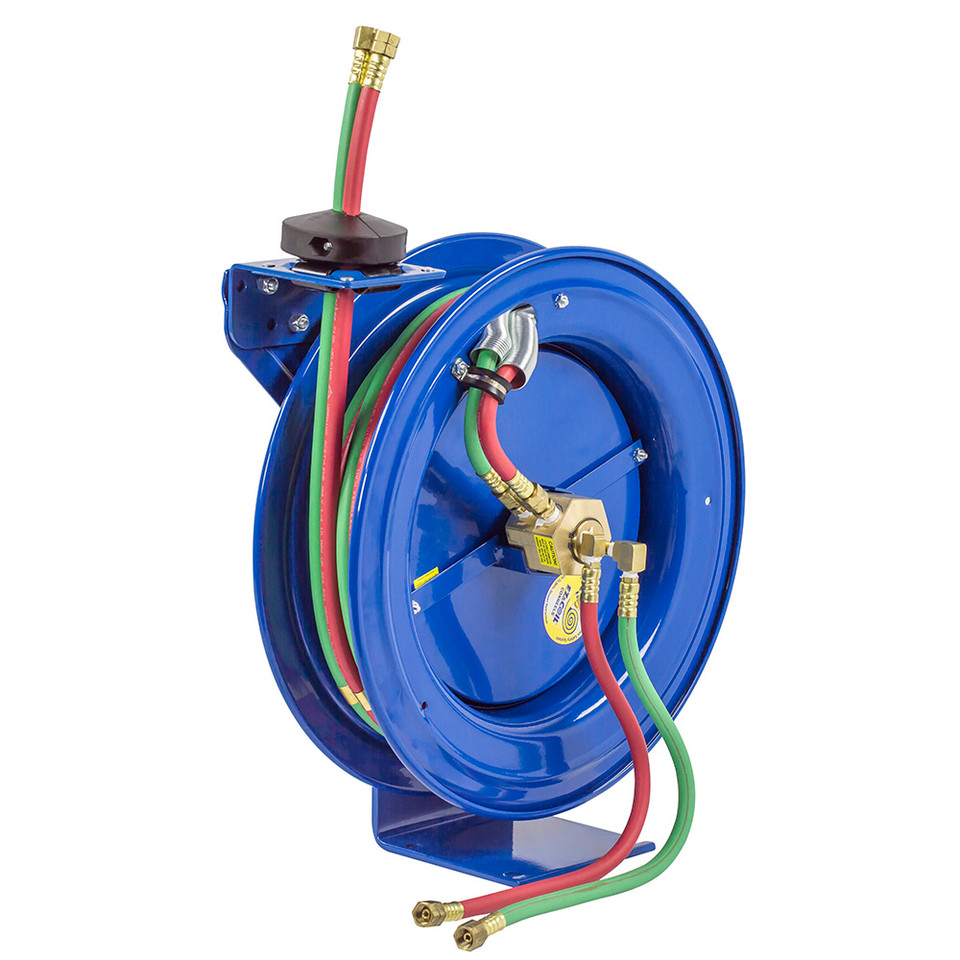

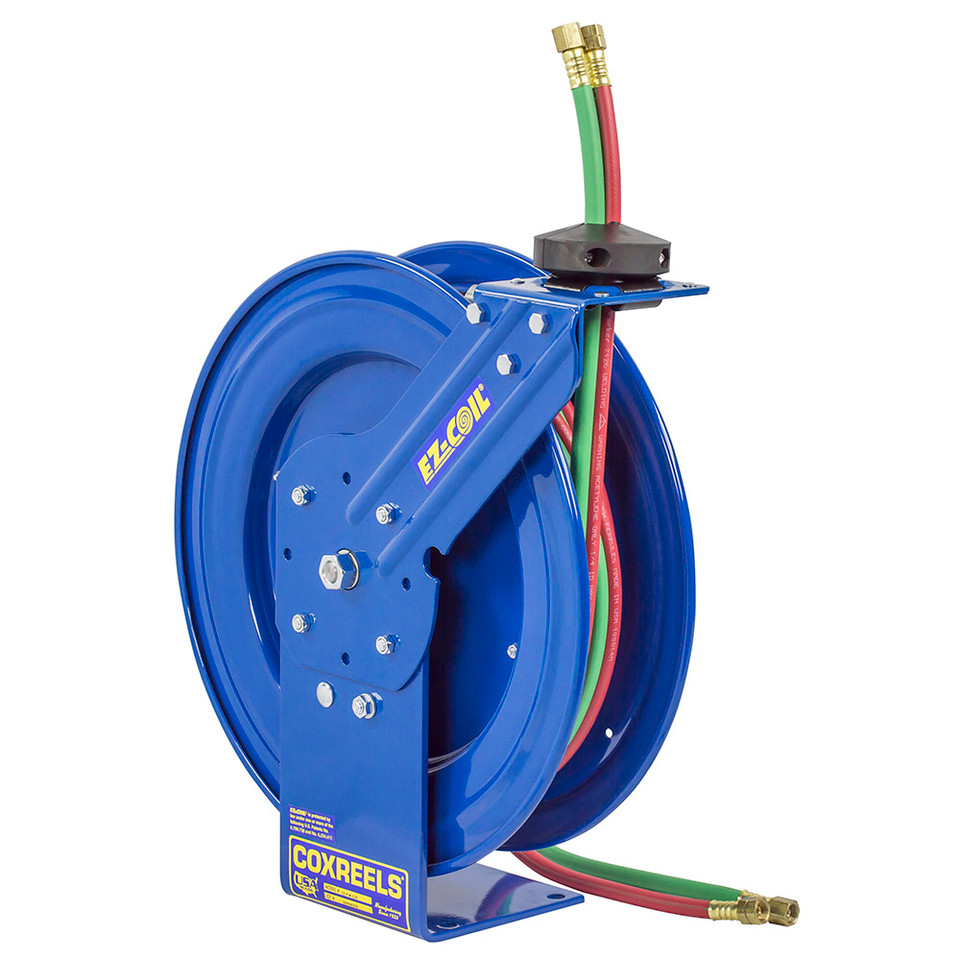

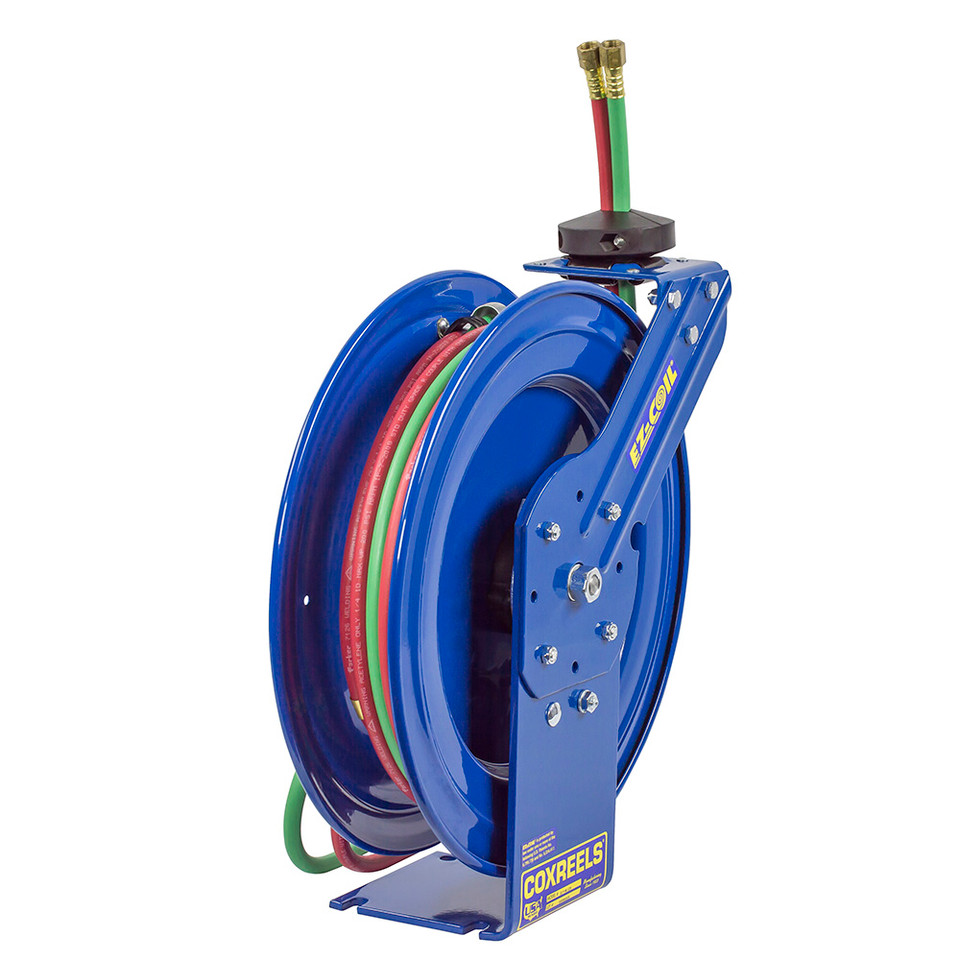

Designed for safer, more controlled welding hose storage, the Coxreels EZ-P-W-125 Dual Hose Spring Rewind Hose Reel is an EZ-Coil equipped P-W Series reel for oxygen-acetylene twin-line welding hose. This EZ-P-W Series model includes 1/4" I.D. x 25 ft hose and is rated for 200 PSI maximum pressure, making it a compact choice for welding shops, service trucks, maintenance areas, fabrication stations, and fleet repair facilities that need retractable twin-hose management. The EZ-Coil safety system retracts the hose up to 80% slower than conventional spring rewind reels, helping reduce whip hazard and improve operator control during rewind. The reel uses an external dual-ported brass swivel with Viton® seals, which brings both welding gas connections to the same side of the reel for easier installation and service access. The included twin-siamese hose is intended for oxygen-acetylene service and meets R.M.A. and C.G.A. Type V.D. Grade R specifications.
Type: Dual Hose Spring Rewind Hose Reel | Series: EZ-P-W Series | Configuration: Hose Included | Application: Oxygen-Acetylene Welding Gas | Hose I.D.: 1/4" | Hose Length: 25 ft | Max Pressure: 200 PSI | Hose Type: Twin-Siamese Welding Hose, R.M.A. and C.G.A. Type V.D. Grade R | Swivel: Dual-Ported Brass | Seal Material: Viton® | Approx. Weight: 46 lbs | Size Index: 1 | Overall Dimensions: 8-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- EZ-Coil® controlled retraction system rewinds up to 80% slower than conventional spring rewind reels to support safer hose return.
- Dual hose design manages bulky twin-line welding hose from one compact reel body.
- Included 1/4" x 25 ft oxygen-acetylene twin-siamese hose supports common welding and cutting gas service layouts.
- External 90° full-flow dual-ported brass swivel places both connections on the same side of the reel for easier access.
- Viton® swivel seals are used for welding gas service compatibility.
- CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
- Solid one-piece 1/4" steel base and support post provide a stable single-pedestal mounting platform.
- Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.
- Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.
- Chip-resistant and rust-inhibiting CPC™ powder coat finish supports long-term use in shop and service environments.
Made in USA:
Applications:
- Oxygen-acetylene welding and cutting stations that need compact twin-hose storage.
- Welding shops and fabrication areas where retractable hose management helps reduce floor clutter.
- Maintenance, repair, and operations departments using gas welding equipment near work benches or equipment service areas.
- Welding and service trucks where controlled hose rewind and compact mounting are important.
- Automotive, fleet, mining, construction, railroad, pipeline, and garage settings using oxygen-acetylene hose assemblies.
FAQs:
- Q: Does the Coxreels EZ-P-W-125 include hose?
A: Yes. This model includes 1/4" I.D. x 25 ft twin-siamese oxygen-acetylene welding hose. - Q: What does EZ-Coil® do?
A: EZ-Coil® is Coxreels’ controlled retraction safety system. It rewinds the hose up to 80% slower than a conventional spring rewind reel to help improve control during hose return. - Q: What gas service is this reel intended for?
A: This W Series model is intended for oxygen-acetylene welding gas service. Coxreels notes that the supplied hose is twin-siamese Type V.D. Grade R hose and that other hose types are not recommended for this configuration. - Q: Can this reel be used with propane, MAPP, natural gas, or other fuel gases?
A: For other fuel gases, Coxreels lists Grade “T” hose versions such as the corresponding WT models. Use the W model for oxygen-acetylene service unless the gas system requirements specify a different hose grade. - Q: Can the EZ-P-W-125 be mounted on a truck or wall?
A: Yes. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting positions when the reel is installed on a suitable structure.
| SKU | I.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| OXYGEN-ACETYLENE - Hose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended. | ||||||||
| P-W-125 | 1/4" | 25 | 200 | 46 | EZ-P-W-125 | P-WL-125† | 39 | 1 |
| P-W-135 | 1/4" | 35 | 200 | 48 | - | P-WL-135† | 40 | 1 |
| P-W-140 | 1/4" | 40 | 200 | 51 | - | P-WL-140† | 42 | 1 |
| SHW-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHW-150 | SHWL-N-150† | 52 | 2 |
| SHW-N-160 | 1/4" | 60 | 200 | 76 | - | SHWL-N-160† | 61 | 3 |
| SHW-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHW-175 | SHWL-N-175† | 63 | 3 |
| SHW-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHW-1100 | SHWL-N-1100 | 62 | 3 |
| OTHER FUELS - Hose supplied on reel is twin-siamese type grade “T.” Grade “T” reels and hoses are used for a wide variety of gases, such as MAPP, propane, natural and fuel. | ||||||||
| P-WT-125 | 1/4" | 25 | 200 | 46 | EZ-P-WT-125 | P-WTL-125† | 39 | 1 |
| SHWT-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHWT-150 | SHWTL-N-150† | 52 | 2 |
| SHWT-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHWT-175 | SHWTL-N-175† | 63 | 3 |
| SHWT-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHWT-1100 | SHWTL-N-1100 | 62 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
