Built for welding operations that need extended twin-line hose capacity with the flexibility to select hose separately, the Coxreels SHWL-N-175 Dual Hose Spring Rewind Hose Reel provides capacity for up to 75 ft of 1/4" I.D. welding hose and carries a maximum working pressure of 200 PSI. Part of the SHW Series, this less-hose model uses automatic spring rewind to retrieve compatible hose after use. The 75-foot capacity provides additional working reach for fabrication shops, maintenance areas, welding workstations, and service vehicles without requiring the longer 100-foot configuration.
The SHWL-N-175 uses Coxreels' Super Hub dual axle support system, which increases stability during operation, reduces vibration, and strengthens structural integrity. Its larger SHW Series chassis accommodates longer lengths of bulky twin-line welding hose, while an external 90-degree full-flow dual-ported brass swivel positions both connections on the same side of the reel. The single-pedestal design helps conserve mounting space, and the less-hose configuration allows compatible twin-line welding hose to be selected separately for the intended oxygen-acetylene service.

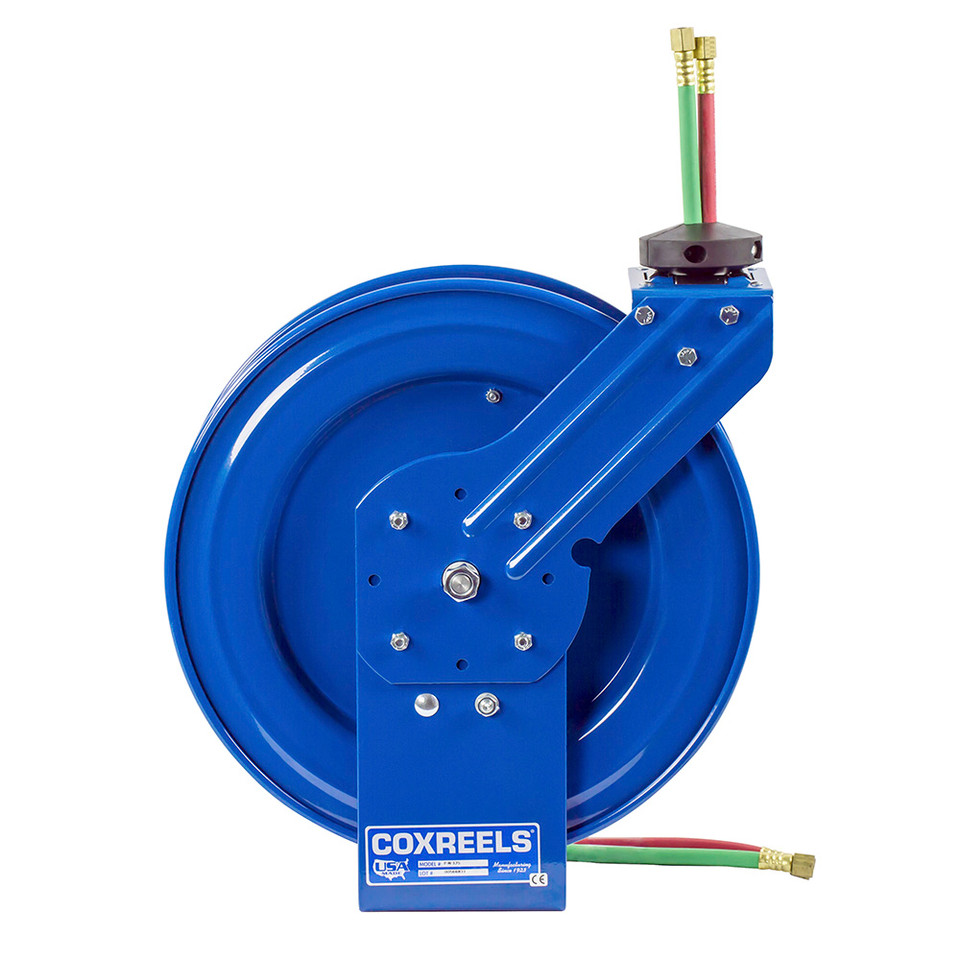

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hose Spring Rewind Welding Hose Reel | Series: SHW Series | Model: SHWL-N-175 | Hose Included: No | Hose I.D.: 1/4" | Hose Length: 75 ft | Max Pressure: 200 PSI | Approx. Weight: 63 lbs
Features:
- Provides capacity for up to 75 feet of compatible 1/4-inch I.D. twin-line welding hose.
- Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens structural integrity.
- Larger SHW Series chassis and frame accommodate longer lengths of bulky welding hose.
- Spring-driven rewind automatically retrieves compatible hose for organized storage after use.

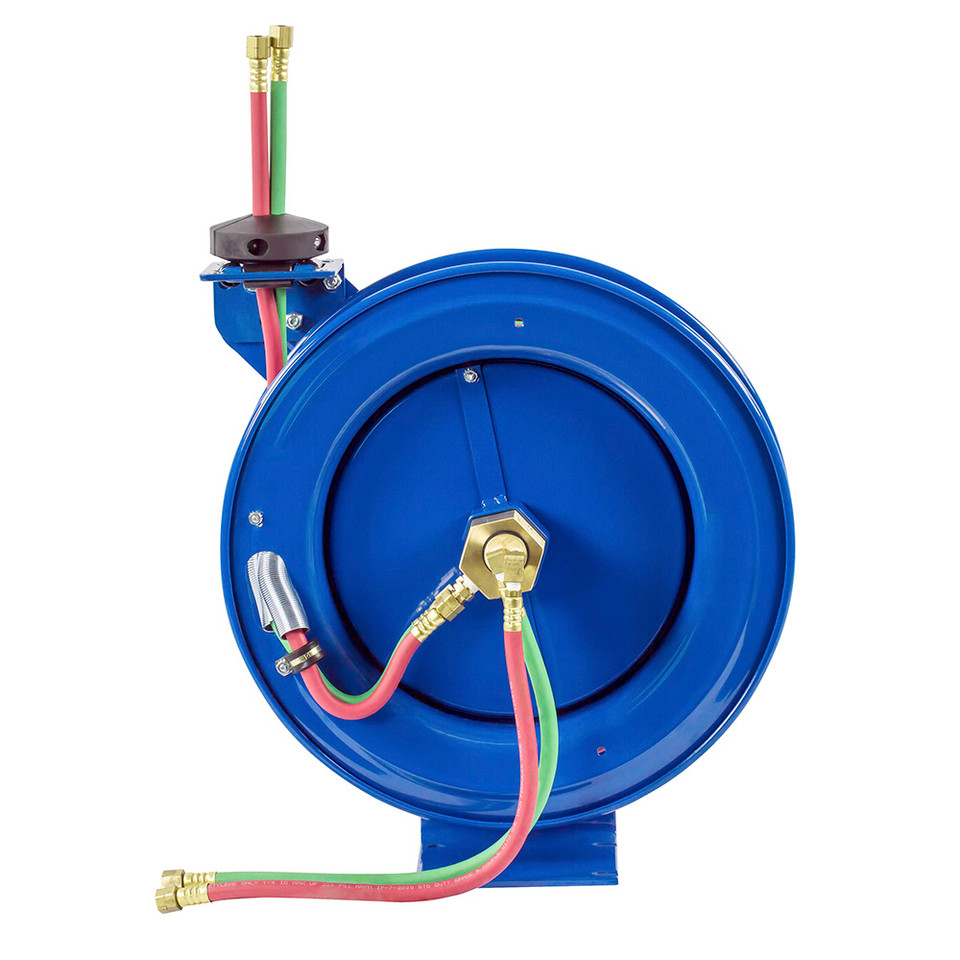

- External fluid path incorporates a 90-degree full-flow dual-ported brass swivel.
- Both connections are positioned on the same side of the reel for convenient twin-line hose routing.
- Single-pedestal configuration helps conserve mounting space and support workplace organization.
- Less-hose configuration allows compatible welding hose to be selected separately for the application.
Made in USA:
Applications:
- Welding and fabrication shops requiring extended twin-line hose reach with automatic spring rewind.
- Manufacturing and maintenance facilities managing compatible oxygen-acetylene welding hose between workstations.
- Mobile welding trucks and service vehicles requiring organized storage for separately selected welding hose.
- Repair and MRO operations performing compatible welding, cutting, heating, and brazing work.
- Work areas where a 75-foot hose capacity provides additional reach without moving the reel or gas supply as frequently.
FAQs:
- Q: Does the Coxreels SHWL-N-175 include welding hose?
A: No. The SHWL-N-175 is supplied without hose. It provides capacity for up to 75 feet of compatible 1/4-inch I.D. twin-line welding hose. - Q: What type of service is the SHWL-N-175 intended for?
A: Coxreels lists the SHWL-N-175 with the oxygen-acetylene welding hose reel configurations in the SHW Series. Compatible hose must be selected separately for the intended system. - Q: What is the maximum working pressure of the SHWL-N-175?
A: The reel is rated for a maximum working pressure of 200 PSI. The hose and connected equipment must also be suitable for the operating requirements of the welding system. - Q: What does the Super Hub system do?
A: Coxreels' Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens the structural integrity of the reel during operation. - Q: What is the corresponding hose-equipped model?
A: The SHW-N-175 is the corresponding model supplied with hose, while the SHWL-N-175 is the less-hose configuration.
| SKU | I.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| OXYGEN-ACETYLENE - Hose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended. | ||||||||
| P-W-125 | 1/4" | 25 | 200 | 46 | EZ-P-W-125 | P-WL-125† | 39 | 1 |
| P-W-135 | 1/4" | 35 | 200 | 48 | - | P-WL-135† | 40 | 1 |
| P-W-140 | 1/4" | 40 | 200 | 51 | - | P-WL-140† | 42 | 1 |
| SHW-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHW-150 | SHWL-N-150† | 52 | 2 |
| SHW-N-160 | 1/4" | 60 | 200 | 76 | - | SHWL-N-160† | 61 | 3 |
| SHW-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHW-175 | SHWL-N-175† | 63 | 3 |
| SHW-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHW-1100 | SHWL-N-1100 | 62 | 3 |
| OTHER FUELS - Hose supplied on reel is twin-siamese type grade “T.” Grade “T” reels and hoses are used for a wide variety of gases, such as MAPP, propane, natural and fuel. | ||||||||
| P-WT-125 | 1/4" | 25 | 200 | 46 | EZ-P-WT-125 | P-WTL-125† | 39 | 1 |
| SHWT-N-150 | 1/4" | 50 | 200 | 64 | EZ-SHWT-150 | SHWTL-N-150† | 52 | 2 |
| SHWT-N-175 | 1/4" | 75 | 200 | 80 | EZ-SHWT-175 | SHWTL-N-175† | 63 | 3 |
| SHWT-N-1100 | 1/4" | 100 | 200 | 84 | EZ-SHWT-1100 | SHWTL-N-1100 | 62 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
