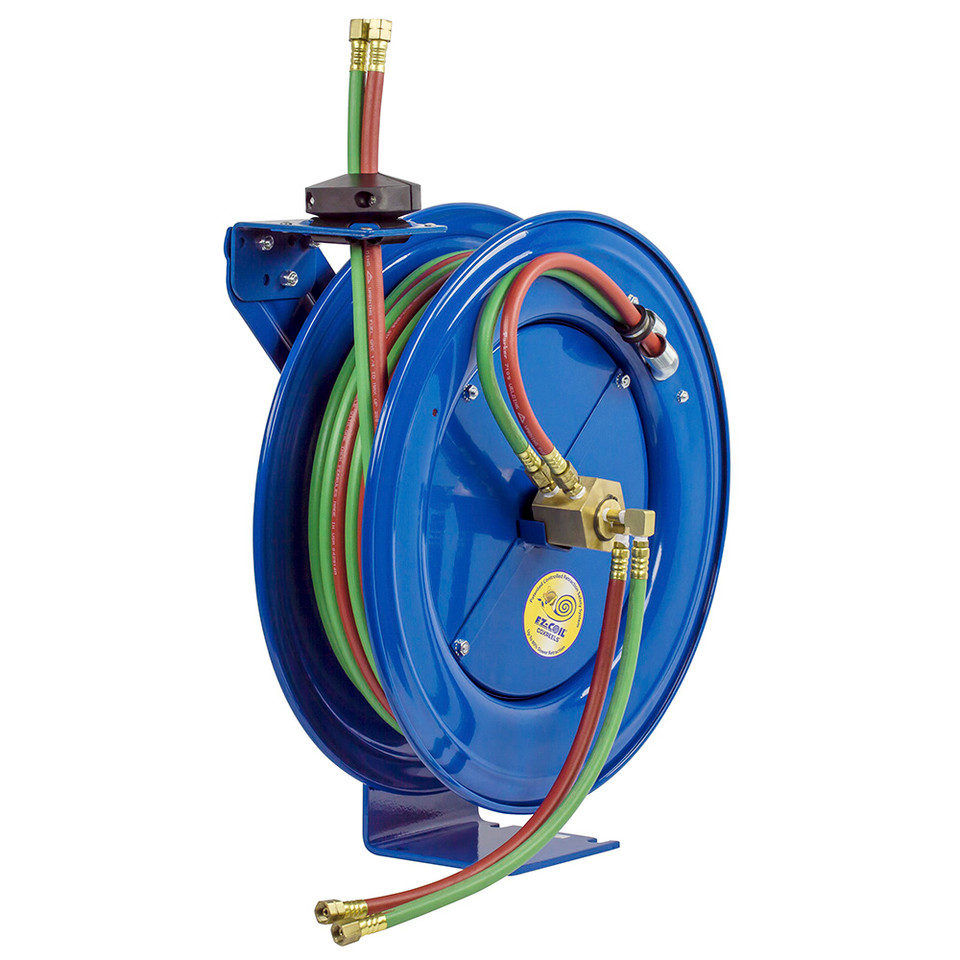

Coxreels EZ-SHWT-150 Dual Hose Spring Rewind Hose Reel | SHW Series | 1/4" Hose Diameter | 50' Hose Length | 200 Max PSI

Designed for controlled twin-line welding hose storage with added working reach, the Coxreels EZ-SHWT-150 Dual Hose Spring Rewind Hose Reel is an EZ-Coil equipped SHW Series reel for Grade “T” welding hose applications. This model includes 1/4" I.D. x 50 ft hose and is rated for 200 PSI maximum pressure, making it useful for welding shops, fabrication areas, service vehicles, maintenance departments, and repair facilities that need retractable dual-hose handling for oxygen-acetylene or alternate fuel gas service. The EZ-SHWT-150 uses Coxreels’ EZ-Coil safety system, which retracts hose up to 80% slower than conventional spring rewind reels to help improve control during rewind and reduce fast hose return. The SHW Series uses a larger chassis than compact P-W Series reels and includes Coxreels’ Super Hub dual axle support system for increased stability during operation. Its external dual-ported brass swivel places both gas connections on the same side of the reel for easier installation and service access, while the included Grade “T” twin-siamese hose is intended for oxygen-acetylene and alternate fuel gas applications where Grade “T” hose is specified.

Type: Dual Hose Spring Rewind Hose Reel | Series: SHW Series / EZ-SHWT Series | Configuration: Hose Included | Application: Welding Gas / Alternate Fuel Gas | Hose I.D.: 1/4" | Hose Length: 50 ft | Max Pressure: 200 PSI | Hose Type: Twin-Siamese Welding Hose, Grade “T” | Swivel: Dual-Ported Brass | Seal Material: Viton | Approx. Weight: 64 lbs | Overall Dimensions: 10-1/4" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"

Features:

• EZ-Coil controlled retraction system rewinds up to 80% slower than conventional spring rewind reels to support safer hose return.
• Dual hose design manages bulky twin-line welding hose from one spring-driven reel body.
• Included 1/4" x 50 ft Grade “T” twin-siamese hose supports oxygen-acetylene and alternate fuel gas service where Grade “T” hose is required.
• SHW Series frame uses a larger chassis than compact P-W Series reels to accommodate longer lengths of welding hose.
• Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
• External 90° full-flow dual-ported brass swivel places both gas connections on the same side of the reel for easier access.
• Viton® swivel seals are used for welding gas and fuel gas service compatibility.
• CNC robotically spun and ribbed steel discs with rolled edges add strength while helping protect the hose during rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, bench, and vehicle mounting positions.
• Adjustable solid rubber hose stop helps position the hose end at the preferred reach point after rewind.

Made in USA:

2 Year Warranty

Applications:

• Welding and cutting stations using Grade “T” twin-line hose for oxygen-acetylene or alternate fuel gas service.
• Fabrication shops and welding bays where 50 ft hose reach helps cover larger work areas from a fixed reel location.
• Maintenance, repair, and operations departments using welding gas equipment near benches, machinery, or equipment service zones.
• Welding trucks and field service vehicles where controlled hose rewind, compact mounting, and longer working reach are important.
• Automotive, fleet, construction, railroad, mining, pipeline, and garage environments that require organized twin welding hose storage.

FAQs:

• Q: Does the Coxreels EZ-SHWT-150 include hose?
  A: Yes. This model includes 1/4" I.D. x 50 ft twin-siamese Grade “T” welding hose.
• Q: What does EZ-Coil® do?
  A: EZ-Coil® is Coxreels’ controlled retraction safety system. It rewinds the hose up to 80% slower than a conventional spring rewind reel to help improve control during hose return.
• Q: What is the difference between W and WT welding hose reel models?
  A: W models are typically supplied with Grade “R” hose for oxygen-acetylene service. WT models are supplied with Grade “T” hose, which is used when oxygen-acetylene or alternate fuel gases such as propane, MAPP gas, or natural gas may be required.
• Q: How is EZ-SHWT different from EZ-P-WT?
  A: EZ-SHWT models use the larger SHW Series chassis for longer welding hose lengths and include the Super Hub™ dual axle support system. EZ-P-WT models are more compact and are typically used for shorter Grade “T” hose configurations.
• Q: Can this reel be used for propane or natural gas service?
  A: The WT configuration includes Grade “T” hose for alternate fuel gas applications. Always confirm the gas type, regulator connections, fittings, hose grade, and applicable safety requirements before installation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
