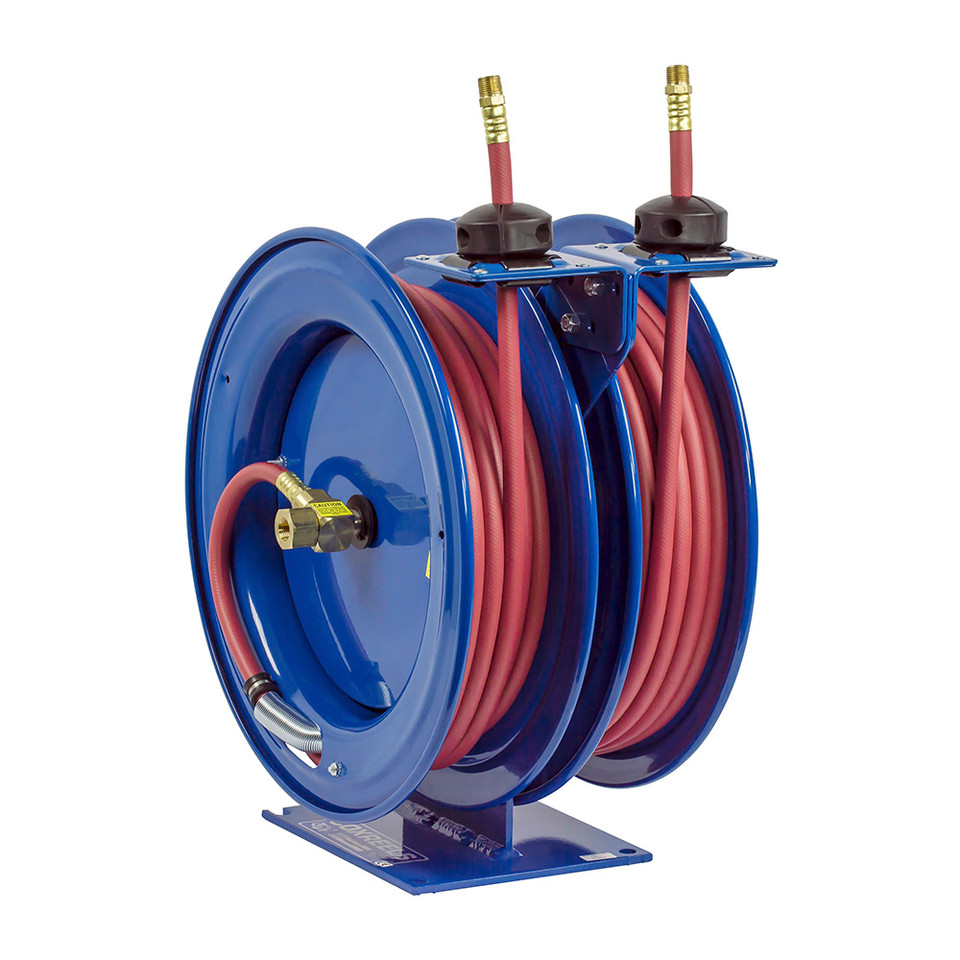

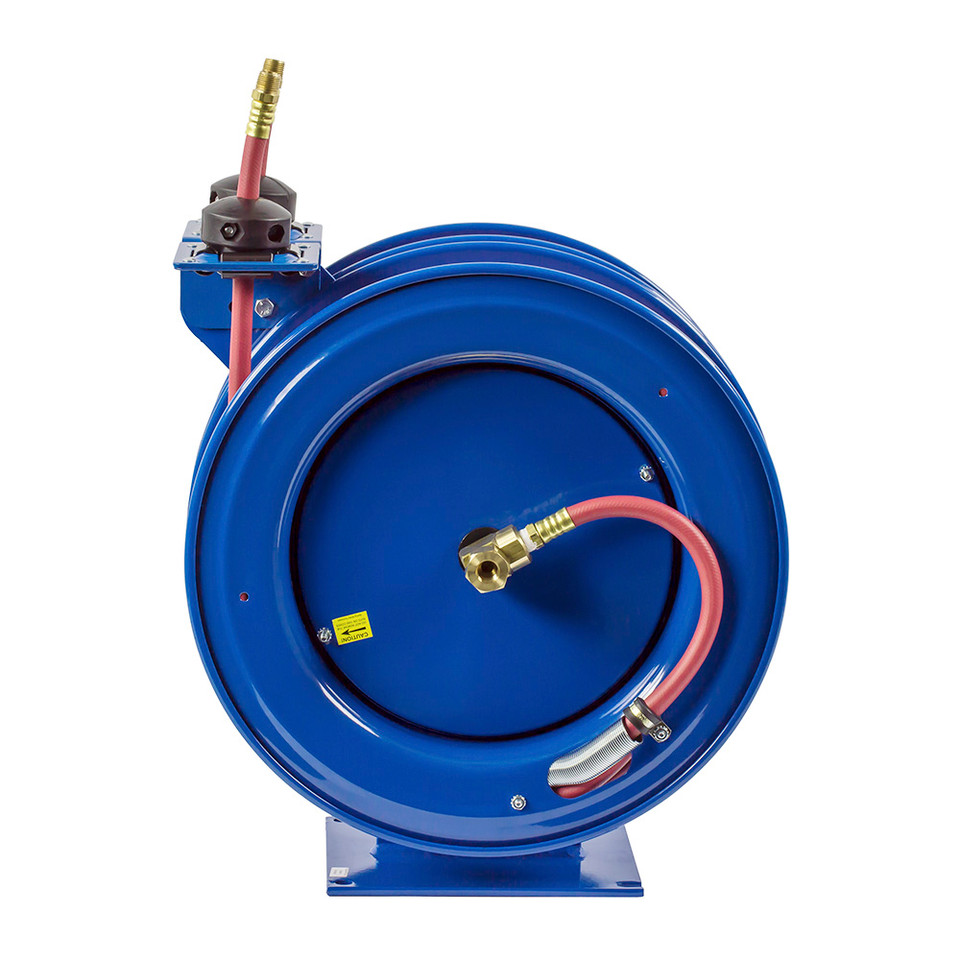

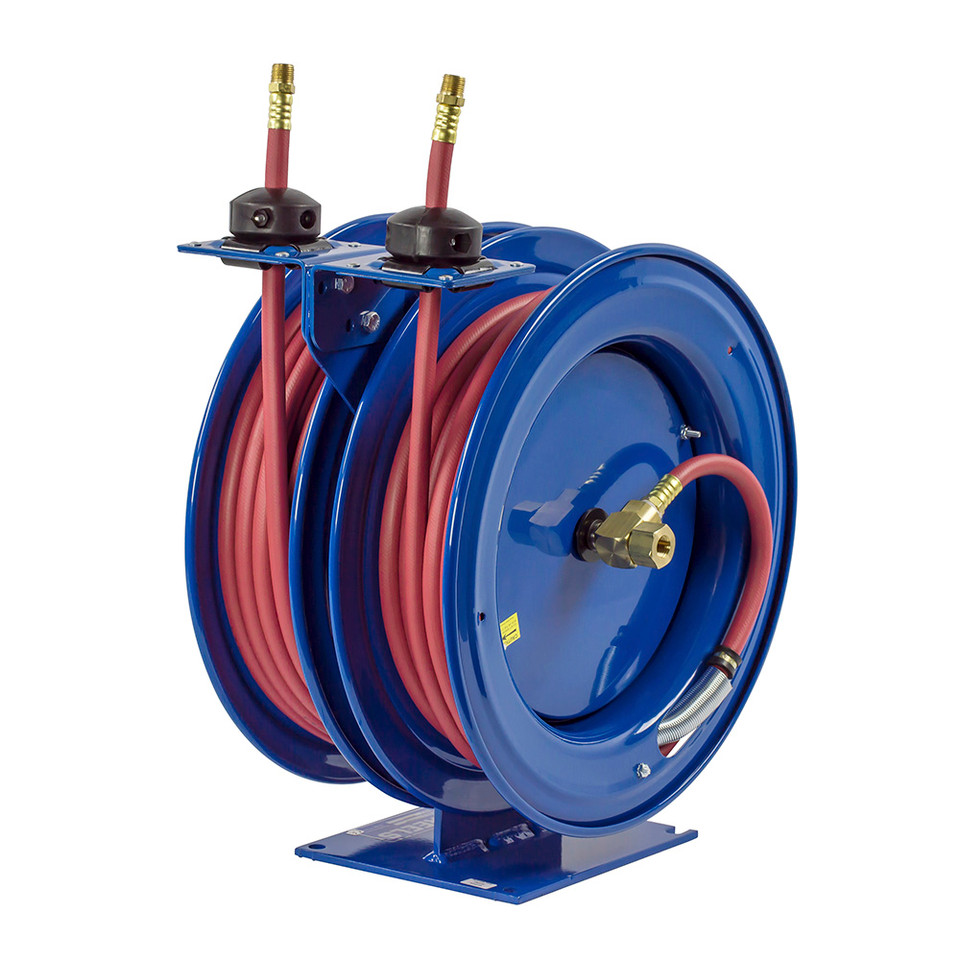

Coxreels C-MP-425-425 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels into one compact assembly for applications requiring two medium-pressure hose lines from a common mounting location. Each reel is supplied with 25 ft of 1/2" I.D. hose with a 13/16" hose O.D. and a maximum working pressure of 2,500 PSI. The supplied standard one-wire-braid hose is suitable for air, water, or oil applications, providing two separately controlled hose lines within one coordinated reel system.
The C Series combination configuration uses two external fluid paths and allows each reel to operate independently. Adjustable guide arms accommodate wall, floor, and overhead mounting positions, while a single expanded 1/4" steel mounting base provides one common mounting pattern for the complete assembly. A 1" solid steel axle with lubricated precision bearings supports reel rotation, while enclosed cartridge-style spring motors provide automatic hose retraction and multi-position lock ratchet mechanisms secure each hose at the required working length.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-MP-425-425 | Configuration: Dual Hose Reel with Hose | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Length: 25 ft per Reel | Max Pressure: 2,500 PSI |Service: Air, Water or Oil | Rewind: Spring Driven | Approximate Weight: 78 lbs
Features:
- Dual-reel combination configuration allows each hose reel to operate independently from one common mounting assembly.
- Each reel is supplied with 25 ft of 1/2" I.D. standard one-wire-braid hose.
- Medium-pressure hose is suitable for air, water, or oil applications and exceeds SAE R1 specifications.
- Two external fluid paths support independent operation of the two hose reels.
- Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
- Single expanded 1/4" steel mounting base provides increased stability and one common mounting pattern.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
- Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.
Made in USA:
Applications:
- Air service installations requiring two independently retractable medium-pressure hose lines.
- Water applications operating within the hose reel's listed pressure and temperature ratings.
- Oil service applications requiring two separately controlled hose reels from one mounting location.
- Wall-mounted workstations where adjustable guide arms provide the required hose payout direction.
- Floor or overhead installations requiring automatic rewind and independent operation of two 1/2" hose lines.
FAQs:
- Q: Does the Coxreels C-MP-425-425 include hose?
A: Yes. The C-MP-425-425 is supplied with two 25-foot lengths of 1/2-inch I.D. standard one-wire-braid hose, with one hose installed on each independently operating reel. - Q: What is the maximum pressure rating of the C-MP-425-425?
A: Coxreels lists this model with a maximum working pressure of 2,500 PSI. - Q: What are the supplied hose dimensions?
A: Each supplied hose has a 1/2-inch inside diameter and a 13/16-inch outside diameter, with 25 feet of hose provided on each reel. - Q: What fluids can the supplied hose handle?
A: Coxreels specifies the medium-pressure hose for air, water, or oil applications. The hose exceeds SAE R1 specifications and has a listed maximum temperature of 250°F. - Q: Can the two reels operate independently?
A: Yes. Each reel operates independently, allowing either hose to be extended, held at a working length, and retracted without affecting the second reel. - Q: What mounting positions does the C Series accommodate?
A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
