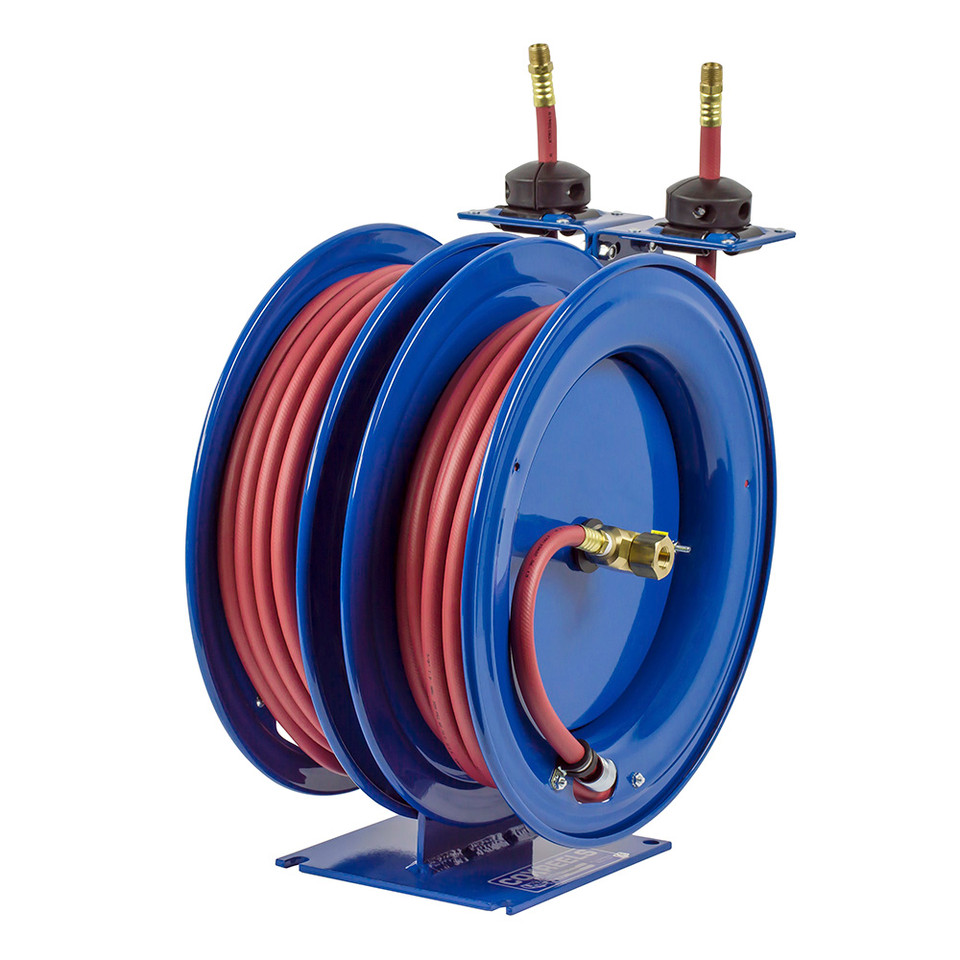

Coxreels C-LP-135-135 Dual Purpose Spring Rewind Hose Reel | C Series | 1/4" Hose Diameter | 35' Hose Length | 300 Max PSI

List Price: $643.00
$552.02
(You save $90.98 )
Availability:
Available To Order From Supplier
SKU:
C-LP-135-135
Shipping:
Calculated at Checkout
Weight:
83.75 LBS
Condition:
New
UPC:
674255711969
Adding to cart… The item has been added
Description

Coxreels C-LP-135-135 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels into one compact assembly for applications requiring two retractable hose lines at a common mounting location. Each reel is supplied with 35 ft of 1/4" I.D. hose with a 1/2" hose O.D. and a maximum pressure rating of 300 PSI. With separate reel operation, users can extend, lock, and retract either hose without affecting the second reel.

The C Series combination design uses two external fluid paths and adjustable guide arms for wall, floor, or overhead mounting positions. A single expanded 1/4" steel mounting base provides one common mounting footprint for the two reels, while enclosed cartridge-style spring motors provide automatic hose retraction. Multi-position lock ratchet mechanisms allow each hose to remain extended at the required working length until rewind is needed.

Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LP-135-135 | Configuration: Dual Hose Reel with Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Length: 35 ft per Reel | Max Pressure: 300 PSI | Service: Air and Water | Rewind: Spring Driven | Approximate Weight: 67 lbs

Features:

  • Dual-reel combination configuration provides two independently operating hose reels from one common mounting location.
  • Each reel is supplied with 35 ft of 1/4" I.D. hose with a 1/2" hose O.D.
  • Two external fluid paths allow the reels to operate independently.
  • Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
  • Single expanded 1/4" steel mounting base provides increased stability and one common mounting pattern for the complete reel assembly.
  • 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
  • Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
  • Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.

Made in USA: Made in USA

2 Year Warranty

Applications:

  • Workstations requiring two independently accessible retractable air or water hose lines.
  • Maintenance and service areas where two spring rewind hose reels are needed from one mounting location.
  • Wall-mounted hose management installations using adjustable guide arm positioning.
  • Floor-mounted work areas requiring separate operation of two retractable hoses.
  • Overhead reel installations where automatic hose rewind and independent hose access help organize the work area.

FAQs:

  • Q: Does the Coxreels C-LP-135-135 include hose?
    A: Yes. The C-LP-135-135 is supplied with two 35-foot lengths of 1/4-inch I.D. hose, with one hose installed on each independently operating reel.
  • Q: What is the maximum pressure rating of the C-LP-135-135?
    A: Coxreels lists this model with a maximum pressure rating of 300 PSI.
  • Q: What are the hose dimensions?
    A: Each supplied hose has a 1/4-inch inside diameter and a 1/2-inch outside diameter, with 35 feet of hose provided on each reel.
  • Q: Can the two reels operate independently?
    A: Yes. Each reel operates independently, allowing either hose to be extended, locked, and retracted without affecting the second reel.
  • Q: What mounting positions does the C Series support?
    A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.
HOSE LESS HOSE SIZE
INDEX
SKU I.D. O.D. FT. PSI APRX.
LBS.
LESS HOSE SKU APRX.
LBS.
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
C-LP-125-125 1/4" 1/2" 25 300 66 C-LPL-125-125 60 1
C-LP-135-135 1/4" 1/2" 35 300 67 C-LPL-135-135 60 1
C-LP-150-150 1/4" 1/2" 50 300 74 C-LPL-150-150 64 1
C-LP-325-325 3/8" 5/8" 25 300 67 C-LPL-325-325 60 2
C-LP-335-335 3/8" 5/8" 35 300 69 C-LPL-335-335 60 2
C-LP-350-350 3/8" 5/8" 50 300 78 C-LPL-350-350 64 2
C-LP-425-425 1/2" 3/4" 25 300 70 C-LPL-425-425 60 2
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
C-MP-325-325 3/8" 11/16" 25 3,000 80 C-MPL-325-325 66 2
C-MP-335-335 3/8" 11/16" 35 3,000 86 C-MPL-335-335 68 2
C-MP-425-425 1/2" 13/16" 25 2,500 78 C-MPL-425-425 64 2
C-MP-430-430 1/2" 13/16" 30 2,500 84 C-MPL-430-430 66 2
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
C-HP-125-125 1/4" 9/16" 25 5,000 78 C-HPL-125-125 66 3
C-HP-135-135 1/4" 9/16" 35 5,000 84 C-HPL-135-135 68 3
C-HP-325-325 3/8" 11/16" 25 4,000 78 C-HPL-325-325 64 3
C-HP-330-330 3/8" 11/16" 30 4,000 82 C-HPL-330-330 66 3

industrial-tools-parts-breakdown.pngLooking for more information about the Coxreels Rewind ReelClick here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Spring Rewind Hose Reel
Series:
C Series
Hose I.D. (in.):
1/4
Hose O.D. (in.):
1/2
Hose Length (ft.):
35
Hose Included:
Yes
Max PSI:
300
Width (in.):
10.5
Height (in.):
18.63
Length (in.):
17
Mounting Pattern (in.):
7M
Mounting Pattern (in.):
8N
Base (in.):
8X
Base (in.):
9Y
Warranty Information
One year warranty against defects in workmanship and materials.
