Built for paired low-pressure hose service in a compact footprint, the Coxreels C-LPL-125-125 Dual Purpose Spring Rewind Hose Reel combines two spring-driven hose reels on one shared mounting base. This C Series model is configured less hose and supports two customer-supplied 1/4" I.D. hoses with up to 25 ft hose capacity each and a 300 PSI maximum pressure rating, making it useful where two air, water, or oil lines need to be stored from one organized reel assembly. The C-LPL-125-125 is designed for applications where two low-pressure sources are needed and available mounting space is limited. Each reel section operates independently, allowing users to deploy one or both hose lines depending on the job. Because this model is supplied without hose, it gives buyers the flexibility to install compatible hose assemblies that match the required media, fitting style, hose material, and connection layout.

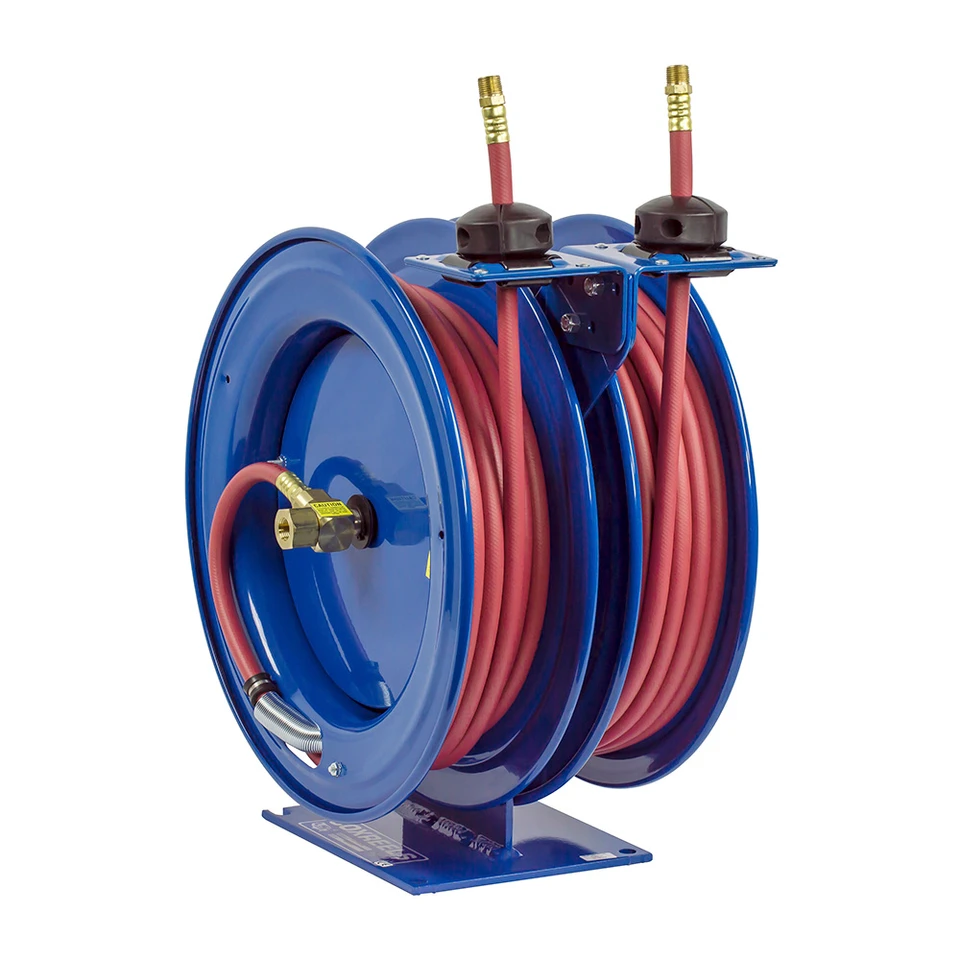

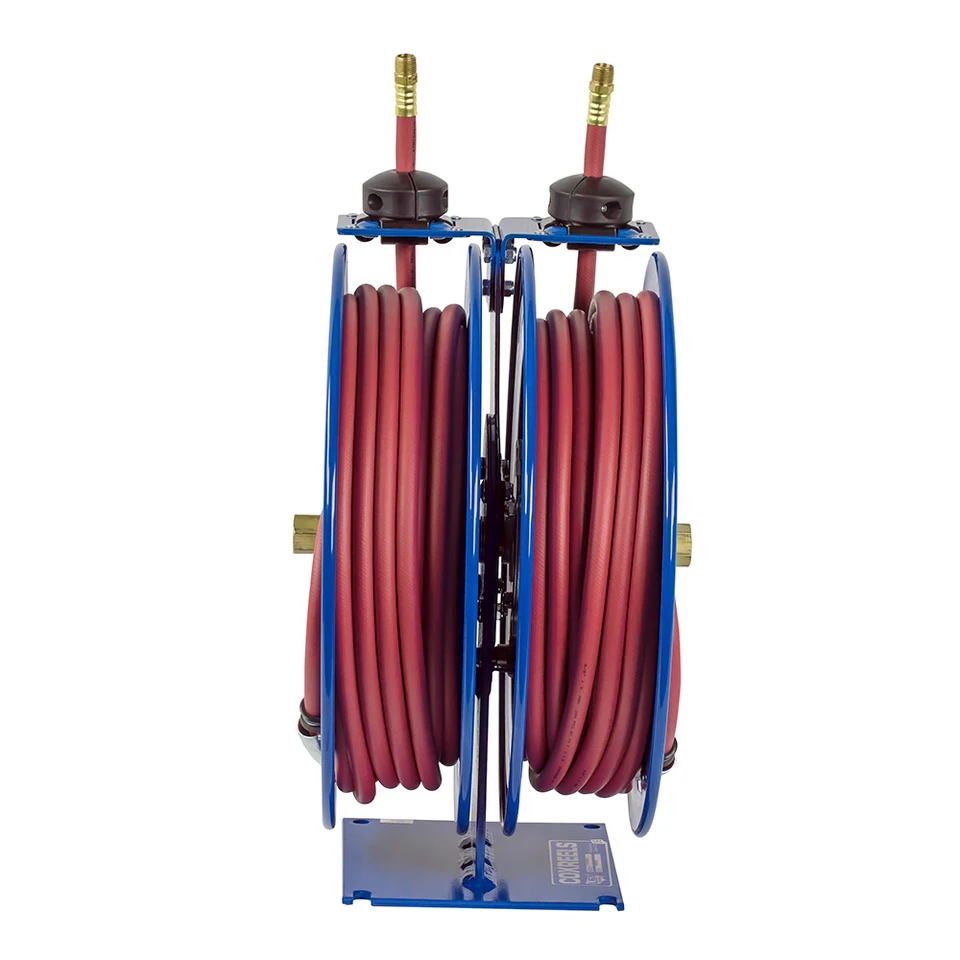

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Configuration: Less Hose | Pressure Class: Low Pressure | Hose Quantity: 2 Hoses | Hose I.D.: 1/4" | Maximum Hose O.D.: 1/2" | Hose Capacity: 25 ft Each | Max Pressure: 300 PSI | Inlet: 1/4" FNPT | Service: Air, Water, Oil | Overall Dimensions: 10-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 8" x 9" | Mounting Pattern: 7" x 8"
Features:
- Combination reel design places two spring-driven hose reels on one compact mounting base.
- Less-hose configuration allows the buyer to install two compatible 1/4" hose assemblies separately for the intended air, water, or oil application.
- Independent spring rewind operation allows each hose to retract after use, helping reduce hose clutter around work areas.
- Single mounting base helps simplify installation compared with mounting two separate reels.
- Two machined solid brass 90° full-flow NPT swivel inlets support separate fluid paths through each reel section.
- Nitrile swivel seals are used for the listed low-pressure service applications.
- Heavy gauge steel base and support post provide a stable foundation for the two-reel assembly.
- 1" solid steel axle with lubricated precision bearings supports smooth reel rotation during hose payout and rewind.
Made in USA:
Applications:
- Maintenance benches where two low-pressure hose lines are needed from one compact reel assembly.
- Automotive, fleet, and equipment service areas using paired air, water, or oil lines near lifts, bays, or utility stations.
- Manufacturing plants and industrial facilities that need two retractable service hoses at one work cell or equipment station.
- Mobile service trucks and maintenance trailers where mounting space is limited and two separate reels would take up additional room.
- Shop and facility layouts where one shared mounting base helps keep paired hose lines organized and accessible.
FAQs:
- Q: What does “less hose” mean on the Coxreels C-LPL-125-125?
A: It means the reel is supplied without hose installed. The buyer must provide two compatible hose assemblies separately, staying within the listed 1/4" I.D., 1/2" maximum O.D., 25 ft capacity each, and 300 PSI pressure rating. - Q: What does “dual purpose” mean on this C Series reel?
A: It means the reel combines two hose reels into one compact assembly, allowing two hose lines to be stored and used from a single mounting location. - Q: Can the two reel sections operate independently?
A: Yes. Each reel section has its own spring rewind action, so one or both hose lines can be deployed depending on the job and system setup. - Q: What fluids can this reel handle?
A: This low-pressure less-hose configuration is listed for air, water, and oil service. Confirm the selected hoses, fittings, seals, and media compatibility before installation. - Q: How is C-LPL-125-125 different from C-LP-125-125?
A: C-LPL-125-125 is the less-hose version and does not include hose. C-LP-125-125 is the corresponding hose-included model in the same C Series configuration.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | ||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
| MEDIUM PRESSURE | ||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
| HIGH PRESSURE | ||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
