Coxreels C-LPL-350-350 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels on a single mounting base for work areas that require two retractable hose lines. Each reel provides capacity for up to 50 ft of 3/8" I.D. hose and is rated for a maximum of 300 PSI. Supplied in a less-hose configuration, this model allows compatible hose to be selected separately to suit the intended service requirements.
The two reels operate independently, allowing either hose to be extended, locked, and retracted without affecting the other. Separate external fluid paths with machined-from-solid-brass 90° full-flow NPT swivel inlets support individual connections, while adjustable guide arms accommodate wall, floor, and overhead mounting positions. Enclosed cartridge-style spring motors provide automatic rewind, and the expanded 1/4" steel mounting base brings both reels together in one coordinated installation.

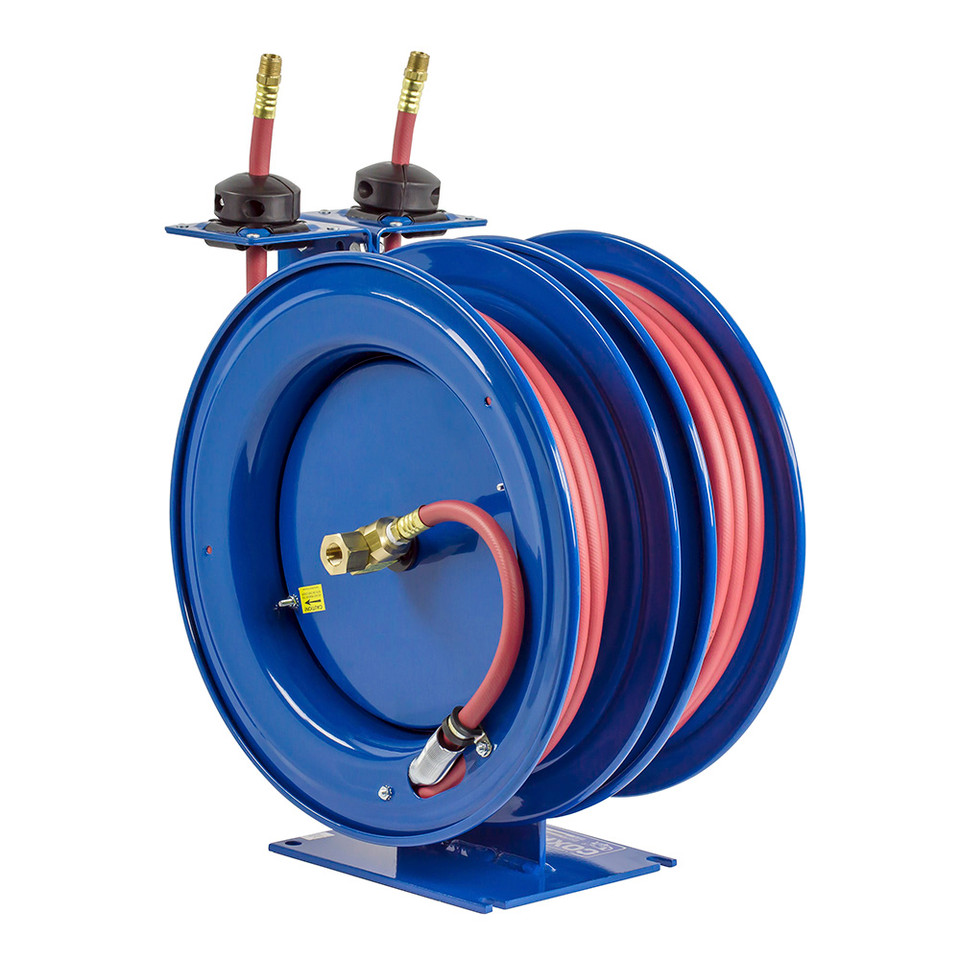

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LPL-350-350 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 50 ft per Reel | Max Pressure: 300 PSI | Service: Air, Water or Oil | Rewind: Spring Driven | Approximate Weight: 64 lbs
Features:
- Dual-reel combination design provides two independently operating spring rewind reels on one common mounting base.
- Each reel accommodates up to 50 ft of 3/8" I.D. hose with a maximum hose O.D. of 5/8".
- Less-hose configuration allows compatible hose to be selected separately for the intended service and operating requirements.
- Two external fluid paths with machined-from-solid-brass 90° full-flow NPT swivel inlets support independent hose connections.
- Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
- Single expanded 1/4" steel mounting base provides increased stability and one common mounting pattern for both reels.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose extension and retraction.
- Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose rewind.
- Multi-position lock ratchet mechanisms allow each hose to be secured independently at the desired working length.
Made in USA:
Applications:
- Manufacturing and maintenance workstations requiring two independently accessible hose lines from one mounting location.
- Automotive and fleet service facilities configuring separate retractable hose connections around repair and service bays.
- Industrial MRO areas where application-specific hose needs to be selected separately for the intended fluid service.
- Pneumatic equipment stations requiring organized storage and automatic rewind for two compatible 3/8" hose lines.
- Wall, floor, or overhead installations where one dual-reel assembly is preferred over two separately mounted hose reels.
FAQs:
- Q: Does the Coxreels C-LPL-350-350 include hose?
A: No. The C-LPL-350-350 is supplied less hose. Compatible hose must be purchased and installed separately for each reel. - Q: What hose size and length can each reel accommodate?
A: Each reel provides capacity for up to 50 feet of 3/8-inch I.D. hose with a maximum hose outside diameter of 5/8 inch. - Q: Can the two reels operate independently?
A: Yes. Each reel operates independently, allowing either hose to be extended, locked at a working length, and retracted without affecting the other reel. - Q: What is the maximum pressure rating of the C-LPL-350-350?
A: The reel is rated for a maximum pressure of 300 PSI. Any separately selected hose must also be suitable for the required operating pressure and intended service. - Q: Can the C-LPL-350-350 be mounted in different positions?
A: Yes. Its adjustable guide arms accommodate wall, floor, and overhead mounting positions. The supporting structure and mounting hardware should be suitable for the installed reel and operating loads.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
