Coxreels C-LPL-325-325 Dual Purpose Spring Rewind Hose Reel | C Series | 3/8" Hose Diameter | 25' Hose Length | 300 Max PSI | Less Hose

Coxreels C-LPL-325-325 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels on one common mounting base for applications requiring two retractable hose lines from a single installation point. Each reel provides capacity for up to 25 ft of 3/8" I.D. hose with a maximum hose outside diameter of 5/8" and a maximum working pressure of 300 PSI. Supplied in a less-hose configuration, this model allows compatible hose to be selected separately for the intended application.

The C Series combination design incorporates two external fluid paths and allows each reel to operate independently. Adjustable guide arms accommodate wall, floor, and overhead mounting positions, while the single expanded 1/4" steel mounting base provides one common mounting pattern for the complete assembly. A 1" solid steel axle with lubricated precision bearings supports reel rotation, while enclosed cartridge-style spring motors provide automatic hose retraction and multi-position lock ratchet mechanisms hold each hose at the desired working length.

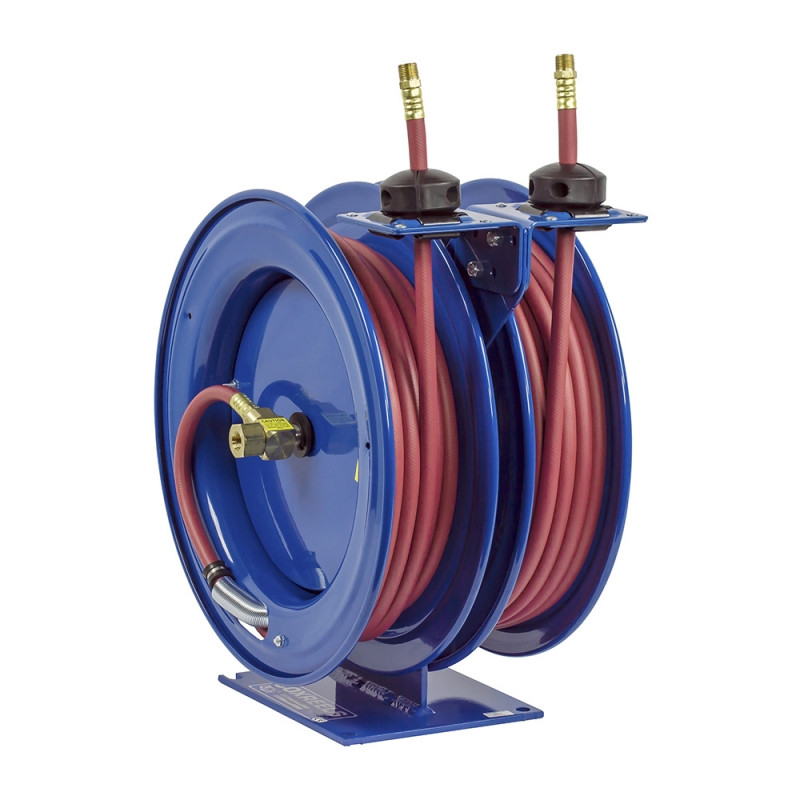

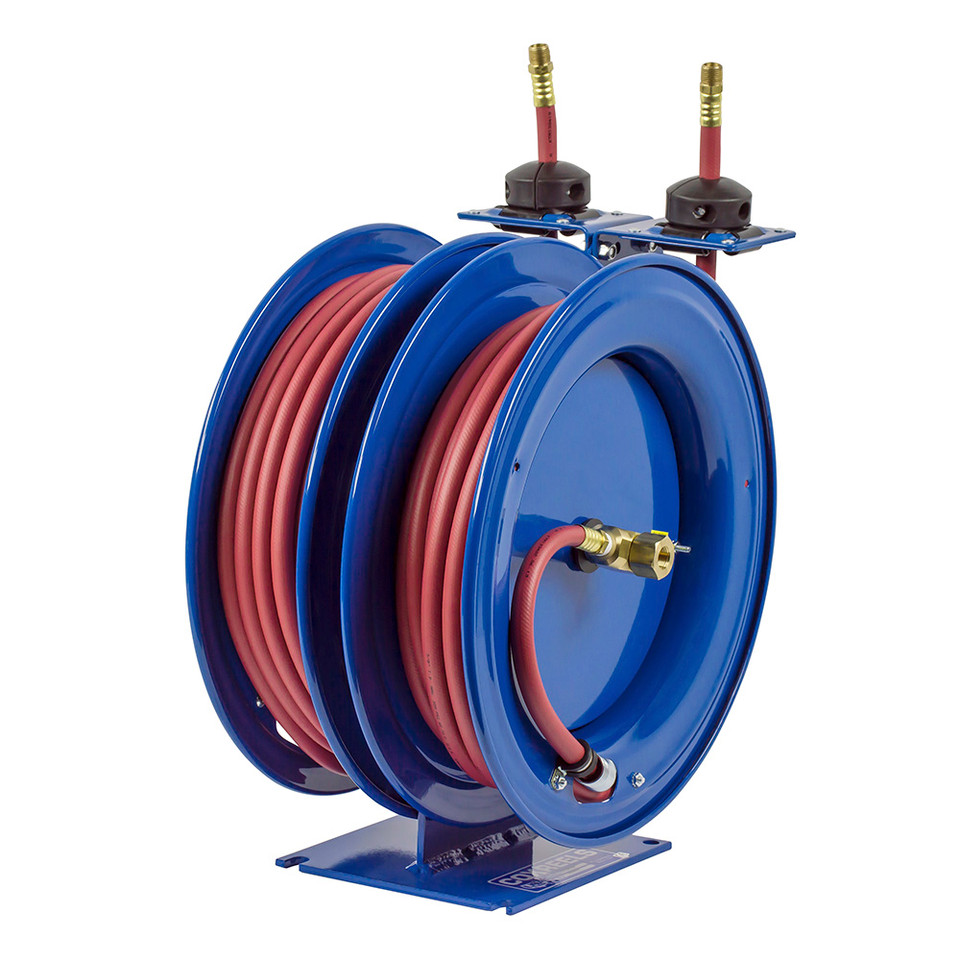

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LPL-325-325 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 25 ft per Reel | Max Pressure: 300 PSI | Service: Air, Water or Oil | Rewind: Spring Driven | Approximate Weight: 60 lbs

Features:

• Dual-reel combination configuration provides two independently operating spring rewind hose reels on one common mounting base.
• Each reel accommodates up to 25 ft of 3/8" I.D. hose with a maximum hose O.D. of 5/8".
• Less-hose configuration allows compatible hose to be selected separately for the intended service requirements.
• Two external fluid paths allow the hose reels to operate independently.
• Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
• Single expanded 1/4" steel mounting base provides increased stability and one common mounting pattern for the complete assembly.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
• Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Workstations requiring two independently accessible retractable hose lines from one common mounting location.
• Maintenance and service areas where compatible hose needs to be selected separately for the intended application.
• Wall-mounted installations using adjustable guide arm positioning for controlled hose payout.
• Floor-mounted work areas requiring separate operation and automatic rewind of two hose lines.
• Overhead installations where one dual-reel assembly is preferred over two separately mounted spring rewind reels.

FAQs:

• Q: Does the Coxreels C-LPL-325-325 include hose?
  A: No. The C-LPL-325-325 is supplied less hose. Compatible hose must be purchased and installed separately for each reel.
• Q: What hose size and capacity does each reel accommodate?
  A: Each reel accommodates up to 25 feet of 3/8-inch I.D. hose with a maximum hose O.D. of 5/8 inch.
• Q: What is the maximum pressure rating of the C-LPL-325-325?
  A: The C-LPL-325-325 has a maximum pressure rating of 300 PSI.
• Q: What services can a less-hose C Series reel be used for?
  A: Coxreels specifies the less-hose low-pressure configurations for air, water, or oil service. The separately selected hose must also be suitable for the intended application.
• Q: Can the two reels operate independently?
  A: Yes. Each reel operates independently, allowing either hose to be extended, held at a working length, and retracted without affecting the other reel.
• Q: What mounting positions does the C Series accommodate?
  A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
