Coxreels C-LPL-425-425 Dual Purpose Spring Rewind Hose Reel | C Series | 1/2" Hose Diameter | 25' Hose Length | 300 Max PSI | Less Hose

Coxreels C-LPL-425-425 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels on one common mounting base for applications requiring two retractable hose lines from a single installation point. Each reel provides capacity for up to 25 ft of 1/2" I.D. hose with a maximum hose outside diameter of 3/4" and a maximum working pressure of 300 PSI. Supplied in a less-hose configuration, this model allows compatible hose to be selected separately for air, water, or oil service.

The C Series combination design incorporates two external fluid paths with machined-from-solid-brass 90° full-flow NPT swivel inlets and allows each reel to operate independently. Adjustable guide arms accommodate wall, floor, and overhead mounting positions, while the single expanded 1/4" steel mounting base provides one common mounting pattern for the complete assembly. A 1" solid steel axle with lubricated precision bearings supports smooth reel rotation, while enclosed cartridge-style spring motors provide automatic hose retraction and multi-position lock ratchet mechanisms hold each hose at the desired working length.

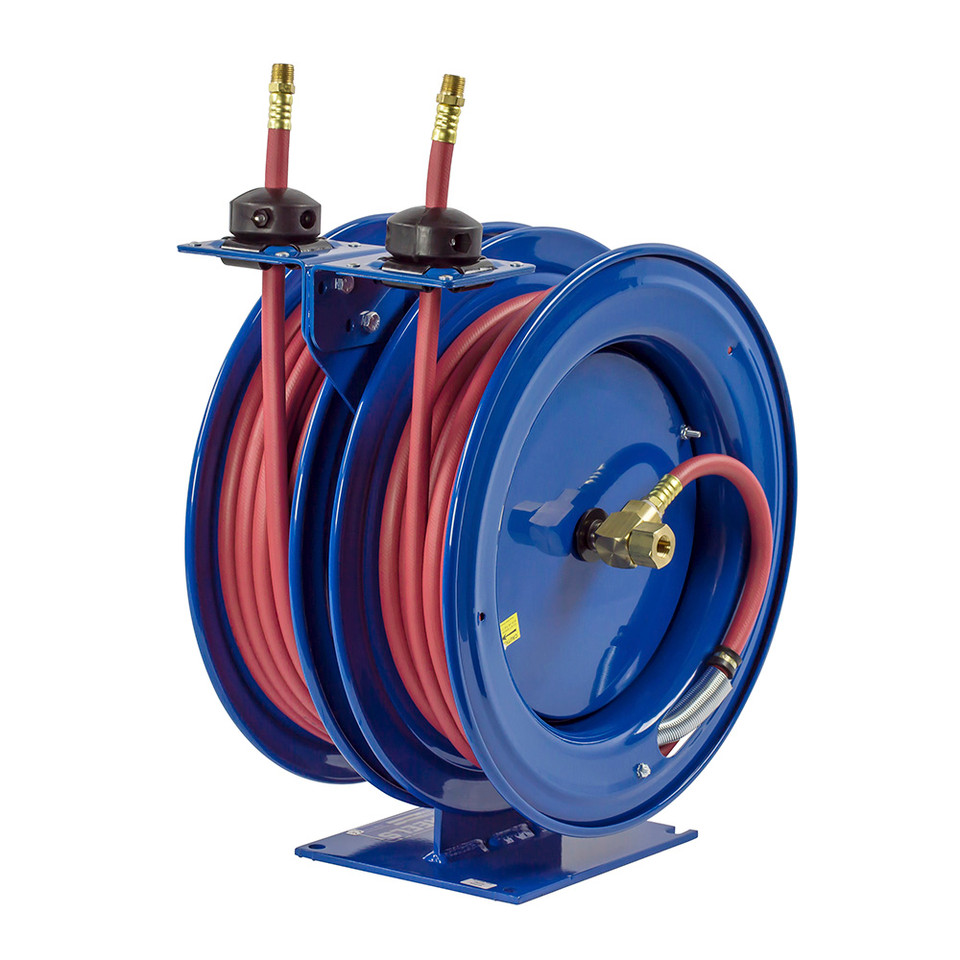

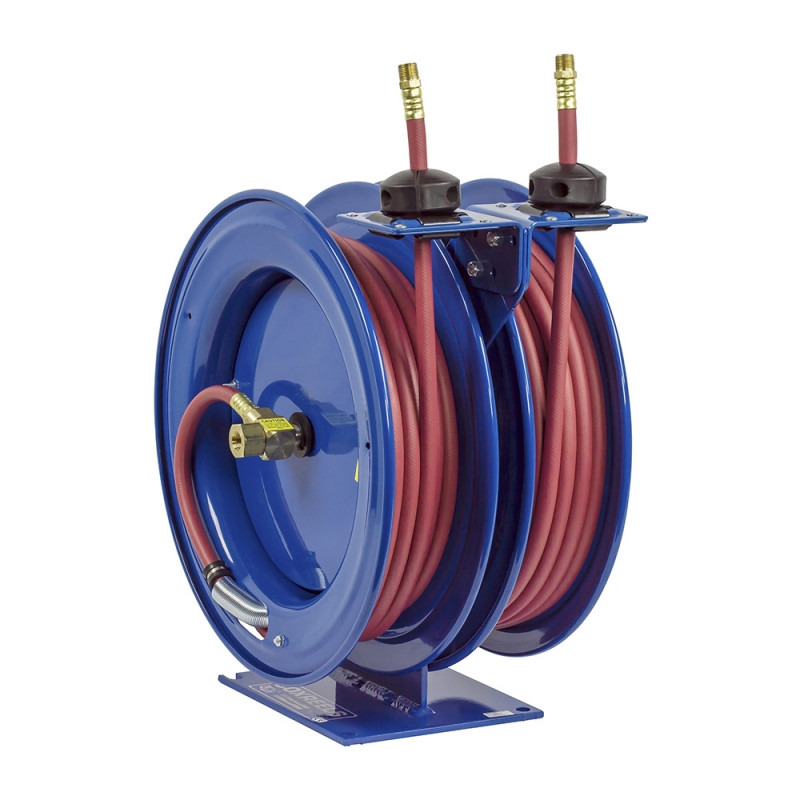

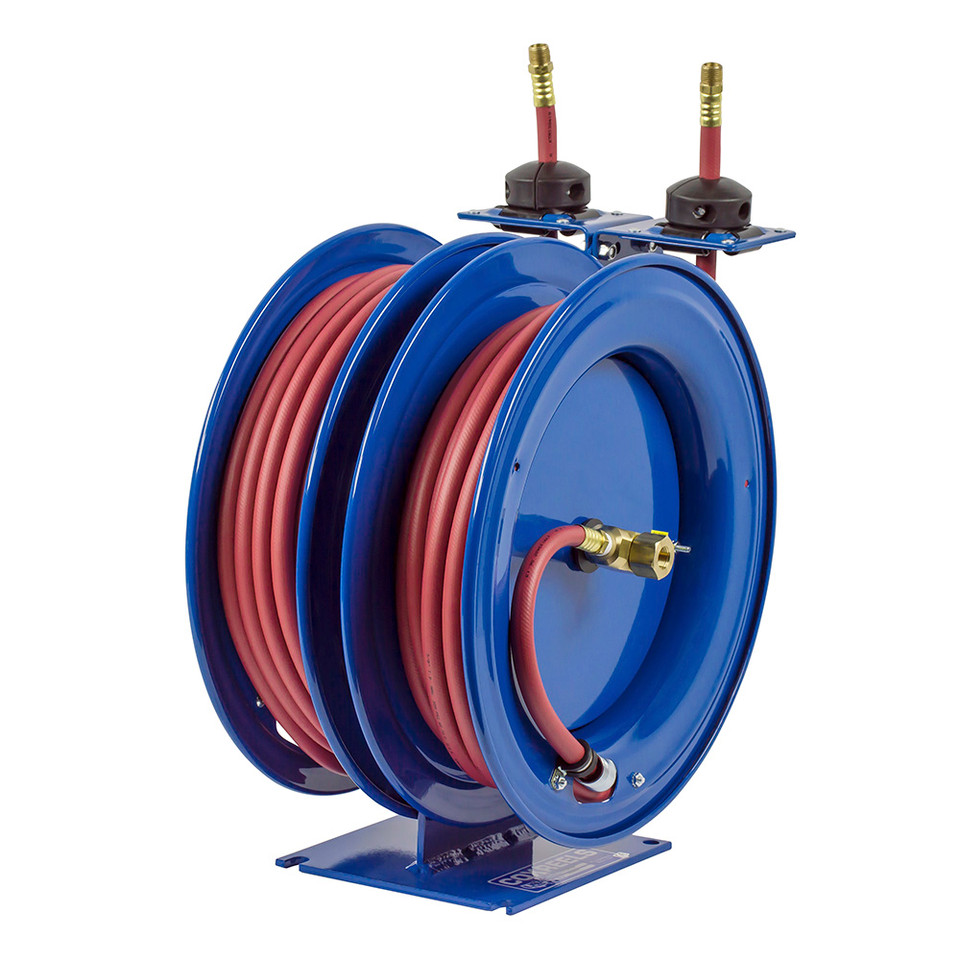

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LPL-425-425 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Capacity: 25 ft per Reel | Max Pressure: 300 PSI | Service: Air, Water or Oil | Rewind: Spring Driven | Approximate Weight: 60 lbs

Features:

• Dual-reel combination configuration provides two independently operating spring rewind hose reels on one common mounting base.
• Each reel accommodates up to 25 ft of 1/2" I.D. hose with a maximum hose O.D. of 3/4".
• Less-hose configuration allows compatible hose to be selected separately for air, water, or oil service.
• Two external fluid paths with machined-from-solid-brass 90° full-flow NPT swivel inlets support independent reel operation.
• Nitrile swivel seals provide the sealing configuration specified for the C Series.
• Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
• Single expanded 1/4" steel mounting base provides increased stability and one common mounting pattern for the complete assembly.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
• Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Air and water service applications requiring two independently accessible retractable hose lines.
• Lubrication applications where compatible oil hose is selected separately for the intended service.
• Pneumatic tool stations requiring two hose sources from one compact reel installation.
• Manufacturing plants and facilities requiring organized dual-hose management from one mounting location.
• Maintenance, repair, operations, automotive, and fleet service areas using compatible air, water, or oil hose systems.

FAQs:

• Q: Does the Coxreels C-LPL-425-425 include hose?
  A: No. The C-LPL-425-425 is supplied less hose. Compatible hose must be purchased and installed separately for each reel.
• Q: What hose size and capacity does each reel accommodate?
  A: Each reel accommodates up to 25 feet of 1/2-inch I.D. hose with a maximum hose O.D. of 3/4 inch.
• Q: What is the maximum pressure rating of the C-LPL-425-425?
  A: The C-LPL-425-425 has a maximum pressure rating of 300 PSI.
• Q: What services can the less-hose C-LPL-425-425 be used for?
  A: Coxreels specifies C Series less-hose models for air, water, or oil service. The separately selected hose must also be compatible with the intended application.
• Q: Can the two reels operate independently?
  A: Yes. Each reel operates independently, allowing either hose to be extended, held at a working length, and retracted without affecting the other reel.
• Q: What mounting positions does the C Series accommodate?
  A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.
