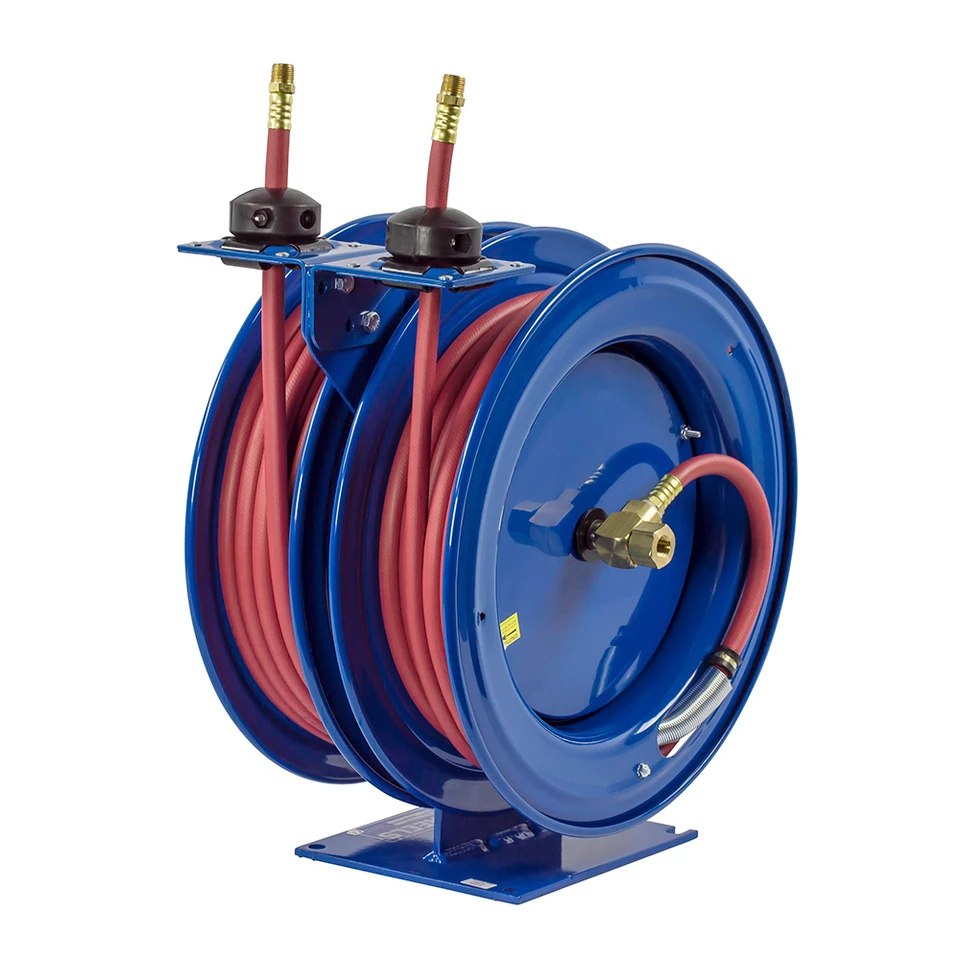

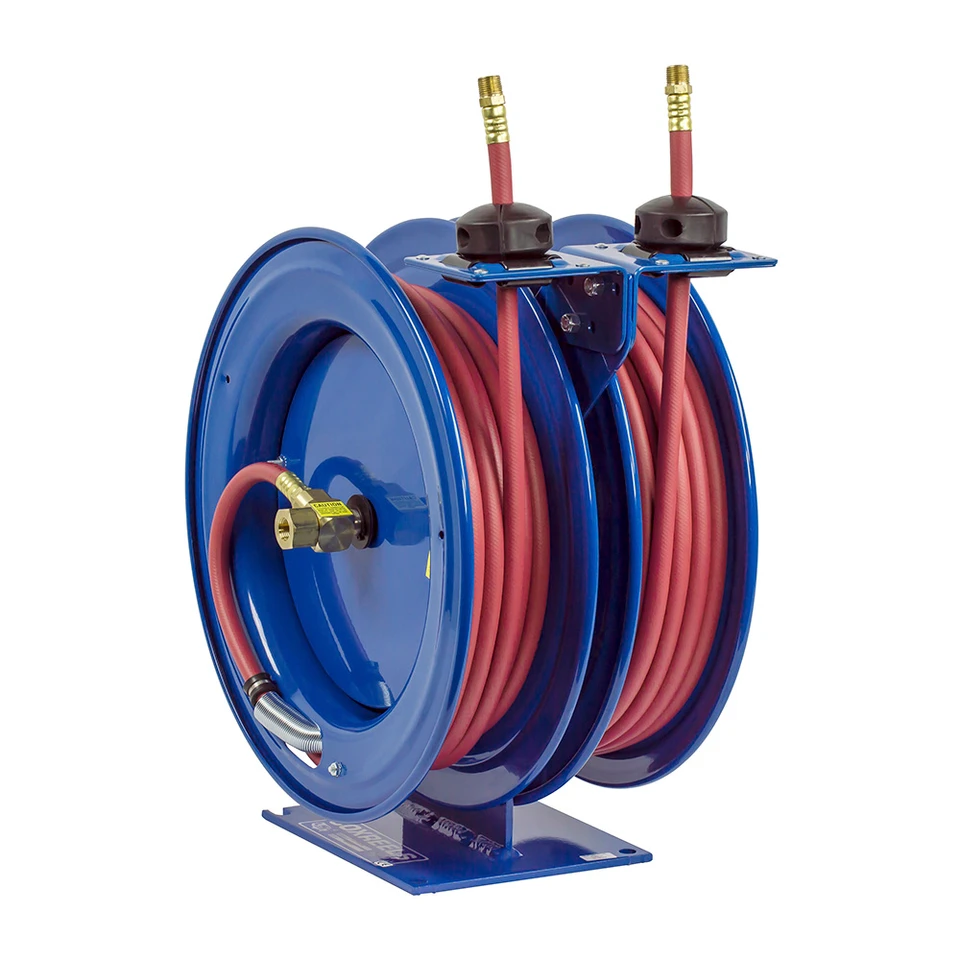

Built for paired high-pressure grease and hydraulic oil service in a compact footprint, the Coxreels C-HP-135-135 Dual Purpose Spring Rewind Hose Reel combines two spring-driven hose reels on one shared mounting base. This C Series model includes two 1/4" I.D. x 35 ft hoses rated to 5,000 PSI, making it useful where two high-pressure service lines need to be available from one organized reel assembly. The C-HP-135-135 is designed for applications where two high-pressure sources are needed and mounting space is limited. Each reel section operates independently, allowing users to deploy one or both hose lines as needed. The shared base helps simplify installation, while the spring rewind design retracts each hose after use to reduce loose hose around lubrication stations, hydraulic repair areas, mobile service vehicles, and maintenance work cells.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Configuration: Hose Included | Pressure Class: High Pressure | Hose Quantity: 2 Hoses | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 35 ft Each | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Max Temperature: 250°F | Approx. Weight: 84 lbs | Overall Dimensions: 11-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 8" x 9" | Mounting Pattern: 7" x 8"
Features:
- Combination reel design places two spring-driven hose reels on one compact mounting base.
- Two included 1/4" x 35 ft high-pressure hoses support paired grease or hydraulic oil service from one reel location.
- Independent spring rewind operation allows each hose to retract after use, helping reduce hose clutter around work areas.
- Single mounting base improves installation convenience compared with mounting two separate reels.
- Two external fluid paths support separate high-pressure hose delivery through each reel section.
- Zinc plated steel swivel construction is used on HP configurations for high-pressure grease and hydraulic oil service.
- Nitrile swivel seals support the listed grease and hydraulic oil applications.
- Solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
Made in USA:
Applications:
- Hydraulic repair stations where two 1/4" high-pressure hose lines are needed from one compact reel assembly.
- Fleet, truck, and equipment service areas managing paired grease or hydraulic oil lines near lifts, benches, or service bays.
- Manufacturing plants and industrial facilities that need two retractable high-pressure hoses at one lubrication or maintenance point.
- Mobile service trucks and maintenance trailers where mounting space is limited and two separate reels would take up extra room.
- Industrial MRO teams servicing cylinders, jacks, pumps, lifts, and other fluid power components from a shared reel location.
FAQs:
- Q: Does the Coxreels C-HP-135-135 include hose?
A: Yes. This model includes two 1/4" I.D. x 35 ft high-pressure hoses rated for 5,000 PSI service. - Q: What does “dual purpose” mean on this C Series reel?
A: It means the reel combines two hose reels into one compact assembly, allowing two hose lines to be stored and used from a single mounting location. - Q: What fluids is this reel intended for?
A: This HP Series configuration is listed for grease and hydraulic oil service. Confirm hose, seal, fitting, and fluid compatibility before use with a specific system or temperature condition. - Q: Can the two hose lines operate independently?
A: Yes. Each reel section has its own hose and spring rewind action, so one or both hose lines can be deployed depending on the job and system setup. - Q: How is C-HP-135-135 different from C-HPL-135-135?
A: C-HP-135-135 includes two 1/4" x 35 ft hoses. C-HPL-135-135 is the corresponding less-hose version and does not include hose.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | ||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
| MEDIUM PRESSURE | ||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
| HIGH PRESSURE | ||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
