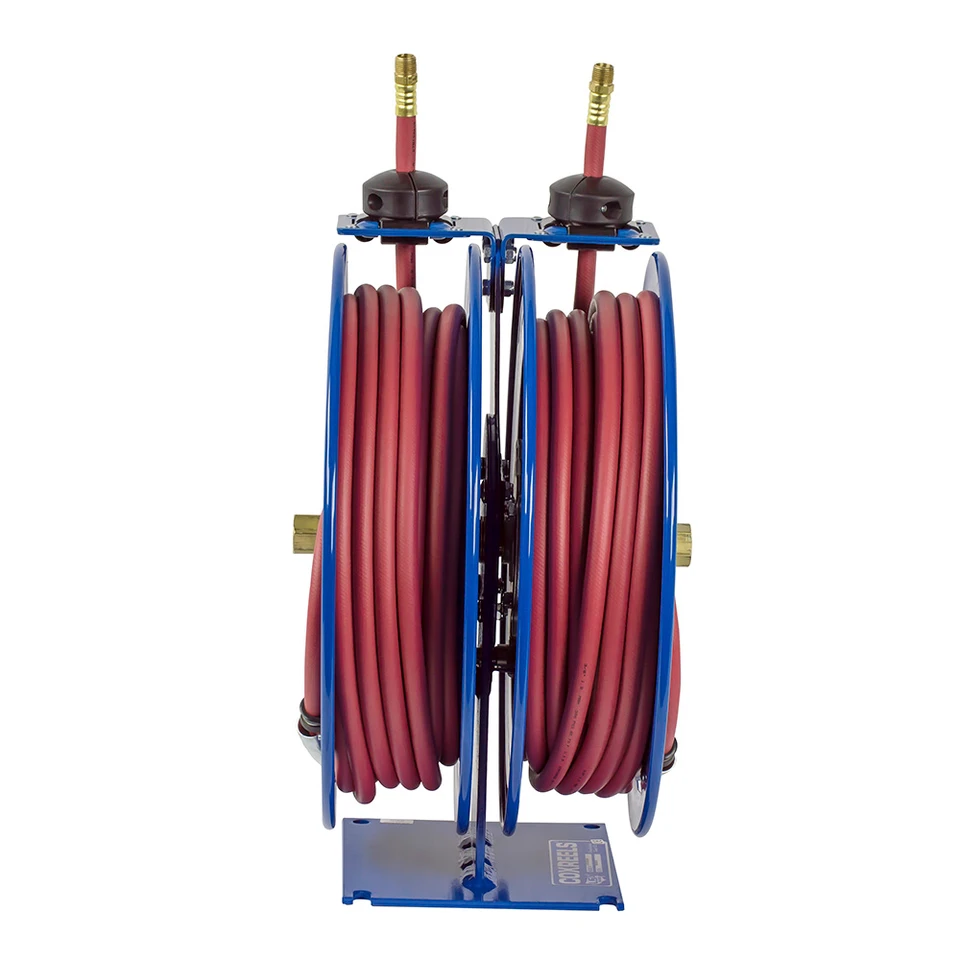

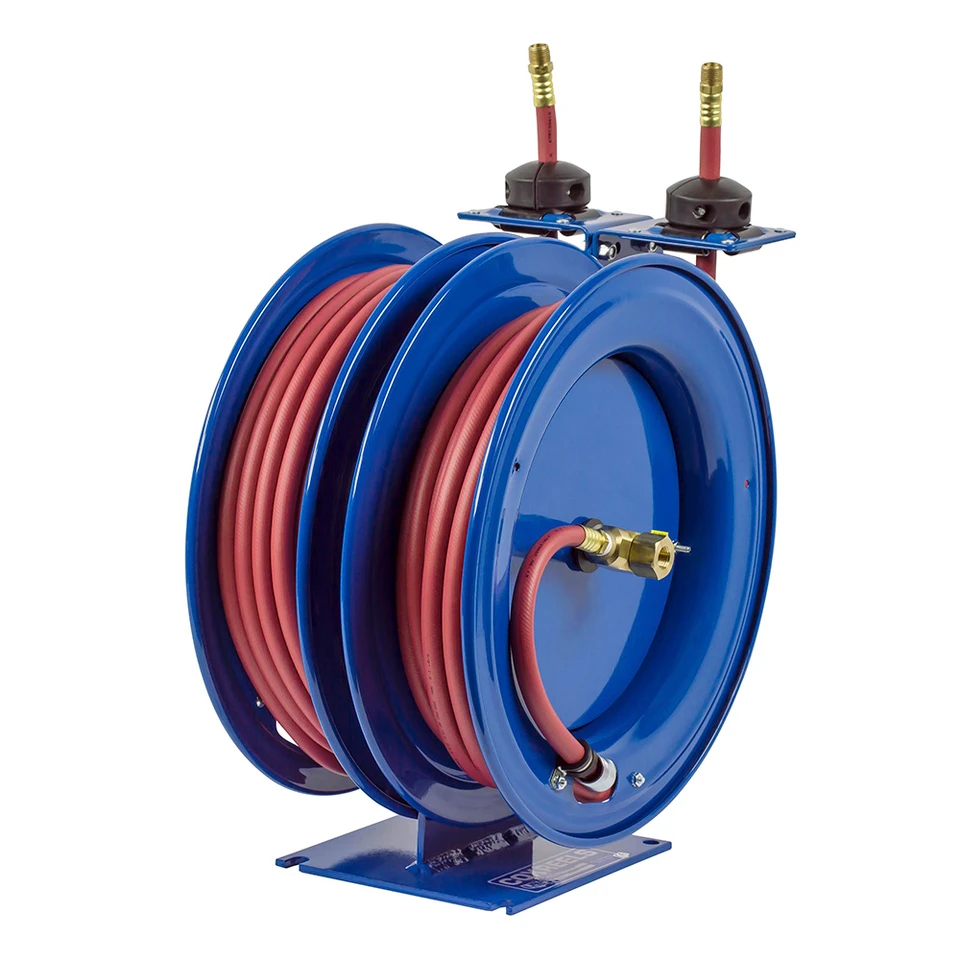

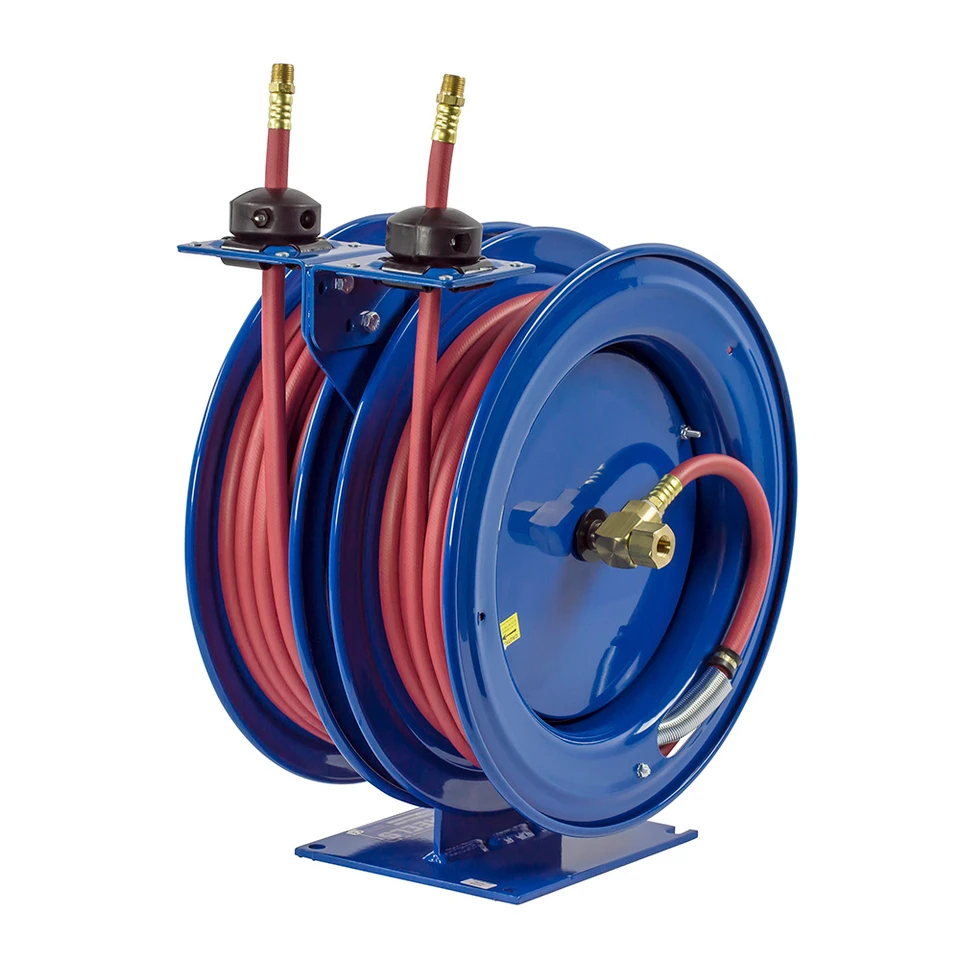

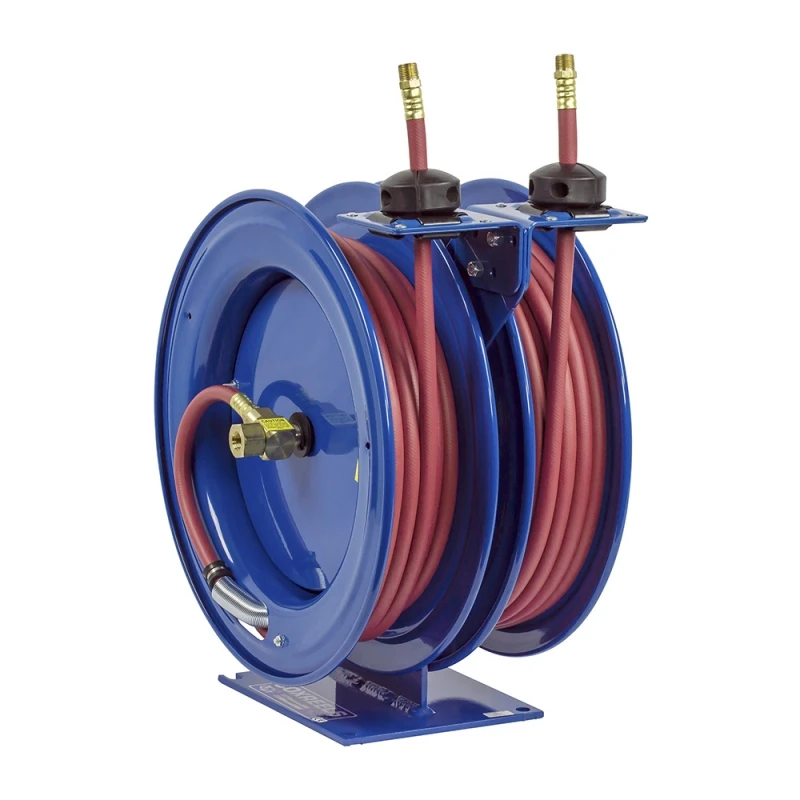

Built for paired high-pressure grease and hydraulic oil service in a compact footprint, the Coxreels C-HP-325-325 Dual Purpose Spring Rewind Hose Reel combines two spring-driven hose reels on one shared mounting base. This C Series model includes two 3/8" I.D. x 25 ft hoses rated to 4,000 PSI, making it useful where two high-pressure service lines need to be stored, deployed, and retracted from one organized reel assembly. The C-HP-325-325 is designed for applications where two grease or hydraulic oil sources are needed and available mounting space is limited. Each reel section operates independently, allowing users to deploy one or both hose lines depending on the job. The shared base helps simplify installation, while spring rewind operation retracts each hose after use to reduce loose hose around hydraulic repair benches, lubrication stations, mobile service vehicles, and industrial maintenance areas.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Configuration: Hose Included | Pressure Class: High Pressure | Hose Quantity: 2 Hoses | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 25 ft Each | Max Pressure: 4,000 PSI | Service: Grease, Hydraulic Oil | Max Temperature: 250°F | Overall Dimensions: 11-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 8" x 9" | Mounting Pattern: 7" x 8"
Features:
- Combination reel design places two spring-driven hose reels on one compact mounting base.
- Two included 3/8" x 25 ft high-pressure hoses support paired grease or hydraulic oil service from one reel location.
- Independent spring rewind operation allows each hose to retract after use, helping reduce hose clutter around work areas.
- Single mounting base improves installation convenience compared with mounting two separate reels.
- Two external fluid paths support separate high-pressure delivery through each reel section.
- Zinc plated steel swivel construction is used on HP configurations for high-pressure grease and hydraulic oil service.
- Nitrile swivel seals support the listed grease and hydraulic oil applications.
- Solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
Made in USA:
Applications:
- Hydraulic repair stations where two 3/8" high-pressure hose lines are needed from one compact reel assembly.
- Fleet, truck, and equipment service areas managing paired grease or hydraulic oil lines near lifts, benches, or service bays.
- Manufacturing plants and industrial facilities that need two retractable high-pressure hoses at one lubrication or maintenance point.
- Mobile service trucks and maintenance trailers where two separate reels would take up additional mounting space.
- Industrial MRO teams servicing cylinders, pumps, jacks, lifts, and other fluid power components from a shared reel location.
FAQs:
- Q: Does the Coxreels C-HP-325-325 include hose?
A: Yes. This model includes two 3/8" I.D. x 25 ft high-pressure hoses rated for 4,000 PSI service. - Q: What does “dual purpose” mean on this C Series reel?
A: It means the reel combines two hose reels into one compact assembly, allowing two hose lines to be stored and used from a single mounting location. - Q: What fluids is this reel intended for?
A: This HP configuration is listed for grease and hydraulic oil service. Confirm hose, seal, fitting, and fluid compatibility before use with a specific system or temperature condition. - Q: Can the two hose lines operate independently?
A: Yes. Each reel section has its own hose and spring rewind action, so one or both hose lines can be deployed depending on the job and system setup. - Q: How is C-HP-325-325 different from C-HPL-325-325?
A: C-HP-325-325 includes two 3/8" x 25 ft hoses. C-HPL-325-325 is the corresponding less-hose version and does not include hose.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | ||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
| MEDIUM PRESSURE | ||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
| HIGH PRESSURE | ||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
