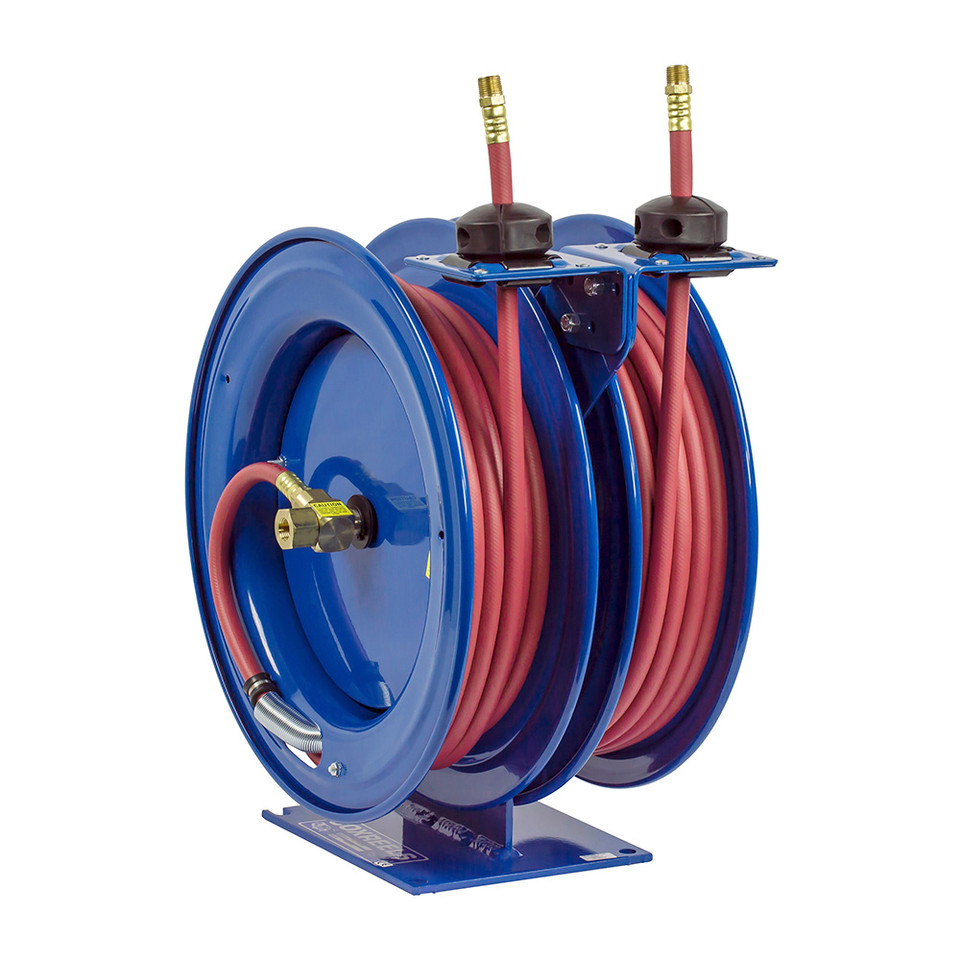

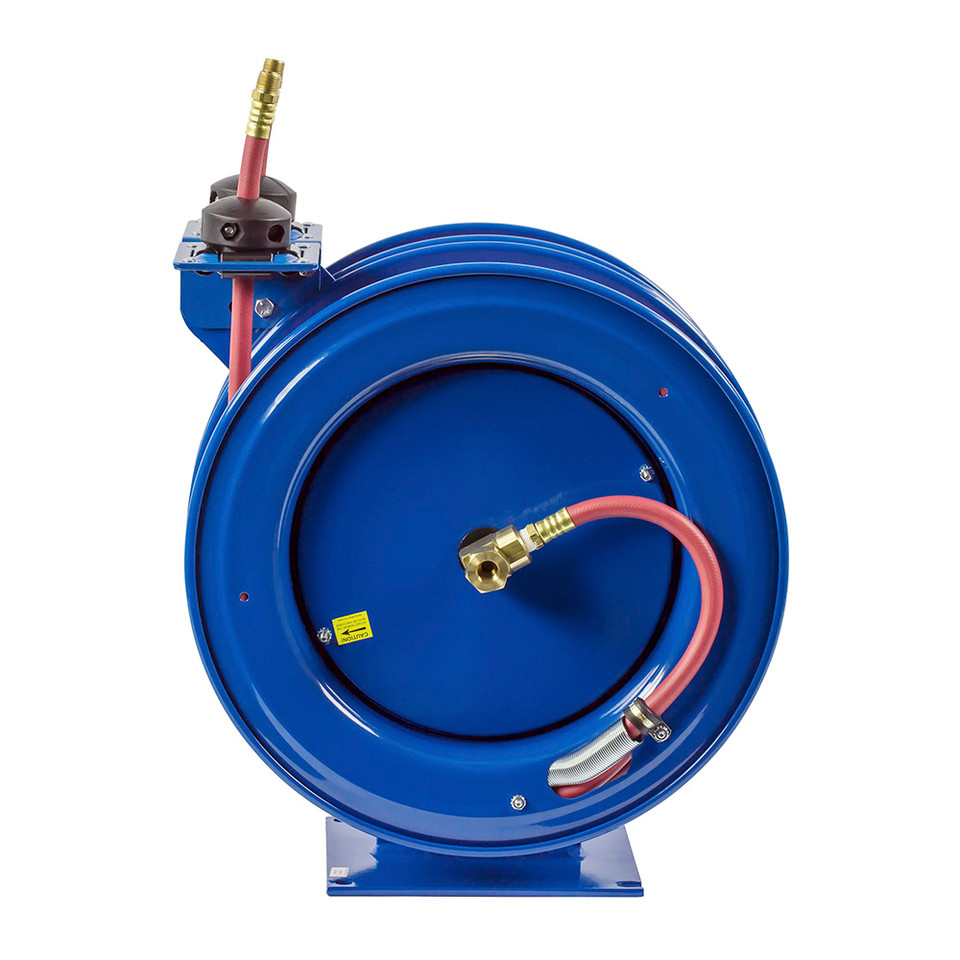

Coxreels C-HP-125-125 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels in one compact assembly for applications that need two high-pressure hose sources from a single mounting location. Each reel is supplied with 25 ft of 1/4" I.D. hose rated to a maximum of 5,000 PSI, giving maintenance and service teams a coordinated way to manage grease and hydraulic oil lines where installation space is limited.
The C-HP-125-125 uses two external fluid paths with zinc-plated steel 90° full-flow NPT swivel inlets, allowing each hose reel to operate independently. Adjustable guide arms support wall, floor, and overhead mounting positions, while the single expanded 1/4" steel mounting base creates one common installation footprint. Enclosed cartridge-style spring motors provide automatic hose retraction, and multi-position lock ratchet mechanisms hold each hose at the required working length.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-HP-125-125 | Configuration: Dual Hose Reel with Hose | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 25 ft per Reel | Max Pressure: 5,000 PSI | Service: Grease and Hydraulic Oil | Rewind: Spring Driven | Approximate Weight: 78 lbs
Features:
- Compact two-reel assembly supports dual high-pressure hose applications while allowing each reel to operate independently.
- Two external fluid paths use zinc-plated steel 90° full-flow NPT swivel inlets on the high-pressure configuration.
- Nitrile swivel seals provide the sealing configuration specified for the C Series.
- Supplied with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications.
- Guide arms adjust for wall, floor, and overhead mounting positions to accommodate different installation layouts.
- Single expanded 1/4" steel mounting base increases stability and provides one common mounting pattern for both reels.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose extension and retraction.
- Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose rewind.
- Multi-position lock ratchet mechanisms secure each hose independently at the desired working length.
Made in USA:
Applications:
- Lubrication stations requiring two independently accessible high-pressure grease or hydraulic oil hose lines.
- Automotive and fleet service centers managing lubrication and hydraulic service around vehicle maintenance bays.
- Industrial maintenance and MRO areas where two retractable high-pressure hose sources are needed at one workstation.
- Manufacturing plants and equipment service areas handling grease or hydraulic oil within the reel's pressure and temperature ratings.
- Wall, floor, or overhead installations where one dual-reel assembly is more space-efficient than mounting two separate hose reels.
FAQs:
- Q: Does the Coxreels C-HP-125-125 include both hoses?
A: Yes. The C-HP-125-125 is supplied with two 25-foot lengths of 1/4-inch I.D. high-pressure hose. Each hose is installed on its own independently operating reel. - Q: What fluids is the C-HP-125-125 intended to handle?
A: Coxreels specifies the high-pressure C Series models with hose for grease and hydraulic oil applications. The supplied hose is S.A.E. 100R16 #1 or #2 wire braid hose. - Q: What is the maximum pressure rating of this reel?
A: The C-HP-125-125 is rated to a maximum of 5,000 PSI. The listed maximum temperature for the supplied high-pressure hose is 250°F. - Q: Can both hose reels be used independently?
A: Yes. Each reel operates independently, allowing either hose to be extended, locked, and retracted without affecting the other reel. - Q: Can the C-HP-125-125 be mounted on a wall or overhead?
A: Yes. The adjustable guide arms support wall, floor, and overhead mounting positions. The supporting structure and mounting hardware should be selected to safely handle the complete reel assembly and operating loads.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- C Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 9/16
- Hose Length (ft.)
- 25
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 5000
- Width (in.)
- 11.5
- Height (in.)
- 18.63
- Length (in.)
- 17
- Mounting Pattern (in.)
- 7M
- Mounting Pattern (in.)
- 8N
- Base (in.)
- 8X
- Base (in.)
- 9Y
