Coxreels C-LPL-150-150 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels on one common mounting base for applications requiring two retractable hose lines from a single installation point. Each reel provides capacity for up to 50 ft of 1/4" I.D. hose with a maximum hose outside diameter of 1/2" and a maximum working pressure of 300 PSI. Supplied in a less-hose configuration, this model allows compatible hose to be selected separately for the intended application.
The C Series combination design incorporates two external fluid paths and allows each reel to operate independently. Adjustable guide arms accommodate wall, floor, and overhead mounting positions, while the single expanded 1/4" steel mounting base provides one common mounting pattern for the complete assembly. A 1" solid steel axle with lubricated precision bearings supports reel rotation, while enclosed cartridge-style spring motors provide automatic hose retraction and multi-position lock ratchet mechanisms hold each hose at the desired working length.

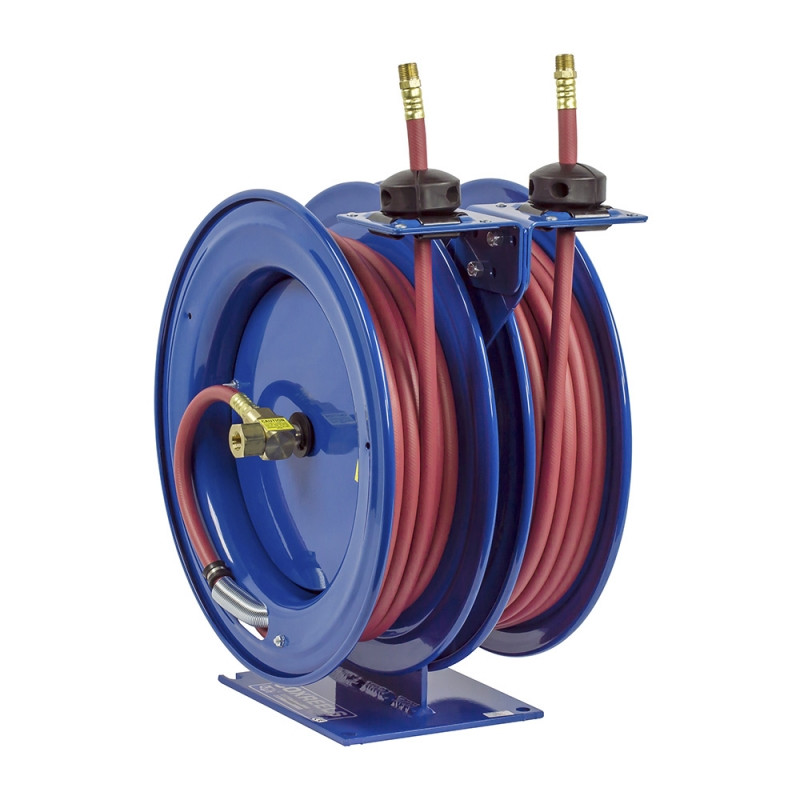

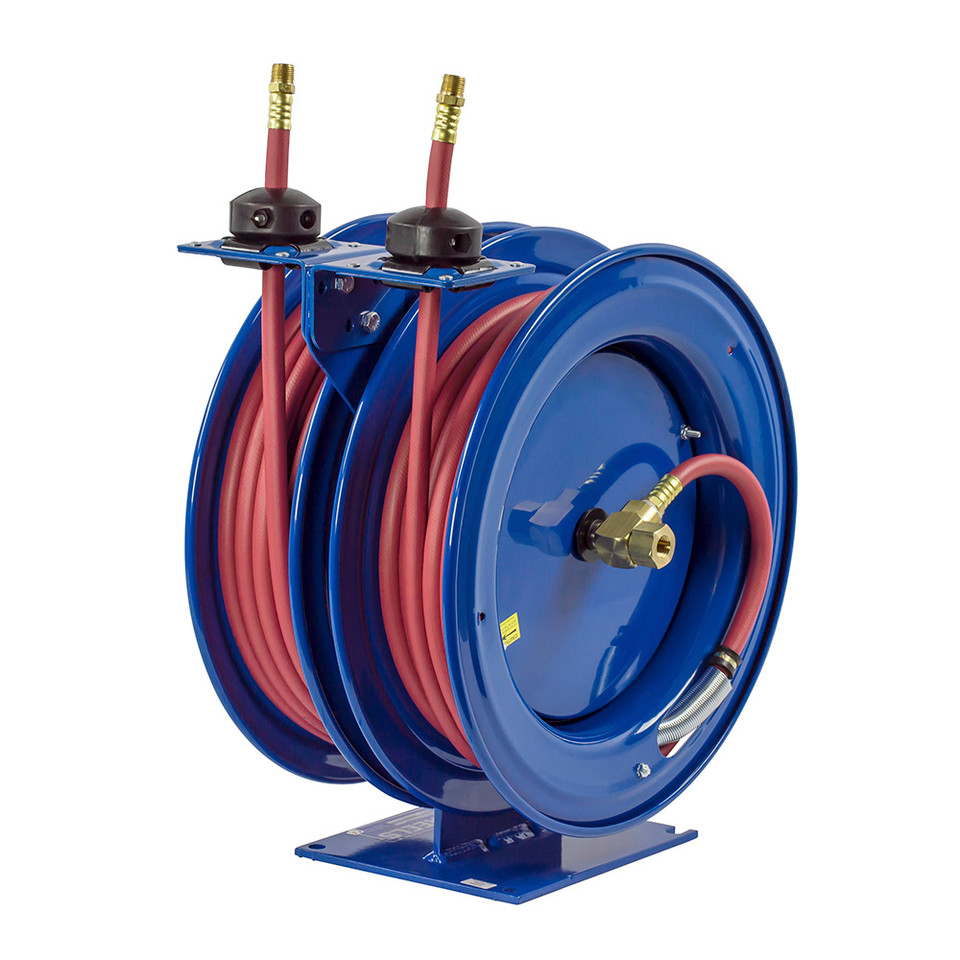

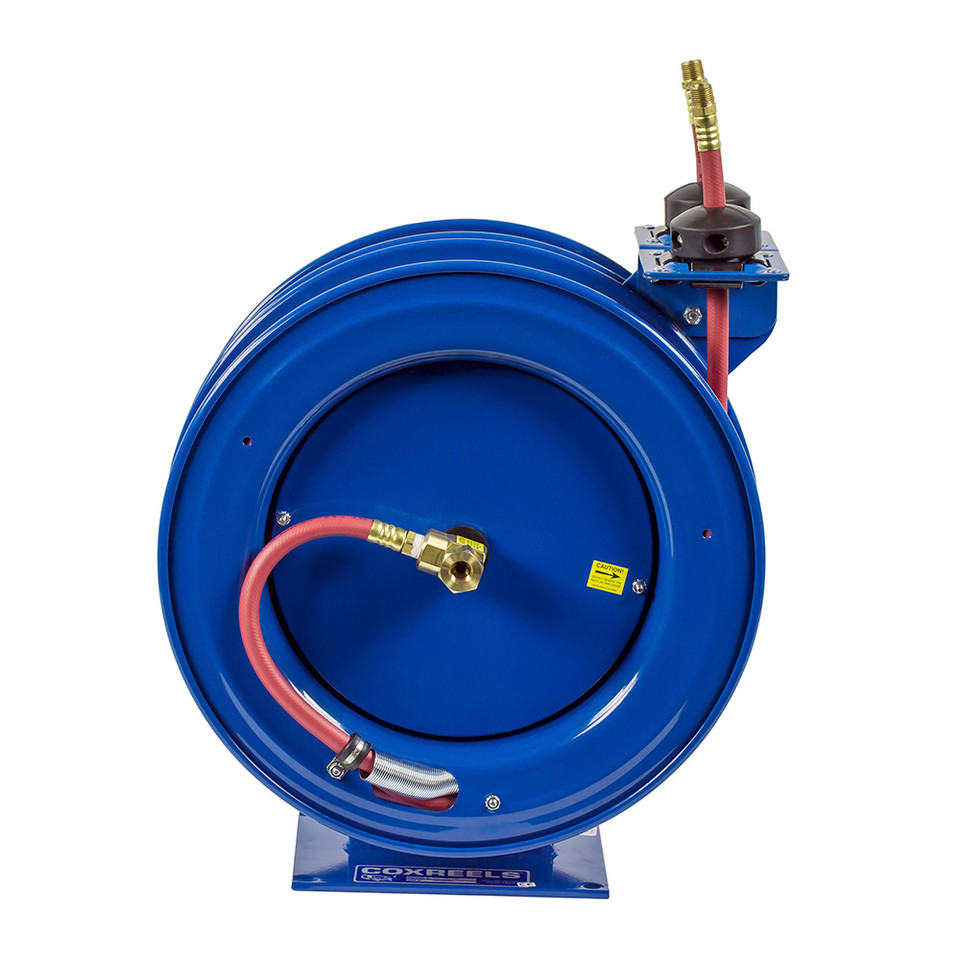

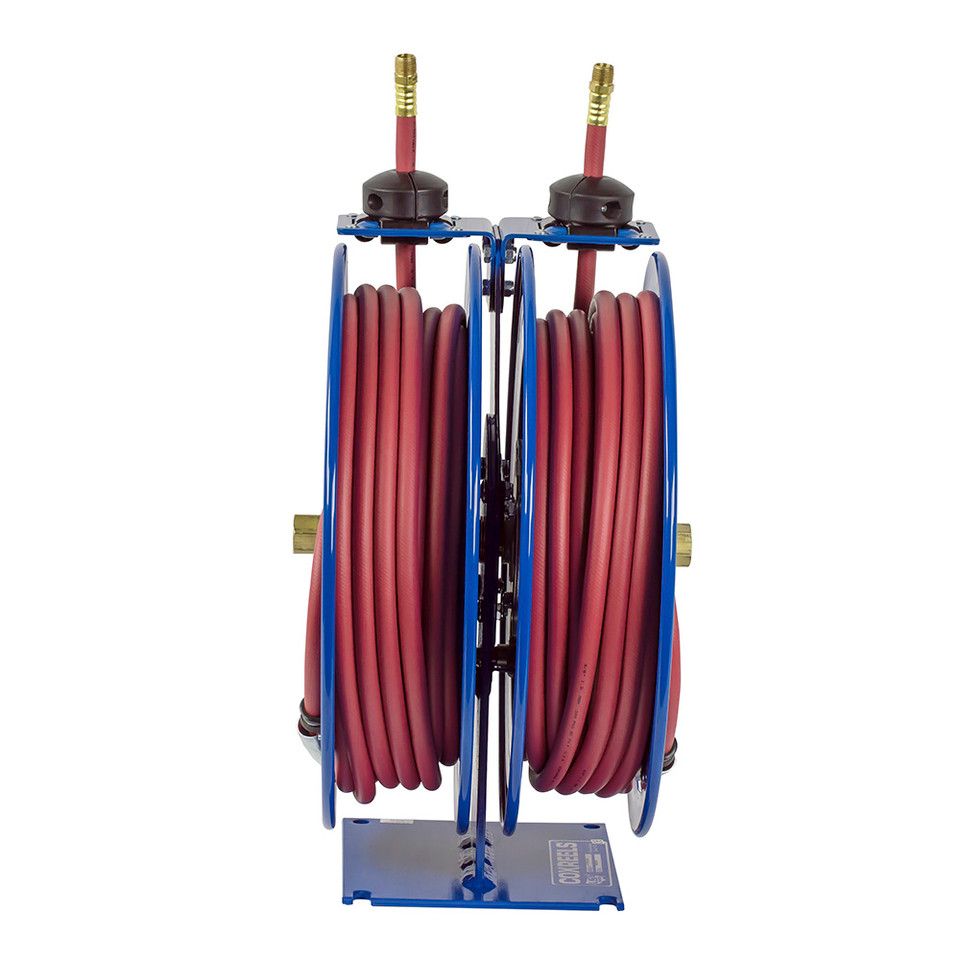

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LPL-150-150 | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 50 ft per Reel | Max Pressure: 300 PSI | Service: Air, Water or Oil | Rewind: Spring Driven | Approximate Weight: 64 lbs
Features:
- Dual-reel combination configuration provides two independently operating spring rewind hose reels on one common mounting base.
- Each reel accommodates up to 50 ft of 1/4" I.D. hose with a maximum hose O.D. of 1/2".
- Less-hose configuration allows compatible hose to be selected separately for the intended service requirements.
- Two external fluid paths allow the hose reels to operate independently.
- Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
- Single expanded 1/4" steel mounting base provides increased stability and one common mounting pattern for the complete assembly.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
- Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.
Made in USA:
Applications:
- Workstations requiring two independently accessible retractable hose lines from one common mounting location.
- Maintenance and service areas where compatible hose needs to be selected separately for the intended application.
- Wall-mounted installations using adjustable guide arm positioning for controlled hose payout.
- Floor-mounted work areas requiring separate operation and automatic rewind of two hose lines.
- Overhead installations where one dual-reel assembly is preferred over two separately mounted spring rewind reels.
FAQs:
- Q: Does the Coxreels C-LPL-150-150 include hose?
A: No. The C-LPL-150-150 is supplied less hose. Compatible hose must be purchased and installed separately for each reel. - Q: What hose size and capacity does each reel accommodate?
A: Each reel accommodates up to 50 feet of 1/4-inch I.D. hose with a maximum hose O.D. of 1/2 inch. - Q: What is the maximum pressure rating of the C-LPL-150-150?
A: The C-LPL-150-150 has a maximum pressure rating of 300 PSI. - Q: Can the two reels operate independently?
A: Yes. Each reel operates independently, allowing either hose to be extended, held at a working length, and retracted without affecting the other reel. - Q: What mounting positions does the C Series accommodate?
A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
