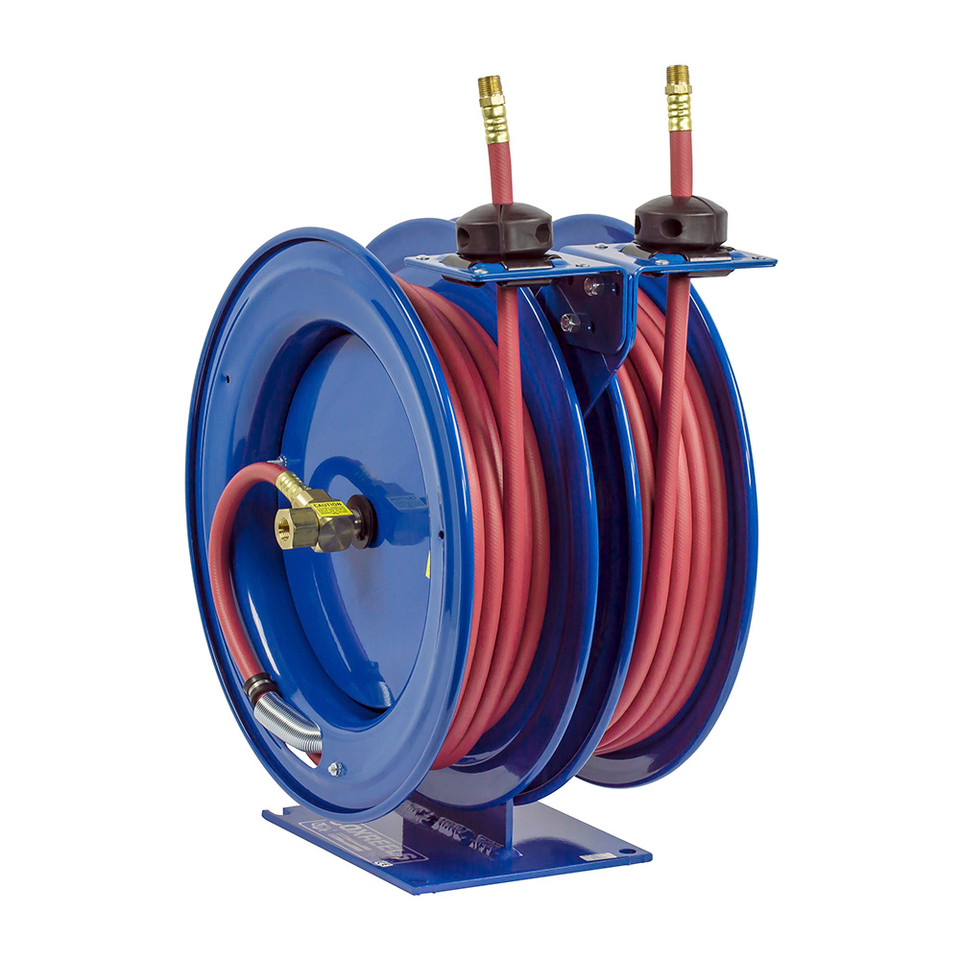

Coxreels C-LPL-335-335 Dual Purpose Spring Rewind Hose Reel | C Series | 3/8" Hose Diameter | 35' Hose Length | 300 Max PSI | Less Hose

Built for paired low-pressure hose service from one compact mounting point, the Coxreels C-LPL-335-335 Dual Purpose Spring Rewind Hose Reel combines two spring-driven reel sections on a shared C Series base. This model is configured less hose and supports two customer-supplied 3/8" I.D. hoses with up to 35 ft hose capacity each and a 300 PSI maximum pressure rating, making it useful where two air, water, or oil service lines need to be stored and deployed from one organized reel assembly. The C-LPL-335-335 is designed for work areas that need two retractable hose lines without the extra footprint of separate reels. Each reel section operates independently, so technicians can pull out one hose or both hoses depending on the task. Because this model is supplied without hose, buyers can select compatible hose assemblies separately to match the required media, fitting style, hose material, temperature range, and facility connection standards.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Configuration: Less Hose | Pressure Class: Low Pressure | Hose Quantity: 2 Hoses | Hose I.D.: 3/8" | Maximum Hose O.D.: 5/8" | Hose Capacity: 35 ft Each | Max Pressure: 300 PSI | Service: Air, Water, Oil | Overall Dimensions: 11-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 8" x 9" | Mounting Pattern: 7" x 8"

Features:

• Combination reel design places two spring rewind hose reel sections on one compact mounting base.
• Less-hose configuration allows the buyer to install two compatible 3/8" hose assemblies separately for the intended air, water, or oil service.
• 35 ft capacity per reel section provides practical reach for work benches, service bays, utility points, and equipment stations.
• Independent spring rewind operation lets each hose retract after use, helping reduce loose hose around work areas.
• Single shared base helps simplify installation where two separate hose reels would require additional mounting space.
• Two machined solid brass 90° full-flow NPT swivel inlets support separate fluid paths through each reel section.
• Nitrile swivel seals are used for the listed low-pressure service applications.
• Heavy gauge steel base and support post provide a stable foundation for the two-reel assembly.

Made in USA:

2 Year Warranty

Applications:

• Maintenance benches and work cells where two low-pressure 3/8" hose lines are needed from one reel assembly.
• Automotive, fleet, and equipment service areas using paired air, water, or oil lines near lifts, bays, and utility stations.
• Manufacturing plants and industrial facilities that need two retractable service hoses at one workstation or equipment service point.
• Mobile service trucks and maintenance trailers where mounting space is limited and a shared reel base helps conserve layout space.
• Shop and facility installations where customer-supplied hose assemblies are preferred for standardization, media compatibility, or fitting selection.

FAQs:

• Q: What does “less hose” mean on the Coxreels C-LPL-335-335?
  A: It means the reel is supplied without hose installed. The buyer must provide two compatible hose assemblies separately, staying within the listed 3/8" I.D., maximum hose O.D., 35 ft capacity each, and 300 PSI pressure rating.
• Q: What does “dual purpose” mean on this C Series reel?
  A: It means the reel combines two hose reel sections into one compact assembly, allowing two hose lines to be stored and used from a single mounting location.
• Q: Can the two reel sections be used independently?
  A: Yes. Each reel section has its own spring rewind action, so the operator can deploy one hose or both hoses depending on the job and system setup.
• Q: What fluids can this reel handle?
  A: This low-pressure less-hose configuration is listed for air, water, and oil service. The selected hoses, fittings, and seals should be checked for compatibility with the exact media, pressure, and temperature conditions.
• Q: How is C-LPL-335-335 different from C-LP-335-335?
  A: C-LPL-335-335 is the less-hose version and does not include hose. C-LP-335-335 is the corresponding hose-included model in the same C Series configuration.
