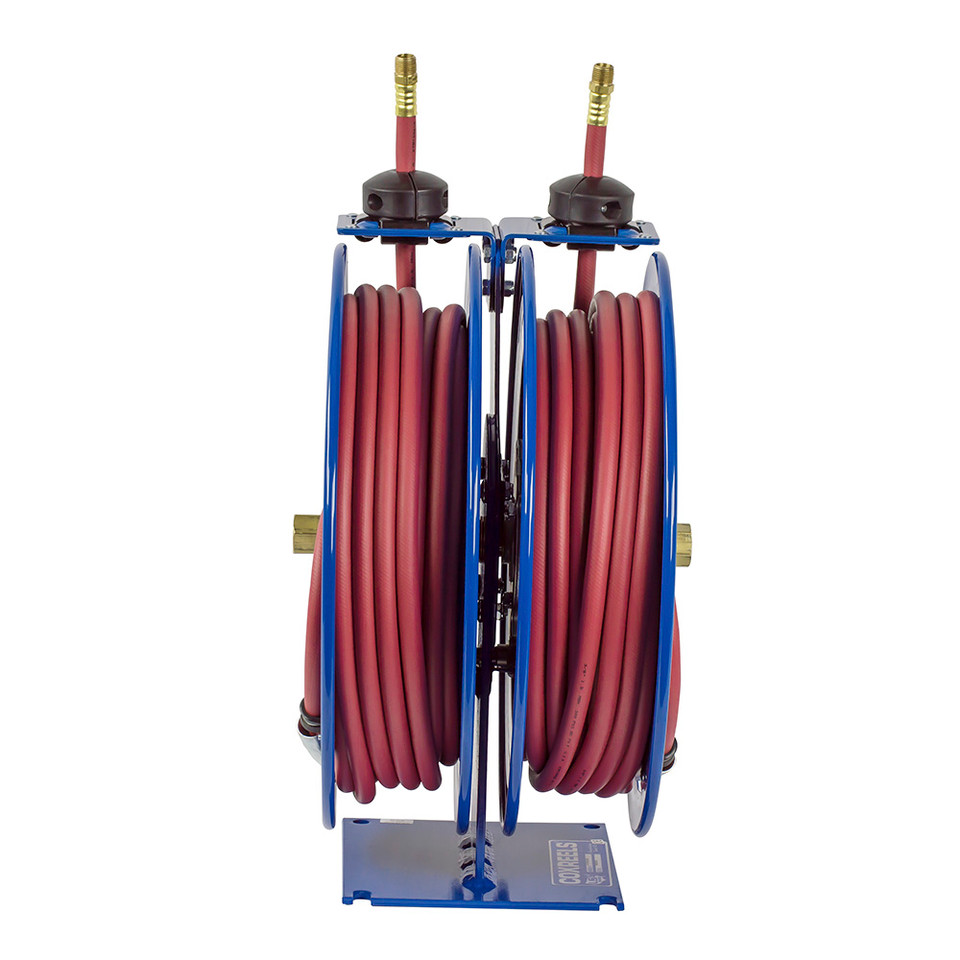

When two hose sources are needed at one workstation, the Coxreels C-LP-350-350 C Series Combination Hose Reel places two independently operating spring rewind reels on one compact mounting base. Each reel is supplied with 50 ft of 3/8" I.D. hose rated to a maximum of 300 PSI, providing separate hose paths for air and water service while reducing the mounting space required compared with installing two individual reels.
The dual-reel assembly uses two external fluid paths with machined-from-solid-brass 90° full-flow NPT swivel inlets, allowing each hose reel to operate independently. An adjustable guide arm supports wall, floor, and overhead mounting positions, while the single expanded 1/4" steel mounting base provides one common installation footprint. Enclosed cartridge-style spring motors automatically retract each hose, and multi-position lock ratchet mechanisms secure the hoses at the desired working lengths.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LP-350-350 | Configuration: Dual Hose Reel with Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft per Reel | Max Pressure: 300 PSI | Service: Air and Water | Rewind: Spring Driven | Approximate Weight: 78 lbs
Features:
- Compact combination assembly places two independently operating hose reels on one mounting base for dual hose applications.
- Two external fluid paths with machined-from-solid-brass 90° full-flow NPT swivel inlets support separate hose connections.
- Nitrile swivel seals provide the sealing configuration specified for the C Series.
- Guide arms adjust for wall, floor, and overhead mounting positions to accommodate different installation layouts.
- Single expanded 1/4" steel mounting base increases stability and provides one common mounting pattern for the dual-reel assembly.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
- Multi-position lock ratchet mechanisms secure each hose independently at the desired working length.
Made in USA:
Applications:
- Manufacturing plants and maintenance facilities requiring two independently accessible hose lines from a single mounting location.
- Automotive and fleet service centers managing air and water hoses around vehicle service bays and maintenance stations.
- Pneumatic tool stations where retractable hose management helps keep working areas organized between tool-use cycles.
- Washdown and general air/water service applications operating within the reel and supplied hose ratings.
- Industrial MRO work areas where available mounting space makes a combined dual-reel assembly preferable to two separate reel installations.
FAQs:
- Q: Does the Coxreels C-LP-350-350 include both hoses?
A: Yes. The C-LP-350-350 is listed with two 50-foot lengths of 3/8-inch I.D. hose. Each hose operates on its own reel within the combined assembly. - Q: Can the two reels operate independently?
A: Yes. Coxreels specifies that each reel operates independently, allowing either hose to be extended, locked, and retracted without requiring the other reel to move. - Q: What services are the supplied hoses intended for?
A: The low-pressure C Series models supplied with hose are specified for air and water service with a maximum temperature of 150°F. The C-LP-350-350 has a maximum listed pressure of 300 PSI. - Q: Can the C-LP-350-350 be mounted on a wall or overhead?
A: The C Series guide arm adjusts for wall, floor, and overhead mounting positions. The mounting structure and hardware should be selected to safely support the complete reel assembly and operating loads. - Q: Why choose a C Series combination reel instead of two separate hose reels?
A: The combination design places two independent reels on a single expanded mounting base with one mounting pattern. This can reduce installation space and simplify mounting where two hose sources are required at the same workstation.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
