Coxreels C-HPL-135-135 Dual Purpose Spring Rewind Hose Reel | C Series | 1/4" Hose Diameter | 35' Hose Length | 5000 Max PSI | Less Hose

Built for paired high-pressure grease and hydraulic oil service from one compact mounting point, the Coxreels C-HPL-135-135 Dual Purpose Spring Rewind Hose Reel combines two spring-driven reel sections on a shared C Series base. This model is configured less hose and supports two customer-supplied 1/4" I.D. hoses with up to 35 ft hose capacity each and a 5,000 PSI maximum pressure rating, making it useful where two high-pressure service lines need to be stored and deployed without installing two separate reels. The C-HPL-135-135 is designed for hydraulic repair areas, lubrication stations, fleet service bays, and mobile maintenance layouts where space is limited but two retractable hose lines are required. Each reel section operates independently, allowing the operator to pull out one hose or both hoses depending on the task. Because this model is supplied without hose, buyers can select compatible high-pressure hose assemblies separately to match the required grease or hydraulic oil system, fitting style, temperature range, and connection layout.

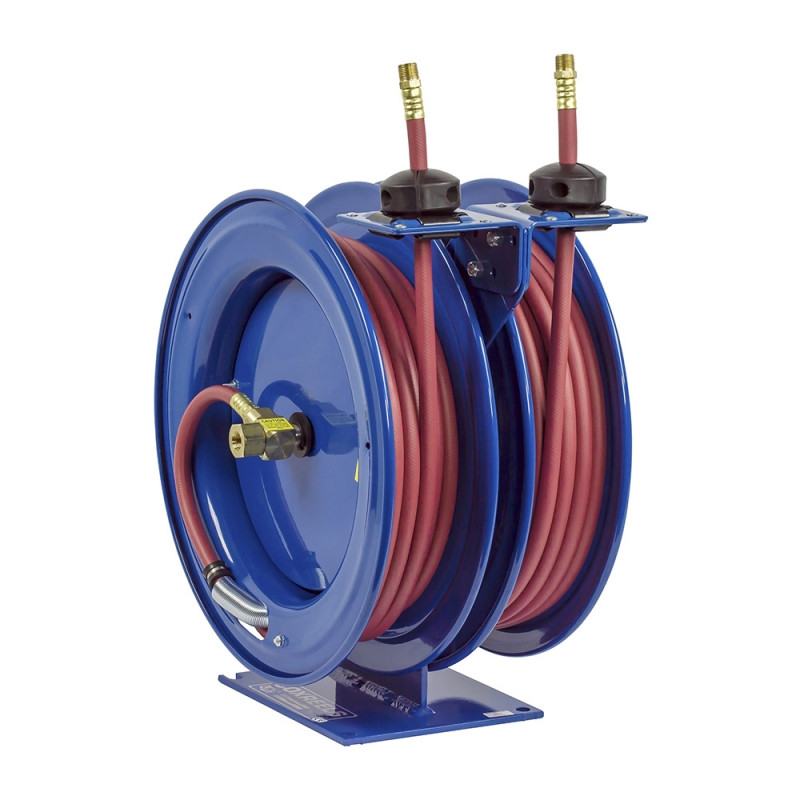

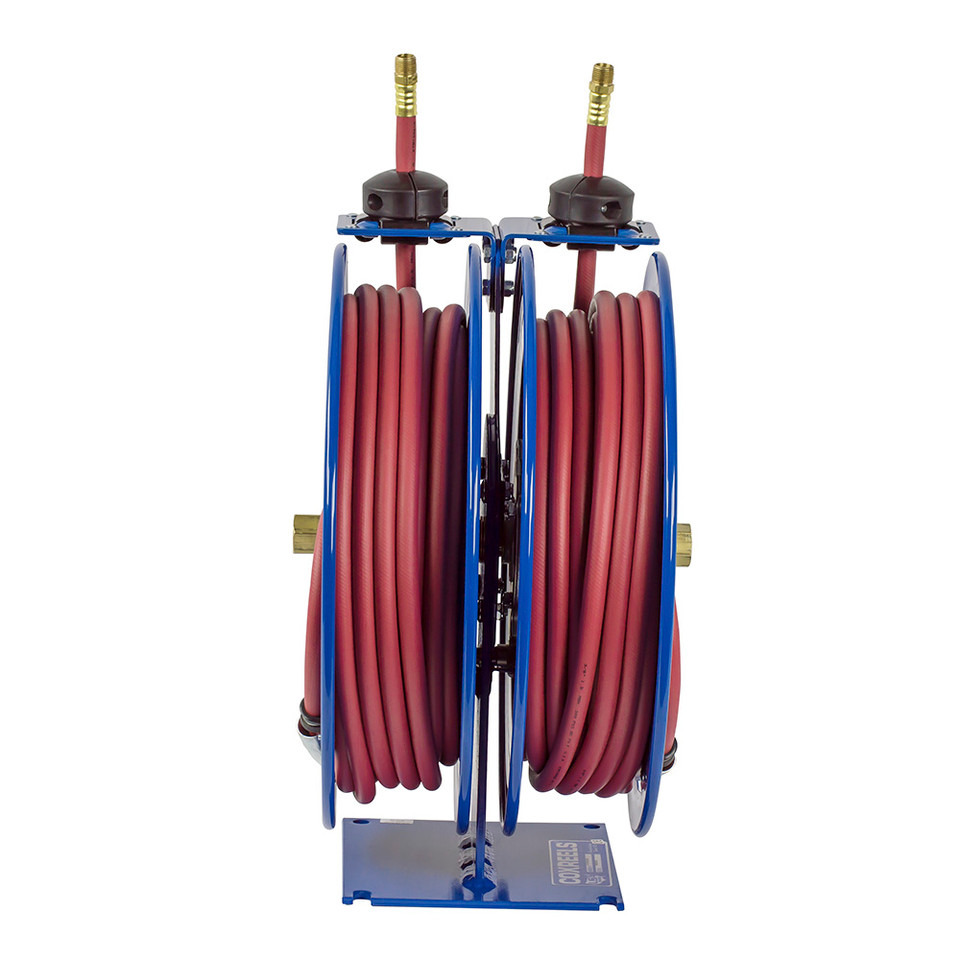

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Configuration: Less Hose | Pressure Class: High Pressure | Hose Quantity: 2 Hoses | Hose I.D.: 1/4" | Maximum Hose O.D.: 9/16" | Hose Capacity: 35 ft Each | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Overall Dimensions: 10-1/2" W x 18-5/8" H x 17" L | Base Dimensions: 8" x 9" | Mounting Pattern: 7" x 8"

Features:

• Combination reel design places two spring rewind hose reel sections on one compact mounting base.
• Less-hose configuration allows the buyer to install two compatible 1/4" high-pressure hose assemblies separately for the intended grease or hydraulic oil application.
• 35 ft capacity per reel section provides additional working reach compared with shorter 25 ft configurations while keeping the assembly compact.
• Independent spring rewind operation lets each hose retract after use, helping reduce loose hose around lubrication points, hydraulic benches, service bays, and mobile work areas.
• Single shared base helps simplify installation where two separate hose reels would require additional mounting space.
• Two external fluid paths support separate high-pressure delivery through each reel section.
• Zinc plated steel swivel construction is used on HP configurations for high-pressure grease and hydraulic oil service.
• Nitrile swivel seals support the listed grease and hydraulic oil applications.

Made in USA:

2 Year Warranty

Applications:

• Hydraulic repair stations where two 1/4" high-pressure hose lines are needed from one compact reel assembly.
• Fleet, truck, and equipment service areas managing paired grease or hydraulic oil lines near lifts, benches, service lanes, or lubrication points.
• Manufacturing plants and industrial facilities that need two retractable high-pressure hoses at one maintenance or equipment service location.
• Mobile service trucks and maintenance trailers where conserving mounting space is important.
• Industrial MRO teams using customer-supplied high-pressure hose assemblies for standardized fittings, media compatibility, or system-specific requirements.

FAQs:

• Q: What does “less hose” mean on the Coxreels C-HPL-135-135?
  A: It means the reel is supplied without hose installed. The buyer must provide two compatible hose assemblies separately, staying within the listed 1/4" I.D., 9/16" maximum hose O.D., 35 ft capacity each, and 5,000 PSI pressure rating.
• Q: What does “dual purpose” mean on this C Series reel?
  A: It means the reel combines two hose reel sections into one compact assembly, allowing two hose lines to be stored and used from a single mounting location.
• Q: What fluids is this reel intended for?
  A: This high-pressure less-hose configuration is listed for grease and hydraulic oil service. The selected hoses, fittings, seals, and fluids should be checked for compatibility before installation.
• Q: Can each reel section be used independently?
  A: Yes. Each reel section has its own spring rewind action, so the operator can deploy one hose or both hoses depending on the job and system setup.
• Q: How is C-HPL-135-135 different from C-HP-135-135?
  A: C-HPL-135-135 is the less-hose version and does not include hose. C-HP-135-135 is the corresponding hose-included model in the same C Series configuration.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
