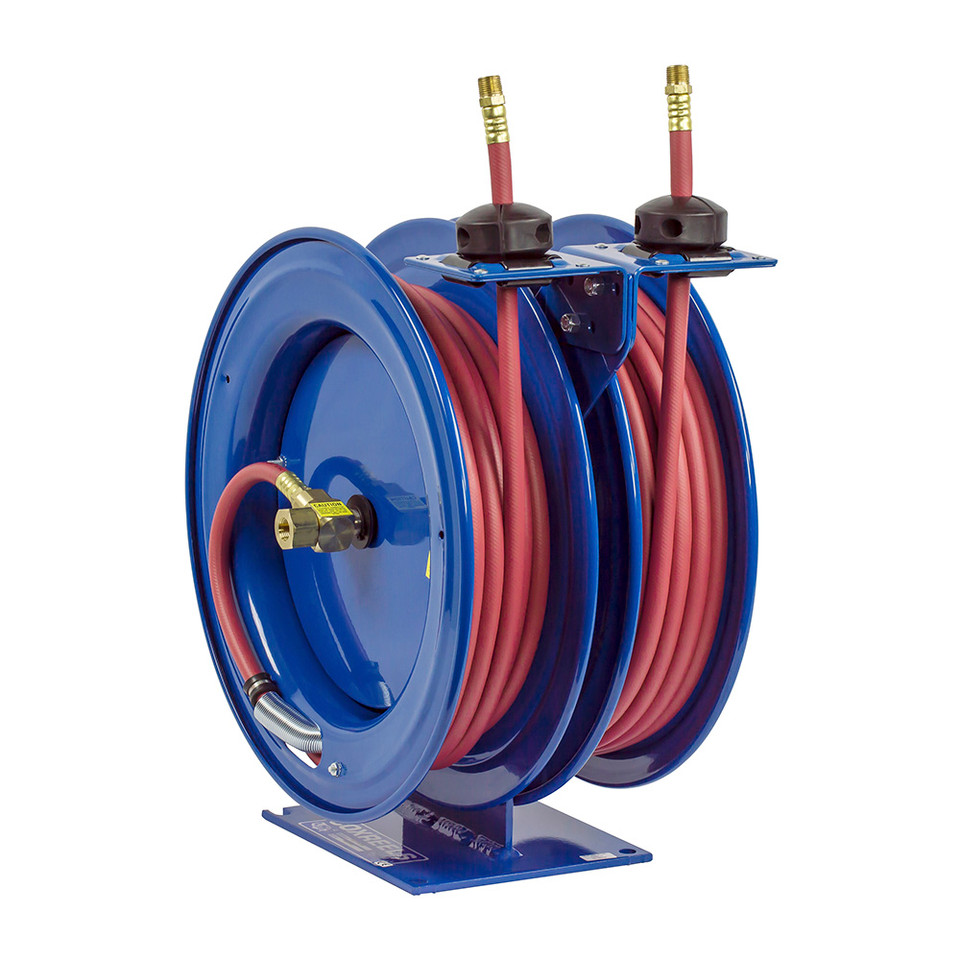

Coxreels C-LP-125-125 C Series Combination Hose Reel combines two independently operating spring rewind reels into one compact assembly for applications requiring two retractable hose lines at a single location. Each reel is supplied with 25 ft of 1/4" I.D. hose rated for a maximum of 300 PSI. The dual-reel configuration provides separate fluid paths while consolidating both reels onto one common mounting base.
Designed as part of the Coxreels C Series, the C-LP-125-125 incorporates adjustable guide arms for wall, floor, and overhead mounting positions, two external fluid paths, and machined-from-solid-brass 90° full-flow NPT swivel inlets. Each reel operates independently with its own spring rewind and locking action, while the expanded 1/4" steel mounting base provides a common mounting pattern for the complete assembly.
Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LP-125-125 | Configuration: Dual Hose Reel with Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Length: 25 ft per Reel | Max Pressure: 300 PSI | Service: Air and Water | Rewind: Spring Driven | Approximate Weight: 66 lbs
Features:
- Combination design incorporates two independently operating hose reels into one compact assembly.
- Each reel is supplied with 25 ft of 1/4" I.D. hose for air and water applications.
- Two external fluid paths allow each hose reel to operate through a separate fluid connection.
- Machined-from-solid-brass 90° full-flow NPT swivel inlets provide the fluid path configuration used on the low-pressure C Series.
- Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
- Single expanded 1/4" steel mounting base provides increased stability with one common mounting pattern.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
- Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.
Made in USA:
Applications:
- Workstations requiring two independently accessible retractable air or water hose lines.
- Maintenance and service areas where two hose reels need to be installed at one common mounting location.
- Wall-mounted hose management installations using adjustable guide arm positioning.
- Floor-mounted applications requiring two independently operating spring rewind reels.
- Overhead installations where controlled hose payout and automatic rewind are required.
FAQs:
- Q: Does the Coxreels C-LP-125-125 include hose?
A: Yes. The C-LP-125-125 is supplied with two 25-foot lengths of 1/4-inch I.D. hose, with one hose installed on each reel. - Q: What is the maximum pressure rating of the C-LP-125-125?
A: The manufacturer lists a maximum pressure rating of 300 PSI for this model. - Q: What is the maximum temperature rating?
A: The supplied low-pressure hose configuration is listed with a maximum temperature of 150°F. - Q: What services are listed for this low-pressure configuration?
A: The manufacturer identifies the low-pressure hose configuration for air and water service. - Q: Can the two reels operate independently?
A: Yes. Each reel operates independently, allowing either hose to be extended, locked, and retracted separately. - Q: What mounting positions does the C Series support?
A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
||||||||
| C-LP-125-125 | 1/4" | 1/2" | 25 | 300 | 66 | C-LPL-125-125 | 60 | 1 |
| C-LP-135-135 | 1/4" | 1/2" | 35 | 300 | 67 | C-LPL-135-135 | 60 | 1 |
| C-LP-150-150 | 1/4" | 1/2" | 50 | 300 | 74 | C-LPL-150-150 | 64 | 1 |
| C-LP-325-325 | 3/8" | 5/8" | 25 | 300 | 67 | C-LPL-325-325 | 60 | 2 |
| C-LP-335-335 | 3/8" | 5/8" | 35 | 300 | 69 | C-LPL-335-335 | 60 | 2 |
| C-LP-350-350 | 3/8" | 5/8" | 50 | 300 | 78 | C-LPL-350-350 | 64 | 2 |
| C-LP-425-425 | 1/2" | 3/4" | 25 | 300 | 70 | C-LPL-425-425 | 60 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F.
|
||||||||
| C-MP-325-325 | 3/8" | 11/16" | 25 | 3,000 | 80 | C-MPL-325-325 | 66 | 2 |
| C-MP-335-335 | 3/8" | 11/16" | 35 | 3,000 | 86 | C-MPL-335-335 | 68 | 2 |
| C-MP-425-425 | 1/2" | 13/16" | 25 | 2,500 | 78 | C-MPL-425-425 | 64 | 2 |
| C-MP-430-430 | 1/2" | 13/16" | 30 | 2,500 | 84 | C-MPL-430-430 | 66 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
||||||||
| C-HP-125-125 | 1/4" | 9/16" | 25 | 5,000 | 78 | C-HPL-125-125 | 66 | 3 |
| C-HP-135-135 | 1/4" | 9/16" | 35 | 5,000 | 84 | C-HPL-135-135 | 68 | 3 |
| C-HP-325-325 | 3/8" | 11/16" | 25 | 4,000 | 78 | C-HPL-325-325 | 64 | 3 |
| C-HP-330-330 | 3/8" | 11/16" | 30 | 4,000 | 82 | C-HPL-330-330 | 66 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
