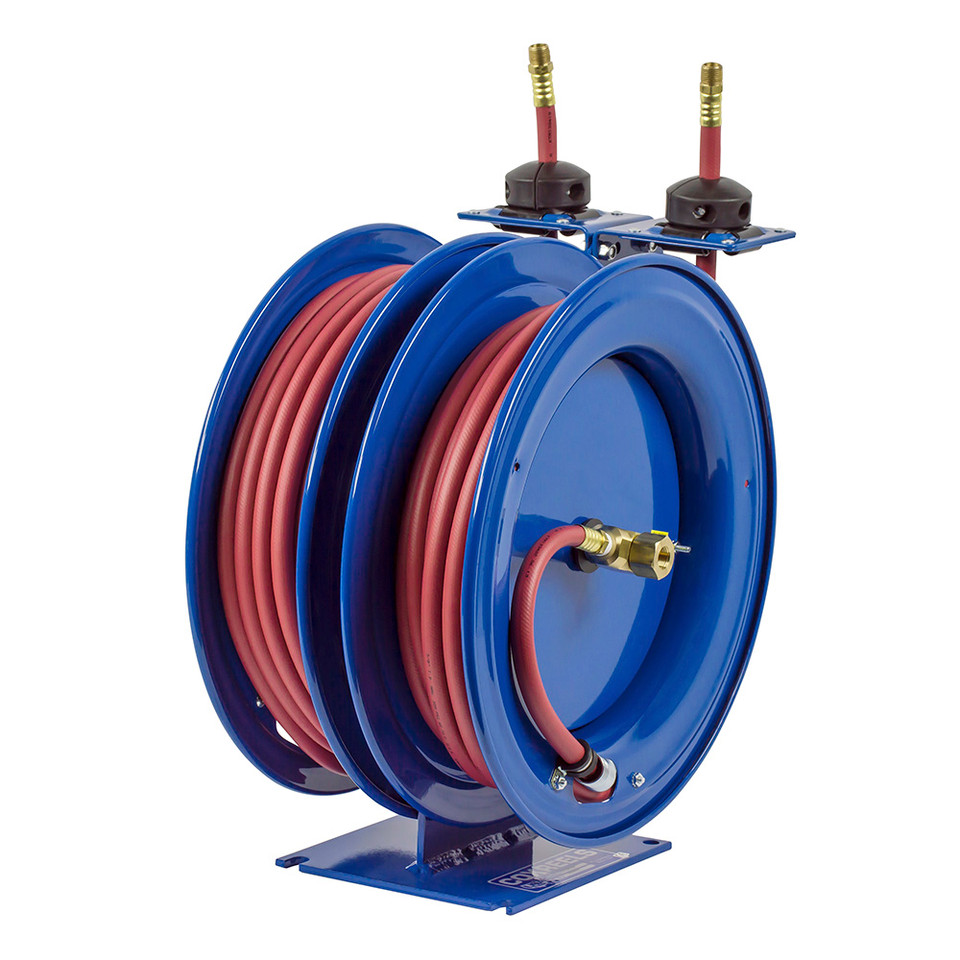

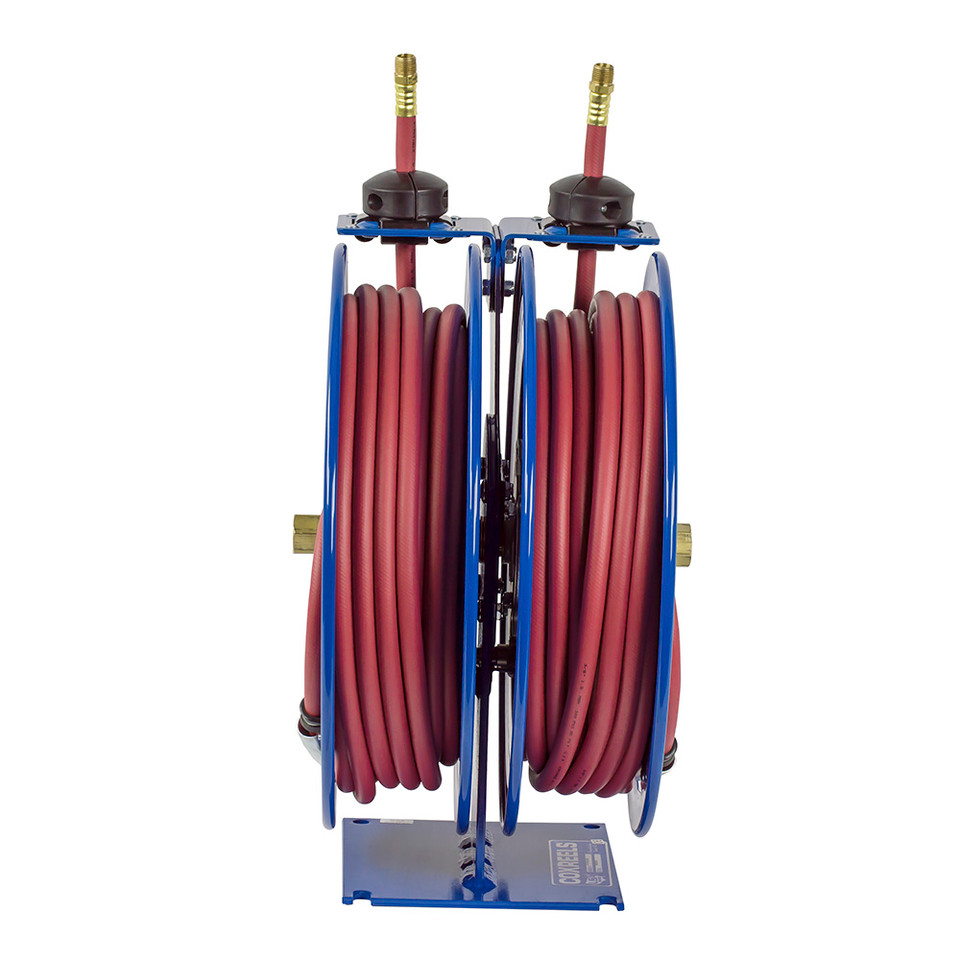

Coxreels C-LP-150-150 Dual Purpose Spring Rewind Hose Reel | C Series | 1/4" Hose Diameter | 50' Hose Length | 300 Max PSI

Coxreels C-LP-150-150 C Series Dual Purpose Spring Rewind Hose Reel combines two independently operating reels on one common mounting base for applications requiring two retractable hose lines at a single location. Each reel is supplied with 50 ft of 1/4" I.D. hose with a 1/2" hose O.D. and a maximum pressure rating of 300 PSI. The configuration allows either hose to be extended and retracted independently while keeping both reels organized within one combined assembly.

Coxreels specifies the C Series with two external fluid paths, adjustable guide arms for wall, floor, and overhead mounting positions, and a single expanded 1/4" steel mounting base. The reel construction also incorporates a 1" solid steel axle, lubricated precision bearings, enclosed cartridge-style spring motors, and multi-position lock ratchet mechanisms that allow each hose to be held independently at the required working length.

Type: Dual Purpose Spring Rewind Hose Reel | Series: C Series | Model: C-LP-150-150 | Configuration: Dual Hose Reel with Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Length: 50 ft per Reel | Max Pressure: 300 PSI | Service: Air and Water | Rewind: Spring Driven | Approximate Weight: 74 lbs

Features:

• Combination configuration provides two independently operating spring rewind hose reels from one common mounting location.
• Each reel is supplied with 50 ft of 1/4" I.D. hose with a 1/2" hose O.D.
• Two external fluid paths allow the hose reels to function independently.
• Adjustable guide arms accommodate wall, floor, and overhead mounting positions.
• Single expanded 1/4" steel mounting base provides increased stability with one common mounting pattern.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory-tuned and matched cartridge-style spring motors provide automatic hose retraction.
• Multi-position lock ratchet mechanisms allow each hose to be independently secured at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Workstations requiring two independently accessible retractable air or water hose lines.
• Maintenance and service areas where two 50 ft hose reels are needed from one common mounting location.
• Wall-mounted hose management installations using adjustable guide arm positioning.
• Floor-mounted work areas requiring separate operation and automatic rewind of two hoses.
• Overhead installations where independent hose extension and spring rewind help organize the work area.

FAQs:

• Q: Does the Coxreels C-LP-150-150 include hose?
  A: Yes. The C-LP-150-150 is supplied with two 50-foot lengths of 1/4-inch I.D. hose, with one hose installed on each independently operating reel.
• Q: What is the maximum pressure rating of the C-LP-150-150?
  A: Coxreels lists this model with a maximum pressure rating of 300 PSI.
• Q: What are the supplied hose dimensions?
  A: Each hose has a 1/4-inch inside diameter and a 1/2-inch outside diameter, with 50 feet of hose supplied on each reel.
• Q: What service is the supplied hose intended for?
  A: Coxreels specifies the low-pressure models supplied with hose for air or water service, with a maximum temperature of 150°F.
• Q: Can the two reels operate independently?
  A: Yes. Each reel operates independently, allowing either hose to be extended, held at a working length, and retracted separately.
• Q: What mounting positions does the C Series support?
  A: The adjustable guide arms accommodate wall, floor, and overhead mounting positions.
