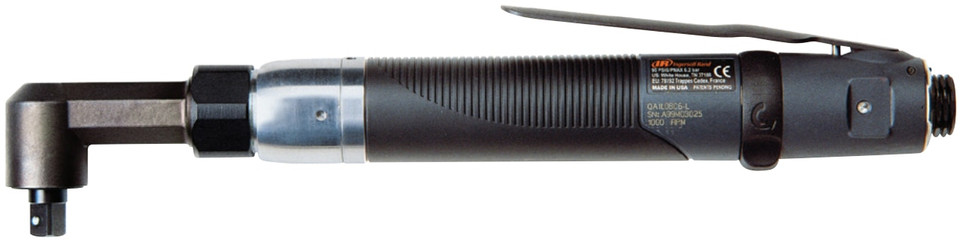

For repetitive assembly work that requires controlled fastening in areas where straight tool access may be restricted, the Ingersoll Rand QA1L12S4LD Angle Air Nutrunner combines 1,270 RPM free speed with a 3.5 to 32.2 in-lb torque range and an adjustable shut-off clutch. The angle configuration supports access around surrounding components and fixtures, while automatic shut-off stops the fastening cycle when the preset torque point is reached to help maintain consistent tightening results.
The Ingersoll Rand QA1L12S4LD offers greater maximum torque capability than the supplied 1,750 RPM QA1L18 configurations while operating at a more controlled 1,270 RPM speed. Its adjustable clutch allows the tool to be set for compatible production joints throughout the specified torque range, making this model a practical option where assembly requirements call for a balance of accessible angle-head positioning, controlled rundown, and repeatable clutch shut-off.
Type: Angle Air Nutrunner | Model: QA1L12S4LD | Configuration: Angle | Free Speed: 1,270 RPM | Torque Range: 3.5 - 32.2 in-lbs | Clutch Type: Adjustable Shut-Off
|
Features:
Made in USA: |
 |
Applications:
- Automotive component assembly — tightening compatible fasteners positioned around brackets, housings, and closely spaced production components.
- Appliance manufacturing — completing controlled fastening inside frames, internal assemblies, and areas with limited straight-tool clearance.
- Electrical and electromechanical equipment production — accessing fasteners within cabinets, equipment assemblies, and compact component layouts.
- General manufacturing — performing repetitive fastening where angle access and adjustable torque shut-off support the production process.
- Fixture-based assembly operations — reaching side-oriented or recessed fasteners while maintaining controlled tightening within the specified torque range.
FAQs:
- Q: What torque range does the Ingersoll Rand QA1L12S4LD provide?
A: The specified torque range is 3.5 to 32.2 in-lbs. The appropriate clutch setting should be established on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements. - Q: How does the QA1L12S4LD compare with the 1,750 RPM QA1L18 models?
A: The QA1L12S4LD operates at 1,270 RPM and provides a maximum specified torque of 32.2 in-lbs, while the supplied QA1L18 configurations operate at 1,750 RPM with a maximum torque of 26.1 in-lbs. The QA1L12S4LD favors greater torque capability at a lower rundown speed. - Q: What is the purpose of the adjustable shut-off clutch?
A: The clutch allows the tool to be adjusted for the required fastening torque within its specified range. When the preset point is reached, the nutrunner shuts off automatically to help support repeatable fastening and reduce overtightening. - Q: When is an angle air nutrunner preferable to an inline tool?
A: An angle configuration can be useful when surrounding parts, housings, fixtures, or other obstructions make it difficult to align a straight tool with the fastener. - Q: Does automatic shut-off eliminate the need to verify completed joints?
A: No. Joint characteristics, fastener condition, component materials, drive fit, and compressed-air conditions can affect final results. Establish the tool setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
| Model | Torque Range 1 in-lbs (Nm) |
Torque Range 2 in-lbs (Nm) |
Torque Range 3 in-lbs (Nm) |
RPM | Weight lbs (kg) |
Length in (mm) |
Head Height in (mm) |
Side to Center in (mm) |
Drive in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA1L18S4SD | 3.5–11.5 (0.4–1.3) | 9.3–26.1 (1.05–2.95) | — | 1,750 | 1.9 (0.9) | 11.8" (300) | 0.38" (9.5) | 1.1" (28) | 1/4" |
| QA1L18S1LD | 3.5–11.5 (0.4–1.3) | 9.3–26.1 (1.05–2.95) | — | 1,750 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L12S4LD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L12S4SD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 1.9 (0.9) | 11.8" (300) | 0.38" (9.5) | 1.1" (28) | 1/4" |
| QA1L12S1LD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L12S9LD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L08S4LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–47.2 (1.77–5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L08S6LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–47.2 (1.77–5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L08S1LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–47.2 (1.77–5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S4SD | 3.5–11.5 (0.4–1.3) | 9.3–36.0 (1.05–4.07) | — | 500 | 1.9 (0.9) | 11.8" (300) | 0.38" (9.5) | 1.1" (28) | 1/4" |
| QA1L05S4LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S6LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L05S6XLD | 11.7–38.2 (1.32–4.32) | 31.0–88.3 (3.5–9.98) | — | 500 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L05S9LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S1LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S1XLD | 11.7–38.2 (1.32–4.32) | 31.0–88.3 (3.5–9.98) | — | 500 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L02S4LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 250 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L02S1LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 250 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L02S6XLD | 11.7–38.2 (1.32–4.32) | 31.0–101.5 (3.50–11.5) | — | 250 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L02S1XLD | 11.7–38.2 (1.32–4.32) | 31.0–101.5 (3.50–11.5) | — | 250 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 1/4" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
