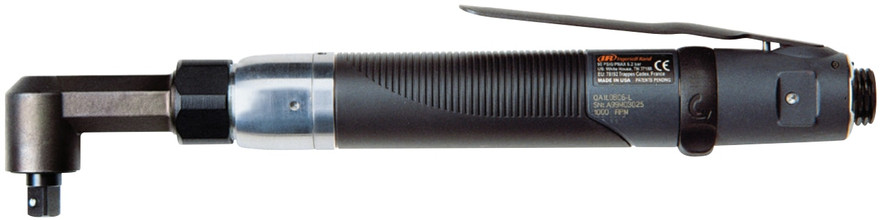

For higher-torque production fastening where a slow rundown rate and angle-head access are required, the Ingersoll Rand QA1L02S6XLD Angle Air Nutrunner combines 250 RPM free speed with an 11.7 to 101.5 in-lb torque range and an adjustable shut-off clutch. Its angle configuration helps operators reach fastening points where surrounding components, housings, or fixtures restrict straight-line tool positioning, while automatic clutch shut-off provides a controlled endpoint for repetitive tightening cycles.
The Ingersoll Rand QA1L02S6XLD pairs deliberate 250 RPM operation with torque adjustment up to 101.5 in-lbs for compatible assembly joints requiring greater turning force. The adjustable shut-off clutch automatically stops the tool when its preset torque point is reached, helping support repeatable fastening when properly established on the actual production joint. This combination makes the QA1L02S6XLD a practical choice where higher torque capability, controlled rundown, and access around obstructed fasteners must work together.
Type: Angle Air Nutrunner | Model: QA1L02S6XLD | Configuration: Angle | Free Speed: 250 RPM | Torque Range: 11.7 - 101.5 in-lbs | Clutch Type: Adjustable Shut-Off
|
Features:
Made in USA: |
 |
Applications:
- Equipment assembly — tightening compatible higher-torque fasteners where surrounding structures restrict direct tool access.
- Automotive component production — reaching fastening points positioned among brackets, housings, fixtures, and closely arranged components.
- Appliance and electromechanical manufacturing — completing controlled fastening within frames and compact equipment assemblies.
- General production fastening — performing repetitive assembly operations requiring adjustable shut-off within the tool's specified higher torque range.
- Fixture-based workstations — accessing recessed or side-oriented fasteners while maintaining a slow, controlled fastening cycle.
FAQs:
- Q: What torque range does the Ingersoll Rand QA1L02S6XLD provide?
A: The specified torque range is 11.7 to 101.5 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements. - Q: What is the advantage of the 250 RPM configuration?
A: The 250 RPM speed provides a deliberate rundown rate for compatible applications where controlled tightening is more important than maximizing fastener installation speed. - Q: How does the adjustable shut-off clutch support repetitive assembly?
A: Once properly adjusted, the clutch automatically stops the nutrunner when the preset torque point is reached. This provides a controlled endpoint for each fastening cycle and reduces reliance on manual operator timing. - Q: How does the QA1L02S6XLD differ from lower-range QA1L02 configurations?
A: The supplied specifications list the QA1L02S6XLD with an 11.7 to 101.5 in-lb torque range, providing higher maximum torque capability than the supplied 3.5 to 56.4 in-lb QA1L02 configurations. Tool selection should be based on the torque requirements of the actual production joint. - Q: Should the clutch setting be rechecked when production conditions change?
A: Yes. Changes to fasteners, joint materials, drive tooling, component conditions, or compressed-air supply can affect fastening results. Recheck the setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
| Model | Torque Range 1 in-lbs (Nm) |
Torque Range 2 in-lbs (Nm) |
Torque Range 3 in-lbs (Nm) |
RPM | Weight lbs (kg) |
Length in (mm) |
Head Height in (mm) |
Side to Center in (mm) |
Drive in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA1L18S4SD | 3.5–11.5 (0.4–1.3) | 9.3–26.1 (1.05–2.95) | — | 1,750 | 1.9 (0.9) | 11.8" (300) | 0.38" (9.5) | 1.1" (28) | 1/4" |
| QA1L18S1LD | 3.5–11.5 (0.4–1.3) | 9.3–26.1 (1.05–2.95) | — | 1,750 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L12S4LD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L12S4SD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 1.9 (0.9) | 11.8" (300) | 0.38" (9.5) | 1.1" (28) | 1/4" |
| QA1L12S1LD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L12S9LD | 3.5–11.5 (0.4–1.3) | 9.3–32.2 (1.1–3.64) | — | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L08S4LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–47.2 (1.77–5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L08S6LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–47.2 (1.77–5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L08S1LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–47.2 (1.77–5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S4SD | 3.5–11.5 (0.4–1.3) | 9.3–36.0 (1.05–4.07) | — | 500 | 1.9 (0.9) | 11.8" (300) | 0.38" (9.5) | 1.1" (28) | 1/4" |
| QA1L05S4LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S6LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L05S6XLD | 11.7–38.2 (1.32–4.32) | 31.0–88.3 (3.5–9.98) | — | 500 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L05S9LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S1LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L05S1XLD | 11.7–38.2 (1.32–4.32) | 31.0–88.3 (3.5–9.98) | — | 500 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L02S4LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 250 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L02S1LD | 3.5–11.5 (0.4–1.3) | 9.3–33.4 (1.05–3.77) | 15.7–56.4 (1.77–6.37) | 250 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" |
| QA1L02S6XLD | 11.7–38.2 (1.32–4.32) | 31.0–101.5 (3.50–11.5) | — | 250 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 3/8" |
| QA1L02S1XLD | 11.7–38.2 (1.32–4.32) | 31.0–101.5 (3.50–11.5) | — | 250 | 2.3 (1.04) | 13.0" (330) | 0.52" (13.2) | 1.3" (33) | 1/4" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Nutrunner
- Actuation
- Lever Start
- Torque Range (in-lbs)
- 11.7 - 101.5
- RPM
- 250
- Side to Center (in.)
- 0.52
- Drive Size (in.)
- 3/8
- Sound Level (dbA)
- 75
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 16
- Drive Type
- Square Drive
- Angle Head Height (in.)
- 1.3
- Hose Size (in.)
- 1/4
