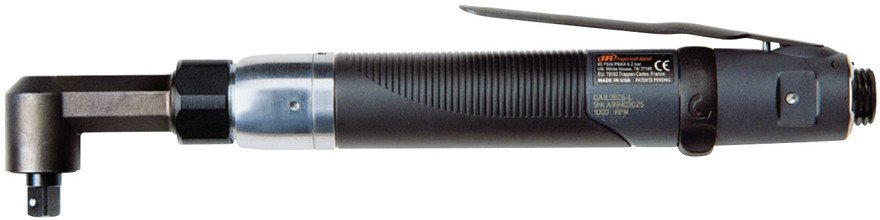

Ingersoll Rand QA1L05S9LD Angle Air Nutrunner | 500 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L05S9LD Angle Air Nutrunner | 500 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,476.00
$1,883.91
(You save $592.09 )
Availability:
Available To Order From Supplier
SKU:
QA1L05S9LD
Shipping:
Calculated at Checkout
Weight:
2.62 LBS
Condition:
New
Adding to cart… The item has been added
Description

For production assembly operations that require controlled fastening at a deliberate rundown speed, the Ingersoll Rand QA1L05S9LD Angle Air Nutrunner combines 500 RPM free speed with a 3.5 to 56.4 in-lb torque range and an adjustable shut-off clutch. Its angle configuration supports access to fastening points where nearby components, housings, or fixtures restrict straight-line tool positioning, while automatic shut-off provides a controlled endpoint for repetitive tightening cycles.

The Ingersoll Rand QA1L05S9LD pairs its controlled 500 RPM speed with an adjustment up to 56.4 in-lbs for compatible joints requiring greater turning force than faster QA1L configurations can provide. Once the clutch is properly set for the production joint, the nutrunner automatically shuts off at the preset torque point. This combination of angle access, slower rundown, and adjustable torque control makes the tool a practical choice for repeat fastening where process consistency is a priority.

Type: Angle Air Nutrunner | Model: QA1L05S9LD | Configuration: Angle | Free Speed: 500 RPM | Torque Range: 3.5 - 56.4 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 500 RPM free speed provides deliberate fastener rundown for compatible production assembly applications.
  • 3.5 to 56.4 in-lb torque range offers adjustable output for fastening requirements within the tool's specified capability.
  • Angle configuration supports access where housings, brackets, fixtures, or adjacent components make straight-line tool positioning difficult.
  • Automatic shut-off provides a defined fastening endpoint and reduces reliance on manual operator timing at the completion of each cycle.
  • Slower operating speed supports applications where controlled rundown and increased torque capability take priority over maximum installation speed.
  • Pneumatic operation supports repetitive fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component production — tightening compatible fasteners located around housings, brackets, fixtures, and closely arranged assembly components.
  • Equipment assembly — completing controlled fastening where surrounding structures restrict direct access to the joint.
  • Appliance manufacturing — reaching fastening points within frames and internal assemblies where an angle tool configuration is advantageous.
  • Electrical and electromechanical production — performing repetitive fastening inside cabinets, equipment assemblies, and compact component layouts.
  • Fixture-based assembly stations — accessing recessed or side-oriented fasteners while maintaining controlled tightening within the specified torque range.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L05S9LD provide?
    A: The specified torque range is 3.5 to 56.4 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: What type of assembly work benefits from the 500 RPM speed?
    A: The slower speed provides a deliberate rundown rate for compatible applications where controlled fastener approach and greater torque capability are more important than achieving the fastest possible cycle time.
  • Q: How does the adjustable shut-off clutch control the fastening cycle?
    A: The clutch is adjusted for the required torque within the tool's specified range. When the preset torque point is reached, the nutrunner automatically stops, providing a defined endpoint for the fastening operation.
  • Q: Why use an angle nutrunner in a production assembly?
    A: An angle configuration can provide better access to fasteners positioned near housings, brackets, fixtures, or other components that prevent convenient alignment with a straight fastening tool.
  • Q: Does the clutch setting need to be checked when production conditions change?
    A: Yes. Changes to fasteners, joint materials, drive tooling, assembly conditions, or compressed-air supply can affect fastening results. Recheck the setting on the actual joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
3.5 - 56.4
RPM:
500
Side to Center (in.):
0.52
Drive Size (in.):
1/4
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Hex Insert Bit Holder
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
