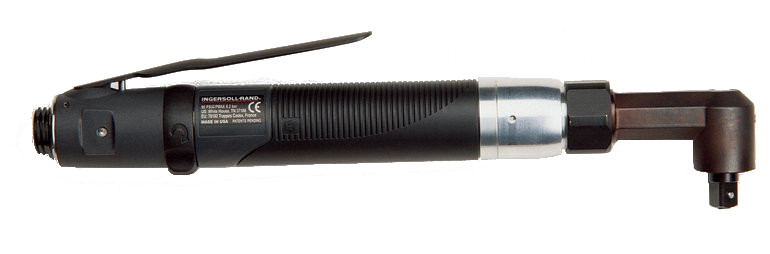

Ingersoll Rand QA1L05S1XLD Angle Air Nutrunner | 500 RPM | 11.7 - 88.3 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L05S1XLD Angle Air Nutrunner | 500 RPM | 11.7 - 88.3 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,796.00
$2,127.38
(You save $668.62 )
Availability:
Available To Order From Supplier
SKU:
QA1L05S1XLD
Shipping:
Calculated at Checkout
Weight:
2.87 LBS
Condition:
New
Adding to cart… The item has been added
Description

For higher-torque production fastening in assemblies where direct tool access is limited, the Ingersoll Rand QA1L05S1XLD Angle Air Nutrunner combines 500 RPM free speed with an 11.7 to 88.3 in-lb torque range and an adjustable shut-off clutch. Its angle configuration helps operators reach fastening points around housings, brackets, fixtures, and closely positioned components, while automatic clutch shut-off provides a controlled endpoint for repetitive tightening cycles.

The Ingersoll Rand QA1L05S1XLD is configured for compatible assembly joints requiring greater torque capability than lower-range QA1L05 models. Its deliberate 500 RPM speed supports controlled fastener rundown, while adjustment from 11.7 to 88.3 in-lbs provides the output range needed for higher-torque fastening applications. Once properly set on the actual production joint, the shut-off clutch automatically stops the tool at the preset torque point to help support consistent fastening from cycle to cycle.

Type: Angle Air Nutrunner | Model: QA1L05S1XLD | Configuration: Angle | Free Speed: 500 RPM | Torque Range: 11.7 - 88.3 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 500 RPM free speed provides deliberate fastener rundown for compatible higher-torque assembly applications.
  • 11.7 to 88.3 in-lb torque range supports production joints requiring greater torque capability than lower-range QA1L05 configurations.
  • Angle configuration supports access where housings, brackets, fixtures, or neighboring components restrict straight-line tool positioning.
  • Automatic shut-off provides a defined fastening endpoint and reduces reliance on manual operator timing at the completion of each cycle.
  • Higher torque range provides an option for compatible fastening requirements that exceed the maximum capability of the 3.5 to 56.4 in-lb QA1L05 configurations.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component assembly — tightening compatible higher-torque fasteners positioned around housings, brackets, fixtures, and adjacent components.
  • Equipment manufacturing — completing controlled fastening where the joint requires greater turning force and surrounding structures restrict direct access.
  • Appliance and electromechanical assembly — reaching fastening points within frames, equipment assemblies, and compact component layouts.
  • General production fastening — performing repetitive assembly operations requiring adjustable shut-off within the tool's specified higher torque range.
  • Fixture-based assembly stations — accessing recessed or side-oriented fasteners while maintaining a controlled fastening cycle in restricted layouts.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L05S1XLD provide?
    A: The specified torque range is 11.7 to 88.3 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: How does the QA1L05S1XLD differ from the QA1L05S1LD?
    A: Both supplied models operate at 500 RPM, but the QA1L05S1XLD has an 11.7 to 88.3 in-lb torque range, while the QA1L05S1LD has a 3.5 to 56.4 in-lb range. The QA1L05S1XLD provides the higher maximum torque capability, while the QA1L05S1LD extends to a lower minimum torque setting.
  • Q: What happens when the adjustable shut-off clutch reaches its preset point?
    A: The nutrunner automatically stops when the preset torque point is reached, providing a controlled endpoint for the fastening cycle and helping support repeatable tightening when the tool is properly set for the joint.
  • Q: Why choose an angle nutrunner for higher-torque production fastening?
    A: The angle configuration can improve access to fasteners positioned near housings, brackets, fixtures, or other components where a straight tool is difficult to align. The required torque range and available working clearance should both be considered when selecting the tool.
  • Q: Should the clutch setting be verified after changes to the assembly process?
    A: Yes. Changes to fasteners, joint materials, drive tooling, component conditions, or compressed-air supply can affect fastening results. Recheck the setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
11.7 - 88.3
RPM:
500
Side to Center (in.):
0.52
Drive Size (in.):
1/4
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Hex Quick Change
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
