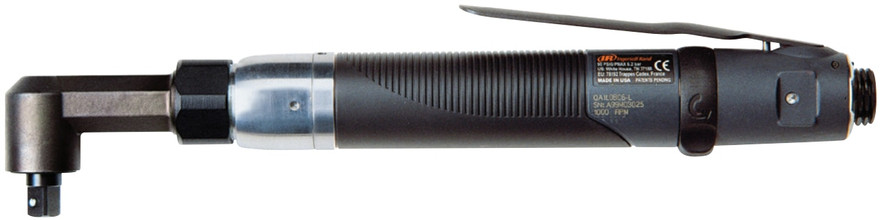

Ingersoll Rand QA1L02S4LD Angle Air Nutrunner | 250 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L02S4LD Angle Air Nutrunner | 250 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,621.00
$1,994.22
(You save $626.78 )
Availability:
Available To Order From Supplier
SKU:
QA1L02S4LD
Shipping:
Calculated at Checkout
Weight:
2.62 LBS
Condition:
New
Adding to cart… The item has been added
Description

For production fastening where a slow, controlled rundown is preferred and surrounding components limit direct tool access, the Ingersoll Rand QA1L02S4LD Angle Air Nutrunner combines 250 RPM free speed with a 3.5 to 56.4 in-lb torque range and an adjustable shut-off clutch. The angle configuration helps operators approach fasteners around housings, brackets, fixtures, and closely arranged components, while automatic clutch shut-off provides a defined endpoint for repetitive tightening cycles.

The Ingersoll Rand QA1L02S4LD operates at a deliberate 250 RPM, making it a suitable choice for compatible assembly processes where controlled fastener rundown takes priority over maximum cycle speed. Its adjustable 3.5 to 56.4 in-lb torque range accommodates a range of fastening requirements within the tool's specified capability. When properly adjusted on the actual production joint, the shut-off clutch automatically stops the nutrunner at the preset torque point to support consistent fastening from cycle to cycle.

Type: Angle Air Nutrunner | Model: QA1L02S4LD | Configuration: Angle | Free Speed: 250 RPM | Torque Range: 3.5 - 56.4 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 250 RPM free speed provides slow, deliberate fastener rundown for compatible controlled-fastening applications.
  • 3.5 to 56.4 in-lb torque range provides adjustable output for production joints within the tool's specified capability.
  • Angle configuration supports access where housings, brackets, fixtures, or neighboring components restrict straight-line tool positioning.
  • Automatic shut-off establishes a defined fastening endpoint and reduces reliance on manual operator timing at the completion of each cycle.
  • Low-speed configuration supports assembly processes where controlled rundown is more important than rapid fastener installation.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Precision-oriented production assembly — completing compatible fastening cycles where a slower rundown rate supports greater process control.
  • Automotive component assembly — tightening fasteners located around brackets, housings, fixtures, and closely positioned components.
  • Equipment and appliance manufacturing — reaching fastening points within frames and assemblies where straight-line tool access is restricted.
  • Electrical and electromechanical production — performing controlled fastening inside cabinets, equipment assemblies, and compact component layouts.
  • Fixture-based workstations — accessing recessed or side-oriented fasteners while maintaining adjustable shut-off within the specified torque range.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L02S4LD provide?
    A: The specified torque range is 3.5 to 56.4 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: When is the 250 RPM speed useful?
    A: The low operating speed provides a more deliberate fastener rundown than higher-speed configurations. It can be useful for compatible assembly processes where controlled tightening takes priority over minimizing rundown time.
  • Q: What does the adjustable shut-off clutch do?
    A: The clutch allows the tool to be adjusted within its specified torque range. When the preset torque point is reached, the nutrunner automatically shuts off to provide a controlled endpoint for the fastening cycle.
  • Q: How does the QA1L02S4LD compare with the QA1L05S4LD?
    A: Both supplied models have a 3.5 to 56.4 in-lb torque range, but the QA1L02S4LD operates at 250 RPM while the QA1L05S4LD operates at 500 RPM. The 250 RPM model provides a slower rundown rate for applications where more deliberate fastening is preferred.
  • Q: Should fastening results be rechecked when production conditions change?
    A: Yes. Changes to fasteners, joint materials, drive tooling, component conditions, or compressed-air supply can affect fastening results. Recheck the clutch setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
3.5 - 56.4
RPM:
250
Side to Center (in.):
0.52
Drive Size (in.):
1/4
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Square Drive
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
