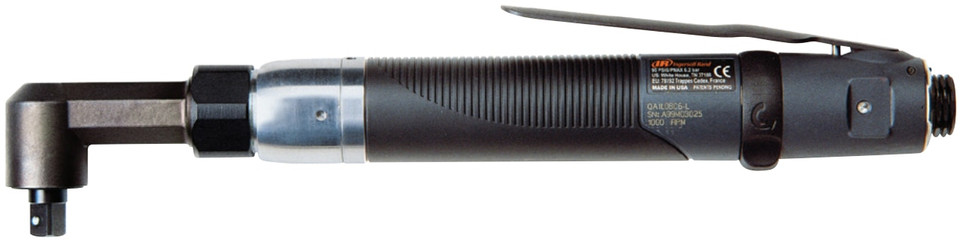

Ingersoll Rand QA1L02S1XLD Angle Air Nutrunner | 250 RPM | 11.7 - 101.5 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L02S1XLD Angle Air Nutrunner | 250 RPM | 11.7 - 101.5 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,787.00
$2,120.53
(You save $666.47 )
Availability:
Available To Order From Supplier
SKU:
QA1L02S1XLD
Shipping:
Calculated at Checkout
Weight:
2.87 LBS
Condition:
New
Adding to cart… The item has been added
Description

For higher-torque assembly work that benefits from a slow fastening cycle and angle-head accessibility, the Ingersoll Rand QA1L02S1XLD Angle Air Nutrunner combines 250 RPM free speed with an 11.7 to 101.5 in-lb torque range and an adjustable shut-off clutch. The angle configuration supports tool positioning around housings, brackets, fixtures, and adjacent components that can obstruct straight-line access, while automatic shut-off provides a controlled endpoint for repetitive fastening cycles.

The Ingersoll Rand QA1L02S1XLD delivers deliberate 250 RPM operation with adjustable torque capability reaching 101.5 in-lbs. This combination is suited to compatible production joints that require greater turning force without prioritizing rapid rundown. Once properly adjusted on the actual assembly joint, the shut-off clutch automatically stops the nutrunner at the preset torque point, helping support consistent fastening and reducing reliance on operator timing at the end of each cycle.

Type: Angle Air Nutrunner | Model: QA1L02S1XLD | Configuration: Angle | Free Speed: 250 RPM | Torque Range: 11.7 - 101.5 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 250 RPM free speed provides a deliberate rundown rate for compatible higher-torque fastening applications.
  • 11.7 to 101.5 in-lb torque range accommodates production joints requiring increased torque capability within the tool's specified range.
  • Angle configuration helps reach fasteners where housings, brackets, fixtures, or adjacent components limit straight-line tool access.
  • Automatic shut-off creates a defined endpoint for each fastening cycle and reduces dependence on manual operator timing.
  • Low-speed configuration supports applications where controlled fastener rundown takes priority over maximum installation speed.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Equipment manufacturing — completing higher-torque fastening where structural components or fixtures restrict direct access to the joint.
  • Automotive component assembly — reaching fasteners positioned among brackets, housings, fixtures, and closely spaced components.
  • Appliance production — performing controlled fastening within frames and internal assemblies where angle-head access is beneficial.
  • Electromechanical assembly — tightening compatible fasteners inside equipment layouts where both access and controlled torque application are important.
  • Production workstations — handling repetitive fastening operations that require slow rundown and adjustable automatic shut-off within the specified torque range.

FAQs:

  • Q: What is the torque range of the Ingersoll Rand QA1L02S1XLD?
    A: The specified torque range is 11.7 to 101.5 in-lbs. Establish the appropriate clutch setting on the actual production joint based on the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: Why would an assembly process use a 250 RPM nutrunner?
    A: The 250 RPM configuration provides a slow, deliberate fastener rundown. It can suit compatible applications where controlled tightening and higher torque capability are more important than minimizing rundown time.
  • Q: What does the adjustable shut-off clutch do?
    A: The clutch is adjusted for the required fastening torque within the tool's specified range. When the preset torque point is reached, the nutrunner automatically stops to provide a controlled endpoint for the fastening cycle.
  • Q: How does the QA1L02S1XLD differ from the QA1L02S1LD?
    A: Both supplied models operate at 250 RPM, but the QA1L02S1XLD has an 11.7 to 101.5 in-lb torque range, while the QA1L02S1LD has a 3.5 to 56.4 in-lb range. The QA1L02S1XLD provides higher maximum torque capability, while the QA1L02S1LD extends to a lower minimum torque setting.
  • Q: Should fastening results be verified after changing production components?
    A: Yes. Changes to fasteners, joint materials, drive tooling, component conditions, or compressed-air supply can affect fastening results. Recheck the clutch setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
11.7 - 101.5
RPM:
250
Side to Center (in.):
0.52
Drive Size (in.):
1/4
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Hex Quick Change
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
