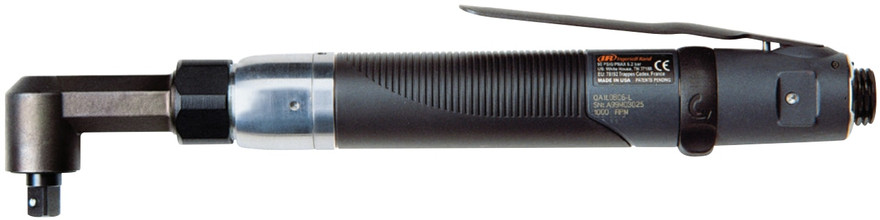

Ingersoll Rand QA1L05S6XLD Angle Air Nutrunner | 500 RPM | 11.7 - 88.3 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L05S6XLD Angle Air Nutrunner | 500 RPM | 11.7 - 88.3 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,720.00
$2,069.56
(You save $650.44 )
Availability:
Available To Order From Supplier
SKU:
QA1L05S6XLD
Shipping:
Calculated at Checkout
Weight:
2.87 LBS
Condition:
New
Adding to cart… The item has been added
Description

For production fastening that demands a higher torque range while maintaining access around crowded assemblies, the Ingersoll Rand QA1L05S6XLD Angle Air Nutrunner combines 500 RPM free speed with an 11.7 to 88.3 in-lb torque range and an adjustable shut-off clutch. The angle configuration helps position the tool around housings, brackets, fixtures, and adjacent components, while automatic clutch shut-off provides a controlled endpoint for repetitive tightening cycles.

The Ingersoll Rand QA1L05S6XLD extends torque capability beyond the lower-range QA1L05 configurations while retaining a deliberate 500 RPM speed. With adjustment from 11.7 to 88.3 in-lbs, this model is suited to compatible production joints requiring greater turning force within its specified operating range. Once the clutch is properly set on the actual joint, the tool automatically shuts off at the preset torque point, supporting controlled fastening without relying solely on operator timing.

Type: Angle Air Nutrunner | Model: QA1L05S6XLD | Configuration: Angle | Free Speed: 500 RPM | Torque Range: 11.7 - 88.3 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 500 RPM free speed provides deliberate fastener rundown for compatible applications requiring controlled tightening.
  • 11.7 to 88.3 in-lb torque range supports production fastening requirements that call for higher torque capability.
  • Angle configuration provides access where housings, brackets, fixtures, or nearby components restrict straight-line tool positioning.
  • Automatic shut-off creates a defined fastening endpoint and reduces reliance on manual operator timing at the completion of each cycle.
  • Higher torque range provides an option for compatible joints that exceed the maximum torque capability of lower-range QA1L05 configurations.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component assembly — tightening compatible higher-torque fasteners located around brackets, housings, fixtures, and closely positioned components.
  • Equipment assembly — completing controlled fastening where the joint requires greater turning force and surrounding structures limit direct tool access.
  • Appliance and electromechanical manufacturing — reaching fastening points within frames, equipment assemblies, and compact component layouts.
  • General production fastening — performing repetitive assembly operations that require adjustable shut-off within the tool's specified higher torque range.
  • Fixture-based workstations — accessing recessed or side-oriented fasteners while maintaining a controlled fastening cycle in restricted assembly layouts.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L05S6XLD provide?
    A: The specified torque range is 11.7 to 88.3 in-lbs. The appropriate clutch setting should be established on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: How does the QA1L05S6XLD differ from the QA1L05S6LD?
    A: Both models operate at 500 RPM, but the supplied specifications list the QA1L05S6XLD with an 11.7 to 88.3 in-lb torque range and the QA1L05S6LD with a 3.5 to 56.4 in-lb range. The QA1L05S6XLD is therefore the higher-torque configuration, while the QA1L05S6LD extends to a lower minimum torque setting.
  • Q: What does the adjustable shut-off clutch do during fastening?
    A: The clutch automatically stops the tool when its preset torque point is reached, providing a controlled endpoint for the fastening cycle and helping support repeatable tightening when properly set for the production joint.
  • Q: Why use a 500 RPM angle nutrunner for higher-torque assembly work?
    A: The 500 RPM configuration provides a deliberate rundown rate, while the angle layout helps reach fasteners where surrounding components or fixtures restrict straight-line access. Tool selection should be based on the required torque range, joint characteristics, and available working clearance.
  • Q: Should the clutch setting be verified after changes to the assembly process?
    A: Yes. Changes to fasteners, joint materials, drive tooling, component conditions, or compressed-air supply can affect fastening results. Recheck the setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
11.7 - 88.3
RPM:
500
Side to Center (in.):
0.52
Drive Size (in.):
3/8
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Square Drive
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
