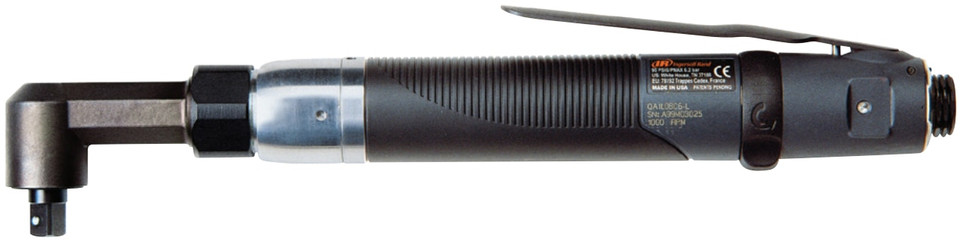

Ingersoll Rand QA1L08S6LD Angle Air Nutrunner | 850 RPM | 3.5 - 47.2 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L08S6LD Angle Air Nutrunner | 850 RPM | 3.5 - 47.2 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,474.00
$1,882.38
(You save $591.62 )
Availability:
Available To Order From Supplier
SKU:
QA1L08S6LD
Shipping:
Calculated at Checkout
Weight:
2.62 LBS
Condition:
New
Adding to cart… The item has been added
Description

For repetitive assembly operations that require increased torque capability and access around obstructed fastening points, the Ingersoll Rand QA1L08S6LD Angle Air Nutrunner combines 850 RPM free speed with a 3.5 to 47.2 in-lb torque range and an adjustable shut-off clutch. Its angle configuration supports fastening where nearby components or fixtures limit straight-line tool positioning, while automatic clutch shut-off provides a controlled endpoint for each tightening cycle.

The Ingersoll Rand QA1L08S6LD favors greater torque capability and deliberate rundown compared with faster QA1L configurations. Operating at 850 RPM, the tool provides adjustment up to 47.2 in-lbs for compatible production joints. Once the clutch is properly set for the application, the nutrunner shuts off automatically at the preset torque point, combining controlled fastening with the accessibility of an angle tool for repetitive assembly environments.

Type: Angle Air Nutrunner | Model: QA1L08S6LD | Configuration: Angle | Free Speed: 850 RPM | Torque Range: 3.5 - 47.2 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 850 RPM free speed supports controlled fastener rundown for compatible joints requiring increased torque capability.
  • 3.5 to 47.2 in-lb torque range provides adjustable output for a variety of compatible production fastening requirements.
  • Angle configuration supports access where housings, brackets, fixtures, or surrounding components restrict straight-line tool positioning.
  • Automatic shut-off provides a controlled cycle endpoint and reduces reliance on the operator to manually stop each fastening operation.
  • Lower-speed configuration provides greater maximum torque capability than the supplied faster QA1L configurations.
  • Pneumatic operation supports repeated production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component assembly — tightening compatible fasteners located around housings, brackets, fixtures, and closely spaced production components.
  • Appliance manufacturing — completing controlled fastening within frames and internal assemblies where straight-tool clearance is limited.
  • Electrical and electromechanical equipment production — accessing fastening points inside cabinets, equipment assemblies, and compact component layouts.
  • General production assembly — handling repetitive fastening where increased torque capability and automatic shut-off are required in restricted-access locations.
  • Fixture-based assembly stations — reaching recessed or side-oriented fasteners while maintaining controlled tightening within the specified torque range.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L08S6LD provide?
    A: The specified torque range is 3.5 to 47.2 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: What is the benefit of the 850 RPM speed?
    A: The lower speed provides a more deliberate fastener rundown while supporting greater maximum torque capability than the supplied faster QA1L configurations. It is suited to compatible joints where additional turning force is more important than maximum rundown speed.
  • Q: How does the adjustable shut-off clutch support repetitive fastening?
    A: Once properly adjusted, the clutch automatically stops the nutrunner when its preset torque point is reached. This provides a controlled endpoint for each fastening cycle and reduces reliance on manual operator timing.
  • Q: Why select an angle air nutrunner for an assembly workstation?
    A: An angle configuration can improve access when housings, brackets, fixtures, or surrounding components prevent a straight tool from being conveniently aligned with the fastener.
  • Q: Should final fastening results still be verified when using automatic shut-off?
    A: Yes. Joint characteristics, fastener condition, component materials, drive tooling, and compressed-air conditions can affect final results. Set the tool on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
3.5 - 47.2
RPM:
850
Side to Center (in.):
0.52
Drive Size (in.):
3/8
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Square Drive
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
