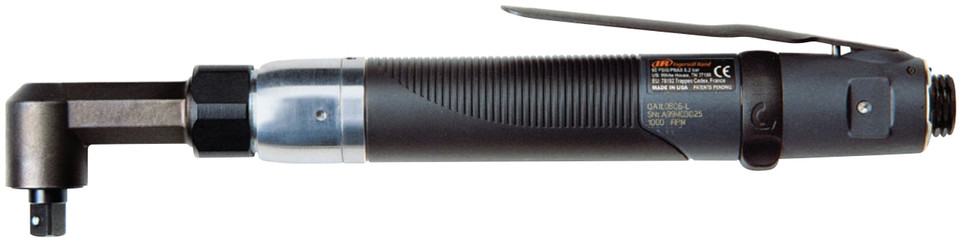

Ingersoll Rand QA1L05S4SD Angle Air Nutrunner | 500 RPM | 3.5 - 26.1 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L05S4SD Angle Air Nutrunner | 500 RPM | 3.5 - 26.1 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,689.00
$2,045.96
(You save $643.04 )
Availability:
Available To Order From Supplier
SKU:
QA1L05S4SD
Shipping:
Calculated at Checkout
Weight:
2.37 LBS
Condition:
New
Adding to cart… The item has been added
Description

For controlled fastening in assemblies where access is restricted and a slower rundown speed is preferred, the Ingersoll Rand QA1L05S4SD Angle Air Nutrunner combines 500 RPM free speed with a 3.5 to 26.1 in-lb torque range and an adjustable shut-off clutch. The angle configuration helps operators reach fasteners around housings, brackets, fixtures, and closely spaced components, while the clutch automatically stops the fastening cycle when the preset torque point is reached.

The Ingersoll Rand QA1L05S4SD uses its 500 RPM speed to provide deliberate fastener rundown for compatible production joints that benefit from greater control over the tightening cycle. Its adjustable shut-off clutch provides a defined cycle endpoint within the specified torque range, helping reduce reliance on manual operator timing during repetitive assembly work. This combination suits production environments where restricted fastener access, controlled speed, and repeatable fastening are important process considerations.

Type: Angle Air Nutrunner | Model: QA1L05S4SD | Configuration: Angle | Free Speed: 500 RPM | Torque Range: 3.5 - 26.1 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 500 RPM free speed provides deliberate fastener rundown for compatible controlled-fastening applications.
  • 3.5 to 26.1 in-lb torque range allows tool output to be adjusted for production joints within the specified capability.
  • Angle configuration supports access where housings, brackets, fixtures, or nearby components restrict straight-line tool positioning.
  • Automatic shut-off provides a defined fastening endpoint and reduces reliance on the operator to manually stop each cycle.
  • Slow-speed configuration supports assembly processes where controlled rundown takes priority over rapid fastener installation.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component assembly — tightening compatible fasteners around brackets, housings, fixtures, and closely spaced production components.
  • Appliance manufacturing — completing controlled fastening inside frames and internal assemblies where straight-tool access is limited.
  • Electrical and electromechanical equipment production — reaching fastening points within cabinets, equipment assemblies, and compact component layouts.
  • General production assembly — handling repetitive low-torque fastening where deliberate rundown and automatic shut-off support process control.
  • Fixture-based workstations — accessing recessed or side-oriented fasteners that are difficult to approach with an inline fastening tool.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L05S4SD provide?
    A: The specified torque range is 3.5 to 26.1 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: What is the advantage of the 500 RPM speed?
    A: The slower speed provides a more deliberate fastener rundown than higher-speed configurations. It can suit assembly processes where controlled tightening and operator oversight are more important than minimizing cycle time.
  • Q: How does the adjustable shut-off clutch work?
    A: The clutch is set for the required fastening torque within the tool's specified range. When the preset torque point is reached, the nutrunner automatically shuts off to provide a controlled endpoint for the cycle.
  • Q: Why choose an angle air nutrunner instead of an inline tool?
    A: The angle configuration can improve access to fasteners positioned near housings, brackets, fixtures, or adjacent components where straight-line tool alignment is difficult.
  • Q: Should completed fasteners still be verified when using automatic shut-off?
    A: Yes. Joint characteristics, fastener condition, component materials, drive tooling, and compressed-air conditions can affect final results. Set the tool on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
3.5 - 26.1
RPM:
500
Side to Center (in.):
0.38
Drive Size (in.):
1/4
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Square Drive
Angle Head Height (in.):
1.1
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
