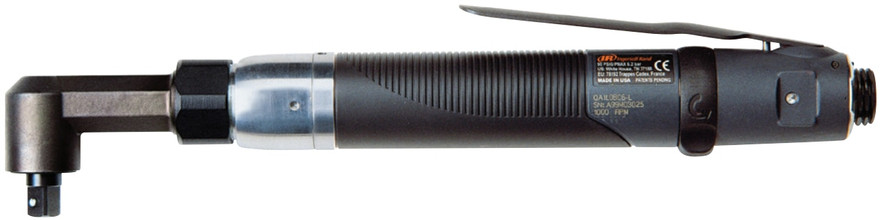

Ingersoll Rand QA1L05S4LD Angle Air Nutrunner | 500 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L05S4LD Angle Air Nutrunner | 500 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,722.00
$2,071.08
(You save $650.92 )
Availability:
Available To Order From Supplier
SKU:
QA1L05S4LD
Shipping:
Calculated at Checkout
Weight:
3.1000 LBS
Condition:
New
Adding to cart… The item has been added
Description

For repetitive assembly operations that require higher torque capability and access to fasteners in confined locations, the Ingersoll Rand QA1L05S4LD Angle Air Nutrunner combines 500 RPM free speed with a 3.5 to 56.4 in-lb torque range and an adjustable shut-off clutch. The angle configuration helps operators position the tool around housings, brackets, fixtures, and nearby components, while automatic clutch shut-off provides a controlled endpoint for each fastening cycle.

The Ingersoll Rand QA1L05S4LD pairs its deliberate 500 RPM speed with adjustment up to 56.4 in-lbs for compatible production joints requiring additional turning force. Once the clutch is properly set for the application, the tool automatically shuts off at the preset torque point, helping support repeatable fastening without relying solely on operator timing. This speed-and-torque combination makes the QA1L05S4LD well suited to assembly processes where controlled rundown and greater torque capacity take priority over maximum fastener installation speed.

Type: Angle Air Nutrunner | Model: QA1L05S4LD | Configuration: Angle | Free Speed: 500 RPM | Torque Range: 3.5 - 56.4 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 500 RPM free speed provides controlled, deliberate fastener rundown for compatible production assembly joints.
  • 3.5 to 56.4 in-lb torque range provides adjustable output for fastening applications requiring increased torque capability.
  • Angle configuration supports access where housings, brackets, fixtures, or surrounding components restrict straight-line tool positioning.
  • Automatic shut-off provides a defined cycle endpoint and reduces reliance on the operator to manually stop each fastening operation.
  • Slow-speed configuration favors increased torque capability and controlled rundown over rapid fastener installation.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component assembly — tightening compatible fasteners positioned around brackets, housings, fixtures, and closely spaced production components.
  • Appliance manufacturing — completing controlled fastening within frames and internal assemblies where straight-tool clearance is limited.
  • Electrical and electromechanical equipment production — accessing fastening points inside cabinets, equipment assemblies, and compact component layouts.
  • General production assembly — handling repetitive fastening where higher torque capability, angle access, and automatic shut-off support process requirements.
  • Fixture-based workstations — reaching recessed or side-oriented fasteners while maintaining controlled tightening within the specified torque range.

FAQs:

  • Q: What torque range does the Ingersoll Rand QA1L05S4LD provide?
    A: The specified torque range is 3.5 to 56.4 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: What is the benefit of the 500 RPM configuration?
    A: The slower speed provides a deliberate rundown rate for applications where controlled tightening and greater torque capability are more important than minimizing fastener installation time.
  • Q: How does the adjustable shut-off clutch support repetitive fastening?
    A: Once properly adjusted, the clutch automatically stops the nutrunner when its preset torque point is reached. This provides a controlled endpoint for each fastening cycle and reduces reliance on manual operator timing.
  • Q: How does the QA1L05S4LD differ from the QA1L05S4SD?
    A: Both models operate at 500 RPM, but the supplied specifications list the QA1L05S4LD with a 3.5 to 56.4 in-lb torque range and the QA1L05S4SD with a 3.5 to 26.1 in-lb range. The QA1L05S4LD therefore provides the higher maximum specified torque of the two configurations.
  • Q: Should completed fasteners still be verified when using automatic shut-off?
    A: Yes. Joint characteristics, fastener condition, component materials, drive tooling, and compressed-air conditions can affect final fastening results. Establish the clutch setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
3.5 - 56.4
RPM:
500
Side to Center (in.):
0.52
Drive Size (in.):
1/4
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Square Drive
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
