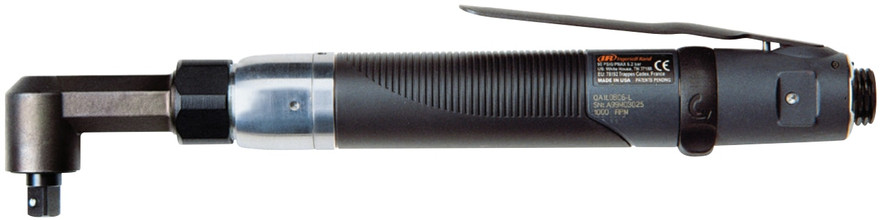

Ingersoll Rand QA1L05S6LD Angle Air Nutrunner | 500 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand QA1L05S6LD Angle Air Nutrunner | 500 RPM | 3.5 - 56.4 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

List Price: $2,547.00
$1,937.92
(You save $609.08 )
Availability:
Available To Order From Supplier
SKU:
QA1L05S6LD
Shipping:
Calculated at Checkout
Weight:
2.62 LBS
Condition:
New
Adding to cart… The item has been added
Description

For repetitive assembly work that requires higher torque capability in areas where straight tool access is limited, the Ingersoll Rand QA1L05S6LD Angle Air Nutrunner combines 500 RPM free speed with a 3.5 to 56.4 in-lb torque range and an adjustable shut-off clutch. Its angle configuration supports access around housings, brackets, fixtures, and adjacent components, while automatic clutch shut-off provides a controlled endpoint for each fastening cycle.

The Ingersoll Rand QA1L05S6LD pairs deliberate 500 RPM operation with adjustment up to 56.4 in-lbs, making it suitable for compatible production joints that require additional turning force rather than maximum rundown speed. Once properly adjusted for the application, the shut-off clutch automatically stops the tool at the preset torque point, helping support consistent fastening while reducing reliance on operator timing during repetitive assembly operations.

Type: Angle Air Nutrunner | Model: QA1L05S6LD | Configuration: Angle | Free Speed: 500 RPM | Torque Range: 3.5 - 56.4 in-lbs | Clutch Type: Adjustable Shut-Off

Features:

  • Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque point is reached.
  • 500 RPM free speed provides deliberate fastener rundown for compatible assembly joints requiring controlled tightening.
  • 3.5 to 56.4 in-lb torque range provides adjustable output for production fastening applications requiring increased torque capability.
  • Angle configuration supports access where housings, brackets, fixtures, or surrounding components restrict straight-line tool positioning.
  • Automatic shut-off provides a defined fastening endpoint and reduces reliance on the operator to manually stop each cycle.
  • Slow-speed configuration prioritizes controlled rundown and higher torque capability over rapid fastener installation.
  • Pneumatic operation supports repetitive production fastening when supplied with properly conditioned compressed air.

Made in USA: Made in USA

Applications:

  • Automotive component production — tightening compatible fasteners positioned near brackets, housings, fixtures, and closely arranged components.
  • Appliance assembly — completing controlled fastening inside frames and internal structures where direct tool clearance is restricted.
  • Electrical and electromechanical equipment manufacturing — reaching fastening locations within cabinets, equipment assemblies, and compact component arrangements.
  • General production fastening — handling repetitive assembly tasks where greater torque capability and automatic shut-off are needed in restricted-access areas.
  • Fixture-based assembly operations — approaching recessed or side-oriented fastening points while maintaining controlled tightening within the specified torque range.

FAQs:

  • Q: What is the torque range of the Ingersoll Rand QA1L05S6LD?
    A: The specified torque range is 3.5 to 56.4 in-lbs. Establish the appropriate clutch setting on the actual production joint according to the fastener, joint characteristics, component materials, and assembly requirements.
  • Q: Why choose the 500 RPM configuration for production fastening?
    A: The slower speed provides deliberate fastener rundown while supporting higher torque capability. It can suit compatible assembly joints where controlled tightening and additional turning force are more important than minimizing rundown time.
  • Q: What happens when the adjustable clutch reaches its preset point?
    A: The shut-off system automatically stops the nutrunner when the preset torque point is reached, providing a controlled endpoint for the fastening cycle and reducing reliance on manual operator timing.
  • Q: When is an angle air nutrunner useful in an assembly workstation?
    A: The angle configuration can improve access when housings, brackets, fixtures, or adjacent components make it difficult to align a straight fastening tool with the joint.
  • Q: Should the clutch setting be rechecked when the assembly process changes?
    A: Yes. Changes in fasteners, joint materials, drive tooling, assembly conditions, or compressed-air supply can affect fastening results. Recheck the setting on the actual production joint and verify completed fasteners according to the required quality-control procedure.
Available Variations and Specifications
Model Torque Range 1
in-lbs (Nm)		 Torque Range 2
in-lbs (Nm)		 Torque Range 3
in-lbs (Nm)		 RPM Weight
lbs (kg)		 Length
in (mm)		 Head Height
in (mm)		 Side to Center
in (mm)		 Drive
in
Lever Start
QA1L18S4SD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L18S1LD 3.5–11.5 (0.4–1.3) 9.3–26.1 (1.05–2.95) — 1,750 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S4SD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L12S1LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L12S9LD 3.5–11.5 (0.4–1.3) 9.3–32.2 (1.1–3.64) — 1,270 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L08S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L08S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–47.2 (1.77–5.33) 850 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S4SD 3.5–11.5 (0.4–1.3) 9.3–36.0 (1.05–4.07) — 500 1.9 (0.9) 11.8" (300) 0.38" (9.5) 1.1" (28) 1/4"
QA1L05S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S6LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (0.9) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S6XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L05S9LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 500 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L05S1XLD 11.7–38.2 (1.32–4.32) 31.0–88.3 (3.5–9.98) — 500 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S4LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S1LD 3.5–11.5 (0.4–1.3) 9.3–33.4 (1.05–3.77) 15.7–56.4 (1.77–6.37) 250 2.1 (1.0) 11.9" (302.3) 0.52" (13.2) 1.3" (33) 1/4"
QA1L02S6XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 3/8"
QA1L02S1XLD 11.7–38.2 (1.32–4.32) 31.0–101.5 (3.50–11.5) — 250 2.3 (1.04) 13.0" (330) 0.52" (13.2) 1.3" (33) 1/4"

industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210

Specifications
Type:
Nutrunner
Actuation:
Lever Start
Torque Range (in-lbs):
3.5 - 56.4
RPM:
500
Side to Center (in.):
0.52
Drive Size (in.):
3/8
Sound Level (dbA):
75
Air Inlet:
1/4" NPT
Air Consumption (CFM):
16
Drive Type:
Square Drive
Angle Head Height (in.):
1.3
Hose Size (in.):
1/4
Warranty Information
One year warranty against defects in materials and workmanship
