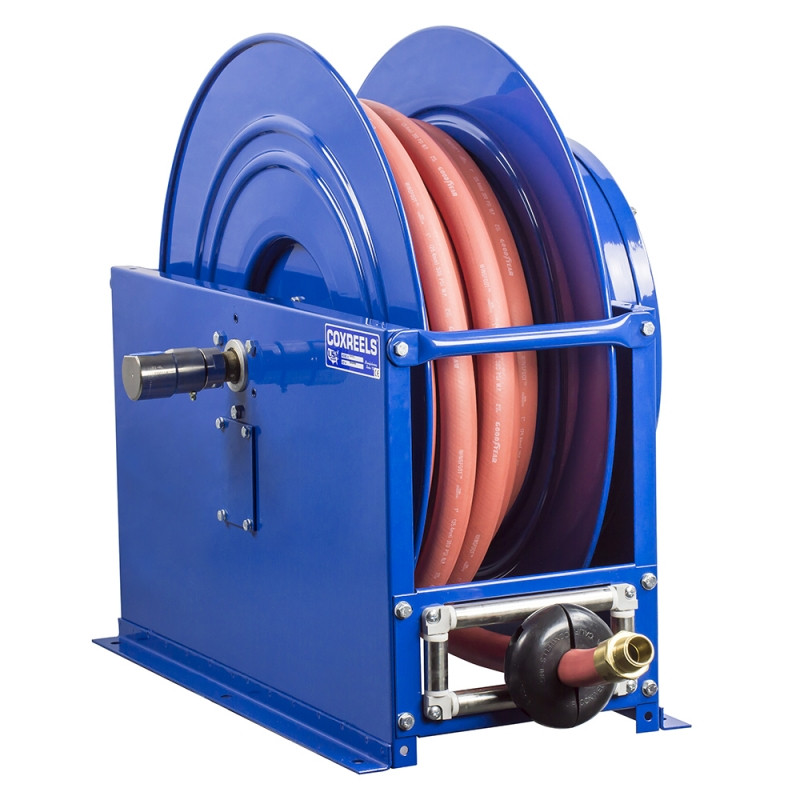

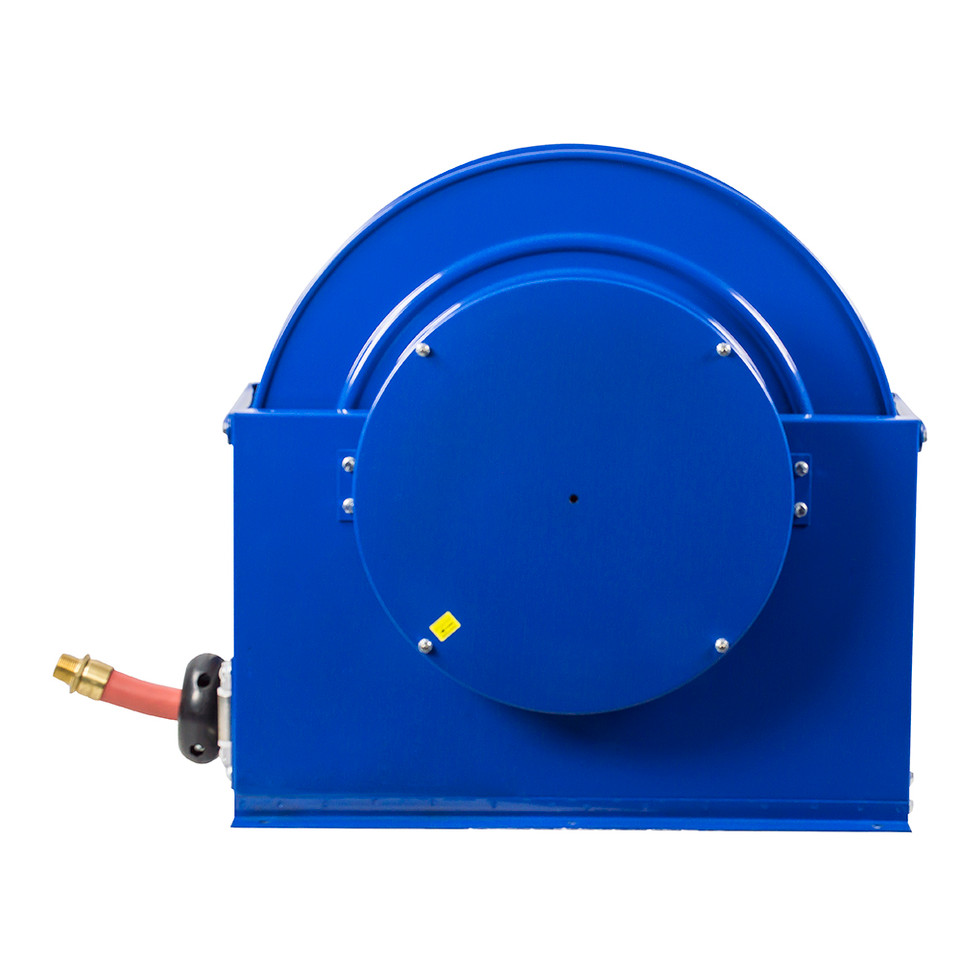

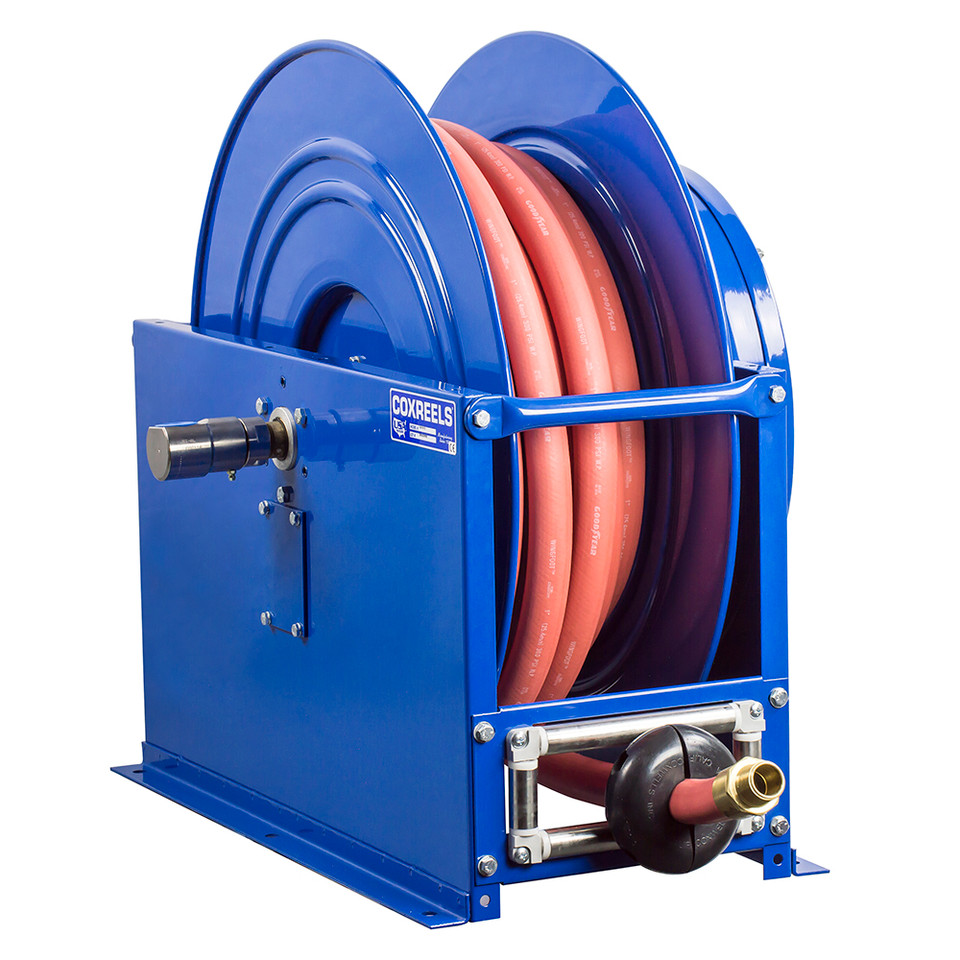

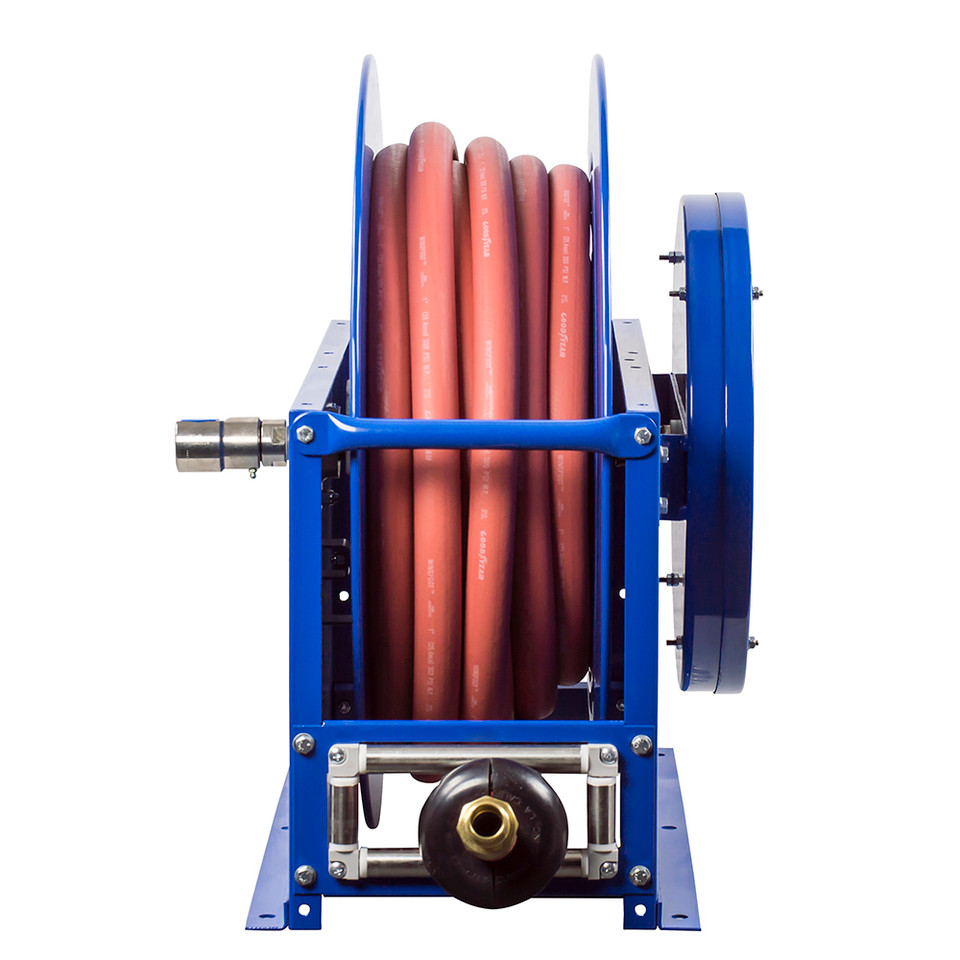

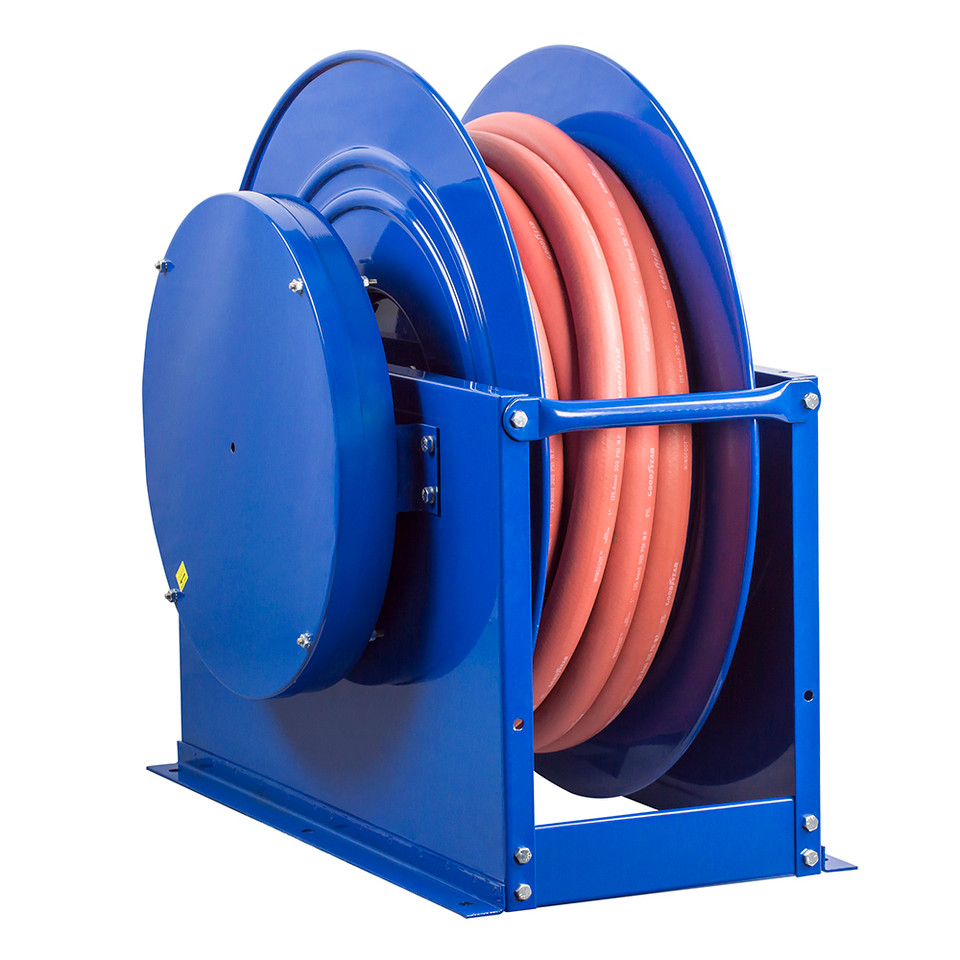

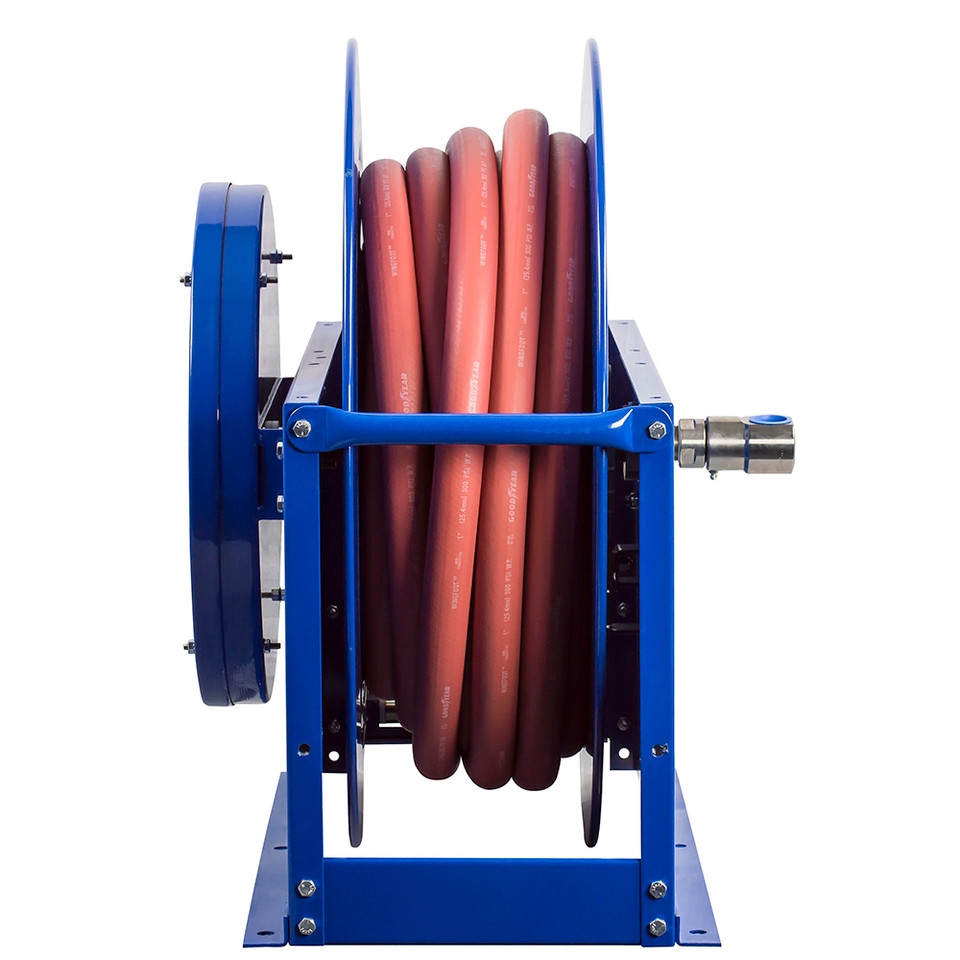

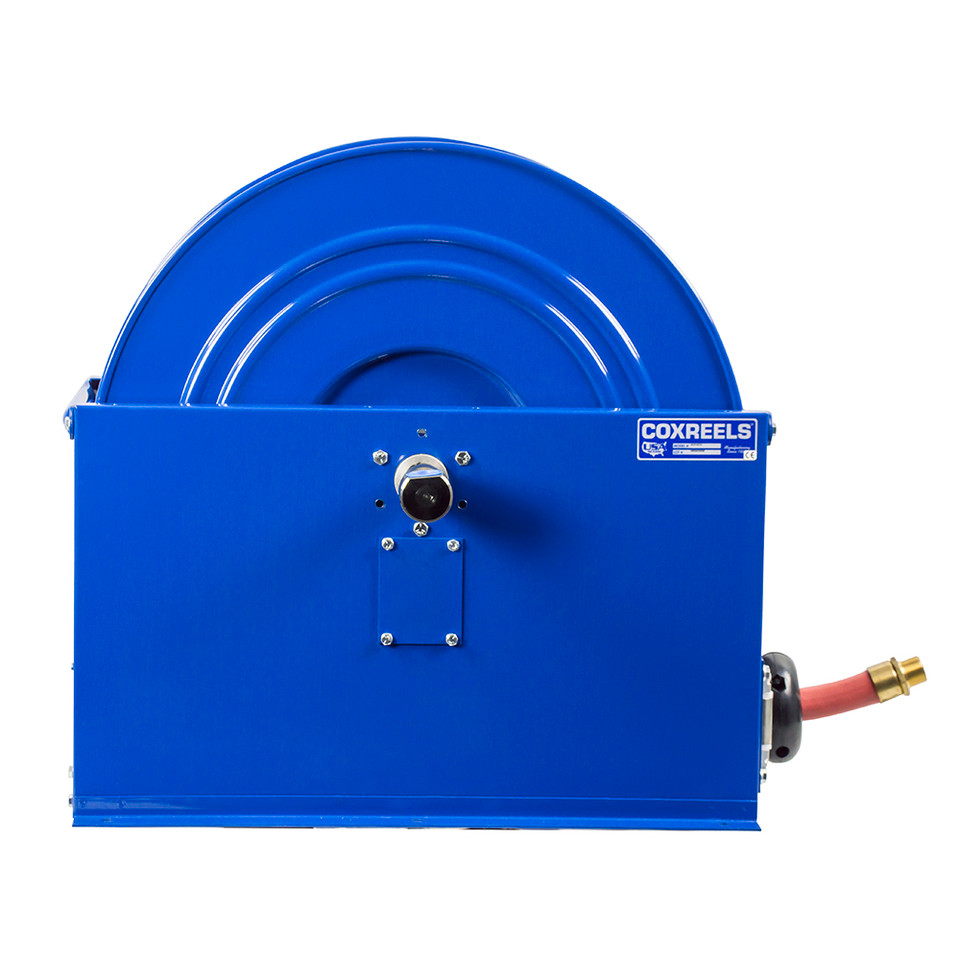

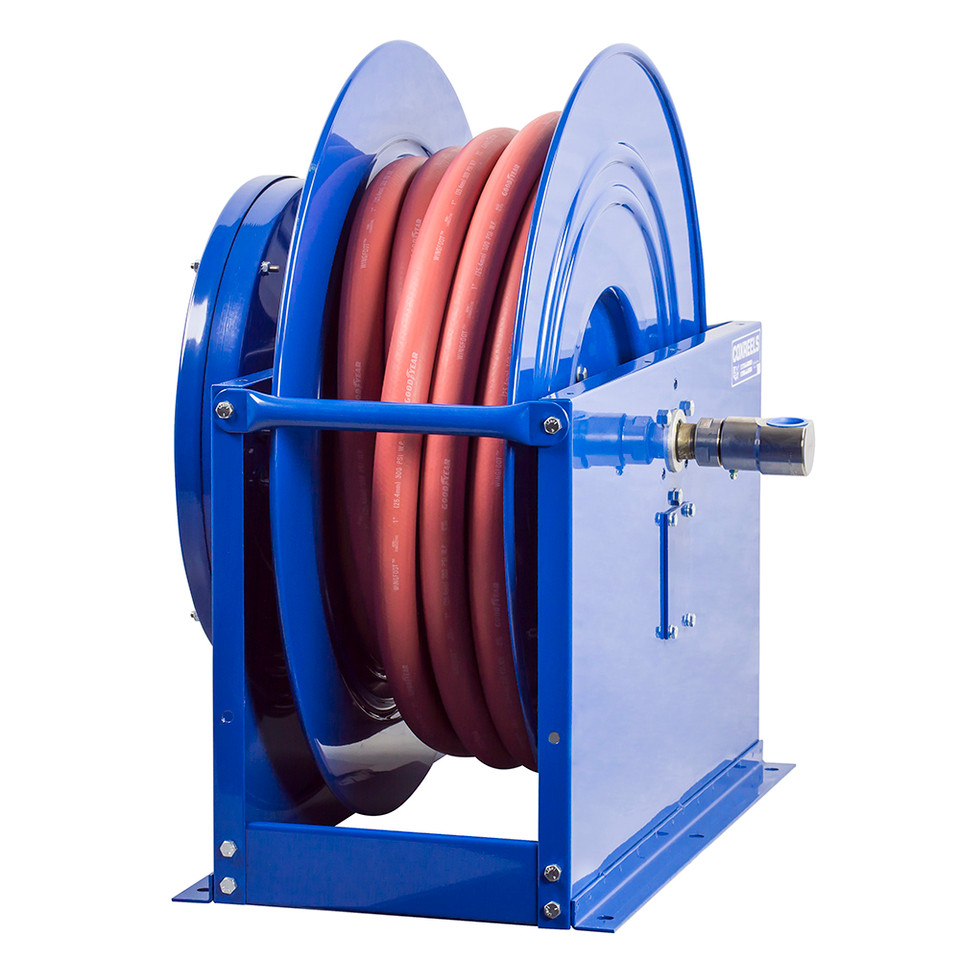

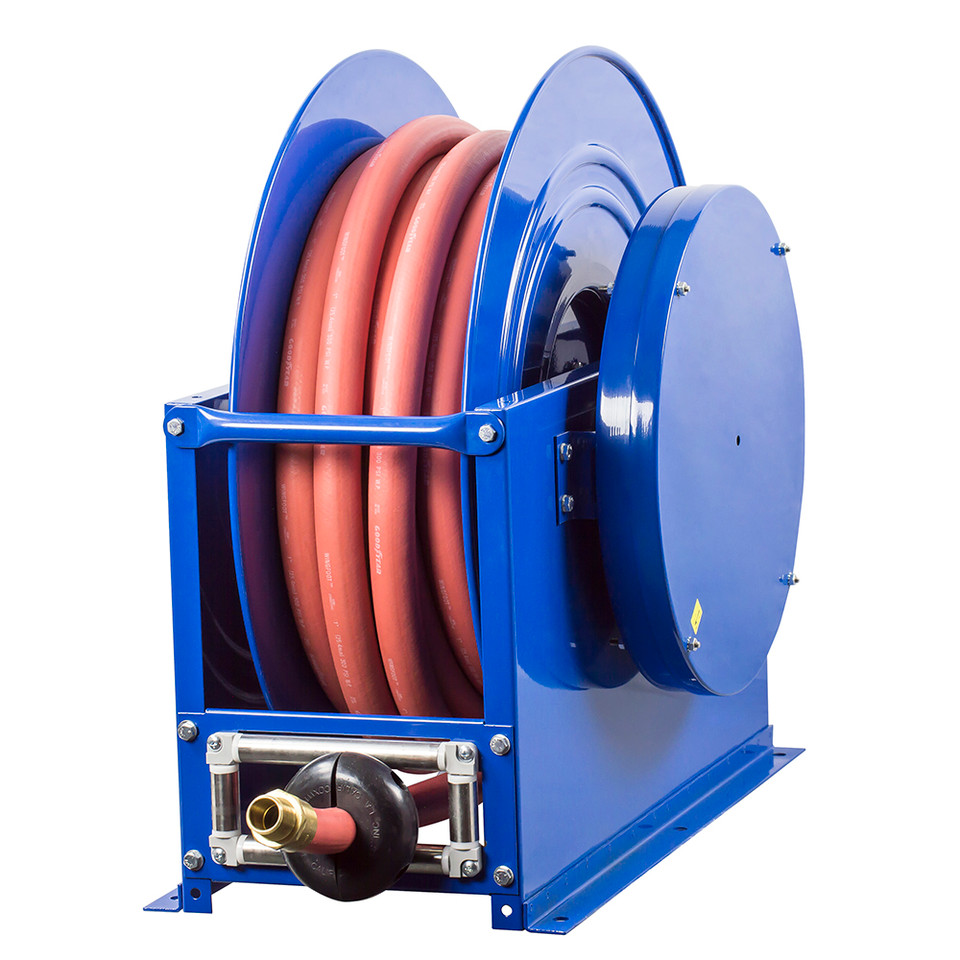

Built for large-volume hose handling in fuel transfer, water delivery, service bays, maintenance areas, and equipment support stations, the Coxreels SMP-575 Single Hose Spring Rewind Hose Reel manages 75 ft of 3/4" I.D. hose in a high-capacity SP Series frame. Its 1500 PSI maximum pressure rating supports low-to-medium pressure delivery where hose size and flow volume matter more than compact reel size. The spring rewind mechanism helps keep long hose runs stored between jobs, reducing floor clutter and helping protect the hose from unnecessary wear. The SP Series is Coxreels’ Single Product Delivery reel family, built for larger hose diameters used in fuel, water, and similar fluid transfer applications. The SMP-575 includes hose and uses a reinforced box-style steel frame with cross supports at all four corners for added rigidity. Rolled disc edges, ribbed reel discs, a full-flow swivel, and a lock ratchet mechanism make this reel a practical choice for shops, yards, mobile service equipment, and industrial maintenance locations that need organized 3/4" hose storage with reliable spring return.
Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 75 ft | Max Pressure: 1500 PSI | Inlet: 3/4" FNPT | Outlet: 3/4" MNPT | Swivel Material: Brass | Swivel Seals: Nitrile | Approx. Ship Weight: 151 lbs
Features:
- SP Series Single Product Delivery design accommodates larger hose diameters for higher-volume fuel, water, and fluid transfer applications.
- Spring rewind operation helps return the hose to the reel after use, keeping work areas cleaner and reducing loose hose on the floor.
- Reinforced box-style steel frame uses cross supports at all four corners for added strength and stability.
- Heavy-gauge 1/4" steel base provides a solid mounting platform for shop, vehicle, floor, wall, or overhead installations.
- Machined from solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel.
- Nitrile swivel seals support compatible low-to-medium pressure fluid service within the reel and hose ratings.
- CNC-spun ribbed discs with rolled edges help protect the hose and improve reel strength during repeated use.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during fueling, transfer, or maintenance tasks.
Made in USA:
Applications:
- Fuel transfer stations requiring organized 3/4" hose storage for larger-volume delivery.
- Industrial maintenance areas using long hose runs for water, compatible fluids, or equipment service tasks.
- Fleet yards and service shops where hose reach and flow volume are important for vehicle or equipment support.
- Construction and agricultural maintenance locations needing spring rewind hose control for transfer and washdown-style work within the reel rating.
- Plant MRO and utility areas where a reinforced steel reel helps keep long 75 ft hose assemblies stored off the floor.
FAQs:
- Q: Does the Coxreels SMP-575 include hose?
A: Yes. This model includes 75 ft of 3/4" I.D. hose. Confirm the hose material, fittings, media compatibility, pressure, and temperature requirements before connecting it to a fluid system. - Q: What is the SP Series used for?
A: The SP Series is Coxreels’ Single Product Delivery reel line for larger hose diameters. It is commonly used where higher-volume delivery is needed, such as fuel, water, and similar low-to-medium pressure fluid transfer applications. - Q: Is this a high-pressure hydraulic reel?
A: No. The SMP-575 is listed at 500 PSI and is not intended for high-pressure hydraulic or grease service. For hydraulic oil or grease at several thousand PSI, choose a Coxreels high-pressure reel series rated for that service. - Q: How can this reel be mounted?
A: The SP Series frame can be used in wall, floor, vehicle, and overhead mounting positions when installed on a properly rated surface. Mounting hardware should be selected for the reel weight, hose load, fluid load, and pull forces. - Q: Why choose a 3/4" hose reel instead of a smaller 3/8" or 1/2" reel?
A: A 3/4" hose provides more flow capacity than smaller hose sizes, which is useful for transfer applications where volume matters. It also requires a larger reel frame, which is why the SP Series uses a high-capacity reinforced design.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | INLET/OUTLET N.P.T. | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | |||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1- 1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1- 1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1- 1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose | 1-1/4" | 1- 13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| Please consult factory for reels with hose | 1- 1/4" | 1- 13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 |
| MEDIUM PRESSURE | |||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1- 1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1- 1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1- 1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
