Built for medium-pressure fluid delivery in service bays, lube rooms, fleet shops, and mobile maintenance setups, the Coxreels SMPL-575 Single Hose Spring Rewind Hose Reel provides reel-only storage for a 3/4" I.D. hose up to 75 ft long. This SP Series reel is rated for 1,500 PSI and is supplied less hose, giving buyers the flexibility to install a compatible hose for air, water, or oil service based on the application’s pressure, temperature, media, and fitting requirements. Coxreels SP Series “Single Product Delivery” reels are built for larger hose capacities and repeated pullout and rewind in low and medium-pressure applications. The SMPL-575 uses a sturdy box-style frame with reinforced steel construction, making it a practical fit for facilities and service vehicles that need to manage longer 3/4" hose runs without leaving excess hose loose across the floor, work bay, or truck bed.

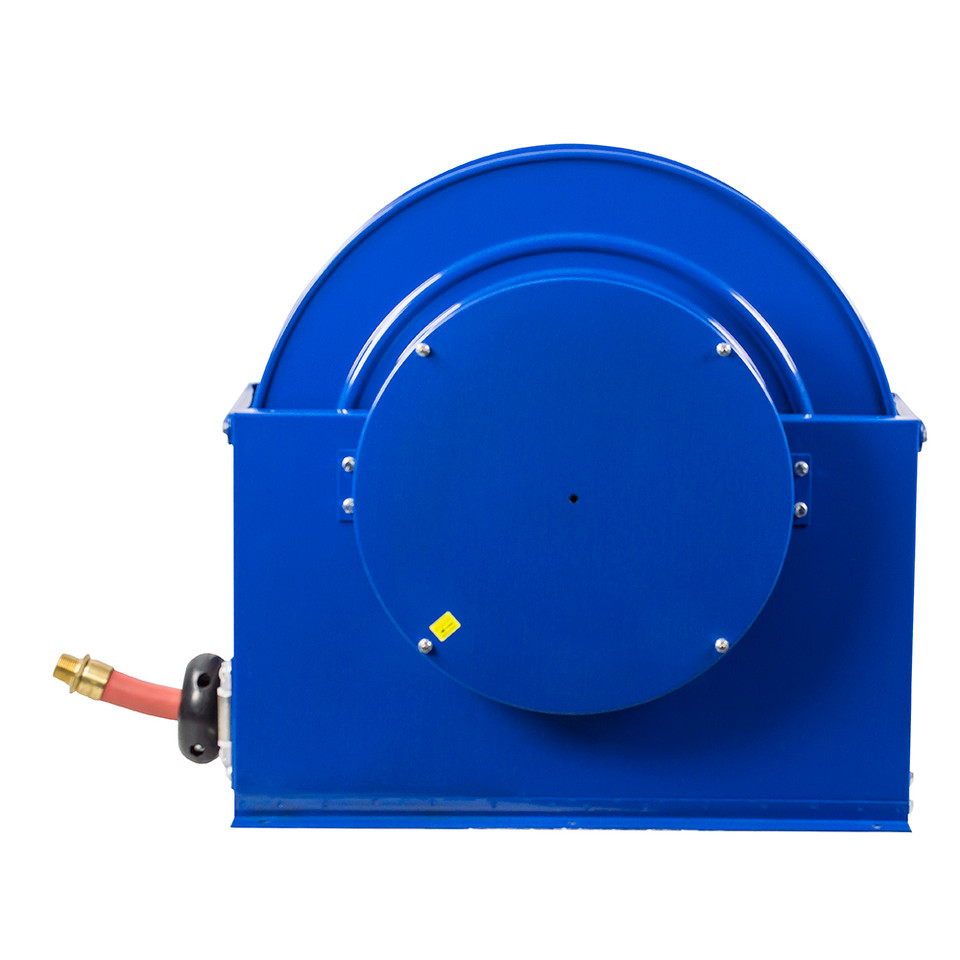

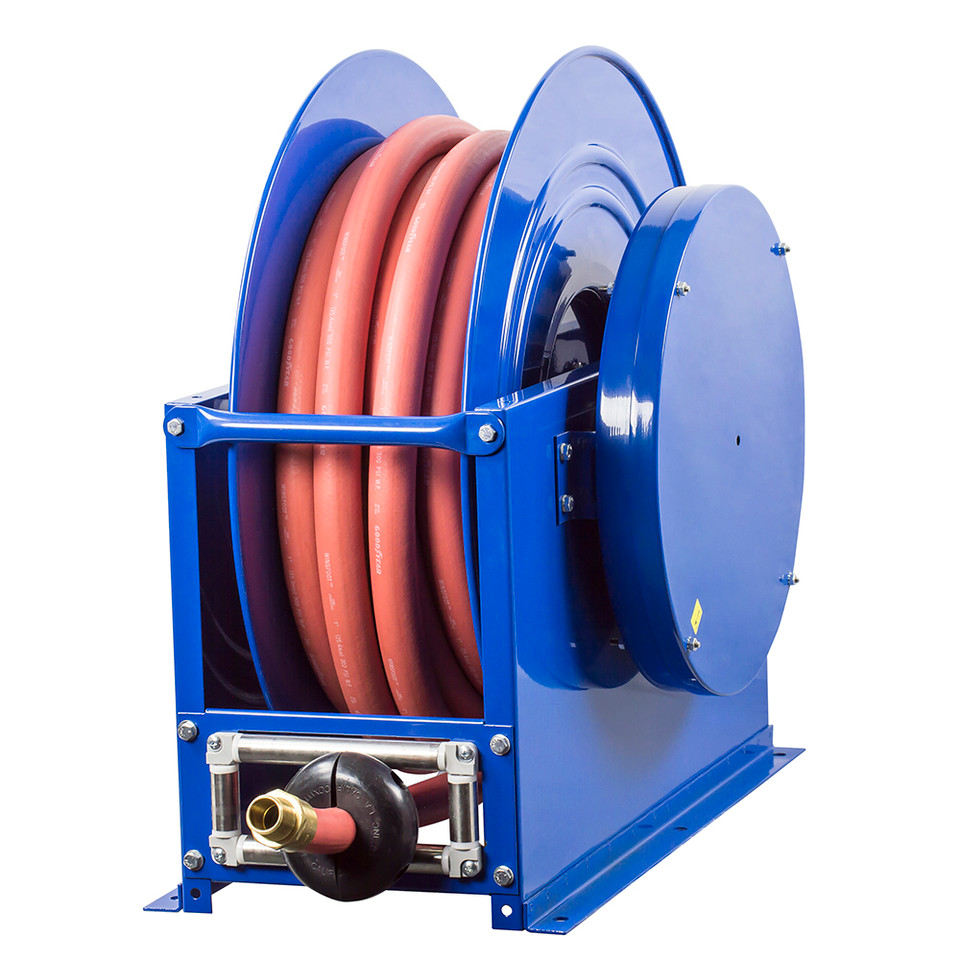

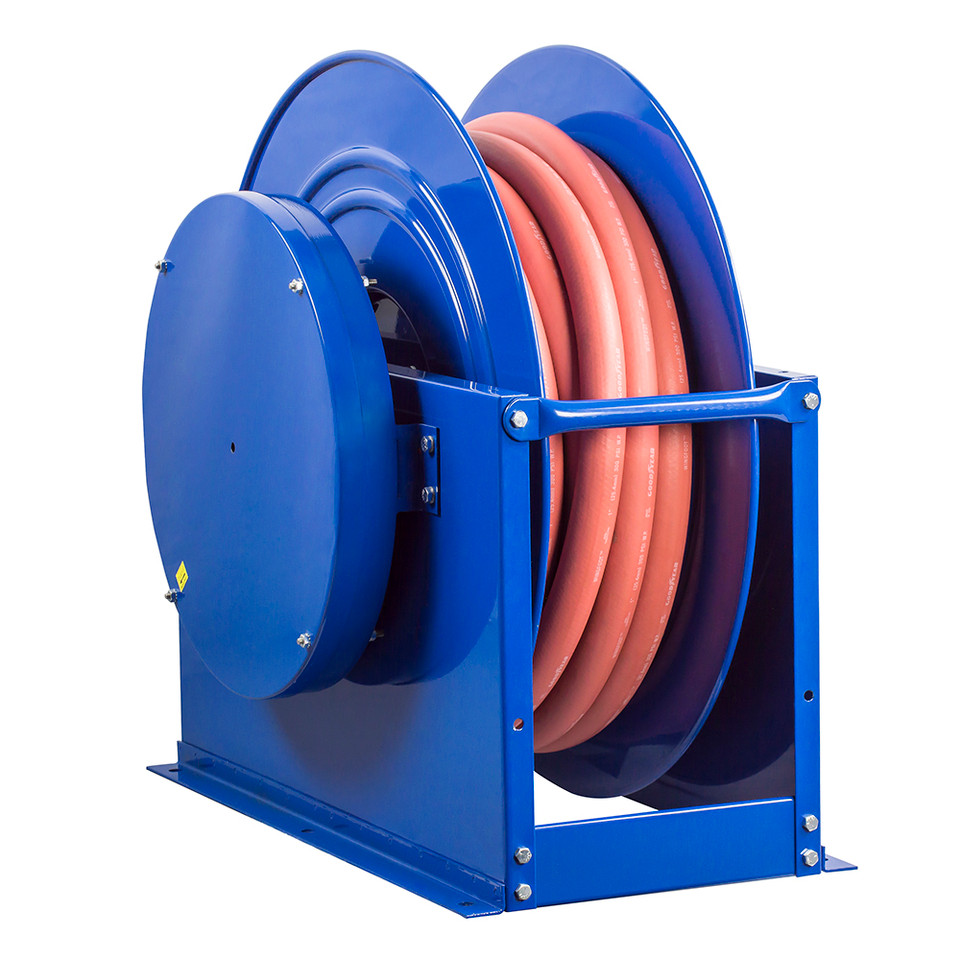

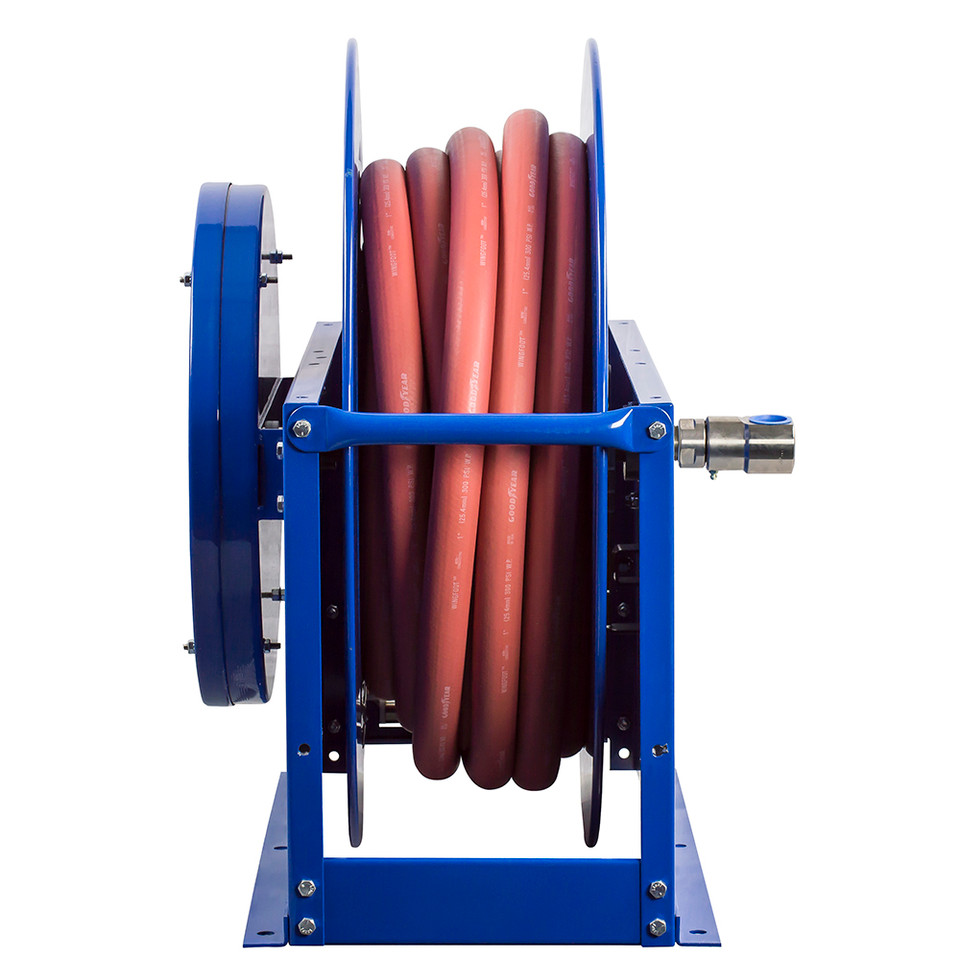

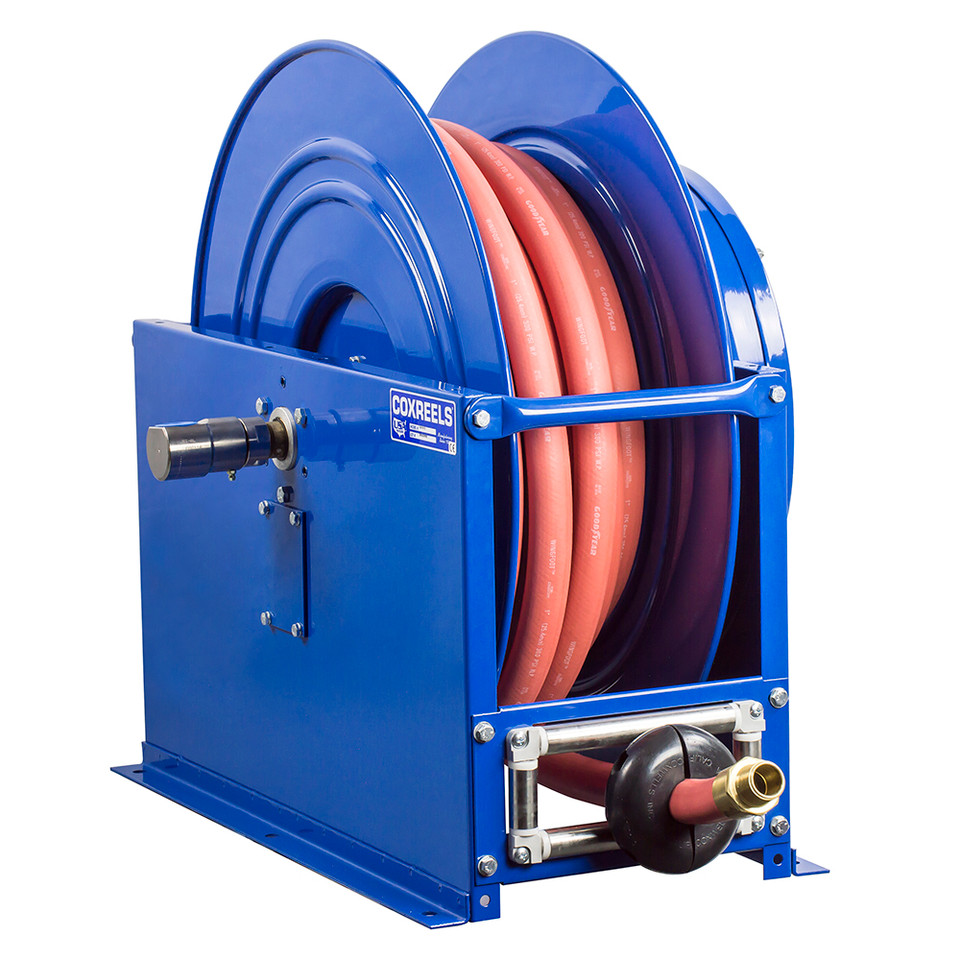

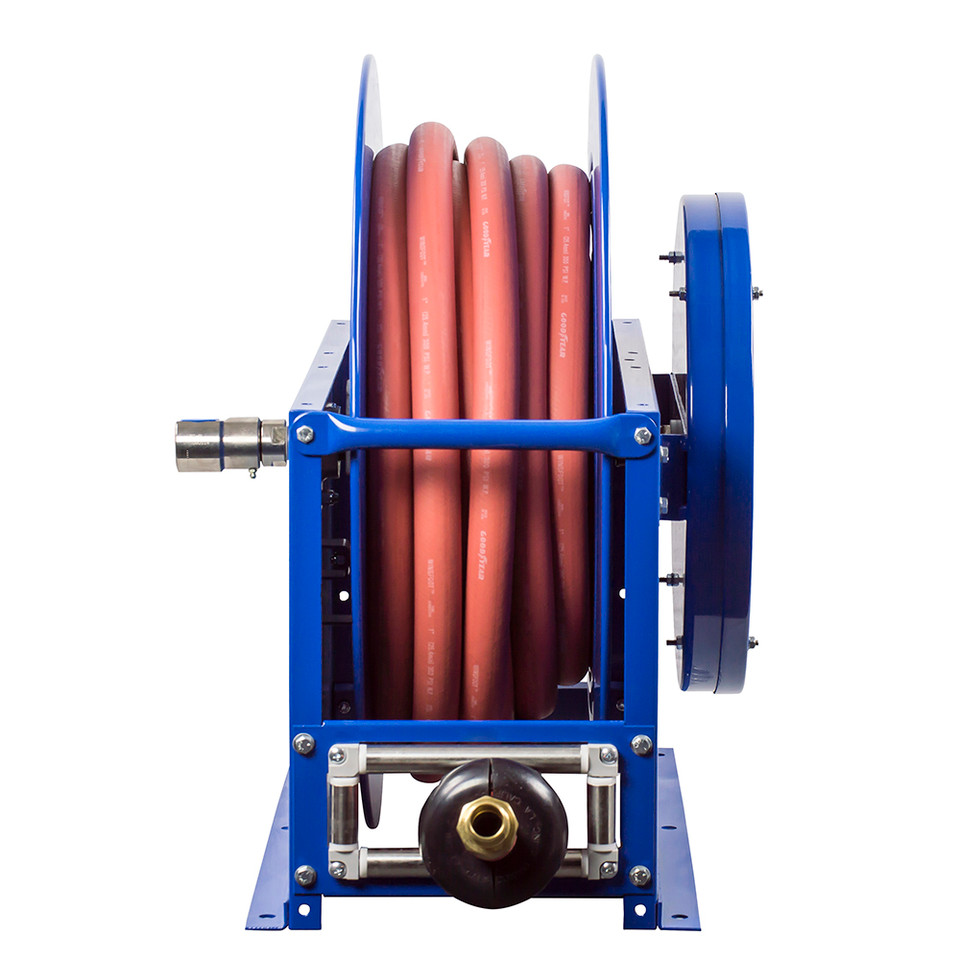

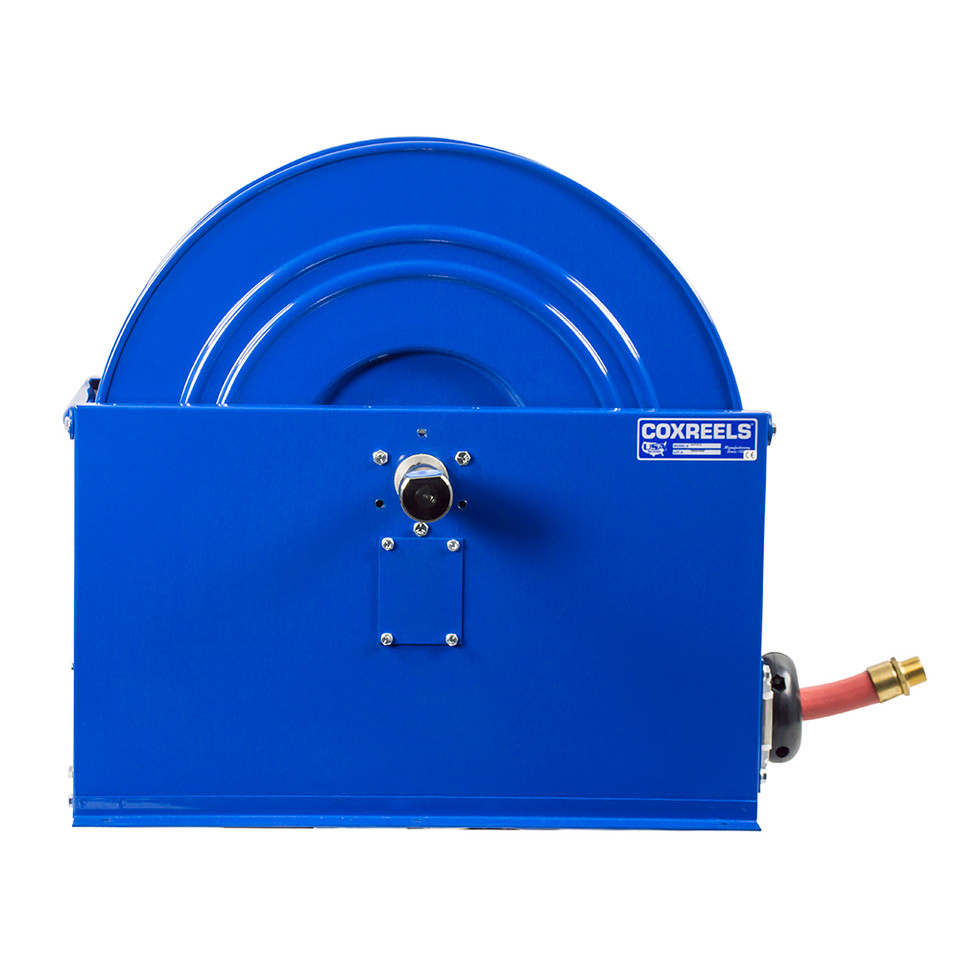

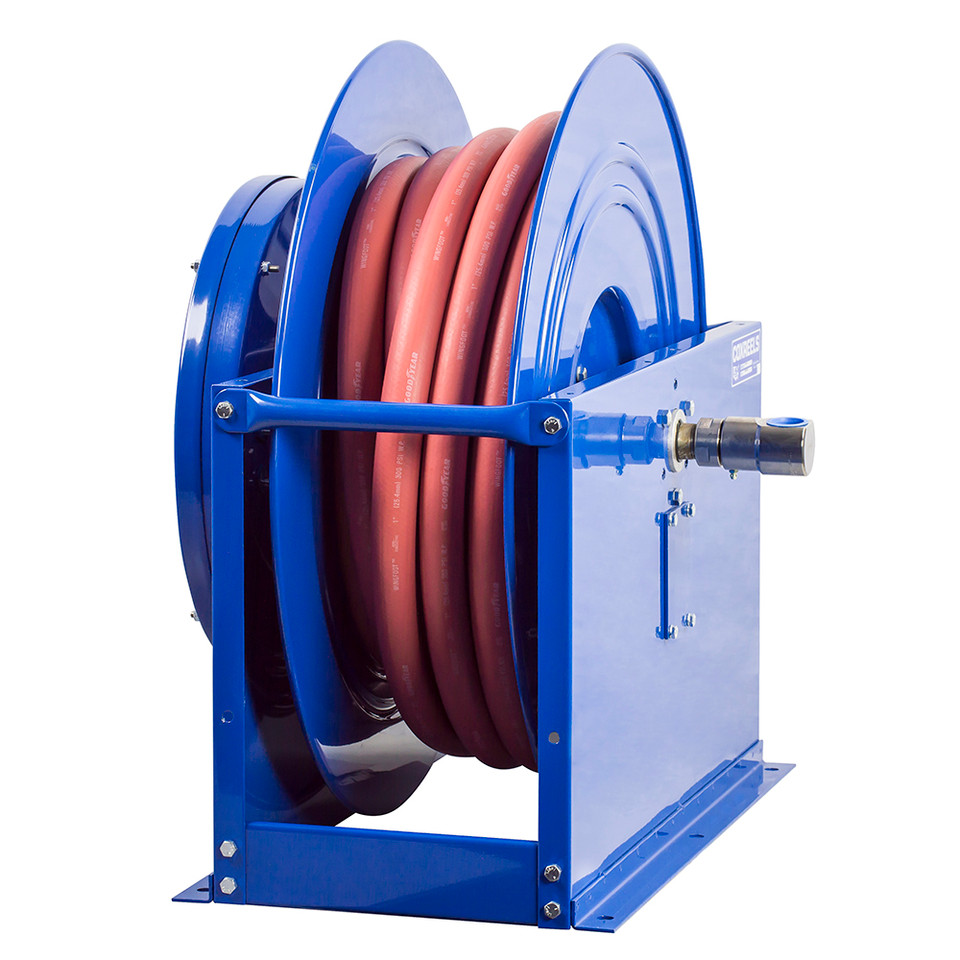

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Model: SMPL-575 | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 75 ft | Max Pressure: 1,500 PSI | Service: Air, Water, Oil
Features:
- SP Series single product delivery design supports larger hose capacities for low and medium-pressure applications.
- Less-hose configuration allows the user to install a compatible 3/4" hose selected for the required media, pressure, temperature, and connection style.
- Sturdy box-style frame with reinforced steel construction helps provide stable support during repeated hose payout and rewind.
- Heavy-gauge steel base supports secure mounting in shops, service bays, maintenance areas, and vehicle installations.
- External fluid path keeps the media route accessible and helps simplify swivel and seal service.
- Machined-from-solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel.
- Nitrile swivel seals support compatibility with listed medium-pressure air, water, and oil service.
- Long-lasting self-lubricated flange bearings help the reel rotate smoothly with less routine bearing maintenance.
- Heavy duty 1" stainless steel pinch-proof rollers help guide the hose and protect it during rewind.
- Enclosed factory-tuned cartridge-style spring motor keeps the rewind mechanism protected and serviceable.
- Cast iron lock ring with non-sparking bronze pawl secures the hose at the selected working length.
- CNC-spun ribbed discs with rolled edges add strength while helping protect the hose during use.
Made in USA:
Applications:
- Oil and lubrication service: Managing medium-pressure hose for lube rooms, service bays, equipment maintenance areas, and mobile lubrication setups.
- Fleet and truck maintenance: Keeping longer 3/4" hose runs organized on service vehicles, repair trucks, and shop utility stations.
- Industrial maintenance and MRO: Providing controlled hose storage near machinery service points, repair areas, and plant fluid delivery locations.
- Water and utility service: Supporting compatible medium-pressure water applications where the installed hose and fittings match system requirements.
- Manufacturing and fabrication facilities: Reducing loose hose hazards around work cells, production support areas, and general maintenance zones.
FAQs:
- Q: What does “less hose” mean on the SMPL-575?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 3/4" hose separately and should confirm hose outside diameter, pressure rating, temperature rating, and fitting compatibility before installation. - Q: What media can this reel be used with?
A: Coxreels lists this medium-pressure less-hose configuration for air, water, or oil service. The installed hose, fittings, seals, and connected system must all be compatible with the media being handled. - Q: What does the 1,500 PSI rating mean?
A: The reel is rated for service up to 1,500 PSI. The hose, pump, fittings, and connected equipment must remain within that maximum working pressure. - Q: Why choose the SP Series for a 75 ft hose setup?
A: The SP Series is built for larger hose capacities than compact single-pedestal reel styles. Its box-style frame and reinforced construction help support longer hose lengths in fixed or mobile service layouts. - Q: Is this the same as a hose-included model?
A: No. The SMPL-575 is the less-hose version, so it is intended for buyers who want to install their own compatible hose. Choose a hose-included model only when the factory hose specification matches the application.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | INLET/OUTLET N.P.T. | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | |||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1- 1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1- 1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1- 1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose | 1-1/4" | 1- 13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| Please consult factory for reels with hose | 1- 1/4" | 1- 13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 |
| MEDIUM PRESSURE | |||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1- 1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1- 1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1- 1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
