Coxreels SMPL-5100 Single Hose Spring Rewind Hose Reel | SP Series | 3/4" Hose Diameter | 100' Hose Length | 1500 Max PSI | Less Hose

Built for large-volume fluid transfer, maintenance bays, fuel and water delivery setups, and equipment service areas, the Coxreels SMPL-5100 Single Hose Spring Rewind Hose Reel provides storage capacity for 100 ft of 3/4" I.D. hose. Its 1,500 PSI maximum pressure rating supports medium-pressure applications where a larger hose diameter is needed for higher flow. As a less hose model, this reel lets the buyer choose the hose material, fitting style, pressure rating, and media compatibility required for the installation. Part of the Coxreels SP Series, the SMPL-5100 is built for single product delivery applications that require larger hose diameters and longer hose runs. The reinforced box-style steel frame uses cross supports at all four corners for strength and stability, while the spring rewind mechanism helps keep hose stored neatly between transfer, washdown, fueling, or service tasks. With its 3/4" hose capacity and 100 ft reach, this reel is well suited for shops, yards, service skids, and industrial maintenance locations where hose control and volume delivery both matter.

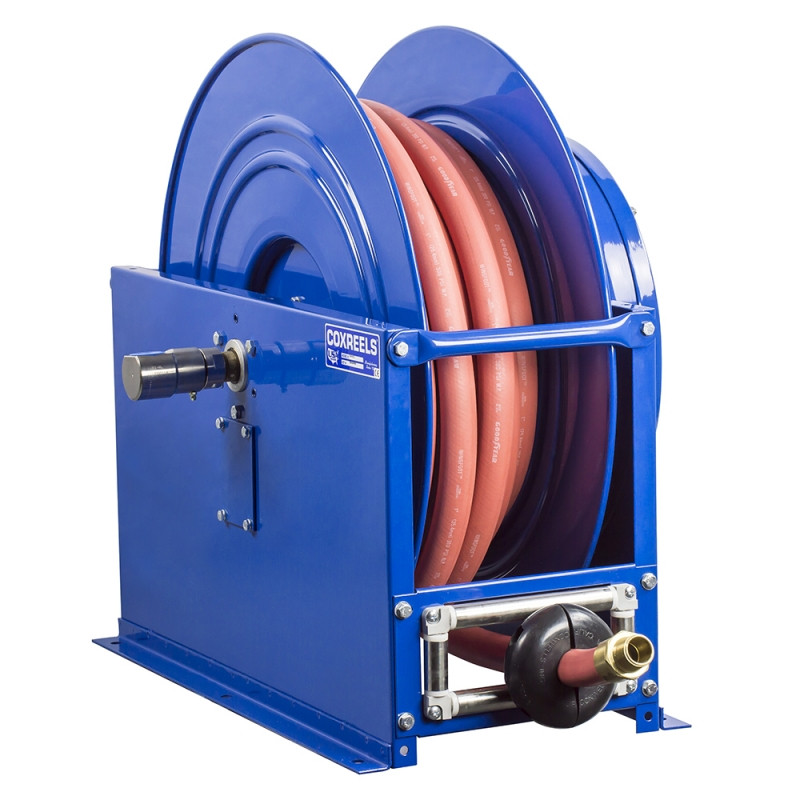

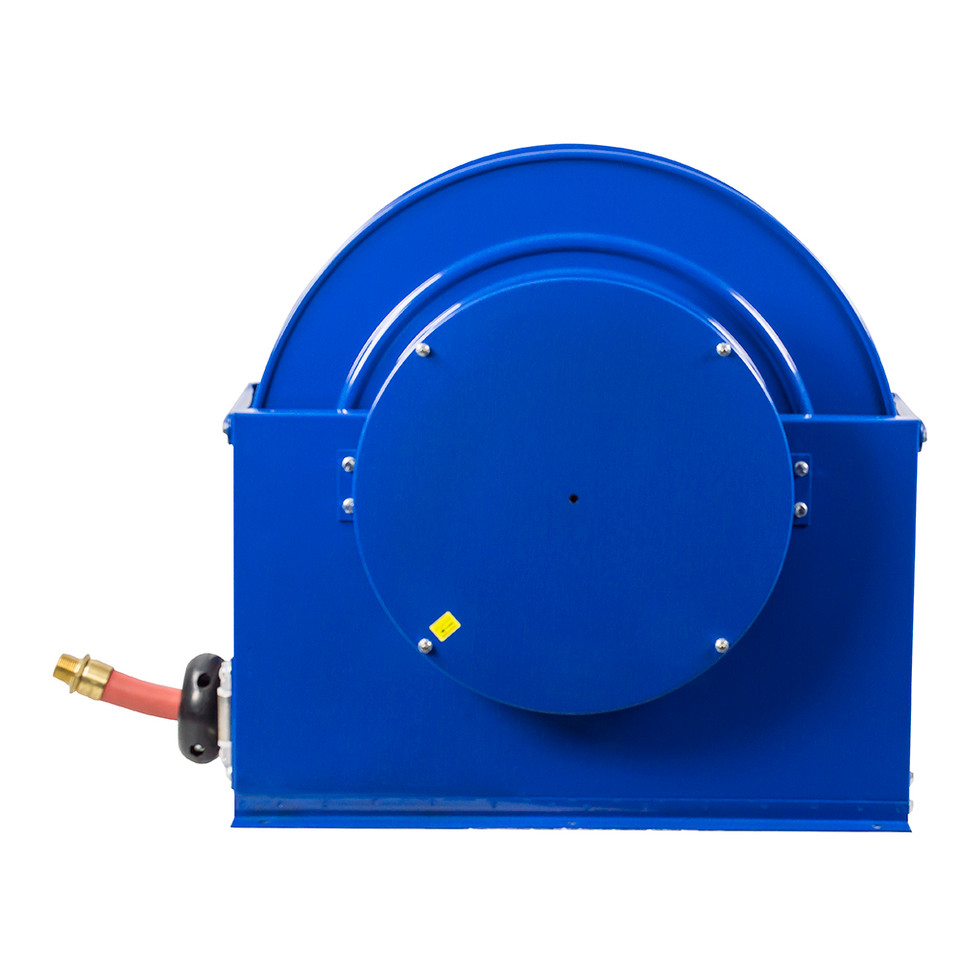

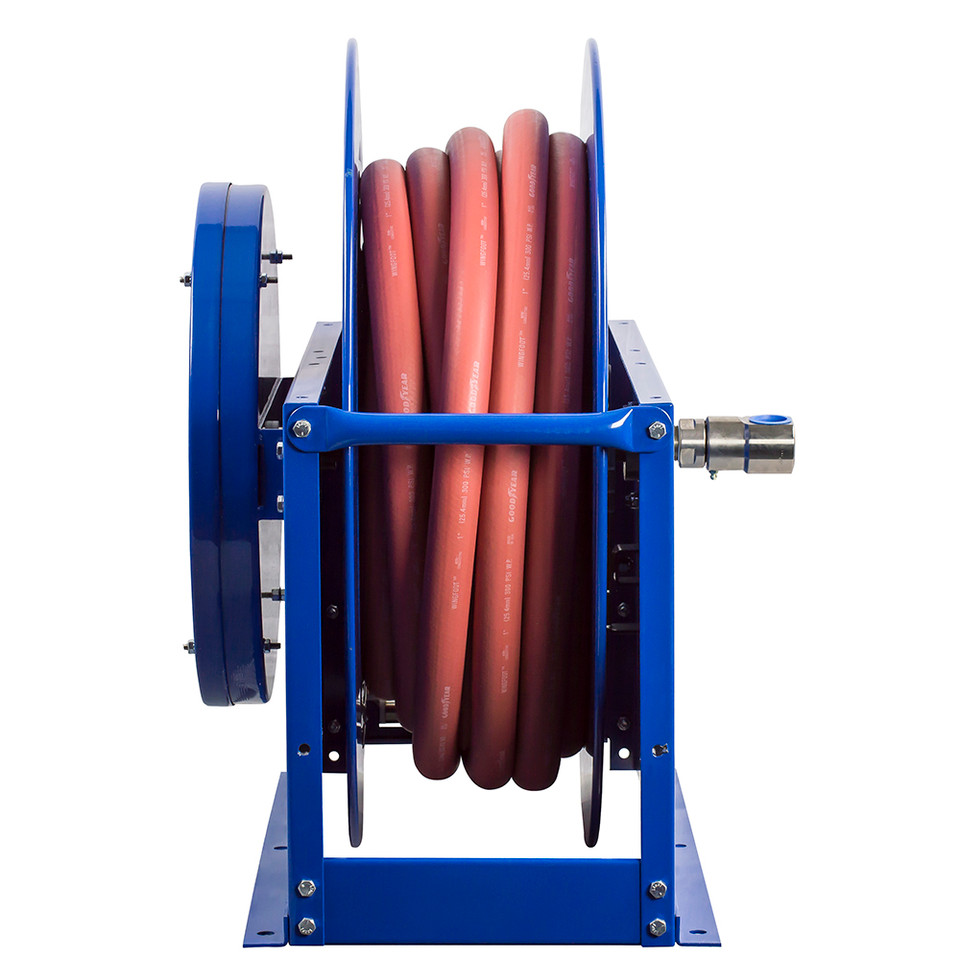

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 100 ft | Max Pressure: 1,500 PSI | Swivel Material: Brass | Swivel Seals: Nitrile | Max Temperature: 250°F | Approx. Ship Weight: 126 lbs

Features:

• SP Series Single Product Delivery design accommodates larger hose diameters for higher-volume fluid handling applications.
• Less hose configuration allows the user to install a compatible 3/4" hose selected for the required media, fittings, temperature range, and working pressure.
• Spring rewind operation helps return hose to the reel after use, reducing loose hose on the floor and keeping work areas better organized.
• Reinforced box-style steel frame includes cross supports at all four corners for added rigidity and stability.
• Heavy-gauge steel base provides a solid mounting platform for floor, wall, vehicle, bench, or overhead installations.
• Machined from solid brass 90° full-flow NPT swivel inlet supports efficient flow through the reel body.
• Nitrile swivel seals support compatible medium-pressure fluid service when used within the reel’s pressure, temperature, and media ratings.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during transfer, service, or maintenance tasks.

Made in USA:

2 Year Warranty

Applications:

• Fuel and fluid transfer stations requiring 3/4" hose capacity and organized spring rewind storage.
• Industrial maintenance areas where long hose runs are needed for service, transfer, washdown, or equipment support tasks.
• Fleet yards and service shops managing higher-flow hose around vehicles, machinery, tanks, or maintenance bays.
• Construction, agricultural, and utility service locations where a large-capacity reel helps keep hose stored between jobs.
• Plant MRO departments standardizing hose separately while using a reinforced SP Series reel for storage and deployment.

FAQs:

• Q: Does the Coxreels SMPL-5100 include hose?
  A: No. This is a less hose model, meaning the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose separately and confirm the hose pressure rating, outside diameter, fittings, temperature range, and media compatibility.
• Q: What is the SP Series used for?
  A: Coxreels SP Series reels are built for single product delivery applications using larger hose diameters. They are commonly used where higher flow volume is needed in low-to-medium pressure transfer or service work.
• Q: Is the SMPL-5100 a high-pressure hydraulic reel?
  A: No. This model is rated for 1,500 PSI and is intended for compatible medium-pressure service. For grease or hydraulic applications at several thousand PSI, choose a Coxreels high-pressure reel with the correct hose, seals, and pressure rating.
• Q: Why choose a less hose reel instead of a reel with hose included?
  A: A less hose reel is useful when the facility already has a preferred hose type, needs a specific fitting configuration, or must match site requirements for media compatibility, abrasion resistance, temperature, or color coding.
• Q: How much hose can this reel hold?
  A: The SMPL-5100 is listed for up to 100 ft of 3/4" I.D. hose with a 1-1/16" outside diameter. Using hose with a larger outside diameter may reduce the amount of hose that fits on the reel.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
