Built for high-volume hose handling in shops, service areas, washdown stations, and bulk fluid delivery setups, the Coxreels SMPL-550 Single Hose Spring Rewind Hose Reel provides capacity for a compatible 3/4" I.D. hose up to 50 ft. As part of the SP Series, this reel is made for larger hose diameters where fluid volume and hose management matter more than compact reel size. Rated for 1,500 PSI, the SMPL-550 is a less hose reel for buyers who want to install their own compatible hose for medium pressure service. Its reinforced box-style frame, heavy gauge steel base, stainless steel pinch-proof rollers, brass full-flow swivel, cartridge-style spring motor, and multi-position lock ratchet help keep large hose organized, protected, and ready for repeated pull-and-rewind use in industrial, vehicle service, water handling, and maintenance environments.

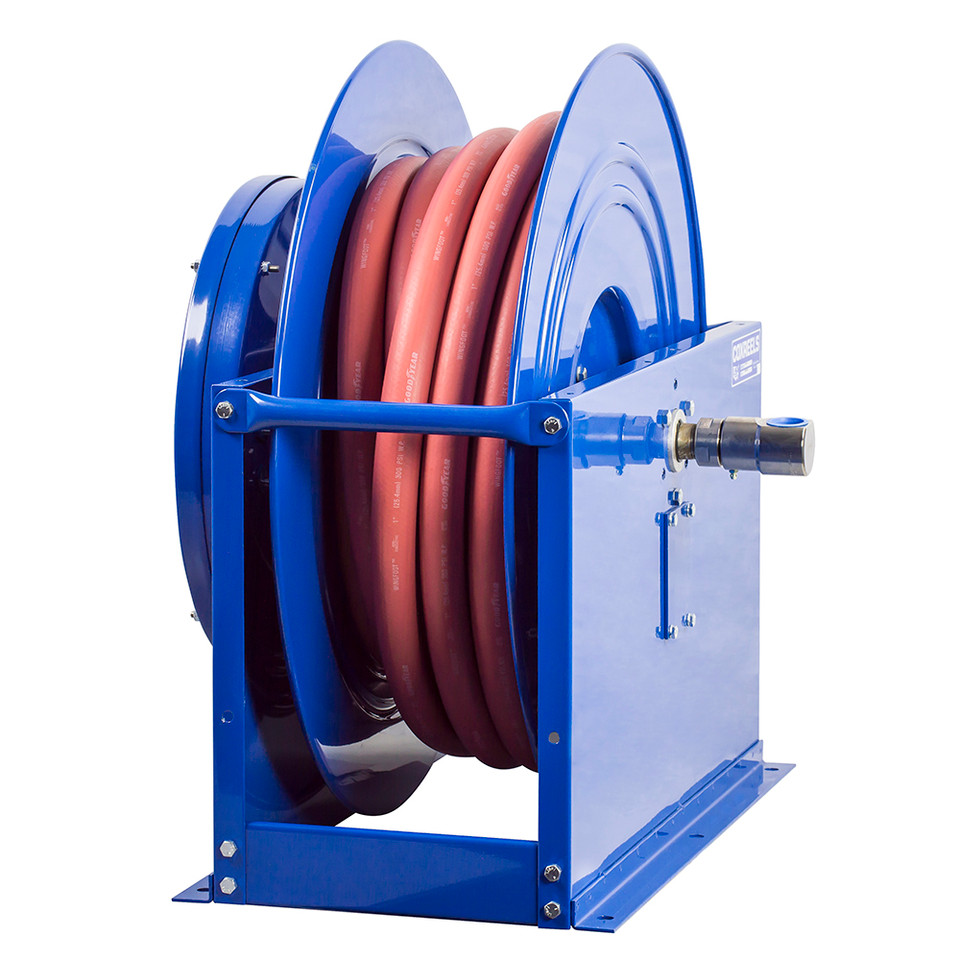

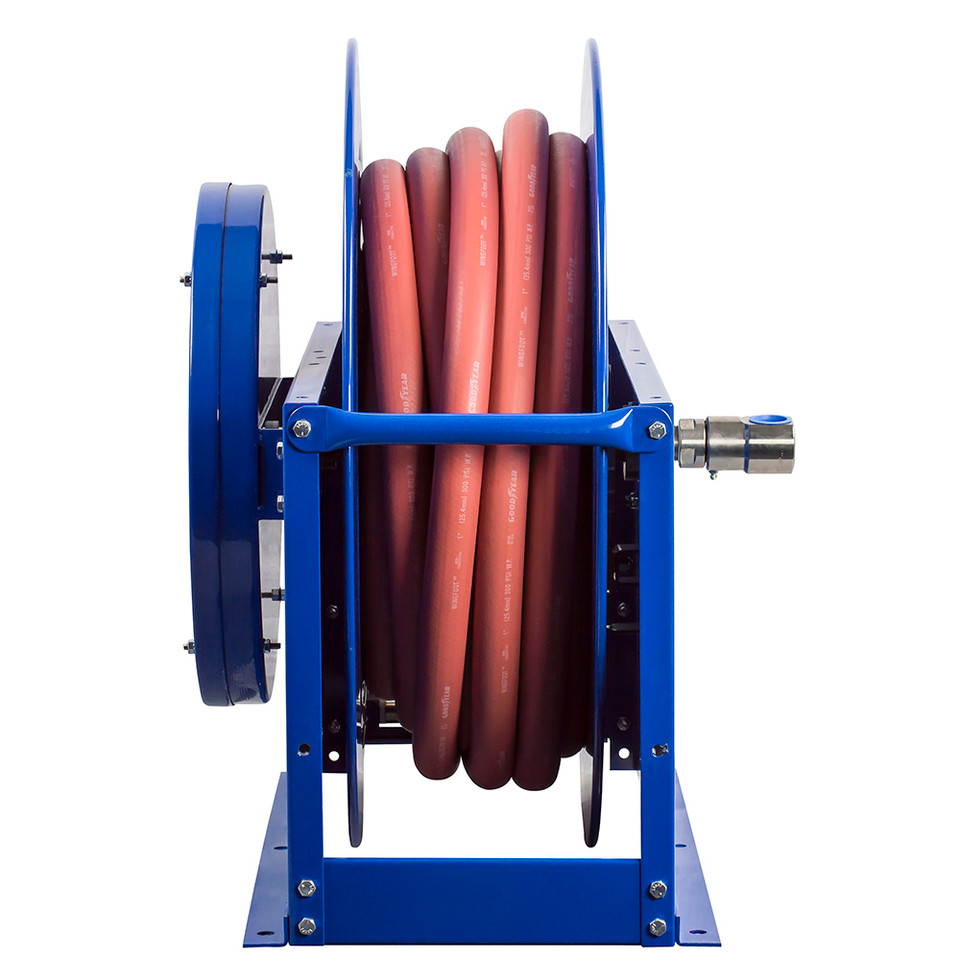

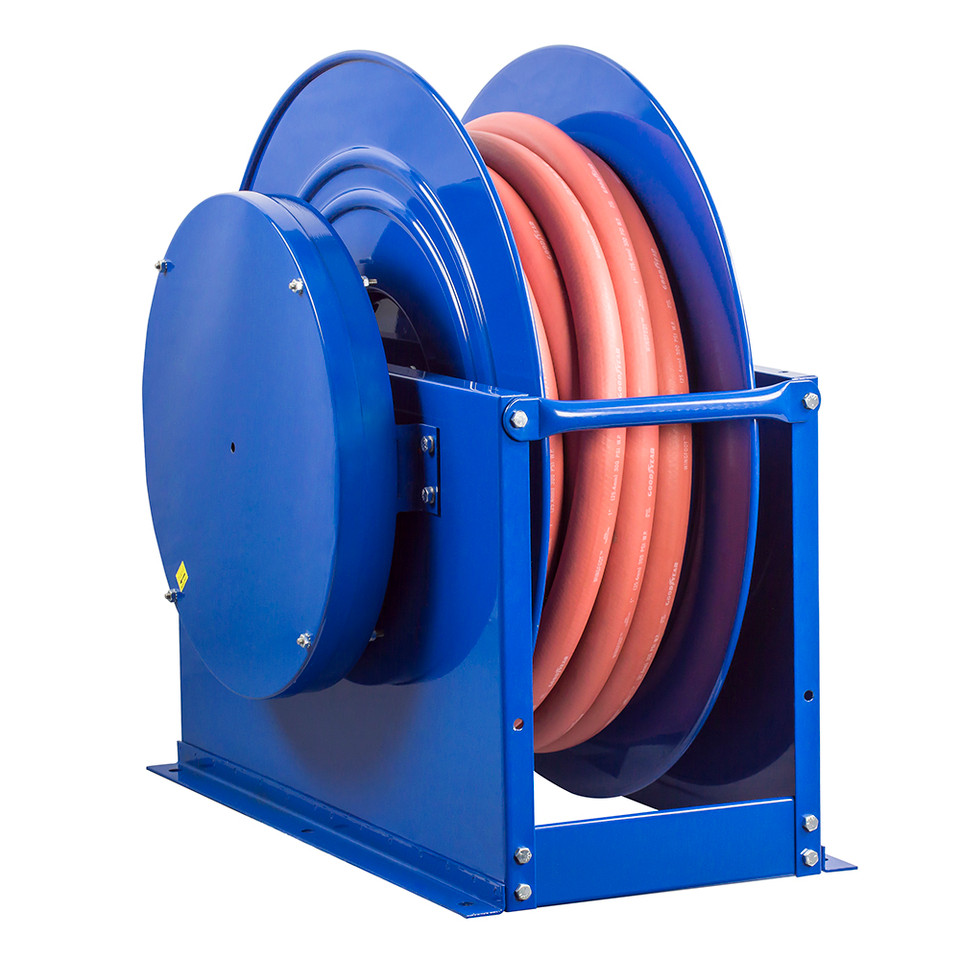

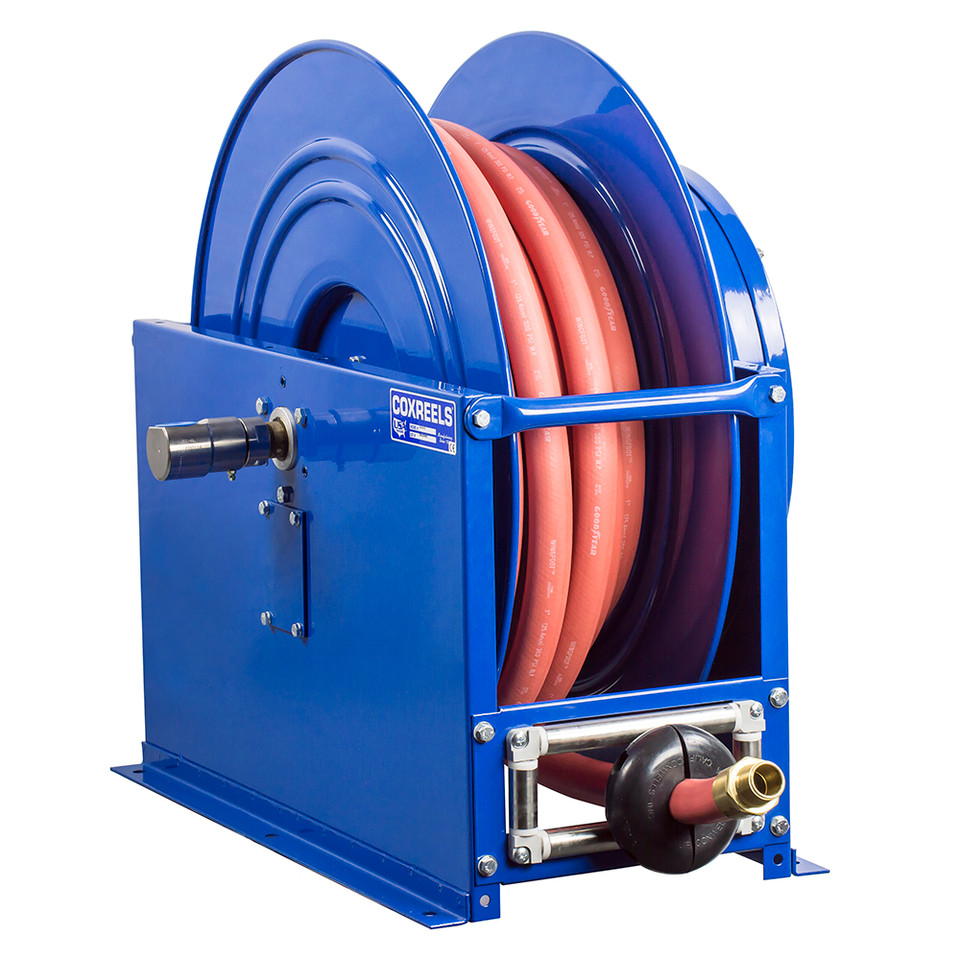

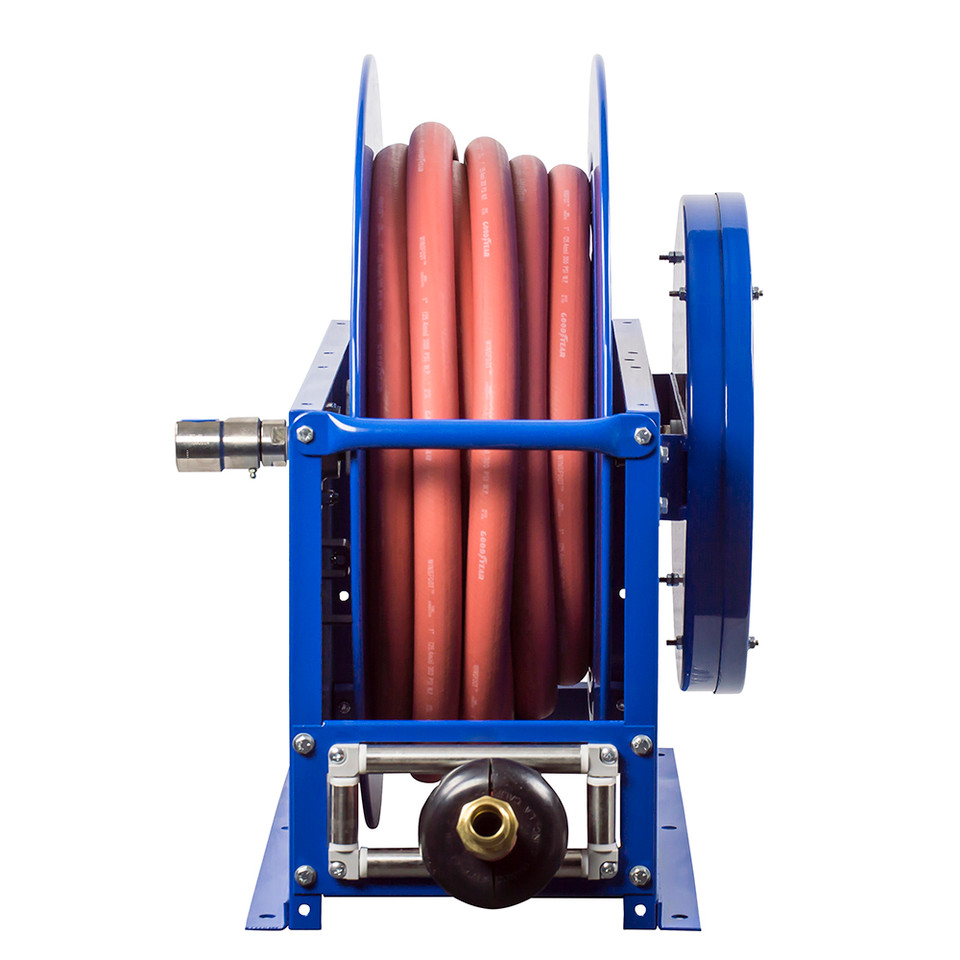

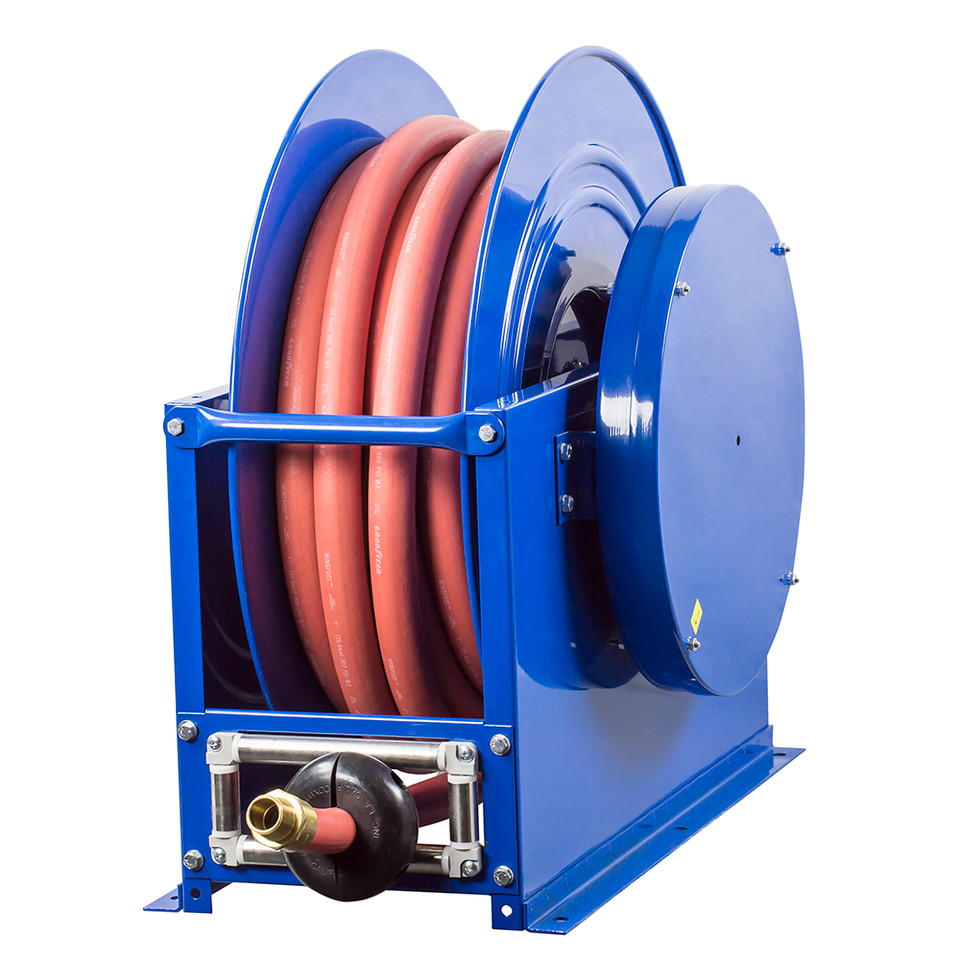

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Model: SMPL-550 | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Capacity: 50 ft | Max Pressure: 1,500 PSI | Hose Included: No | Inlet: 3/4" FNPT | Swivel Material: Machined Brass | Swivel Seals: Nitrile | Approx. Ship Weight: 89 lbs
Features:
- SP Series “Single Product Delivery” design is built to handle larger hose diameters for large-volume delivery in low and medium pressure applications.
- Less-hose configuration lets the buyer install a compatible 3/4" hose selected for the application’s pressure, fluid, temperature, and fitting requirements.
- Sturdy box-style frame includes steel cross supports at all four corners for added strength and rigidity.
- Machined from solid brass 90° full-flow NPT swivel inlet supports efficient fluid movement through the reel.
- Nitrile swivel seals support compatible air, water, oil, fuel, and other approved fluid service when matched with the proper hose.
- Adjustable reel mounting supports wall, floor, vehicle, and overhead positions to match the hose pull direction in the work area.
- Heavy gauge 1/4" steel base and reinforced steel frame provide a stable mounting structure for large-diameter hose.
- Long-lasting self-lubricated flange bearings support smooth reel rotation during payout and rewind.
- Heavy duty 1" stainless steel pinch-proof rollers help guide the hose and reduce pinch points during handling.
- Enclosed factory tuned and matched cartridge-style spring motor supports consistent spring rewind operation.
- Cast iron lock ring with non-sparking bronze pawl and multi-position lock ratchet secures the hose at the desired working length.
Made in USA:
Applications:
- High-volume water handling — organizing 3/4" hose for wash areas, utility water points, equipment cleanup, and general plant service.
- Bulk liquid transfer — supporting hose storage for fluid delivery stations where a larger hose diameter helps move more volume per minute.
- Industrial MRO departments — keeping large hose stored off floors near maintenance bays, pumps, tanks, compressors, or utility hookups.
- Vehicle and fleet service areas — mounting a reel for water, oil, or compatible service fluids around trucks, trailers, and shop equipment.
- Construction and agricultural operations — managing hose on fixed workstations, service skids, or maintenance trailers where hose reach and rewind control are needed.
FAQs:
- Q: What does “less hose” mean on the Coxreels SMPL-550?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 3/4" I.D. hose that matches the reel capacity, 1,500 PSI pressure rating, fluid type, fittings, and temperature requirements. - Q: What is the SP Series used for?
A: Coxreels SP Series reels are built for single product delivery with larger hose diameters. They are commonly used where large-volume fluid delivery is needed in low or medium pressure applications, such as water, fuel, oil, or other compatible fluids. - Q: Is this reel supplied with hose like the SMP-550?
A: No. The SMPL-550 is the less-hose version. The SMP-550 is the related model supplied with hose, while the SMPL-550 is intended for customers who want to install their own compatible hose. - Q: Can this reel be mounted on a vehicle or service skid?
A: Yes. The reel can be adjusted for wall, floor, vehicle, and overhead mounting positions. The mounting surface must be strong enough to support the reel, hose, fluid load, and pull forces created during use. - Q: Can the SMPL-550 be used for fuel or oil?
A: The SP Series is used in large-volume low and medium pressure applications such as fuel and water, and this model uses nitrile seals and a brass swivel. Always verify the selected hose, fittings, seals, and fluid compatibility before installing the reel in fuel, oil, or specialty fluid service.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | INLET/OUTLET N.P.T. | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | |||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1- 1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1- 1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1- 1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose | 1-1/4" | 1- 13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| Please consult factory for reels with hose | 1- 1/4" | 1- 13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 |
| MEDIUM PRESSURE | |||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1- 1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1- 1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1- 1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
