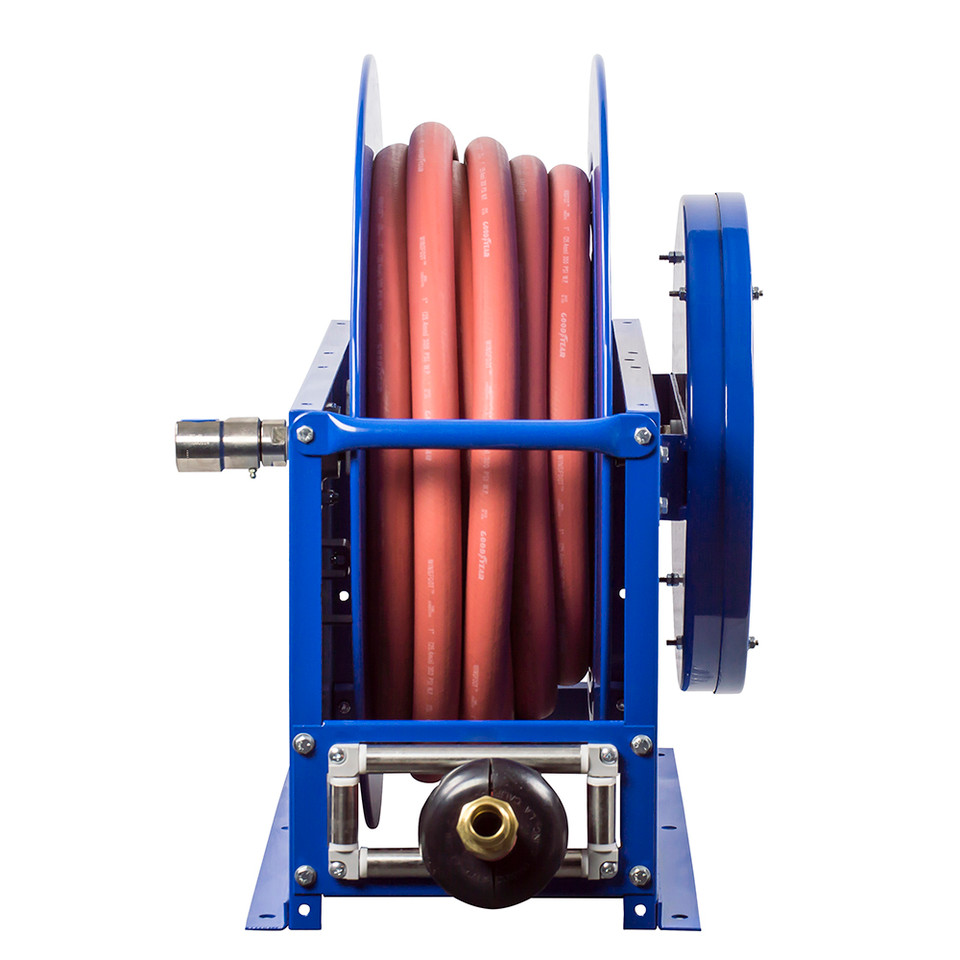

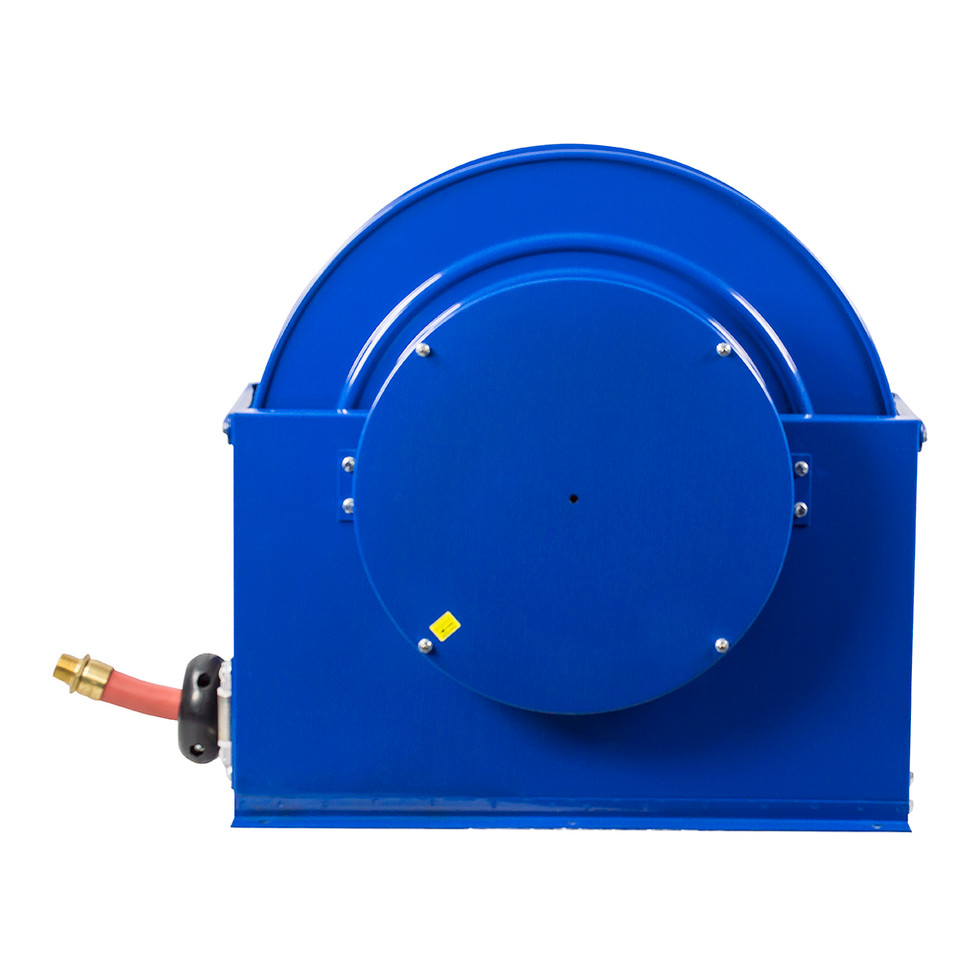

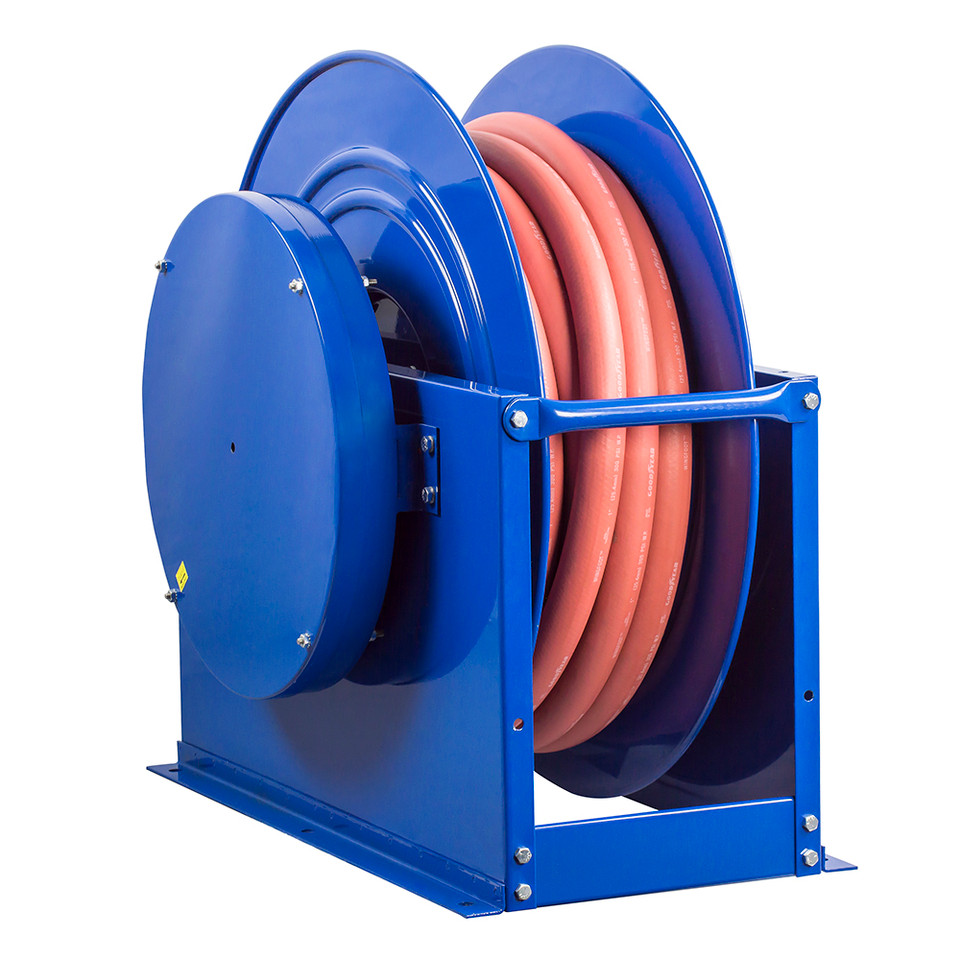

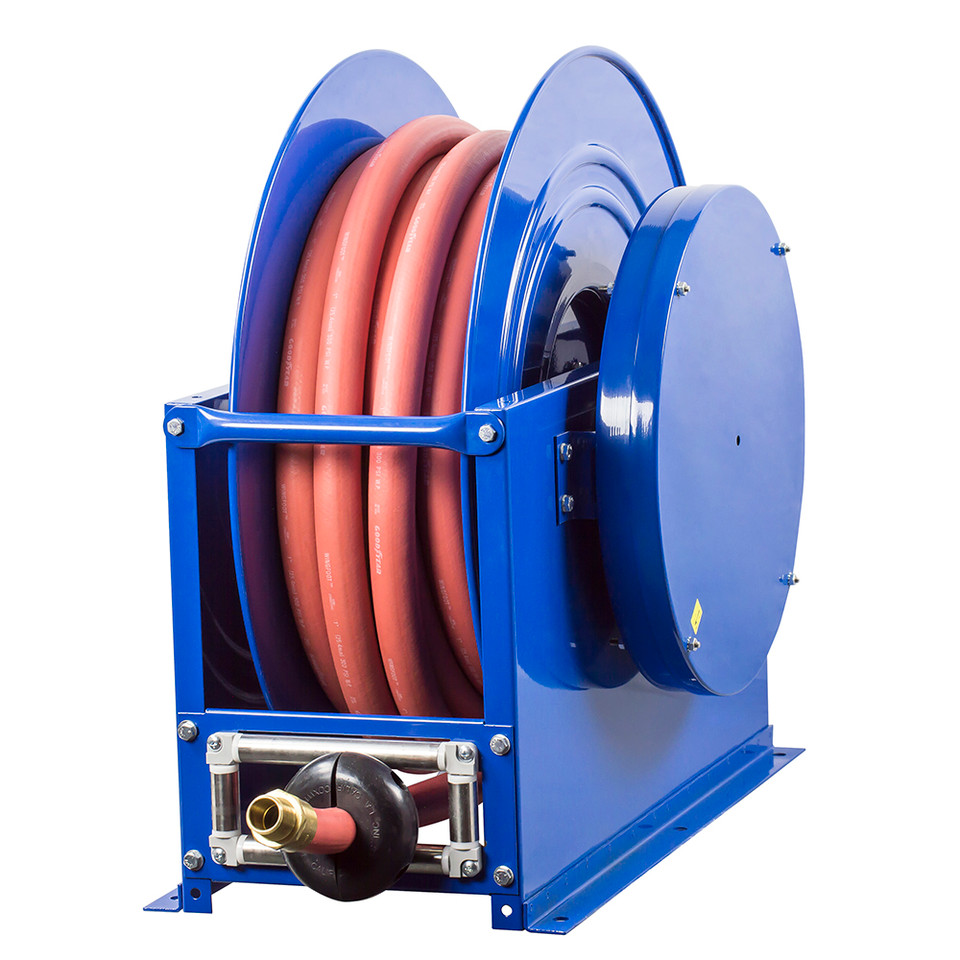

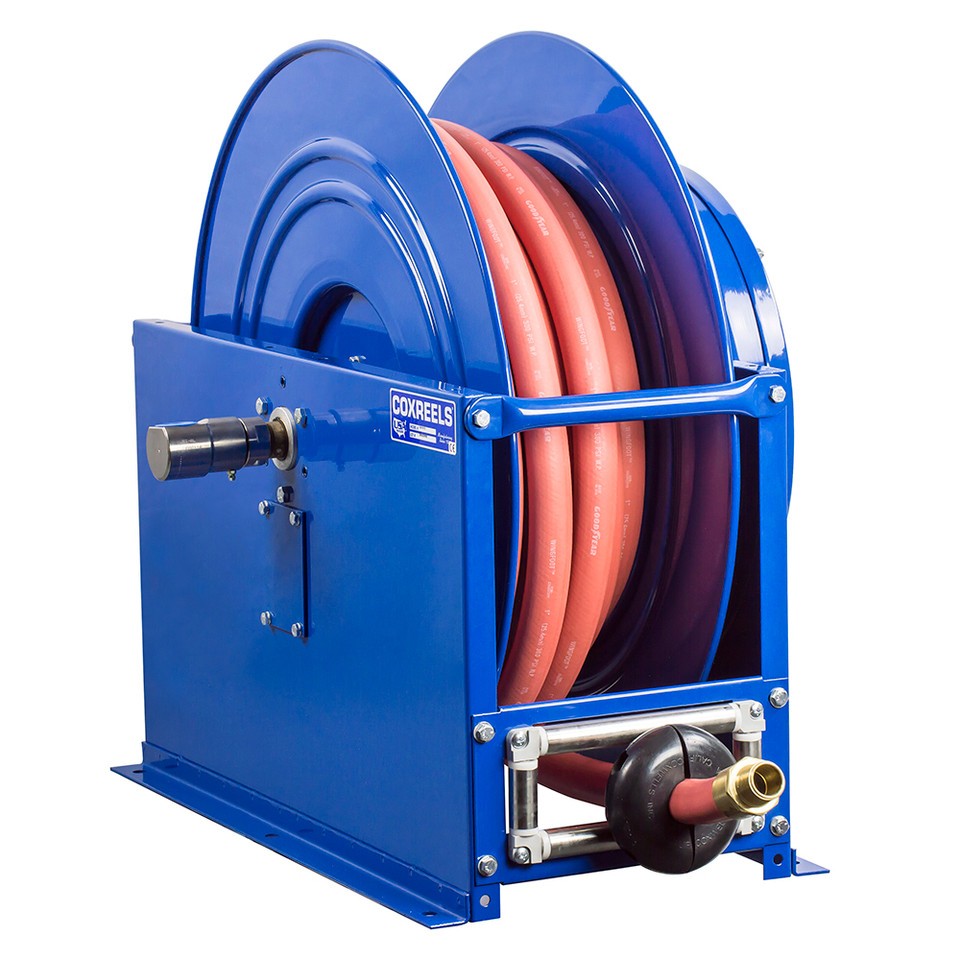

Built for medium-pressure bulk fluid handling, service truck plumbing, fuel delivery setups, and plant utility stations, the Coxreels SMPL-625 Single Hose Spring Rewind Hose Reel gives buyers an SP Series reel body for larger 1" hose applications where hose selection must be matched to the job. This less hose model is sized for 1" hose I.D., supports up to 25 ft hose capacity, and carries a 2,000 PSI maximum pressure rating, giving maintenance teams a reel-only platform for building a hose system around specific media, fittings, and installation requirements. The SP Series is Coxreels’ “Single Product Delivery” reel family for large-diameter hose management. Its box-style steel frame and wide mounting footprint help support larger hose loads during payout and spring rewind. Because the SMPL-625 is supplied without hose, it is especially useful when the installer needs to select hose construction, pressure rating, end connections, and fluid compatibility separately for fuel, water, or other approved service applications.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP Series | Model: SMPL-625 | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-3/8" | Hose Capacity: 25 ft | Max Pressure: 2,000 PSI | Hose Included: No | Inlet: 1" FNPT | Seal Material: AFLAS | Swivel Material: Nickel Plated Steel | Max Temperature: 250°F | Approx. Weight: 92 lbs.
Features:
- SP Series “Single Product Delivery” construction supports large-diameter hose used for medium-pressure transfer and dispensing applications.
- Less hose configuration lets the buyer choose the correct 1" hose material, fittings, pressure rating, and media compatibility for the installation.
- Spring rewind mechanism helps return hose to the reel after use, reducing loose hose around trucks, skids, service bays, and plant work areas.
- Box-style steel frame provides a stable reel structure for handling larger hose diameters and higher hose weight than smaller shop reels.
- AFLAS seals support compatible medium-pressure fluid service when paired with the proper hose and system components.
- Nickel plated steel swivel supports the reel’s medium-pressure configuration and fluid path.
- 1" FNPT inlet accommodates larger-flow plumbing compared with smaller hose reel configurations.
- Powder-coated steel finish helps protect the reel body in shop, service vehicle, and industrial utility environments.
Made in USA:
Applications:
- Fuel delivery and transfer setups — managing 1" hose on fixed or mobile systems when the hose and fittings are selected for the fluid being handled.
- Water transfer and utility service — keeping larger hose organized near pumps, tanks, wash areas, and plant service points.
- Lube skids and service trucks — adding spring rewind hose storage to mobile equipment where loose hose can interfere with service work.
- Industrial maintenance areas — supporting medium-pressure hose management for facility utility work, bulk handling, and fluid transfer stations.
- Construction, fleet, and equipment support — storing hose on trailers, mechanic trucks, and maintenance skids where organized payout and rewind are needed.
FAQs:
- Q: Does the Coxreels SMPL-625 include hose?
A: No. The SMPL-625 is supplied less hose. The buyer must provide compatible 1" I.D. hose separately and verify hose outside diameter, pressure rating, fittings, temperature range, and media compatibility before installation. - Q: What does the 2,000 PSI rating mean?
A: The reel is rated for a maximum working pressure of 2,000 PSI. The installed hose, fittings, and connected equipment must also be rated for the application, and the lowest-rated component should determine the safe operating limit. - Q: What is the SP Series used for?
A: The SP Series is Coxreels’ large-hose “Single Product Delivery” reel family. It is commonly used where larger hose diameters are needed for fuel, water, and compatible fluid handling applications. - Q: Why choose a less-hose reel instead of a hose-equipped reel?
A: A less-hose reel gives the installer control over hose material, fitting style, pressure rating, and fluid compatibility. This is useful for fleets or facilities that standardize on a specific hose type. - Q: What should be checked before mounting this reel?
A: Confirm that the mounting surface can support the reel, selected hose, and operating pull forces. Use the listed base and mounting dimensions to verify bolt pattern, clearance, and hose payout direction.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | INLET/OUTLET N.P.T. | APRX. LBS. | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE | |||||||||
| SLP-4100 | 1/2" | 3/4" | 100 | 300 | 1/2" | 111 | SLPL-4100 | 96 | 1 |
| SLP-550 | 3/4" | 1- 1/16" | 50 | 300 | 3/4" | 99 | SLPL-550 | 86 | 2 |
| SLP-575 | 3/4" | 1- 1/16" | 75 | 300 | 3/4" | 136 | SLPL-575 | 117 | 3 |
| SLP-5100 | 3/4" | 1- 1/16" | 100 | 300 | 3/4" | 151 | SLPL-5100 | 126 | 3 |
| SLP-625 | 1" | 1-1/2" | 25 | 300 | 1" | 106 | SLPL-625 | 90 | 4 |
| SLP-650 | 1" | 1-1/2" | 50 | 300 | 1" | 139 | SLPL-650 | 109 | 5 |
| SLP-675 | 1" | 1-1/2" | 75 | 300 | 1" | 193 | SLPL-675 | 148 | 6 |
| Please consult factory for reels with hose | 1-1/4" | 1- 13/16" | 25 | 250 | 1-1/2"** | - | SLPL-725 | 110 | 7 |
| Please consult factory for reels with hose | 1- 1/4" | 1- 13/16" | 50 | 250 | 1-1/2"** | - | SLPL-750 | 123 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 25 | 250 | 1-1/2" | - | SLPL-825 | 107 | 7 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 35 | 250 | 1-1/2" | - | SLPL-835 | 128 | 8 |
| Please consult factory for reels with hose | 1- 1/2" | 2- 1/16" | 50 | 250 | 1-1/2" | - | SLPL-850 | 138 | 9 |
| MEDIUM PRESSURE | |||||||||
| SMP-4100 | 1/2" | 13/16" | 100 | 2,500 | 1/2" | 139 | SMPL-4100 | 113 | 1 |
| SMP-550 | 3/4" | 1- 1/16" | 50 | 1,500 | 3/4" | 109 | SMPL-550 | 89 | 2 |
| SMP-575 | 3/4" | 1- 1/16" | 75 | 1,500 | 3/4" | 151 | SMPL-575 | 121 | 3 |
| SMP-5100 | 3/4" | 1- 1/16" | 100 | 1,500 | 3/4" | 165 | SMPL-5100 | 126 | 3 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 25 | 2,000 | 1" | - | SMPL-625 | 92 | 4 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 50 | 2,000 | 1" | - | SMPL-650 | 110 | 5 |
| Please consult factory for reels with hose | 1" | 1-3/8" | 75 | 2,000 | 1" | - | SMPL-675 | 135 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
